FEATURES OF YOUR HYUNDAI
85
HEATING AND VENTILATIONB670A01GK-GATRotary Type (If Installed)1. Temperature control switch
2. Air intake control switch
3. Air flow control switch
4. Air Conditioning switch
5. Fan speed control switch
6. Rear window defroster switch
OGK046038NB670B01GK-AAT
Fan Speed Control (Blower Control)This is used to select the fan speed.
This blower fan speed, and therefore the vol-
ume of air delivered from the system, may be
controlled manually by setting the blower con-
trol between the "1" and "4" positions.
OGK046045NB670E02A-AAT
Temperature ControlThis control is used to adjust the degree of
heating or cooling desired.Cool
OGK046043
Warm
gkflhma-1b.p659/12/2006, 3:18 PM 85

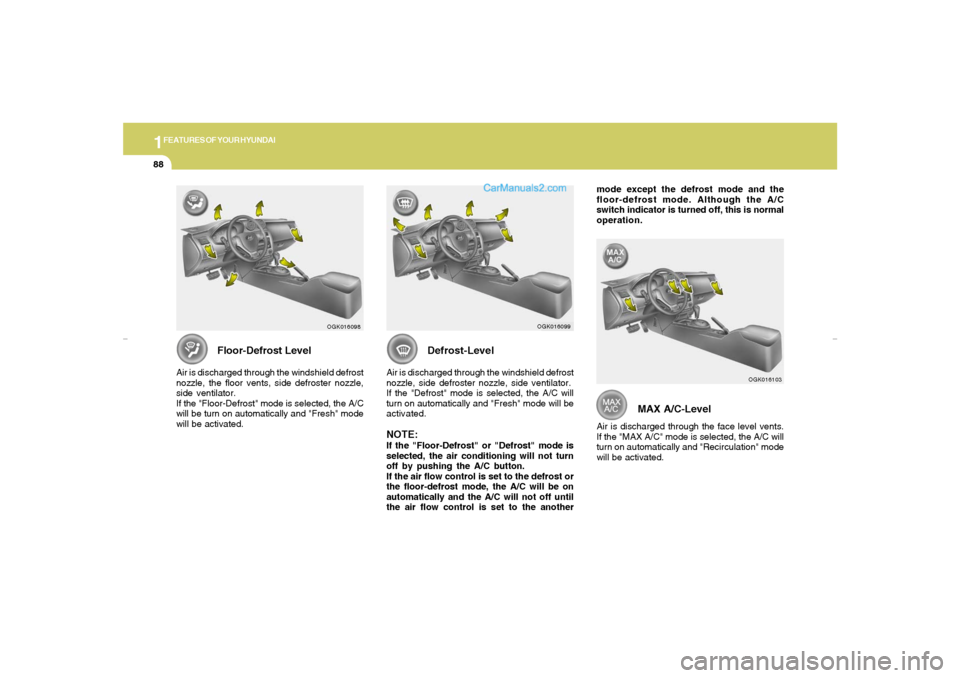

1FEATURES OF YOUR HYUNDAI88
MAX A/C-Level
Air is discharged through the face level vents.
If the "MAX A/C" mode is selected, the A/C will
turn on automatically and "Recirculation" mode
will be activated.
OGK016103
mode except the defrost mode and the
floor-defrost mode. Although the A/C
switch indicator is turned off, this is normal
operation.
Defrost-Level
Air is discharged through the windshield defrost
nozzle, side defroster nozzle, side ventilator.
If the "Defrost" mode is selected, the A/C will
turn on automatically and "Fresh" mode will be
activated.NOTE:If the "Floor-Defrost" or "Defrost" mode is
selected, the air conditioning will not turn
off by pushing the A/C button.
If the air flow control is set to the defrost or
the floor-defrost mode, the A/C will be on
automatically and the A/C will not off until
the air flow control is set to the another
OGK016099
Floor-Defrost Level
Air is discharged through the windshield defrost
nozzle, the floor vents, side defroster nozzle,
side ventilator.
If the "Floor-Defrost" mode is selected, the A/C
will be turn on automatically and "Fresh" mode
will be activated.
OGK016098
gkflhma-1b.p659/12/2006, 3:18 PM 88

1FEATURES OF YOUR HYUNDAI90
OGK016701N
VENTILATIONB710A01A-AATTo operate the ventilation system:
o Set the air intake control switch at the fresh
air (
) position.
o To direct all intake air to the dashboard vents,
set the airflow control to the face (
) position.
o Adjust the fan speed control to the desired
speed.
o Set the temperature control between "Cool"
and "Warm".
AIR CONDITIONING SYSTEMB740A01S-AATAir Conditioning Switch (If installed)The air conditioning is turned on or off by
pushing the A/C button on the heating/air con-
ditioning control panel.
OGK046047
BI-LEVEL HEATINGB700A02A-AATYour Hyundai is equipped with bi-level heating
controls. This makes it possible to have cooler
air from the dashboard vents and warmer air
from the floor outlets at the same time. To use
this feature:
o Set the air intake control switch to the fresh
air (
) position.
o Set the air flow control at the bi-level (
)
position.
o Adjust the fan speed control to the desired
speed.
o Set the temperature control between "Cool"
and "Warm".
OGK016700N
gkflhma-1b.p659/12/2006, 3:18 PM 90

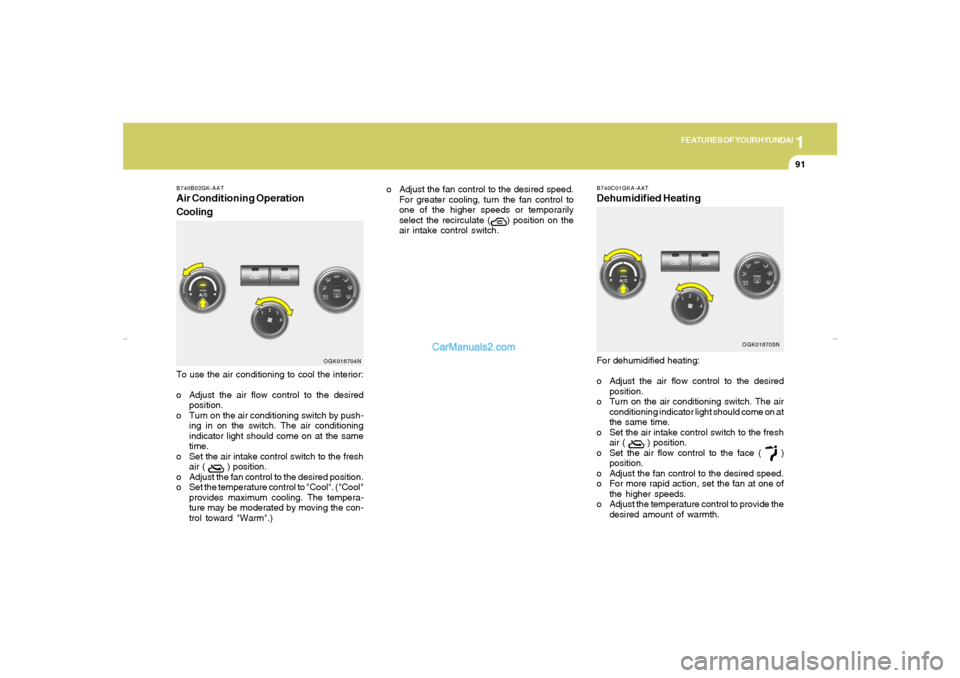

1
FEATURES OF YOUR HYUNDAI
91
To use the air conditioning to cool the interior:
o Adjust the air flow control to the desired
position.
o Turn on the air conditioning switch by push-
ing in on the switch. The air conditioning
indicator light should come on at the same
time.
o Set the air intake control switch to the fresh
air (
) position.
o Adjust the fan control to the desired position.
o Set the temperature control to "Cool". ("Cool"
provides maximum cooling. The tempera-
ture may be moderated by moving the con-
trol toward "Warm".)
B740B02GK-AATAir Conditioning Operation
Cooling
OGK016704N
o Adjust the fan control to the desired speed.
For greater cooling, turn the fan control to
one of the higher speeds or temporarily
select the recirculate (
) position on the
air intake control switch.
B740C01GKA-AATDehumidified HeatingFor dehumidified heating:
o Adjust the air flow control to the desired
position.
o Turn on the air conditioning switch. The air
conditioning indicator light should come on at
the same time.
o Set the air intake control switch to the fresh
air (
) position.
o Set the air flow control to the face (
)
position.
o Adjust the fan control to the desired speed.
o For more rapid action, set the fan at one of
the higher speeds.
o Adjust the temperature control to provide the
desired amount of warmth.
OGK016705N
gkflhma-1b.p659/12/2006, 3:19 PM 91

1FEATURES OF YOUR HYUNDAI92
B740D01A-AATOperation Tipso If the interior of the car is hot when you first
get in, open the windows for a few minutes
to expel the hot air.
o When you are using the air conditioning
system, keep all windows closed to keep hot
air out.
o When moving slowly, as in heavy traffic, shift
to a lower gear. This increases engine speed,
which in turn increases the speed of the air
conditioning compressor.
o On steep grades, turn the air conditioning off
to avoid the possibility of the engine over-
heating.
o During winter months or in periods when the
air conditioning is not used regularly, run the
air conditioning once every month for a few
minutes. This will help circulate the lubri-
cants and keep your system in peak oper-
ating condition.
gkflhma-1b.p659/12/2006, 3:19 PM 92

1FEATURES OF YOUR HYUNDAI94
AUTOMATIC HEATING AND COOLING CONTROL SYSTEMB970A01Y-AAT(If lnstalled)Your Hyundai is equipped with an automatic
heating and cooling control system controlled
by simply setting the desired temperature.TYPE A (Without Air Quality System)B970B03GK-GATHeating and Cooling Controls1. Temperature Control
2. Display Window
3. Blower Fan Control
4. AUTO (Automatic Control)Switch
5. Air Flow Control Switch
6. Air Conditioning Switch
7. Defroster Switch
8. Rear Window Defroster Switch
9. Air lntake Control Switch
10. OFF Switch
11. Air Quality System Switch
(If installed)TYPE B (With Air Quality System)
OGK046057COGK046057L
gkflhma-1b.p659/12/2006, 3:19 PM 94

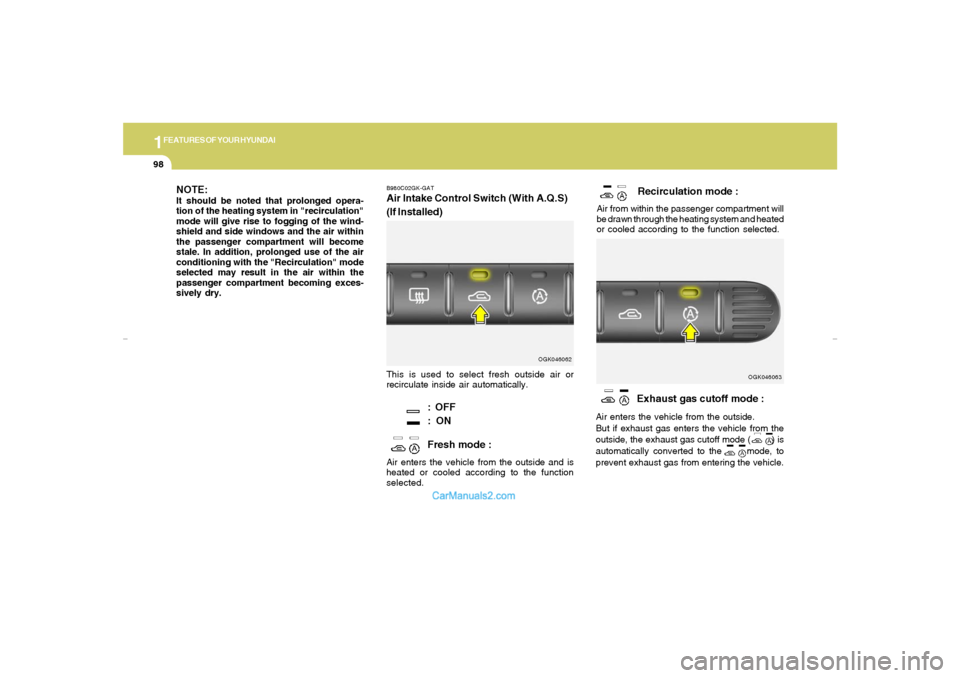

1FEATURES OF YOUR HYUNDAI98
Recirculation mode :
Air from within the passenger compartment will
be drawn through the heating system and heated
or cooled according to the function selected.
B980C02GK-GATAir Intake Control Switch (With A.Q.S)
(If Installed)This is used to select fresh outside air or
recirculate inside air automatically.
: OFF
: ON
Fresh mode :
Air enters the vehicle from the outside and is
heated or cooled according to the function
selected.
OGK046062
NOTE:It should be noted that prolonged opera-
tion of the heating system in "recirculation"
mode will give rise to fogging of the wind-
shield and side windows and the air within
the passenger compartment will become
stale. In addition, prolonged use of the air
conditioning with the "Recirculation" mode
selected may result in the air within the
passenger compartment becoming exces-
sively dry.
Exhaust gas cutoff mode :
Air enters the vehicle from the outside.
But if exhaust gas enters the vehicle from the
outside, the exhaust gas cutoff mode ( ) is
automatically converted to the mode, to
prevent exhaust gas from entering the vehicle.
OGK046063
gkflhma-1b.p659/12/2006, 3:19 PM 98

1
FEATURES OF YOUR HYUNDAI
99
!
B980D01Y-AATHeating and Cooling System Off
CAUTION:
If the windows fog up with the Recircula-
tion or A.Q.S mode selected, set the air
intake control to the Fresh air position or
A.Q.S control to "OFF".NOTE:It should be noted that prolonged opera-
tion of the heating system in recirculation
mode (
) will give rise to misting of the
windshield and side windows and the air
within the passenger compartment will
become stale. In addition, prolonged use of
the air conditioning with the recirculation
mode ( ) selected may result in the air
within the passenger compartment becom-
ing excessively dry.
Press the "OFF" button to stop the operation of
the heating and cooling system.
OGK046067
B740A01S-AATAir Conditioning SwitchThe air conditioning is turned on or off by
pushing the A/C button on the heating/air con-
ditioning control panel.
OGK046065
gkflhma-1b.p659/12/2006, 3:19 PM 99
