1FEATURES OF YOUR HYUNDAI
50
B260M01A-AAT
Low Fuel Level Warning
Light
The low fuel level warning light comes on when the fuel tank is approachingempty. When it comes on, you should add fuel as soon as possible. Driving with the fuel level warning light on orwith the fuel level below "E" can cause the engine to misfire and damage the catalytic converter. B260F01A-AAT High Beam Indicator
Light
The high beam indicator light comes on whenever the headlights are switched to the high beam or flash position.B260K01B-GAT Tail Gate Open Warning
Light
This light remains on unless the tail gate is completely closed. B260L01A-GAT Door Ajar Warning Light
The door ajar warning light warns you that a door is not completely closed.
B260G01A-AAT Low Oil Pressure
Warning Light
CAUTION:
If the oil pressure warning light stays on while the engine is run- ning, serious engine damage may result. The oil pressure warninglight comes on whenever there is insufficient oil pressure. In normal operation, it should come on whenthe ignition switch is turned on,
!
B260J01S-GAT Charging System
Warning Light
The charging system warning light should come on when the ignition isturned on, then go out when the engine is running. If the light stays on while the engine is running, there is a malfunc-tion in the electrical charging system. If the light comes on while you are driv- ing, stop, turn off the engine and checkunder the hood. First, make certain the generator drive belt is in place. If it is, check the tension of the belt.And then, have the system checked by your Hyundai dealer.
CAUTION:
If the drive belt (generator belt) is loosen, broken, or mission while the vehicle is driving, there may be a serious malfunction, engine couldoverheat because this belt also drives the water pump.
!

1
FEATURES OF YOUR HYUNDAI
51
then go out when the engine is started. If the oil pressure warning light stays on while the engine isrunning, there may be a serious malfunction. If this happens, stop the car assoon as it is safe to do so, turn off the engine and check the oil level. If the oil level is low, fill the engine oilto the proper level and start the engine again. If the light stays on with the engine running, turn theengine off immediately. In any in- stance where the oil light stays on when the engine is running, theengine should be checked by an authorized Hyundai dealer before the car is driven again.
B260N02FC-GAT Malfunction Indicator
Light (If installed)
This light illuminates when there is a malfunction of an exhaust gas relatedcomponent, and the system is not functioning properly so that the ex- haust gas regulation values are notsatisfied. This light will illuminate when the ignition key is tuned to the "ON" position, and then it will go out after theengine start. If it illuminates while driv- ing, or does not illuminate when the ignition key is turned to the "ON" posi-tion, take your car to your nearest authorized Hyundai dealer and have the system checked.B260E01HP-GAT Seat Belt Warning Light (If installed)
The seat belt warning light blinks for about 6 seconds when the ignition keyis turned from the "OFF" position to "ON" or "START".

1FEATURES OF YOUR HYUNDAI
52
!
B260P02Y-GAT
ABS Service Reminder Indicator (SRI)(If installed)
When the key is turned to the "ON" position, the Anti-Lock Brake System indicator will come on and then go offin a few seconds. If the ABS SRI remains on, comes on while driving, or does not come on when the key isturned to the "ON" position, this indi- cates that there may be a problem with the ABS.If this occurs, have your vehicle checked by your Hyundai dealer as soon as possible. The normal brakingsystem will still be operational, but without the assistance of the anti-lock brake system.
WARNING:
If the both ABS SRI and Parking Brake/Brake fluid level warninglights remain "ON" or come on while driving, there may be a problem with E.B.D (Electronic Brake ForceDistribution). If this occurs, avoid sudden stops and have your vehicle checked byyour Hyundai dealer as soon as possible. B265A01FC-GAT
Fuel Filter Warning Light
(Diesel Engine)
This light illuminates when the engine has started and goes off after a fewseconds. If it lights up while the engine is running, it indicates that water has accumulated inside the fuel filter. If thishappens, remove the water from the fuel filter. (Refer to "6-34 page")

1
FEATURES OF YOUR HYUNDAI
53
B900A01A-GAT LIGHTS ON WARNING SOUND (If Installed) The warning chime sounds when the tail lights are on and the driver sidedoor is open. This prevents the battery from discharging by warning you when the car is left with the tail lights on. Thechime sounds until the tail lights are turned off. B270B02O-GAT PARKING START WARNING SOUND (If installed) If the vehicle is driven at 10km/h(6mph) for more than 2~3 seconds, the warn- ing chime will sound continuously when the parking brake engaged. B270A01A-AAT BRAKE PAD WEAR WARNING SOUND The front disc brake pads have wear indicators that should make a high-pitched squealing or scraping noise when new pads are needed. The sound may come and go or be heard all thetime when the vehicle is moving. It may also be heard when the brake pedal is pushed down firmly. Exces-sive rotor damage will result if the worn pads are not replaced. See your Hyundai dealer immediately.
B950A01E-GAT REAR FOG AUDIBLE WARNING SOUND (If Installed) The rear fog audible warning chime sounds when the rear fog lights are onand the door in driver side is open.
B260S01B-GAT
Diesel Pre-heat Indicator
Light (Diesel Engine)
The indicator light illuminates amberwhen the ignition switch is placed atthe "ON" position. The engine can be started after the pre-heat indicator light goes off. The illuminating time varieswith the water temperature, air tem- perature and battery condition. NOTE: If the engine were not started 10 seconds after the preheating is com- pleted, turn the ignition key once more to the "LOCK" position, andthen to the "ON" position, in order to preheat again.

1FEATURES OF YOUR HYUNDAI
54
!
B280A01A-AAT FUEL GAUGE The needle on the gauge indicates the approximate fuel level in the fuel tank. B290A02E-AAT ENGINE COOLANT TEMPERA- TURE GAUGE
HFC2045 HFC2101
WARNING:
Never remove the radiator cap when the engine is hot. The engine cool- ant is under pressure and coulderupt and cause severe burns. Wait until the engine is cool before re- moving the radiator cap. The needle on the engine coolant tem-perature gauge should stay in themiddle between "H" and "C". If it moves across the dial to "H" (Hot), pull over and stop as soon as possible and turnoff the engine. Then open the hood and after the engine has cooled, check the coolant level and the water pumpdrive belt. If you suspect cooling sys- tem trouble, have your cooling system checked by a Hyundai dealer as soonas possible.
INSTRUMENT CLUSTER

1
FEATURES OF YOUR HYUNDAI
55
CAUTION:
The engine should not be raced to such a speed that the needleenters the red zone on the ta-chometer face. This can cause severe engine damage and may void your warranty.!
B300A01A-GAT SPEEDOMETER Your Hyundai's speedometer is cali- brated in kilometers per hour or miles per hour. B330A02A-AAT TACHOMETER The tachometer registers the speed of your engine in revolutions per minute(rpm).Gasoline engine
HFC2044 HFC2043
B330A01FC
Diesel engine

1
FEATURES OF YOUR HYUNDAI

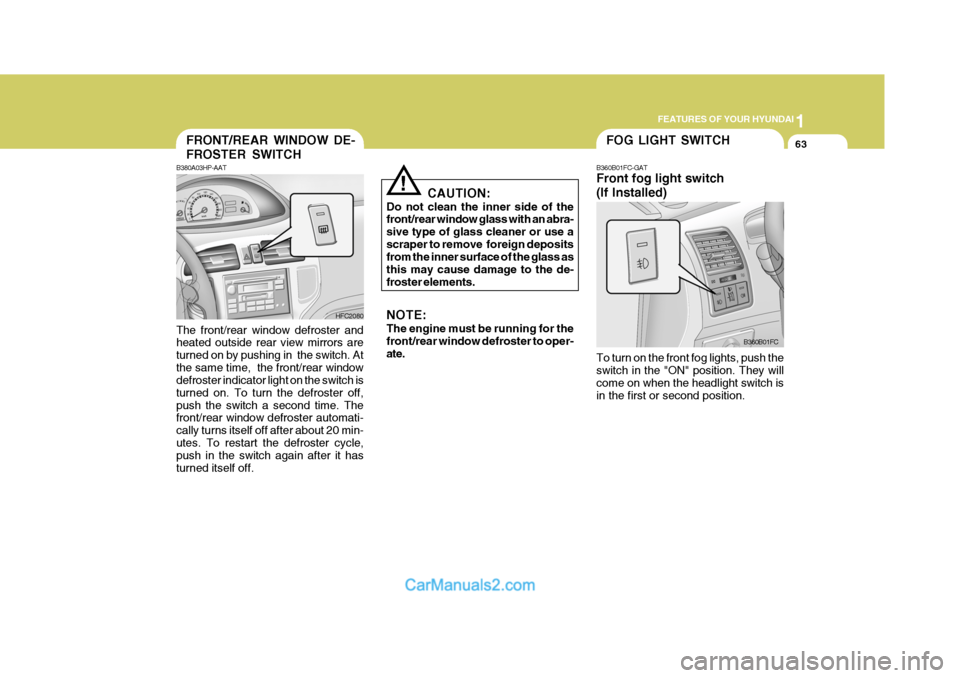

63FOG LIGHT SWITCH
CAUTION:
Do not clean the inner side of the front/rear window glass with an abra- sive type of glass cleaner or use ascraper to remove foreign deposits from the inner surface of the glass as this may cause damage to the de-froster elements. NOTE: The engine must be running for the front/rear window defroster to oper-ate.
! B360B01FC-GAT Front fog light switch (If Installed) To turn on the front fog lights, push the switch in the "ON" position. They will come on when the headlight switch is in the first or second position.B360B01FC
B380A03HP-AAT
HFC2080
FRONT/REAR WINDOW DE- FROSTER SWITCH
The front/rear window defroster and heated outside rear view mirrors are turned on by pushing in the switch. Atthe same time, the front/rear window defroster indicator light on the switch is turned on. To turn the defroster off,push the switch a second time. The front/rear window defroster automati- cally turns itself off after about 20 min-utes. To restart the defroster cycle, push in the switch again after it has turned itself off.

1FEATURES OF YOUR HYUNDAI
66POWER OUTLETASHTRAY
B430A01FC-GAT The ashtray may be opened by pulling the lid up by its top edge. To remove the ashtray to empty or clean it, pull thecover up all the way out. The ashtray light will only illuminate when the exter- nal lights are on. HFC2056
B500D01FC-AAT (If installed) These supply 12V electric power to operate electric accessories or equip- ment only when the key is in the "ON" position.
HFC2042
!
CAUTION:
o Use the power outlet only when the engine is running and remove the plug from the power outlet after using the electric device. Using when the engine stops orkeeping the electric device with plugged in for many hours may cause the battery to discharge.
o Do not use the power outlet to connect electric accessories orequipment that are not designed to operate on 12 volts.
o Some electronic devices can cause electronic interference whenplugged into the power outlet. These devices may cause exces-sive audio noise and malfunctions in other electronic systems or de- vices in your vehicle.
