2007 Hyundai Getz light

1- 60 FEATURES OF YOUR HYUNDAI
OTB048094
B340E01A-AAT Headlight Flasher
To flash the headlights, pull the switch lever toward you, then release it. The headlights can be flashed even thoughthe headlight switch is in the "OFF" position.
B340D01A-AAT High-beam Switch
B340F01A-GATDaytime Running Lights (If Installed) Your Hyundai is equipped with day- time running lights. The daytime run-ning lights are used to improve visibil- ity for oncoming traffic. Your vehicle daytime running lights are designed toremain on continuously when the en- gine is operating even though the head- light switch is in the "OFF" position.However, the daytime running lights will be off while the parking brake is applied. The system automatically turns off the small light when the driver re- moves the ignition key and opensthe driver- side door.
o With this feature, the parklight will be
turned off automatically if the driverparks on the side of road at night.
If necessary, to keep the lights on whenthe ignition key is removed, perform the following :
1) Open the driver-side door.
2) Turn the parklights OFF and ON again using the light switch on thesteering column. To turn on the headlight high beams, push the lever forward (away from you). The high beam indicator light willcome on at the same time. For low beams, pull the lever back toward you.OTB048093

1- 62 FEATURES OF YOUR HYUNDAI
The windshield wiper switch has three positions:
1. Intermittent wiper operation
2. Low-speed operation
3. High-speed operation HTB019ATo use the windshield washer, pull the wiper/washer lever toward the steer- ing wheel. When the washer lever is operated, the wipers automaticallymake two passes across the wind- shield. The washer continues to oper- ate until the lever is released.
B350B01O-GAT Windshield Washer Operation
NOTE: To prevent damage to the wiper system, do not attempt to wipe away heavy accumulations of snow orice. Accumulated snow and ice should be removed manually. If there is only a light layer of snow orice, operate the heater in the defrost mode to melt the snow or ice before using the wiper.
HTB021A
Type A
OTB048901
Type B Type AOTB048906
Type B
B350A01A-AAT Windshield wiper and washer

1- 64 FEATURES OF YOUR HYUNDAI
B370A01A-AAT HAZARD WARNING SYSTEM The hazard warning system should be used whenever you find it necessary to stop the car in a hazardous location.When you must make such an emer- gency stop, always pull off the road as far as possible.The hazard warning lights are turned on by pushing in on the hazard switch. This causes all turn signal lights toblink. The hazard warning lights will operate even though the key is not in the ignition.To turn the hazard warning lights off, push in on the switch a second time.
HTB2031
B350A01TB-AAT Tail Gate Wiper And Washer Switch (If installed)
HTB023A1.
: The washer fluid will be sprayed
onto the rear window and the wiper operates while the rear win-dow wiper barrel is placed in this position.
2. ON (
) : When the point indicates "ON", the rear window wiper operates continu- ously.
3. OFF (0)
With the switch in this position, theinterval between wipes can be varied from approximately 1 to 18 seconds byturning the interval adjuster barrel.
Type A
OTB048905
Type B

FEATURES OF YOUR HYUNDAI 1- 65
B380A01HP-AAT REAR WINDOW DEFROSTER SWITCH The rear window defroster is turned on by pushing in on the switch. To turn thedefroster off, push in on the switch a second time. The rear window de- froster automatically turns itself off af-ter about 20 minutes. To restart the defroster cycle, push in on the switch again after it has turned itself off. HTB039CAUTION:
Do not clean the inner side of the rear window glass with an abrasive type of glass cleaner or use a scraperto remove foreign deposits from the inner surface of the glass as this may cause damage to the de-froster elements. NOTE: The engine must be running for the rear window defroster to operate.
!
HTB2030
B360B01FC-GAT FRONT FOG LIGHT SWITCH (If Installed) To turn on the front fog lights, push the switch in the "ON" position. They will come on when the headlight switch isin the first or second position.

1- 66 FEATURES OF YOUR HYUNDAI
B420A02A-AAT CIGARETTE LIGHTER (If Installed) For the cigarette lighter to work, the key must be in the "ACC" position or the"ON" position. To use the cigarette lighter, push it all the way into its socket. When the ele-ment has heated, the lighter will pop out to the "ready" position. Do not hold the cigarette lighter pressedin. This can damage the heating ele- ment and create a fire hazard. If it is necessary to replace the ciga-rette lighter, use only a genuine Hyundai replacement or its approved equivalent. HHR2098AB400A01A-AAT DIGITAL CLOCK
HTB2033
There are three control buttons for the digital clock. Their functions are: HOUR -Push "H" to advance the hour
indicated.
MIN -Push "M" to advance the
minute indicated.
RESET - Push "R" to reset minutes to
":00" to facilitate resetting the clock to the correct time. When this is done:
Pressing "R" between 10 : 30 and 11 :29 changes the readout to 11 : 00. Pressing "R" between 11 : 30 and 12 :29 changes the readout to 12 : 00.
B360A01Y-GAT REAR FOG LIGHT SWITCH (If Installed)
To turn on the rear fog lights, push the switch. They will come on when the headlight switch is in the second posi-tion and the key is in the "ON" position. B360A01TB

1- 68 FEATURES OF YOUR HYUNDAI

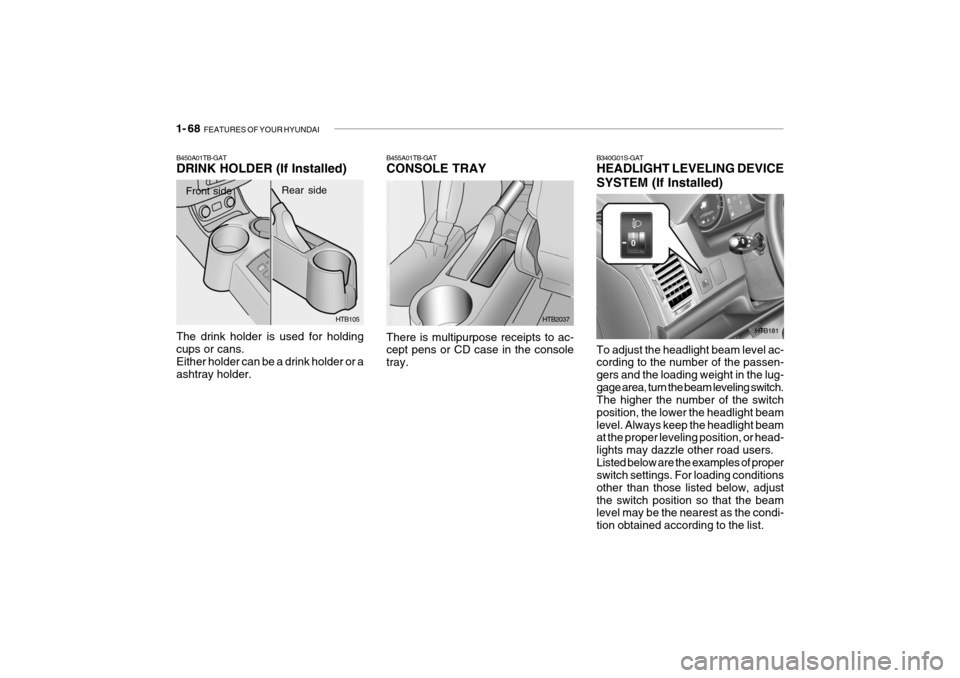

B340G01S-GAT HEADLIGHT LEVELING DEVICE SYSTEM (If Installed) To adjust the headlight beam level ac- cording to the number of the passen- gers and the loading weight in the lug-gage area, turn the beam leveling switch. The higher the number of the switch position, the lower the headlight beamlevel. Always keep the headlight beam at the proper leveling position, or head- lights may dazzle other road users.Listed below are the examples of proper switch settings. For loading conditions other than those listed below, adjustthe switch position so that the beam level may be the nearest as the condi- tion obtained according to the list. HTB181
Front side
B450A01TB-GAT DRINK HOLDER (If Installed) The drink holder is used for holding cups or cans. Either holder can be a drink holder or aashtray holder. HTB105Rear side
B455A01TB-GAT CONSOLE TRAY There is multipurpose receipts to ac- cept pens or CD case in the console tray. HTB2037

FEATURES OF YOUR HYUNDAI 1- 69
B460A01Y-AAT SUNROOF (If installed) Sun Shade
Your HYUNDAI is equipped with a sliding sunshade which you can manu- ally adjust to let in light with the sunroof closed, or to block sunlight.
Loading condition Switch
position
Driver only Driver + front passenger Full passengers (including driver)Full passengers (including driver) + full trunk loading (or light trailer loading)Driver + full trunk loading (or maximum trailer loading) 0
1 2
3 0
B470A01FC
WARNING:
Never adjust the sunshade while driving.!
B460B02GK-GAT Opening the Sunroof System The sunroof can be electrically opened or closed with the ignition key in the "ON" position. The sunroof is moved toits fully open position by pushing the "Open" switch, and to stop at the de- sired position, push in any switches(Open, Close, Up, Down). To close, press and hold the "CLOSE" button. Release the button when the sunroofreaches the desired position. HFC2021

FEATURES OF YOUR HYUNDAI 1- 71
2. Insert the hexagonal head wrench
provided with the vehicle into the socket. This wrench can be found in the vehicle’s tailgate or glove box.
3. Turn the wrench counterclockwise to open or clockwise to close thesunroof. HGK033B460E01TB-GAT Resetting the Sunroof System If the battery has been recharged, disconnected, if the sunroof is oper- ated with the hexagonal head wrenchmanually, or if the sunroof operation is stopped by that ignition key is turned to the "OFF" position while it is moving,you may need to reset the sunroof. To do this;
1. Turn the ignition switch "OFF".
2. With pressing "open" "up" button at
the same time, turn the ignition switch "ON".
3. If the sunroof is set like this, the
sunroof is reset with tilting up/downautomatically once for all.
! CAUTION:
If the sunroof is not reset, it may not be operated properly.
With Sunroof
B480A01E-AAT FRONT INTERIOR LIGHT Map Light The two map light switches are located on both sides of the front overhead console. Push in the map light switchto turn the light on or off. This light produces a spot beam for convenient use as a map light at night or as apersonal light for the driver and the passenger.Without Sunroof
HTB050
