Fuel Recommendations ................................................ 1-2
Breaking In Your New Hyundai .................................... 1-3
Keys ............................................................................. 1-4
Immobilizer System ...................................................... 1-5
Door Locks ................................................................... 1-7
Theft-Alarm System ...................................................... 1-9Window Glass ............................................................. 1-12
Seats ........................................................................... 1-14
Seat Belt ...................................................................... 1-24
Child Restraint System ................................................ 1-32
Supplemental Restraint (Airbag) System.................... 1-43
Instrument Cluster and Indicator Lights .......................1-54
Warning and Indicator Lights....................................... 1-58
Trip Computer .............................................................. 1-69
Multi-function Light Switch ........................................... 1-72
Windshield Wiper/Washer Switch ................................1-74
Sunroof ........................................................................ 1-81
Mirror ........................................................................... 1-87
Hood R elease .............................................................. 1-90
Heating and Cooling Control .......... ..............................1-99
Stereo Sound System ............................................... 1-116
Audio System ............................................................ 1-118
Antenna ..................................................................... 1-151
FEATURES OF YOUR HYUNDAI
1
1

1FEATURES OF YOUR HYUNDAI
62
B290A01MC-GAT
Engine Coolant Tempera-
ture Indicator Light
(If Installed)
WARNING:
Never remove the radiator cap when the engine is hot. The engine coolant is under pressure and could erupt and cause severe burns. Wait untilthe engine is cool before removing the radiator cap.
!
These indicator lights show the tem- perature of the engine coolant when the ignition switch is ON. Red indicator light illuminates if the temperature of theengine coolant is above 123±3°C (253.4±37.4°F). Blue indicator light Illu- minates if the temperature of the enginecoolant is below 55±3°C (131±37.4°F). If the red indicator light illuminates, pull over and stop as soon as possible andturn off the engine. Then open the hood and check the coolant level (See "If the engine overheats" on the page 3-4.) andthe water pump drive belt. If you sus- pect cooling system trouble, have your cooling system checked by a Hyundaidealer as soon as possible.
If the Emission Control SystemMalfunction Indicator Light beginsto flash ON and OFF, potential catalytic converter damage is pos- sible which could result in loss ofengine power. Have the Engine Control System inspected as soon as possible by an authorizedHyundai dealer (Gasoline Engine).
o In case the injection quantity ad-
justment related error occurred,the Emission Control System Mal- function Indicator Light begins to flash ON and OFF. Continuousdriving with this status could re- sult in abnormal engine power loss (or power increase), combus-tion noise and poor emission. If this occurs, have your vehicle checked by an authorized Hyundaidealer (Diesel Engine).
B260N01MC-GAT Malfunction Indicator Light (If Installed)
This light illuminates when there is a malfunction of an exhaust gas relatedcomponent, and the system is not func- tioning properly so that the exha ust gas
regulation values are not satisfied. This light will also illuminate when the ignition
key is turned to the "ON" position, and then it will go out in a few seconds after
the engine is started. If it illuminates
while driving, or does not illuminate whenthe ignition key is turned to the "ON"position, take your car to your nearest authorized Hyundai dealer and have the system checked.
CAUTION:
o Prolonged driving with the Emis- sion Control System Malfunction Indicator Light illuminated may cause damage to the emission control systems which could ef-fect drivability or fuel economy.!

1
FEATURES OF YOUR HYUNDAI
67
B300A01A-GAT SPEEDOMETER
B300A01MC
Your Hyundai's speedometer is cali- brated in kilometers per hour or miles per hour. B330A02A-AAT TACHOMETER
OMC025116
B300A02MC
The tachometer registers the speed of your engine in revolutions per minute (rpm).!
CAUTION:
The engine should not be raced to such a speed that the needle enters the red zone on the tachometer face.This can cause severe engine dam- age and may void your warranty.
The needle on the engine coolant tem- perature gauge should stay in the nor-mal range. If it moves across the dial to "H" (HOT), pull over and stop as soon as possible and turn off the engine.Then open the hood and, after the engine has cooled, check the coolant level and the water pump drive belt. Ifyou suspect cooling system trouble, have your cooling system checked by a Hyundai dealer as soon as possible.
Type A
Type B
Gasoline Gasoline DieselDiesel
Type A
Type B

1
FEATURES OF YOUR HYUNDAI
99
1
FEATURES OF YOUR HYUNDAI
99
1
FEATURES OF YOUR HYUNDAI

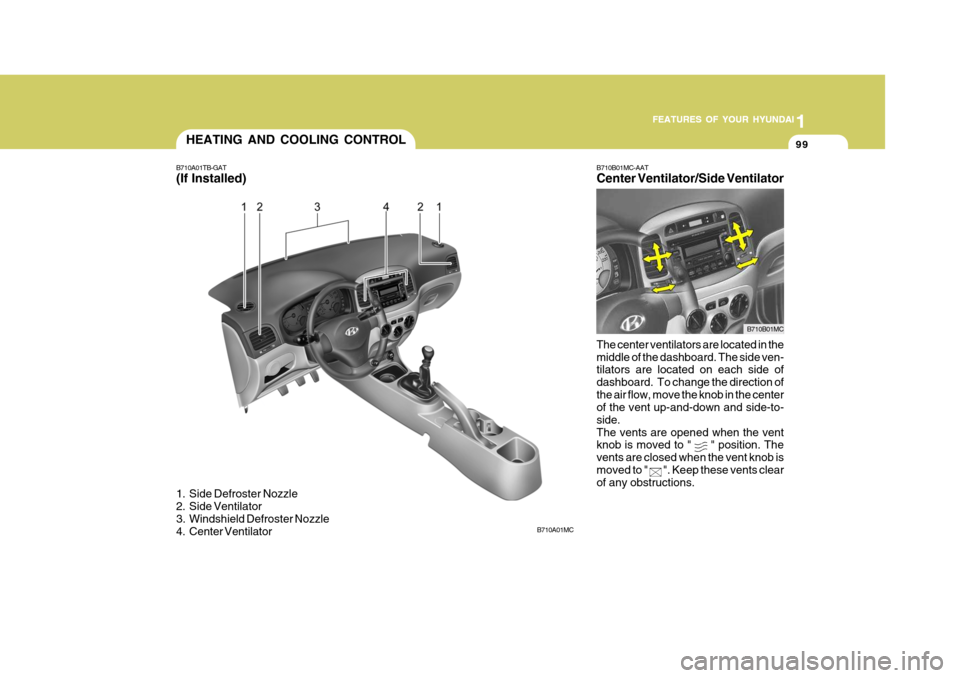

99HEATING AND COOLING CONTROL
B710A01TB-GAT (If Installed)
1. Side Defroster Nozzle
2. Side Ventilator
3. Windshield Defroster Nozzle
4. Center Ventilator B710B01MC-AAT Center Ventilator/Side Ventilator
B710A01MC
B710B01MC
The center ventilators are located in the middle of the dashboard. The side ven- tilators are located on each side of dashboard. To change the direction ofthe air flow, move the knob in the center of the vent up-and-down and side-to- side.The vents are opened when the vent knob is moved to "
" position. The
vents are closed when the vent knob is moved to "
". Keep these vents clear
of any obstructions.

1FEATURES OF YOUR HYUNDAI
104HEATING CONTROLS
B690A02A-AAT
B670E02A-AAT Temperature Control This control is used to adjust the degree of heating or cooling desired. For normal heating operation, set the air intake control to the fresh air ( ) position and the air flow control to the floor ( ) position.For faster heating, the air intake con- trol should be set in the recirculate ( ) position.If the windows fog up, set the air flow control to the defrost ( ) position (The air conditioning will be turned on auto-matically) and the air intake control to the fresh air ( ) position. For maximum heat, move the tem-perature control to "Warm".
Cool
Warm
B670E01MC B690A01MC
BI-LEVEL HEATING
B700A02A-AAT
Your Hyundai is equipped with bi-level heating controls. This makes it pos- sible to have cooler air from the dash- board vents and warmer air from thefloor outlets at the same time. To use this feature:
o Set the air intake control to the fresh air ( ) position.
o Set the air flow control at the bi-level
( ) position.
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm".
B700B01MC

1FEATURES OF YOUR HYUNDAI
106
B730A01L-AAT Operation Tips
o To keep dust or unpleasant fumesfrom entering the car through the ventilation system, temporarily set the air intake control at the (
)
position. Be sure to return the control to the (
) position when the
irritation has passed to keep fresh air in the vehicle. This will help keep thedriver alert and comfortable.
o Air for the heating/cooling system is
drawn in through the grilles justahead of the windshield. Care should be taken that these are not blocked by leaves, snow, ice or other ob-structions.
o To prevent interior fog on the wind-
shield, set the air intake control tothe fresh air (
) position, fan
speed to the desired position, turn on the air conditioning system, and ad-just temperature control to desired temperature.
NOTE: When the A/C is operated continu- ously on the floor-defrost level ( ) or defrost level ( ), it may causefog to form on the exterior wind- shield. If this occurs, set the air flow control to the face level posi-tion ( ) and fan speed control to the low position.
AIR CONDITIONING SYSTEM
B740A01MC
B740A01A-AAT (If Installed) Air Conditioning Switch
The air conditioning is turned on by pushing the A/C button on the heating/ air conditioning control panel.

1
FEATURES OF YOUR HYUNDAI
107
1
FEATURES OF YOUR HYUNDAI
107
1
FEATURES OF YOUR HYUNDAI
107
For dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioning switch. The air conditioning indicator light should come on at the same time.
o Set the air intake control switch to the fresh air (
) position.
o Set the air flow control to the face
(
) position.
o Adjust the fan control to the desired speed.
o For more rapid action, set the fan at one of the higher speeds.
o Adjust the temperature control to
provide the desired amount of warmth.
B740B02A-AAT Air Conditioning Operation (Cooling)
B740C01A-AAT De-Humidified Heating
To use the air conditioning to cool the interior:
o Turn on the fan control switch.
o Push the air conditioning switch by pushing in on the switch.The air conditioning indicator lightshould come on at the same time.
o Set the air intake control to the
(
)position.
o Set the temperature control to "Cool". ("Cool" provides maximum cooling. The temperature may be moderatedby moving the control toward "Warm".) o Adjust the fan control to the desired
speed. For greater cooling, turn the fan control to one of the higher speeds or temporarily select the (
)posi-
tion on the air intake control.
B740B01MC
B740C01MC

1
FEATURES OF YOUR HYUNDAI
109
1
FEATURES OF YOUR HYUNDAI
109
1
FEATURES OF YOUR HYUNDAI
109AUTOMATIC HEATING AND COOLING CONTROL SYSTEM
B970A01Y-AAT (If lnstalled) Your Hyundai is equipped with an auto- matic heating and cooling control sys-tem controlled by simply setting the desired temperature. B970B01MC-GAT Heating and Cooling Controls
B970B01MC
6. AUTO (Automatic Control) Switch
7. Display Window
8. Air Flow Control Switch
9. OFF Switch
1. Temperature Control
2. Air Conditioning Switch
3. Air lntake Control Switch
4. Defroster Switch
5. Blower Fan Control
