2007 HUMMER H3 engine

Vehicle Damage Warnings
Also, in this manual you will nd these notices:
Notice:These mean there is something
that could damage your vehicle.
A notice tells about something that can damage
the vehicle. Many times, this damage would not be
covered by your vehicle’s warranty, and it could
be costly. But the notice will tell what to do to help
avoid the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different colors
or in different words.
There are also warning labels on the vehicle.
They use the same words, CAUTION or NOTICE.
Vehicle Symbols
The vehicle has components and labels that use
symbols instead of text. Symbols are shown
along with the text describing the operation or
information relating to a specic component,
control, message, gage, or indicator.
If you need help guring out a specic name of
a component, gage, or indicator, reference
the following topics:
Seats and Restraint Systems in Section 1
Features and Controls in Section 2
Instrument Panel Overview in Section 3
Climate Controls in Section 3
Warning Lights, Gages, and Indicators in
Section 3
Audio System(s) in Section 3
Engine Compartment Overview in Section 5
5

Keys.............................................................. 87
Remote Keyless Entry (RKE) System.......... 88
Remote Keyless Entry (RKE)
System Operation.................................... 89
Doors and Locks.......................................... 92
Door Locks................................................. 92
Power Door Locks....................................... 93
Programmable Automatic Door Locks.......... 94
Lockout Protection....................................... 94
Swing-gate.................................................. 95
Windows....................................................... 96
Power Windows.......................................... 97
Sun Visors.................................................. 97
Theft-Deterrent Systems............................... 98
Content Theft-Deterrent............................... 98
Passlock
®.................................................. 100Starting and Operating Your Vehicle......... 101
New Vehicle Break-In................................ 101
Ignition Positions....................................... 101
Retained Accessory Power (RAP)............. 103
Starting the Engine.................................... 103
Engine Coolant Heater.............................. 105
Automatic Transmission Operation............. 106
Manual Transmission Operation................. 109
Full-Time Four-Wheel Drive....................... 111
Parking Brake........................................... 116
Shifting Into Park (P)
(Automatic Transmission)....................... 117
Shifting Out of Park (P)
(Automatic Transmission)....................... 119
Parking Your Vehicle
(Manual Transmission)........................... 119
Parking Over Things That Burn................. 119
Engine Exhaust......................................... 120
Running the Engine While Parked............. 121
Section 2 Features and Controls
85

Visor Vanity Mirror
Your vehicle has a vanity mirror located on the
driver’s and passenger’s visor.
Illuminated Visor Vanity Mirror
Your vehicle may have an illuminated vanity mirror
on both visors. Lift the cover on the mirror and
the lights will automatically come on.
Theft-Deterrent Systems
Vehicle theft is big business, especially in some
cities. Although your vehicle has a number of
theft-deterrent features, we know that nothing we
put on it can make it impossible to steal.
Content Theft-Deterrent
Your vehicle has a
content theft-deterrent
alarm system.To activate the content theft-deterrent system, do
the following:
1. Close all the doors.
2. Lock the doors with the remote keyless entry
transmitter. The security light, located on the
instrument panel cluster, will ash.
If the lock button on the remote keyless entry
transmitter is pressed, but a door is open,
the doors will lock, the lights may ash and the
horn may sound. Close the open door and
the alarm system will arm.
If a locked door is not opened using the remote
keyless entry transmitter, or by OnStar
®, the alarm
will go off. First, a pre-alarm will sound the horn
at reduced intensity for 10 seconds. Then, the front
turn signal lamps will ash for two minutes, and
the horn will sound for two minutes. The alarm will
then turn off to save battery power.
Starting the engine with the correct key will shut
off the pre-alarm or alarm at any time.
Remember, the theft-deterrent system will not
activate if you lock the doors with the key,
the manual door lock, or power door lock switch.
98

The system can only be activated using the
remote keyless entry transmitter, or by OnStar®.
SeeOnStar®System on page 129for additional
information. You should also remember that
you can start your vehicle with the correct key if
the alarm has been set off.
Here is how to avoid setting off the alarm by
accident:
If you do not want to arm the theft-deterrent
system, the vehicle should be locked with
the manual door lock lever, the power
door lock switch, or the key, after the doors
are closed.
If the content theft-deterrent system is armed,
unlock the doors by pressing the unlock
button on the remote keyless entry transmitter
or by OnStar
®. Unlocking a door any other
way will activate the alarm.
If you set off the alarm by accident, you can turn it
off by pressing unlock on the remote keyless
entry transmitter, starting the vehicle with
the correct key, or by having OnStar
®unlock the
doors. The alarm will not stop if you try to
unlock a door any other way.
Testing the Alarm
The alarm can be tested by following these steps:
1. From inside the vehicle, activate the system
by locking the doors with the remote keyless
entry transmitter.
2. Unlock the door with the manual door lock
and open the door. This should set off the
pre-alarm. Wait 10 seconds for the full alarm
to activate.
3. To turn the alarm off, press the unlock button
on the remote keyless entry transmitter or
start the engine.
If the alarm does not sound when it should but the
lights ash, check to see if the horn works. The
horn fuse may be blown. To replace the fuse, see
Fuses and Circuit Breakers on page 417.
If the alarm does not sound or the front turn signal
lamps do not ash, see your dealer for service.
99

Passlock®
Your vehicle has the Passlock®theft-deterrent
system.
Passlock
®is a passive theft-deterrent system.
Passlock®enables fuel if the ignition lock cylinder is
turned with a valid key. If an incorrect key is used or
the ignition lock cylinder is tampered with, the fuel
system is disabled and the vehicle will not start.
During normal operation, the security light will turn
off approximately ve seconds after the engine
is started. SeeSecurity Light on page 190.
If the engine stalls and the security light ashes,
wait about 10 minutes until the light stops
ashing before trying to restart the engine.
Remember to release the key from START as
soon as the engine starts.If the engine does not start after three tries, the
vehicle needs service.
If the engine is running and the security light
comes on, you will be able to restart the engine if
you turn the engine off. However, your Passlock
®
system is not working properly and must be
serviced by your dealer. Your vehicle is not
protected by Passlock
®at this time. See your
dealer for service.
In an emergency, call the Roadside Assistance
Center. SeeRoadside Assistance Program
on page 454.
100

Starting and Operating Your
Vehicle
New Vehicle Break-In
Notice:Your vehicle does not need an
elaborate break-in. But it will perform better in
the long run if you follow these guidelines:
Keep your speed at 55 mph (88 km/h)
or less for the rst 500 miles (805 km).
Do not drive at any one constant speed,
fast or slow, for the rst 500 miles (805 km).
Do not make full-throttle starts. Avoid
downshifting to brake, or slow, the vehicle.
Avoid making hard stops for the rst
200 miles (322 km) or so. During this time
your new brake linings are not yet broken
in. Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking-in guideline every
time you get new brake linings.
Do not tow a trailer during break-in.
SeeTowing a Trailer on page 297for the
trailer towing capabilities of your vehicle
and more information.
Following break-in, engine speed and load
can be gradually increased.
Ignition Positions
With the key in the
ignition switch, you can
turn to four different
positions.
LOCK (A):This position locks the ignition. It also
locks the transmission on automatic transmission
vehicles. It will locks the steering wheel on
manual transmission vehicles when the key is
removed. It is a theft-deterrent feature. You
will only be able to remove your key when the
ignition is turned to LOCK.
If you have an automatic transmission, the ignition
switch cannot be turned to LOCK unless the
shift lever is in PARK (P).
101

Notice:Using a tool to force the key from the
ignition switch could cause damage or break
the key. Use the correct key and turn the key
only with your hand. Make sure the key is all the
way in. If it is, turn the steering wheel left and
right while you turn the key hard. If none of this
works, then your vehicle needs service.
ACC (ACCESSORY) (B):This is the position in
which you can operate your electrical accessories
or items plugged into the accessory power
outlets. On automatic transmission vehicles, this
position unlocks the ignition. On manual
transmission vehicles, it unlocks the ignition and
steering wheel. Use this position if your vehicle
must be pushed or towed.
ON (C):This is the position that the switch returns
to after you start your engine and release the
switch. The switch stays in ON when the engine is
running. But even when the engine is not running,
you can use ON to operate the electrical
accessories and to display some instrument
panel cluster warning and indicator lights.The transmission is also unlocked in this position on
automatic transmission vehicles.
The battery could be drained if you leave the key in
the ACC or ON position with the engine off. You
may not be able to start your vehicle if the battery is
allowed to drain for an extended period of time.
START (D):This is the position that starts the
engine. When the engine starts, release the key.
The ignition switch returns to ON for driving.
When the engine is not running, ACC and ON
allows you to operate the electrical accessories,
such as the radio or items plugged into the
accessory power outlets.
A warning tone will sound if you open the driver’s
door when the ignition is in ACC or LOCK and
the key is in the ignition.
Key In the Ignition
Never leave your vehicle with the keys inside, as it
is an easy target for joy riders or thieves. If you
leave the key in the ignition and park your vehicle,
a chime will sound, when you open the driver’s
door. Always remember to remove your key from
the ignition and take it with you. This will lock
your ignition and transmission. Also, always
remember to lock the doors.

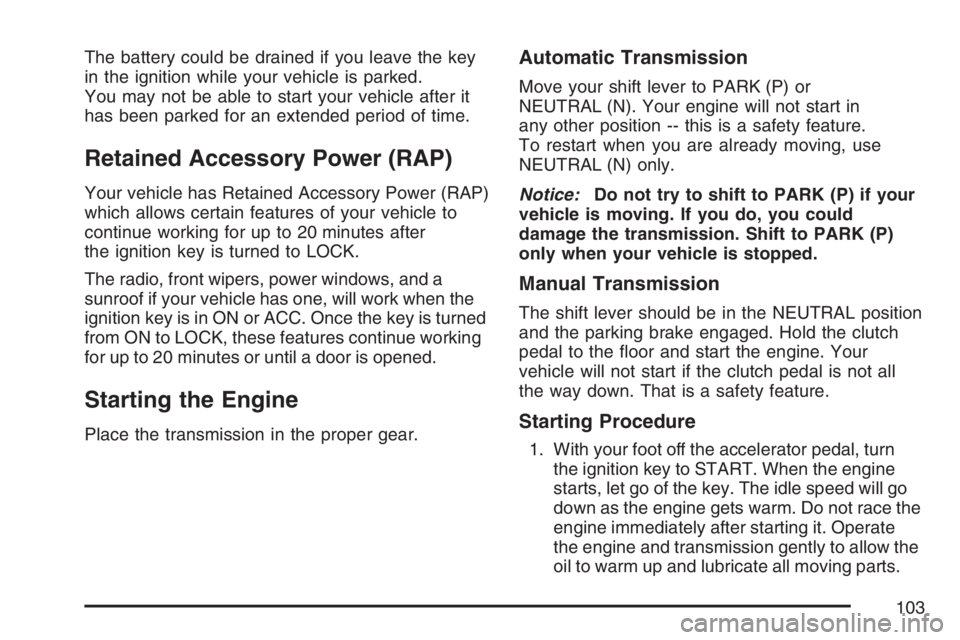

102

The battery could be drained if you leave the key
in the ignition while your vehicle is parked.
You may not be able to start your vehicle after it
has been parked for an extended period of time.
Retained Accessory Power (RAP)
Your vehicle has Retained Accessory Power (RAP)
which allows certain features of your vehicle to
continue working for up to 20 minutes after
the ignition key is turned to LOCK.
The radio, front wipers, power windows, and a
sunroof if your vehicle has one, will work when the
ignition key is in ON or ACC. Once the key is turned
from ON to LOCK, these features continue working
for up to 20 minutes or until a door is opened.
Starting the Engine
Place the transmission in the proper gear.
Automatic Transmission
Move your shift lever to PARK (P) or
NEUTRAL (N). Your engine will not start in
any other position -- this is a safety feature.
To restart when you are already moving, use
NEUTRAL (N) only.
Notice:Do not try to shift to PARK (P) if your
vehicle is moving. If you do, you could
damage the transmission. Shift to PARK (P)
only when your vehicle is stopped.
Manual Transmission
The shift lever should be in the NEUTRAL position
and the parking brake engaged. Hold the clutch
pedal to the oor and start the engine. Your
vehicle will not start if the clutch pedal is not all
the way down. That is a safety feature.
Starting Procedure
1. With your foot off the accelerator pedal, turn
the ignition key to START. When the engine
starts, let go of the key. The idle speed will go
down as the engine gets warm. Do not race the
engine immediately after starting it. Operate
the engine and transmission gently to allow the
oil to warm up and lubricate all moving parts.
103
