2007 HUMMER H3 ESP

Vehicles rst sold in Canada with an automatic
transmission cannot turn off automatic headlamps
unless the gear position is in PARK (P) and
the headlamp switch is turned to the Off position.
Vehicles rst sold in Canada with a manual
transmission can turn off the automatic headlamps
with the headlamp control; however, the parking
lamps will remain on.
;(Parking Lamps):Turn the knob to this
position to turn on the parking lamps, together
with the following:
Sidemarker Lamps
Taillamps
License Plate Lamps
Instrument Panel Lights
2(Headlamps):Turn the knob to this position
to turn on the headlamps, together with the
previously listed lamps and lights.
You can switch your headlamps from low to high
beam by pushing the turn signal/multifunction
lever toward the instrument panel.
Headlamps on Reminder
A headlamp reminder chime will sound if the
following conditions are met:
The driver door is open.
Parking lamps or headlamps are manually
turned on.
The key is either not in the ignition switch, or it
is in the LOCK position of the ignition switch.
The headlamp reminder cannot be turned off if
the conditions listed above are met.
In the automatic mode, the headlamps turn off
once the ignition is in ACC.
Daytime Running Lamps (DRL)
Daytime Running Lamps (DRL) can make it easier
for others to see the front of your vehicle during
the day. DRL can be helpful in many different
driving conditions, but they can be especially
helpful in the short periods after dawn and before
sunset. Fully functional daytime running lamps
are required on all vehicles rst sold in Canada.
164

Playing a Specic Loaded CD
For every CD loaded, a number appears on the
display. To play a specic CD, rst press the
CD button, then press the numbered pushbutton
that corresponds to the CD. A small bar appears
under the CD number that is playing and the
track number appears on the display.
If an error appears on the display, see
“CD Messages” later in this section.
Z(Eject):Press this button to eject CD(s).
To eject the CD that is currently playing, press
and release this button.
To eject multiple CDs, do the following:
1. Press and hold the CD eject button for
ve seconds.
A beep sounds and the indicator light,
located to the right of the slot, begins to
ash and EJECT ALL displays.
2. Once the light stops ashing and turns
green, REMOVE CD # displays. The
CD ejects and can be removed.Once the CD is removed, the indicator light
begins ashing again and another CD ejects.
To stop ejecting the CDs, press the LOAD
or the eject button.
If the CD is not removed, after 25 seconds,
the CD automatically pulls back into the player.
If CD is pushed back into the player, before
the 25 second time period is complete, the player
senses an error and tries to eject the CD
several times before stopping.
Do not repeatedly press the CD eject button to
eject a CD after you have tried to push it in
manually. The player’s 25-second eject timer
resets at each press of the eject button, causing
the player to not eject the CD until the 25-second
time period has elapsed.
r(Reverse):Press this button to reverse within
the track.
[(Fast Forward):Press this button to fast
forward within the track.
N(Repeat):With repeat, one track or an entire
CD can be repeated.
218

Navigation/Radio System
Your vehicle may have a navigation radio system.
The navigation system has built-in features
intended to minimize driver distraction. Technology
alone, no matter how advanced, can never
replace your own judgment. See the Navigation
System manual for some tips to help you
reduce distractions while driving.
Theft-Deterrent Feature
THEFTLOCK®is designed to discourage theft
of your vehicle’s radio. The feature works
automatically by learning a portion of the
Vehicle Identication Number (VIN). If the radio
is moved to a different vehicle, it does not
operate and LOCKED displays.
When the radio and vehicle are turned off, the
blinking red light indicates that THEFTLOCK
®
is armed.
With THEFTLOCK
®activated, the radio does
not operate if stolen.
Radio Reception
You may experience frequency interference and
static during normal radio reception if items
such as cellphone chargers, vehicle convenience
accessories, and external electronic devices
are plugged into the accessory power outlet.
If there is interference or static, unplug the item
from the accessory power outlet.
AM
The range for most AM stations is greater than
for FM, especially at night. The longer range can
cause station frequencies to interfere with each
other. For better radio reception, most AM
radio stations will boost the power levels during
the day, and then reduce these levels during
the night. Static can also occur when things like
storms and power lines interfere with radio
reception. When this happens, try reducing the
treble on your radio.
230

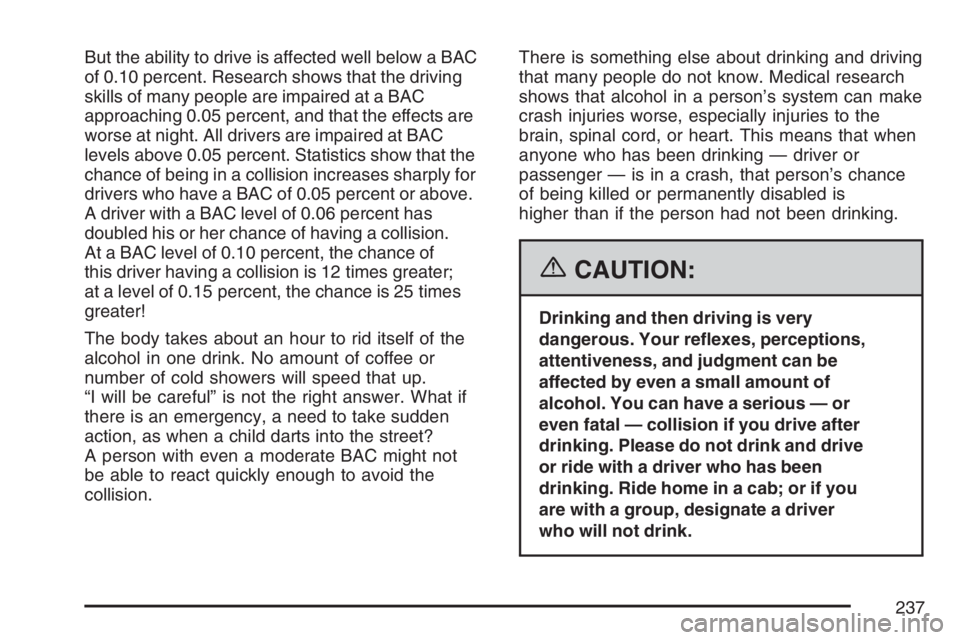

But the ability to drive is affected well below a BAC
of 0.10 percent. Research shows that the driving
skills of many people are impaired at a BAC
approaching 0.05 percent, and that the effects are
worse at night. All drivers are impaired at BAC
levels above 0.05 percent. Statistics show that the
chance of being in a collision increases sharply for
drivers who have a BAC of 0.05 percent or above.
A driver with a BAC level of 0.06 percent has
doubled his or her chance of having a collision.
At a BAC level of 0.10 percent, the chance of
this driver having a collision is 12 times greater;
at a level of 0.15 percent, the chance is 25 times
greater!
The body takes about an hour to rid itself of the
alcohol in one drink. No amount of coffee or
number of cold showers will speed that up.
“I will be careful” is not the right answer. What if
there is an emergency, a need to take sudden
action, as when a child darts into the street?
A person with even a moderate BAC might not
be able to react quickly enough to avoid the
collision.There is something else about drinking and driving
that many people do not know. Medical research
shows that alcohol in a person’s system can make
crash injuries worse, especially injuries to the
brain, spinal cord, or heart. This means that when
anyone who has been drinking — driver or
passenger — is in a crash, that person’s chance
of being killed or permanently disabled is
higher than if the person had not been drinking.
{CAUTION:
Drinking and then driving is very
dangerous. Your reexes, perceptions,
attentiveness, and judgment can be
affected by even a small amount of
alcohol. You can have a serious — or
even fatal — collision if you drive after
drinking. Please do not drink and drive
or ride with a driver who has been
drinking. Ride home in a cab; or if you
are with a group, designate a driver
who will not drink.
237

Remember: ABS does not change the time you
need to get your foot up to the brake pedal or
always decrease stopping distance. If you get too
close to the vehicle in front of you, you will not have
time to apply your brakes if that vehicle suddenly
slows or stops. Always leave enough room up
ahead to stop, even though you have ABS.
Using ABS
Do not pump the brakes. Just hold the brake
pedal down rmly and let anti-lock work for you.
You may feel the brakes vibrate, or you may
notice some noise, but this is normal.
Braking in Emergencies
With ABS, you can steer and brake at the same
time. In many emergencies, steering can help you
more than even the very best braking.
Traction Control System (TCS)
Your vehicle has a Traction Control System (TCS)
that limits wheel spin. This is especially useful
in slippery road conditions. The system operates
only if it senses that any of the wheels are spinning
or beginning to lose traction. When this happens,
the system applies the brakes to limit wheel
spin and also reduces engine power. You may
feel or hear the system working, but this is normal.
The Traction Control System may operate on dry
roads under some conditions. When this happens,
you may notice a reduction in acceleration or a
pumping sound. This is normal and doesn’t mean
there’s a problem with your vehicle. Examples of
these conditions include hard acceleration in a turn,
an abrupt upshift or downshift of the transmission
or driving on rough roads.
If your vehicle is in cruise control when the TCS
begins to limit wheel spin, the cruise control will
automatically disengage. When road conditions
allow you to safely use it again, you may re-engage
the cruise control. SeeCruise Control on page 159.
241

If your vehicle has a Driver information Center
(DIC), a TRACTION FAILED message will appear
when a Traction Control System or Anti-Lock
Brake System problem has been detected and the
vehicle needs service. SeeDIC Warnings and
Messages on page 196for more information.
When this message is on, the system will not limit
wheel spin. Adjust your driving accordingly.
The traction control system automatically comes
on whenever you start your vehicle. To limit wheel
spin, especially in slippery road conditions, you
should always leave the system on. But you
can turn the traction control system off if you
ever need to.
To turn the system off,
press and hold the TCS
button for ve seconds.This light will come
on steady when the
traction control system
has been turned off.
This light ashes
when TCS is active.
If you press and hold the TC button for
ve seconds, the traction control system will turn
off and a TRAC OFF message will appear on
the DIC. Press the TC button again to turn
the system back on. The TRAC OFF message
will then go off. The traction control system
will reset itself at each ignition cycle.
Adding non-GM accessories can affect your
vehicle’s performance. SeeAccessories and
Modications on page 314for more information.
242

Watch for traffic signs, pavement markings,
and lines. If you can see a sign up ahead
that might indicate a turn or an intersection,
delay your pass. A broken center line
usually indicates it is all right to pass, providing
the road ahead is clear. Never cross a solid
line on your side of the lane or a double solid
line, even if the road seems empty of
approaching traffic.
Do not get too close to the vehicle you want to
pass while you are awaiting an opportunity. For
one thing, following too closely reduces your
area of vision, especially if you are following a
larger vehicle. Also, you will not have adequate
space if the vehicle ahead suddenly slows or
stops. Keep back a reasonable distance.
When it looks like a chance to pass is coming
up, start to accelerate but stay in the right lane
and do not get too close. Time your move so
you will be increasing speed as the time comes
to move into the other lane. If the way is clear to
pass, you will have a running start that more
than makes up for the distance you would lose
by dropping back. And if something happens to
cause you to cancel your pass, you need only
slow down and drop back again and wait for
another opportunity.
If other vehicles are lined up to pass a slow
vehicle, wait your turn. But take care that
someone is not trying to pass you as you pull
out to pass the slow vehicle. Remember to
glance over your shoulder and check the
blind spot.
Check your vehicle’s mirrors, glance over your
shoulder, and start your left lane change signal
before moving out of the right lane to pass.
When you are far enough ahead of the passed
vehicle to see its front in your vehicle’s inside
mirror, activate the right lane change signal and
move back into the right lane. Remember that,
if your vehicle’s passenger side outside mirror is
convex, the vehicle you just passed may seem
to be farther away from you than it really is.
Try not to pass more than one vehicle at a time
on two-lane roads. Reconsider before passing
the next vehicle.
Do not overtake a slowly moving vehicle too
rapidly. Even though the brake lamps are not
ashing, it may be slowing down or starting
to turn.
If you are being passed, make it easy for the
following driver to get ahead of you. Perhaps
you can ease a little to the right.
248

Loss of Control
Let us review what driving experts say about what
happens when the three control systems — brakes,
steering, and acceleration — do not have enough
friction where the tires meet the road to do what the
driver has asked.
In any emergency, do not give up. Keep trying
to steer and constantly seek an escape route or
area of less danger.
Skidding
In a skid, a driver can lose control of the vehicle.
Defensive drivers avoid most skids by taking
reasonable care suited to existing conditions,
and by not overdriving those conditions.
But skids are always possible.
The three types of skids correspond to your
vehicle’s three control systems. In the braking skid,
your wheels are not rolling. In the steering or
cornering skid, too much speed or steering in a
curve causes tires to slip and lose cornering force.
And in the acceleration skid, too much throttle
causes the driving wheels to spin.A cornering skid is best handled by easing your
foot off the accelerator pedal.
Remember: Any traction control system helps avoid
only the acceleration skid. If your traction system is
off, then an acceleration skid is also best handled
by easing your foot off the accelerator pedal.
SeeTraction Control System (TCS) on page 241
andStabiliTrak
®System on page 244.
If your vehicle starts to slide, ease your foot
off the accelerator pedal and quickly steer the way
you want the vehicle to go. If you start steering
quickly enough, your vehicle may straighten
out. Always be ready for a second skid if it occurs.
Of course, traction is reduced when water,
snow, ice, gravel, or other material is on the
road. For safety, you will want to slow down
and adjust your driving to these conditions.
It is important to slow down on slippery surfaces
because stopping distance will be longer and
vehicle control more limited.
249
