2007 HUMMER H2 remote start

Tips and Troubleshooting Chart
Problem Recommended Action
Unit does not operate.
Turn the key to the
on position.
Press the power on,
from the system’s
remote control.
Fuse blown, replace
with a fuse of the
same capacity.
Turn the monitor’s
power on.
Consult your dealer.
Problem Recommended Action
No picture is produced.
Playback does not start.
Switch to the correct
audio/video source.
Check if the disc is
loaded with the label
side facing the rear of
the vehicle.
Clean the disc.
Check for the disc
compatibility.
Press MENU to turn
the menu off.
Picture is unclear or
noisy.
During fast-forward or
fast-reverse, the
picture can be slightly
distorted. This is a
normal.
Consult your dealer.
290

A. Coolant Surge Tank. SeeCooling System on
page 420andCoolant Surge Tank Pressure
Cap on page 418.
B. Engine Air Cleaner/Filter and Air Filter
Restriction Indicator (If Equipped). SeeEngine
Air Cleaner/Filter on page 409.
C. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 426.
D. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 404.
E. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 404.
F. Automatic Transmission Fluid Dipstick.
See “Checking the Fluid Level” underAutomatic
Transmission Fluid on page 412.G. Engine Cooling Fan. SeeCooling System on
page 420.
H. Remote Negative (−) Terminal (GND).
SeeJump Starting on page 432.
I. Power Steering Fluid Reservoir (Out of View).
SeePower Steering Fluid on page 425.
J. Remote Positive (+) Terminal. SeeJump
Starting on page 432.
K. Brake Fluid Reservoir. See “Brake Fluid” under
Brakes on page 427.
L. Underhood Fuse Block. SeeUnderhood Fuse
Block on page 507.
M. Battery. SeeBattery on page 431.
403

To avoid the possibility of the vehicles rolling,
set the parking brake rmly on both vehicles
involved in the jump start procedure. Put
an automatic transmission in PARK (P) or a
manual transmission in NEUTRAL before
setting the parking brake.
Notice:If you leave your radio or other
accessories on during the jump starting
procedure, they could be damaged. The repairs
would not be covered by your warranty.
Always turn off your radio and other
accessories when jump starting your vehicle.
3. Turn off the ignition on both vehicles.
Unplug unnecessary accessories plugged into
the cigarette lighter or accessory power
outlets. Turn off the radio and all lamps that
are not needed. This will avoid sparks
and help save both batteries. And it could
save your radio!4. Open the hoods and locate the positive (+)
and negative (−) terminal locations of the
other vehicle.
Your vehicle has a remote positive (+) jump
starting terminal and a remote negative (−)
jump starting terminal. You should always use
these remote terminals instead of the
terminals on the battery.
The remote positive (+)
terminal is located near
the engine accessory
drive bracket. On some
vehicles, the terminal
may be covered
by a red plastic cover.
To access the
remote positive (+)
terminal, open
the cover, if equipped.
433

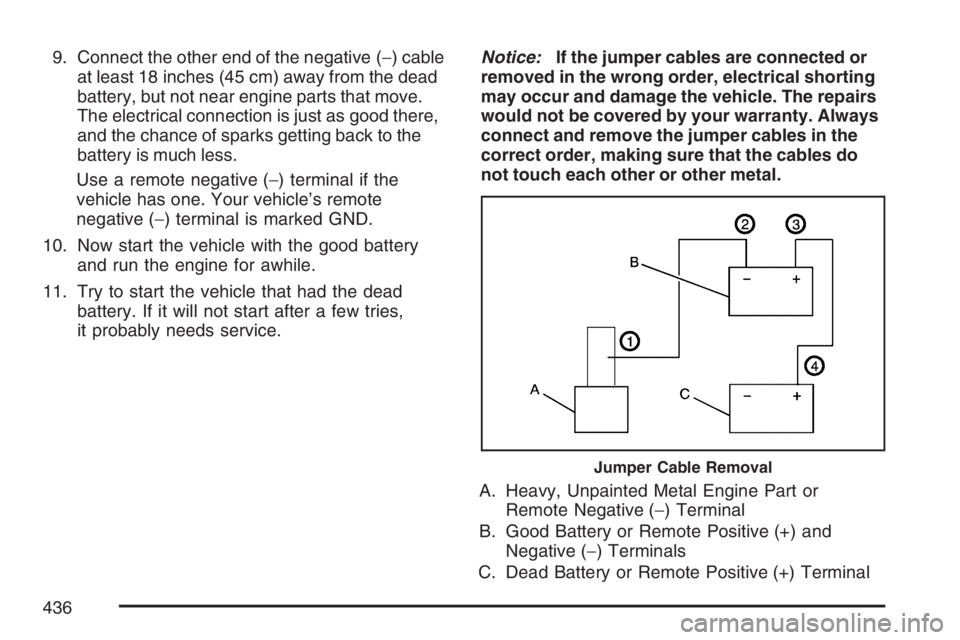

9. Connect the other end of the negative (−) cable
at least 18 inches (45 cm) away from the dead
battery, but not near engine parts that move.
The electrical connection is just as good there,
and the chance of sparks getting back to the
battery is much less.
Use a remote negative (−) terminal if the
vehicle has one. Your vehicle’s remote
negative (−) terminal is marked GND.
10. Now start the vehicle with the good battery
and run the engine for awhile.
11. Try to start the vehicle that had the dead
battery. If it will not start after a few tries,
it probably needs service.Notice:If the jumper cables are connected or
removed in the wrong order, electrical shorting
may occur and damage the vehicle. The repairs
would not be covered by your warranty. Always
connect and remove the jumper cables in the
correct order, making sure that the cables do
not touch each other or other metal.
A. Heavy, Unpainted Metal Engine Part or
Remote Negative (−) Terminal
B. Good Battery or Remote Positive (+) and
Negative (−) Terminals
C. Dead Battery or Remote Positive (+) Terminal
Jumper Cable Removal
436

Fuses Usage
RVC Regulated Voltage Control
IPC/DICInstrument Panel Cluster/
Driver Information Center
HVAC/ECASClimate Control
Controller/Electronically
Controlled Air Suspension
CIG LTR Cigarette Lighter
HI HDLP-RTPassenger’s Side High Beam
Headlamp
HDLP-LOW Headlamp Low Beam Relay
A/C COMPAir Conditioning
Compressor Relay
A/C COMP Air Conditioning Compressor
TCMB Transmission Control Module
RR WPR Rear Wiper/Washer
RADIO Audio System
SEO B1Mid Bussed Electrical Center,
Universal Home Remote
System, Rear Heated Seats
LO HDLP-LTDriver’s Side Headlamp
Low BeamFuses Usage
BTSIBrake Transmission Shift
Interlock System
CRNK Starting System
LO HDLP-RTPassenger’s Side Headlamp
Low Beam
FOG LP Not Used
FOG LP Not Used
HORN Horn Relay
W/S WASHWindshield and Rear Window
Washer Pump Relay
W/S WASHWindshield and Rear Window
Washer Pump
INFO OnStar
®
RADIO AMP Radio Amplier
RH HID Not Used
HORN Horn
EAP Not Used
TREC Four-Wheel Drive Module
SBA Not Used
