2007 HONDA PILOT Owners Manual

Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this for the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat. A child who has outg rown a forward-
facing child seat should ride in a
back seat and use a booster seat
until the lap/shoulder belt fits them
properly without the booster. A
child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle’s or
booster’s seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster seat.
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster seat meets
f ederal saf ety standards (see page
) and that you f ollow the booster
seat maker’s instructions.
If a child who uses a booster seat
must ride in f ront, move the vehicle
seat as far back as possible, and be
sure the child is wearing the seat
belt properly.
Some states and Canadian provinces
also require children to use a booster
seat until they reach a given age or
weight (e.g., 6 years or 60 lbs). Be
sure to check current laws in the
states or provinces where you intend to drive.
4.
5. 3.
45
Using a Booster Seat
Protecting L arger Children
54

If you decide that a child can safely
ride up front, be sure to:
Carefully read the owner’s manual,
and make sure you understand all
seat belt instru ctions and all safety
info rmation.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the floor.
Ch eck that the child’s seat belt is
properly and secu rely positioned.
Of
course, children vary widel y. And
while age may be one indicator of
when a child can safely ride in front,
there are other important factors you
should consider.
A side airbag also poses risks. If any
part of a larger child’s body is in the
path of a deploying side airbag, the
child could receive possibly serious
injuries. If the passenger’s front airbag
inflates in a moderate to severe
frontal collision, the airbag can cause
serious injuries to a child who is
unrestrained, improperly restrained,
sitting too close to the airbag, or out
of position.
The
National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
age 12 and under be properly
restrained in a back seat. Physically, a child must be large
enough f or the lap/shoulder belt to
properly f it (see pages and ). If
the seat belt does not f it properly,
with or without the child sitting on a
booster seat, the child should not sit
in f ront.
To saf ely ride in f ront, a child must
be able to f ollow the rules, including
sitting properly, and wearing the seat
belt properly throughout a ride. Supervise the child. Even mature
children sometimes need to be
reminded to f asten the seat belts
or sit properly.
16 53
Physical Size
Maturity
When Can a L arger Child Sit in
Front
Protecting L arger Children
Driver and Passenger Saf ety
55

This could result
in serious neck injuries during a
crash. Devices intended to
improve a child’s comf ort or
reposition the shoulder part of a
seat belt can make the belt less
ef f ective and increase the chance
of serious injury in a crash.
This could
cause very serious injuries during
a crash. It also increases the
chance that the child will slide
under the belt in a crash and be
injured.
If they do, they
could be very seriously injured in a
crash.
Do not let a child wear a seat belt
across t he neck. Do not put any accessories on a
seat belt.
Do not let a child put the shoulder part of a seat belt behind t he backor under t he arm.
T wo children should never use thesame seat belt .
Additional Saf ety Precautions
Protecting L arger Children
56

Your vehicle’s exhaust contains
carbon monoxide gas. Carbon
monoxide should not enter the
vehicle in normal driving if you
maintain your vehicle properly and
f ollow the inf ormation on this page.High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.With the tailgate open, air flow can
pull exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
tailgate open, open all the windows
and set the heating and cooling
system/climate control system as
shown below.
If you must sit in your parked vehicle
with the engine running, even in an
unconf ined area, adjust the heating
and cooling system/climate control
system as f ollows:
Have the exhaust system inspected
f or leaks whenever:
The vehicle is raised f or an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the
underside. Select the f resh air mode.
Select the mode.
Turn the f an on high speed.
Set the temperature control to a
comfortable setting.
1.
2.
3.
4.
Carbon Monoxide Hazard
Driver and Passenger Saf ety
57
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.

If a label comes of f or becomes hard
to read (except for the U.S.
dashboard label, which is removed
by the owner), contact your dealer
f or a replacement. These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels caref ully.
U.S. models onlyCanadian models
U.S. models
U.S. models only
U.S. models Canadian models
Saf ety L abels
58
RADIATOR CAP
HOOD DASHBOARD
DOORJAMBS SUN VISORS

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .60
............................
Instrument Panel .61
..........
Instrument Panel Indicators .62
.............................................
Gauges .70
...................................
Trip Meter .70
.....................................
Odometer .70
..................................
Fuel Gauge .70
...................
Temperature Gauge .71
Outside Temperature
...................................
Indicator .71
..........
Check Fuel Cap Message .72
Controls Near the Steering ...........................................
Wheel .73
.
Windshield Wipers and Washers .74
.................
Turn Signal, Headlights .75
Automatic Lighting Off .....................................
Feature .76
............
Daytime Running Lights .76
........
Instrument Panel Brightness .76
.................
Hazard Warning Button .77
.................
Rear Window Def ogger .77
..........
Steering Wheel Adjustment .78
...............................
Keys and Locks .79
........................
Immobilizer System .79
................................
Ignition Switch .81 ......................................
Door Locks .82
......................
Power Door Locks .82
........................................
Tailgate .82
..................
Childproof Door Locks .83
.......................
Remote Transmitter .83
....................................
Seat Heaters .86
.................................................
Seats .87
..........................
Head Restraints .91
.............................................
Mirrors .92
..............................
Power Windows .94
.........................................
Moonroof .96
.................................
Parking Brake .97
...........
Interior Convenience Items .98
.......................
Beverage Holders .99
...............
Console Compartment .99
....................................
Glove Box .99
....................
Sunglasses Holder .100
................
Conversation Mirror .100
...................................
Sun Visor .101
............................
Vanity Mirror .101
........
Accessory Power Sockets .101
...............................
Interior Lights .102
Instruments and Controls
Inst rument s and Cont rols
59

Î
ÎIf equipped.

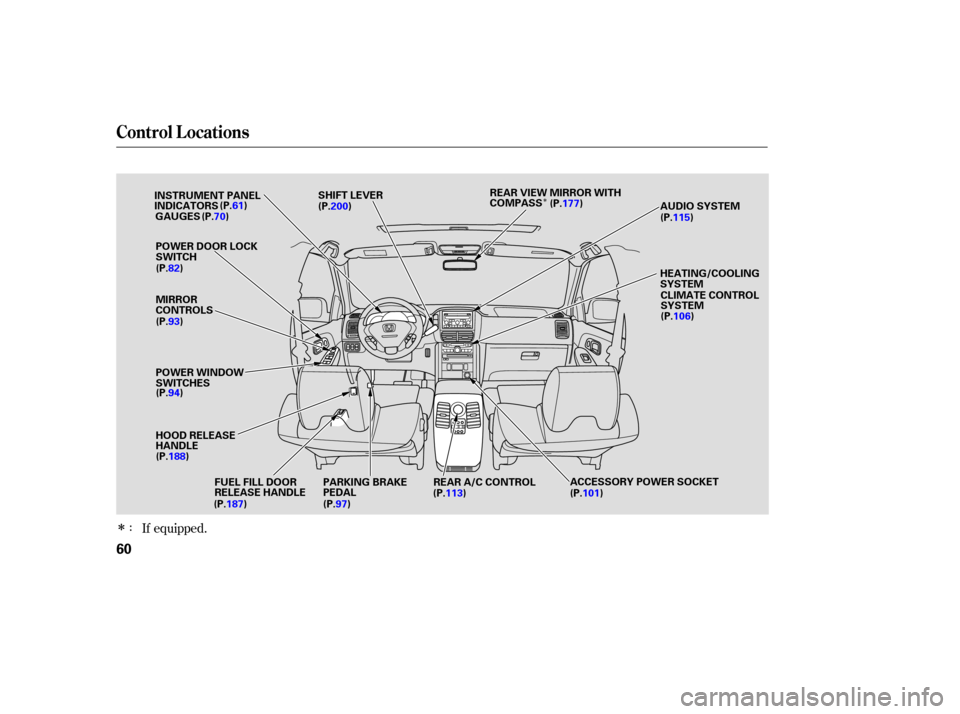

Control Locations
60
MIRROR
CONTROLS
POWER WINDOW
SWITCHES
HOOD RELEASE
HANDLE AUDIO
SYSTEM
PARKING BRAKE
PEDAL
GAUGES(P.70)
(P.82)
(P.93)
(P.94)
(P.188) (P.187) (P.97) (P.177)
REAR
VIEW MIRROR WITH
COMPASS
(P.115)
(P.106)
: FUEL
FILL DOOR
RELEASE HANDLE HEATING/COOLING
SYSTEM
INSTRUMENT
PANEL
INDICATORS (P.61)
(P.200)
CLIMATE CONTROL
SYSTEM
ACCESSORY POWER SOCKET
(P.101)
(P.113) REAR A/C CONTROL
SHIFT LEVER
POWER DOOR LOCK
SWITCH

Î
ÎÎ
Î Î
If equipped.
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
:
Instrument Panel
Inst rument s and Cont rols
61
LIGHTS ON INDICATOR
HIGH BEAM INDICATOR
A/T TEMPERATURE
INDICATOR
MAINTENANCE MINDER
INDICATOR LOW OIL PRESSURE
INDICATORVSA ACTIVATION
INDICATOR
CRUISE CONTROL
INDICATOR SIDE AIRBAG OFF
INDICATOR
LOW FUEL INDICATOR
FOG LIGHT INDICATOR
(P.69)
(P.69) (P.69)
SEAT BELT REMINDER INDICATOR
(P.67)
(P.68)
(P.64)
VTM-4 INDICATOR (P.68)
FUEL ECONOMY INDICATOR (P.68)
CHARGING SYSTEM
INDICATOR (P.64)
(P.67) (P.65)
(P.66)
(P.65)
IMMOBILIZER SYSTEM
INDICATOR
(P.64)
(P.67)
PARKING BRAKE
AND BRAKE
SYSTEM
INDICATOR
SUPPLEMENTAL RESTRAINT SYSTEM
INDICATOR
MALFUNCTION
INDICATOR LAMP
BRAKE LAMP
INDICATOR (P.66) LOW TIRE PRESSURE
INDICATOR
(P.65) TIRE PRESSURE
MONITORING SYSTEM
(TPMS) INDICATOR
VEHICLE STABILITY ASSIST
(VSA) SYSTEM INDICATOR
ANTI-LOCK BRAKE SYSTEM (ABS) INDICATOR
(P.62,
277)
(P.62, 276) (P.63,
278)
(P.34, 63)
(P.33, 63)
(P.62, 276) DOOR AND TAILGATE OPEN MONITOR
TIRE PRESSURE MONITOR
(P.63)
(P.21,
62)
