2007 HONDA ACCORD HYBRID trunk release

Your Vehicle at a Glance
4
MIRROR CONTROLSPOWER WINDOW
SWITCHES
ACCESSORY POWER SOCKETS
INDICATORS
TRUNK RELEASE LEVER
POWER DOOR LOCK
MASTER SWITCH
AUDIO SYSTEM
CLIMATE
CONTROL
SYSTEM
HOOD RELEASE
HANDLE
(P.60)
GAUGES (P.67)
(P.93)
(P.84)
(P.94)
(P.88) (P.157) (P.158)
(P.100)(P.172)
(P.106) (P.118)
FUEL FILL DOOR
RELEASE LEVER SHIFT LEVER
PARKING BRAKE (P.98
) (P.11,
24)
DRIVER’S FRONT AIRBAG
PASSENGER’S FRONT AIRBAG
(P.11, 24)
06/08/08 14:15:43 31SDR620_009

Control L ocations
58
POWER WINDOW
SWITCHESACCESSORY POWER SOCKETSAUDIO SYSTEM HAZARD WARNING
BUTTON
CRUISE CONTROLS
TRUNK RELEASE LEVER
POWER DOOR LOCK
MASTER SWITCH
CLIMATE CONTROL
SYSTEM
MIRROR CONTROLS
INDICATORS
GAUGES
MOONROOF SWITCH (P.60)
(P.67)
(P.97)
(P.93)
(P.84)
(P.94)
(P.88) (P.157) (P.100)(P.172)
(P.106)
(P.118) (P.79)
(P.147)
SHIFT LEVER
FUEL FILL DOOR
RELEASE LEVER HOOD RELEASE
HANDLE
PARKING BRAKE (P.98)
(P.158)
06/08/08 14:25:40 31SDR620_063

Youshouldhavereceivedakey
number tag with your keys. You will
need this key number if you ever
have to get a lost key replaced. Use
only Honda-approved key blanks.
These keys contain electronic
circuits that are activated by the
immobilizer system. They will not
work to start the engine if the
circuits are damaged.Protect the keys f rom direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away f rom liquids.
If they get wet, dry them
immediately with a sof t cloth.
The master key fits all the locks on
your vehicle. The valet key works
only in the ignition and the door
locks. You can keep the trunk
release handle, rear seat trunk
access, and glove box locked when
you leave your vehicle and the valet
key at a parking f acility.
Push the lever up to lock the
steering wheel in that position.
Make sure you have securely
locked the steering wheel in place
by trying to move it up, down, in,
and out.
4.
5.
Keys and Locks
Steering Wheel A djustment, K eys and L ocks
Inst rument s and Cont rols
81
KEY
NUMBER
TAG
VALET KEY
(LIGHT GREY)
MASTER
KEYS WITH
REMOTE
TRANSMITTER
06/08/08 14:29:45 31SDR620_086

µµ
The childproof door locks are
designed to prevent children seated
in the rear f rom accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. When the
lock lever is pushed down, the door
cannot be opened f rom the inside
regardless of the position of the lock
tab. To open the door, pull the lock
tab up, and use the outside door
handle. Pressthisbuttononceto
lock all doors. Some exterior lights
will f lash once. When you push
LOCK twice within 5 seconds, you
will hear a horn to verif y that the
doors are locked. You cannot lock
the doors if any door is not f ully
closed or the key is in the ignition
switch. Pressthisbuttononce
to unlock the driver’s door. Push it
twice to unlock the other doors.
Some exterior lights will f lash twice
each time you press the button.
The ceiling light (if the ceiling light
switch is in the center position) will
come on when you press the
UNLOCK button. If you do not open
any door, the light stays on f or about
30 seconds, then f ades out. If you
relock the doors with the remote
transmitter before 30 seconds have
elapsed, the light will go of f
immediately.
CONT INUED
Remote Transmitter
Childproof Door L ocks
LOCKUNL OCK
Door Locks, Remote Transmitter
Inst rument s and Cont rols
85
LEVER
LOCK
BUTTON
UNLOCK
BUTTON
PANIC
BUTTON LED
TRUNK
RELEASE
BUTTON
UNLOCK
LOCK
06/08/08 14:30:25 31SDR620_090

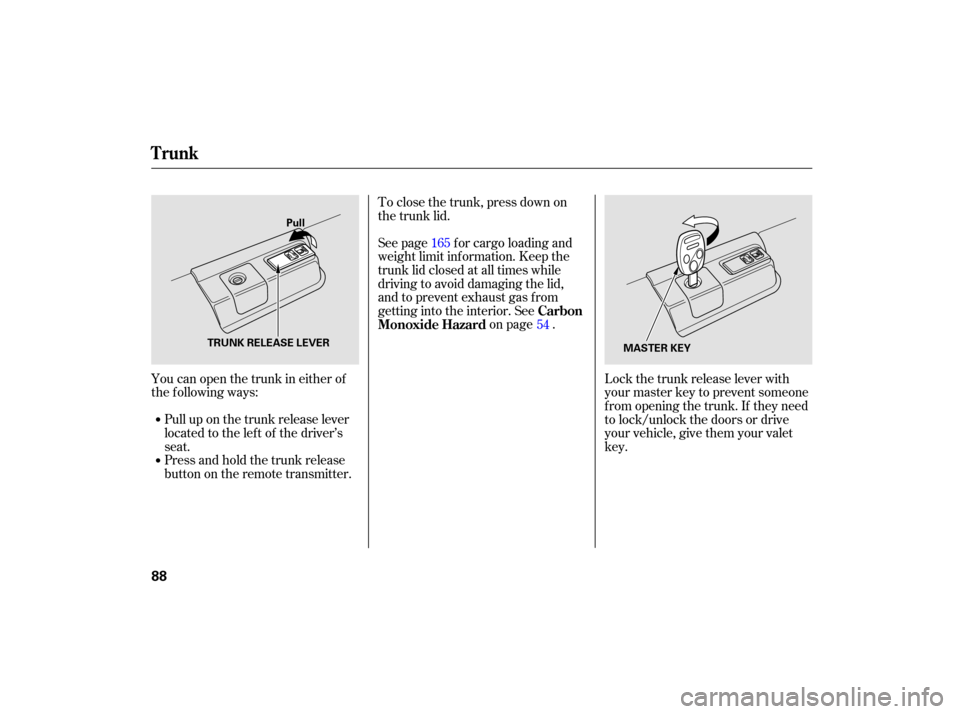

Pull up on the trunk release lever
located to the lef t of the driver’s
seat.
You can open the trunk in either of
the following ways:
Press and hold the trunk release
button on the remote transmitter. To close the trunk, press down on
the trunk lid.
See page f or cargo loading and
weight limit inf ormation. Keep the
trunk lid closed at all times while
driving to avoid damaging the lid,
and to prevent exhaust gas from
getting into the interior. See
on page .
Lock the trunk release lever with
your master key to prevent someone
f rom opening the trunk. If they need
to lock/unlock the doors or drive
your vehicle, give them your valet
key.
165
54Carbon
Monoxide Hazard
Trunk
88
Pull
TRUNK RELEASE LEVER MASTER KEY
06/08/08 14:30:59 31SDR620_093

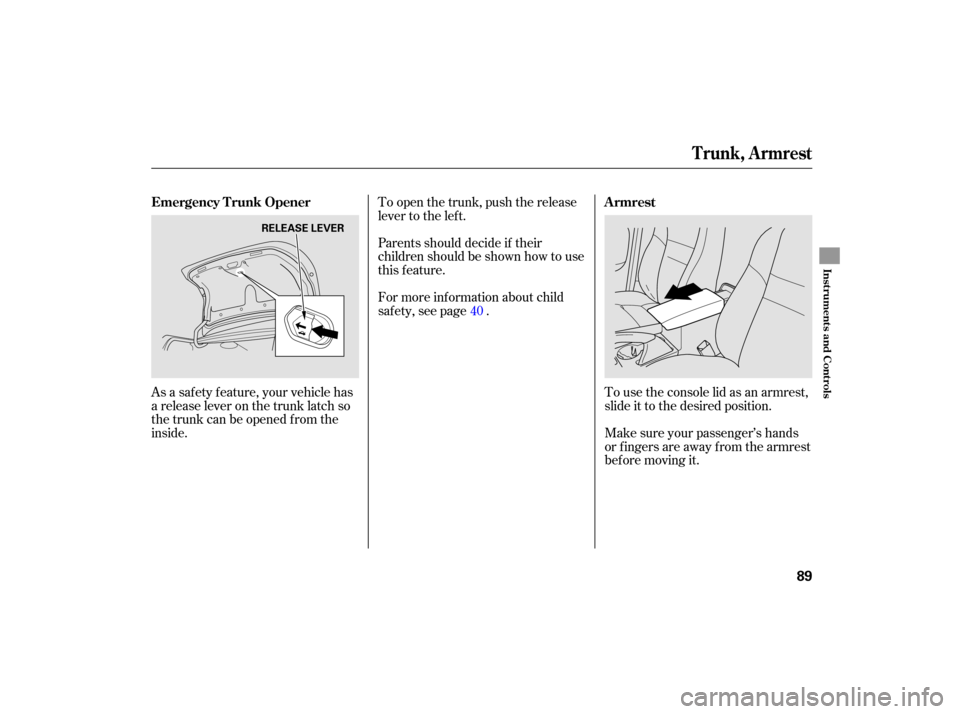

As a saf ety f eature, your vehicle has
a release lever on the trunk latch so
the trunk can be opened f rom the
inside.To open the trunk, push the release
lever to the lef t.
To use the console lid as an armrest,
slide it to the desired position.
Make sure your passenger’s hands
orfingersareawayfromthearmrest
bef ore moving it.
For more inf ormation about child
saf ety, see page . Parents should decide if their
children should be shown how to use
this feature.
40
Emergency T runk Opener A rmrest
Trunk, Armrest
Inst rument s and Cont rols
89
RELEASE LEVER
06/08/08 14:31:09 31SDR620_094

Once the security system is set,
opening any door (without using the
key or the remote transmitter), the
hood, or the trunk will cause it to
sound. It also sounds if the radio is
removed f rom the dashboard or the
wiring is cut.Do not attempt to alter this system
or add other devices to it.
The security system helps to protect
your vehicle and valuables f rom thef t.
The horn sounds and a combination
of headlights, parking lights, side
marker lights and taillights f lashes if
someone attempts to break into your
vehicleorremovetheradio.This
alarm continues f or two minutes,
then the system resets. To reset an
alarming system before the two
minutes have elapsed, unlock either
f ront door with the key or the
remote transmitter.
With the system set, you can still
open the trunk with the remote
transmitter without triggering the
alarm. The alarm will sound if the
trunk lock is f orced, or the trunk is
opened with the trunk release lever
or the emergency trunk opener.
The security system will not set if
the hood, trunk, or any door is not
f ully closed. If the system will not set,
check the door and trunk open
monitor on the instrument panel (see
page ) to see if the doors and
trunk are f ully closed. Since it is not
part of the monitor display, manually
check the hood.
The security system automatically
sets 15 seconds after you lock the
doors, hood, and trunk. For the
system to activate, you must lock the
doors f rom the outside with the key,
lock tab, door lock switch, or remote
transmitter. The security system
indicator on the instrument panel
starts blinking immediately to show
you the system is setting itself . 64
Security System
146
SECURITY SYSTEM INDICATOR
06/08/08 14:40:23 31SDR620_151

Always use the parking brake when
you park your vehicle. Make sure
the parking brake is set f irmly, or
your vehicle may roll if it is parked
on an incline.
Set the parking brake bef ore you put
the transmission in Park. This keeps
the vehicle from moving and putting
pressure on the parking mechanism
in the transmission.If the vehicle is f acing uphill, turn
the front wheels away from the
curb.
If the vehicle is f acing downhill,
turn the front wheels toward the
curb.
Make sure the parking brake is
f ully released bef ore driving away.
Driving with the parking brake
partially set can overheat or
damage the rear brakes.
Make sure the moonroof and the
windows are closed.
Check the indicator on the
instrument panel to verif y that the
security system is set. Lockthedoorswiththekeyorthe
remote transmitter. Place any packages, valuables, etc.,
in the trunk or take them with you. Turn of f the lights.
Never park over dry leaves, tall
grass, or other f lammable
materials. The hot three way
catalytic converter could cause
these materials to catch on fire.
Parking T ips
Parking
Driving
179
