This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach.
...........................Control Locations . 58
............................Instrument Panel. 59
..........Instrument Panel Indicators . 60
.............................................Gauges. 67
....................Information Display . 68
.....................................Odometer. 68
...Outside Temperature Display . 68
...................................Trip Meter. 69
................Average Fuel Mileage . 70
.........IMA Battery Level Gauge . 71
................Charge/Assist Gauge . 72
...................Temperature Gauge . 72
..................................Fuel Gauge. 73
..................Maintenance Minder . 73
..........Check Fuel Cap Message . 73
Controls Near the Steering
...........................................Wheel. 74
......................Wipers and Washers. 75
...........Turn Signal and Headlights . 76
Automatic Lighting Off
.....................................Feature. 77
............Daytime Running Lights . 78
........Instrument Panel Brightness . 78
..............................Hazard Warning. 79
.................Rear Window Def ogger . 79
..........Steering Wheel Adjustment . 80
...............................Keys and Locks. 81
........................Immobilizer System. 82
................................Ignition Switch. 83
......................................Door Locks. 84
..............Childproof Door Locks . 85
.......................Remote Transmitter. 85
................................................Trunk. 88
........Emergency Trunk Opener . 89
............................................Armrest. 89
....................................Seat Heaters. 90
.................................................Seats. 90
.............................................Mirrors. 93
....Adjusting the Power Mirrors . 93
................Power Mirror Heaters . 94
..............................Power Windows. 94
.........................................Moonroof. 97
.................................Parking Brake. 98
..........................................Sun Visor. 99
..................................Vanity Mirror. 99
.........Interior Convenience Items . 100
.....................Beverage Holders. 100
........Accessory Power Sockets . 100
.............Console Compartment . 101
....................Center CD Pocket. 101
....................Sunglasses Holder. 102
..................................Glove Box. 102
..................................Coat Hook. 103
...............................Interior Lights. 104
Instruments and Controls
Inst rument s and Cont rols
57
06/08/08 14:25:32 31SDR620_062

µ
See pages f or important saf ety
inf ormation and warnings about how toproperly position seats and seat-backs. 13
15
The controls f or the adjustable
driver’s power seat are on the
outside edge of the seat bottom. You
can adjust the power seat with the
ignition switch in any position. Make
all seat adjustments bef ore you start
driving.
Moving the long horizontal switch
adjusts the seat bottom in several
directions. The seat bottom adjusts
in the direction you move the switch.
The short vertical switch adjusts the
seat back angle.
Both f ront seats are equipped with
seat heaters. The driver’s seat has
heaters in both the seat-back and
seat cushion, but because of the
sensors f or the side airbag system,
there is no heater in the passenger’s
seat-back. The ignition switch must
be in the ON (II) position to use the
heaters.
If the engine is lef t idling f or an
extended period, do not use the
seat heaters even on the LO
setting. It can weaken the battery,
causing hard starting. Use the HI setting only to heat the
seats quickly, because it draws
large amounts of current f rom the
battery.
Follow these precautions whenever
you use the seat heaters: In the LO setting, the heater runs
continuously. It does not cycle with
temperature changes. In the HI setting, the heater turns off
when the seat gets warm, and turns
back on after the seat’s temperature
drops. After the seat reaches a comfortable
temperature, select LO by pushing
the back of the switch. This will keep
the seat warm.
Adjusting the Driver’s Seat
Seat Heaters
Seat Heaters, Seats
90
06/08/08 14:31:22 31SDR620_095

µTo open the driver’s
window, push the window switch
f irmly down, then release it. To stop
the window f rom going all the way
down, pull back on the window
switch brief ly.
To close the driver’s window f ully,
pull back the window switch f irmly,
then release it. To stop the window
f rom going all the way up, push
down on the window switch brief ly.
The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters off.
Turn the ignition switch to the ON
(II) position to raise or lower any
window. To open the window, push
the switch down and hold it. Release
the switch when you want to stop the
window. To close the window, pull
back on the switch and hold it. Power Windows
AUTO
Power Mirror Heaters
Mirrors, Power Windows
94

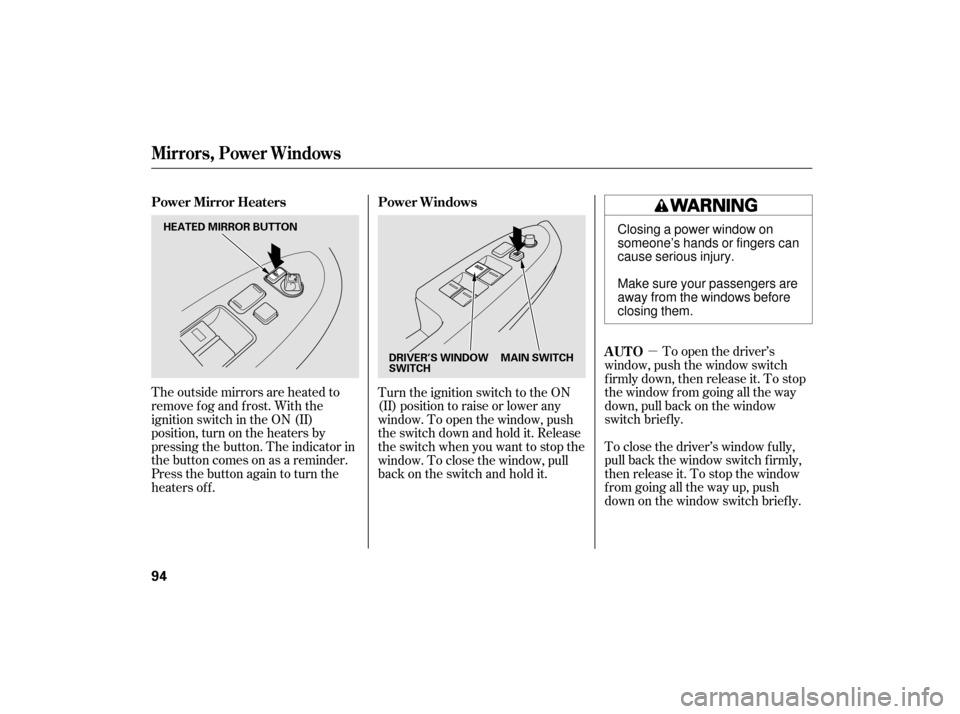

DRIVER’S WINDOW
SWITCH
MAIN SWITCH
HEATED MIRROR BUTTON
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.
06/08/08 14:32:03 31SDR620_099

ÛÝ
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn of f the A/C until the gauge
reading returns to normal. Press the A/C button; the manual
operation A/C screen will appear.
Select the ON icon on the display.
Select the desired temperature
and MODE selections. If the
outside air is humid, select the
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in f resh air mode.
Turn on the A/C by pressing the
A/C button.
Make sure the temperature
control dial or button is set to
maximum cool.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed.
Select .
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
Press the A/C button; the manual
operation A/C screen will appear.
Select the desired mode and f an
speed icons on the display.
Adjustforwarmthwiththe
temperature buttons ( or ). 1.
2.
3.
1.
2.
3.
4.
5.
1.
2.
3.
1.
2.
3. 72
If the interior is very warm,
On vehicles without navigation system
On vehicles with navigation system On vehicles without navigation systemOn vehicles with navigation system
Using the Heater
Using the A /C
Climate Control System
Features
111
06/08/08 14:35:01 31SDR620_116

Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.Turn the fan on.
Turn on the air conditioning.
Select and Fresh Air mode.
Adjust the temperature control
dial or buttons to your pref erence.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C). To remove f og f rom the inside of the
windows:
Set the f an to the desired speed, or
high f or f aster def rosting.
Select . The system
automatically switches to f resh air
mode and turns on the A/C. The
A/C indicator will not come on if it
was previously off.
Adjust the temperature so the
airflow feels warm.
Select to help clear the
rear window.
To increase airf low to the
windshield, close the corner vents. Select . The system
automatically switches to fresh air
mode and turns on the A/C. The
A/C indicator will not come on if it
was previously off.
Select .
Set the f an and temperature
controls to maximum level.
To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel below it. This will
send more warm air to the
windshield def roster vents. Once the
windshield is clear, select the f resh
air mode to avoid fogging the
windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
1.
2.
3.
4.
1.
2.
3.
4.
5.1.
2.
3.
To Def og and Def rost
T o Dehumidif y the Interior T o Remove Exterior Frost or Ice
From the Windows
Climate Control System
112
06/08/08 14:35:13 31SDR620_117

Ûݵ
The automatic climate control
system adjusts the f an speed and
airflow levels to maintain the interior
temperature you select.
Press the AUTO button.
Set the desired temperature by
turning the temperature control
dial. You will see AUTO in the
system’s display.
Set the desired temperature by
pressing the driver’s side
temperature control buttons. Press
to raise the temperature or
to lower it. The selected
temperature will show in the upper
display. The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature to your pref erence.
If you set the temperature to its
lowest limit (Lo), or its highest limit
(Hi), the system runs at f ull cooling
or heating only. It does not regulate
the interior temperature.
In cold weather, the fan will not
come on automatically until the
heater starts to develop warm air.
When
the indicator in the Dual button is on,
the driver’s side and passenger’s side
temperature can be controlled
independently (seepage). 115
Dual Temperature Control
On vehicles without navigation system
On vehicles with navigation system
Automatic Climate Control
Climate Control System
Features
113
06/08/08 14:35:24 31SDR620_118

´´
Although this seems like a simple
procedure, you should take several
precautions. Open the hood, and check the
physical condition of the battery.
In very cold weather, check the
condition of the electrolyte. If it
seems slushy or f rozen, do not try
jump starting until it thaws.
You cannot start your vehicle by
pushing or pulling it. The numbers in the illustration show
the order to connect the jumper
cable.
Put the transmission in neutral or
Park, and set the parking brake. Turn of f all the electrical acces-
sories: heater, A/C, climate
control, stereo system, lights, etc. Connect one jumper cable to the
positive ( ) terminal on your
battery. Connect the other end to
the positive ( ) terminal on the
booster battery.
1.
2.
3.
CONT INUED
Jump Starting
To Jump Start Your Vehicle:
T aking Care of t he Unexpect ed
241
BOOSTER
BATTERY
A battery can explode if you do
not follow the correct procedure,
seriously injuring anyone
nearby.
Keep all sparks, open flames,
and smoking materials away
from the battery.If a battery sits in extreme cold, the
electrolyte inside can f reeze.
Attempting to jump start with a f rozen
battery can cause it to rupture.
06/08/08 14:54:59 31SDR620_246

µ
´No.No.
Amps. Circuits Protected No.
Amps. Amps. Circuits Protected
Circuits Protected
1
2
3
4
5 6
7
8
9
10
10 A
30 A
10 A
15 A
10 A Left Headlight Low
Rear Defroster Coil
Left Headlight Hi
Small Light
Right Headlight Hi 11
12
13
14
15
16
17
18
19
20
21
22
23
10 A
7.5 A 15 A
20 A 30 A
7.5 A 15 A
40 A
40 A
15 A
30 A
40 A
40 A
40 A
40 A
120 A 70 A
50 A
50 A Cooling Fan
MG. Clutch
Horn, Stop
Rear Defroster
Back Up, ACC
Hazard
VSA Motor
VSA
Option
Option
Heater Motor
Battery
EPS
BIG1Main
Power Window Main
Right Headlight Low
Back Up
FI ECU
Condenser Fan
Not Used
Fuse Locations
T aking Care of t he Unexpect ed
253
UNDER-HOOD FUSE/RELAY BOX
06/08/08 14:56:46 31SDR620_258
