2007 GMC YUKON XL remote control

Parental Control
The Rear Seat Entertainment System may have a
Parental Control feature, depending on which
radio you have. The Parental Control feature will
turn off the video screen and Rear Seat Audio
(RSA). This feature also disables all button
operations from the remote control and all audio
button operations from the RSA. This feature
can be used to gain the attention of the rear
passengers that are using headphones.
To enable Parental Control press and hold the radio
power button for more than 2 seconds. If on, the
radio, video screen, and RSA will turn off. If a DVD
and/or CD is playing, it will be stopped. A “padlock”
icon or a text message may be displayed on the
radio display depending on which radio you have,
while Parental Control is on. The radio can be
turned back on with a single press of the power
button and used normally, but the RSE system will
remain in Parental Control.To turn off Parental Control, press and
hold the radio power button for more than
2 seconds. The video screen and RSA will return
to the state they were in before Parental Control
was turned on. The “padlock” icon will disappear
from the radio display.
Parental Control can also be turned off by inserting
or ejecting any disc, an ignition cycle, or pressing
the “play” icon on the radio DVD display menu.
322

Audio/Video (A/V) Jacks
The A/V jacks are located on the rear of the oor
console. The A/V jacks allow audio or video
signals to be connected from an auxiliary device
such as a camcorder or a video game unit to
the RSE system. Adapter connectors or cables
may be required to connect the auxiliary device to
the A/V jacks. Refer to the manufacturer’s
instructions for proper usage.The A/V jacks are color coded to match typical
home entertainment system equipment. The yellow
jack is for the video input. The white jack is for
the left audio input. The red jack is for the
right audio input.
Power for auxiliary devices is not supplied by the
radio system.
To use the auxiliary inputs of the RSE system,
connect an external auxiliary device to the
color-coded A/V jacks and turn both the auxiliary
device and the video screen power on. If the
video screen is in the DVD player mode, pressing
the AUX button on the remote control will
switch the video screen from the DVD player
mode to the auxiliary device. The radio can listen
to the audio of the connected auxiliary device
by sourcing to auxiliary. SeeRadio with CD and
DVD (MP3) on page 295for more information.
325

How to Change the Video Format When in
the Auxiliary Mode
The auxiliary input video format is preset to NTSC.
In some countries, the video format may be
PAL. To change the video format, perform the
following:
1. Press the display menu button on the remote
control.
2. Select screen option and press enter to
select.
3. Press the up or down arrow buttons to select
the video format option and press enter to set
the format.
Audio Output
Audio from the DVD player or auxiliary inputs may
be heard through the following possible sources:
Wireless Headphones
Vehicle Speakers
Vehicle wired headphone jacks on the rear
seat audio system, if your vehicle has this
feature.The RSE system will always transmit the audio
signal to the wireless headphones, if there is audio
available. See “Headphones” earlier in this
section for more information.
The DVD player is capable of outputting audio to
the wired headphone jacks on the RSA system,
if your vehicle has this feature. The DVD
player may be selected as an audio source on the
RSA system. SeeRear Seat Audio (RSA) on
page 332for more information.
When a device is connected to the A/V jacks the
rear seat passengers will be able to hear audio
from the auxiliary device through the wireless or
wired headphones. The front seat passengers
will be able to listen to playback from this device
through the vehicle speakers by selecting AUX
as the source on the radio.
If a playback device is plugged into the radio’s
auxiliary input jack, the front seat passengers will
be able to listen to playback from this device
through the vehicle speakers by selecting AUX as
the source on the radio.
326

Video Screen
The video screen is located in the RSE overhead
console.
To use the video screen, do the following:
1. Push the release button located on the RSE
overhead console.
2. Rotate the screen to the desired position.
When the video screen is not in use, push it up
into its locked position.
If a DVD is playing and the screen is raised to its
locked position, the screen will remain on, this
is normal, and the DVD will continue to play
through the previous audio source.
The RSE overhead console contains the IR
transmitters for the wireless headphones and the
IR receivers for the remote control. They are
located at the rear of the console.
Notice:Avoid directly touching the video
screen, as damage may occur. See “Cleaning
the Video Screen” later in this section for
more information.
Remote Control
To use the remote control, aim it at the transmitter
window at the rear of the RSE overhead console
and press the desired button. Direct sunlight
or very bright light may affect the ability of the RSE
transmitter to receive signals from the remote
control. If the remote control does not seem to be
working, the batteries may need to be replaced.
See “Battery Replacement” later in this section.
Objects blocking the line of sight may also affect
the function of the remote control.
If a CD or DVD is in the Radio DVD slot, the
remote control power button can be used to turn
on the video screen display and start the disc.
The radio can also turn on the video screen
display. SeeRadio with CD and DVD (MP3) on
page 295for more information.
Notice:Storing the remote control in a hot
area or in direct sunlight may damage it,
and the repairs will not be covered by your
warranty. Keep the remote control stored in a
cool, dry place.
327

Remote Control Buttons
O(Power):Press this button to turn the video
screen on and off.
P(Illumination):Press this button to turn the
remote control backlight on. The backlight will
automatically time out after 7 to 10 seconds if no
other button is pressed while the backlight is on.
v(Title):Press this button to return the DVD to
the main menu of the DVD. This function may
vary for each disc.
y(Main Menu):Press this button to access the
DVD menu. The DVD menu is different on every
DVD. Use the up, down, left, and right arrow
buttons to move the cursor around the DVD menu.
After making a selection press the enter button.
This button only operates when using a DVD.
n,q,p,o(Menu Navigation Arrows):Use
the arrow buttons to navigate through a menu.
r(Enter):Press this button to select the choice
that is highlighted in any menu.
z(Display Menu):Press this button to adjust
the brightness, screen display mode (normal,
full, or zoom), and display the language menu.
q(Return):Press this button to exit the current
active menu and return to the previous menu.
This button will operate only when the display
menu or a DVD menu is active.
328

{(Subtitles):Press this button to turn ON/OFF
subtitles and to move through subtitle options
when a DVD is playing. The format and content of
this function will vary for each disc.
AUX (Auxiliary):Press this button to switch the
system between the DVD player and an auxiliary
source.
d(Camera):Press this button to change camera
angles on DVDs that have this feature when a DVD
is playing. The format and content of this function
will vary for each disc.
1 through 0 (Numeric Keypad):The numeric
keypad provides the capability of direct chapter or
track number selection.
\(Clear):Press this button within three seconds
after inputting a numeric selection, to clear all
numeric inputs.
}10 (Double Digit Entries):Press this button to
select chapter or track numbers greater than 9.
Press this button before inputting the number.
Battery Replacement
To change the remote control batteries, do the
following:
1. Remove the battery compartment door
located on the bottom of the remote control.
2. Replace the two AA batteries in the
compartment. Make sure that they are
installed correctly, using the diagram on the
inside of the battery compartment.
3. Close the battery door securely.
If the remote control is to be stored for a long
period of time, remove the batteries and keep them
in a cool, dry place.
330

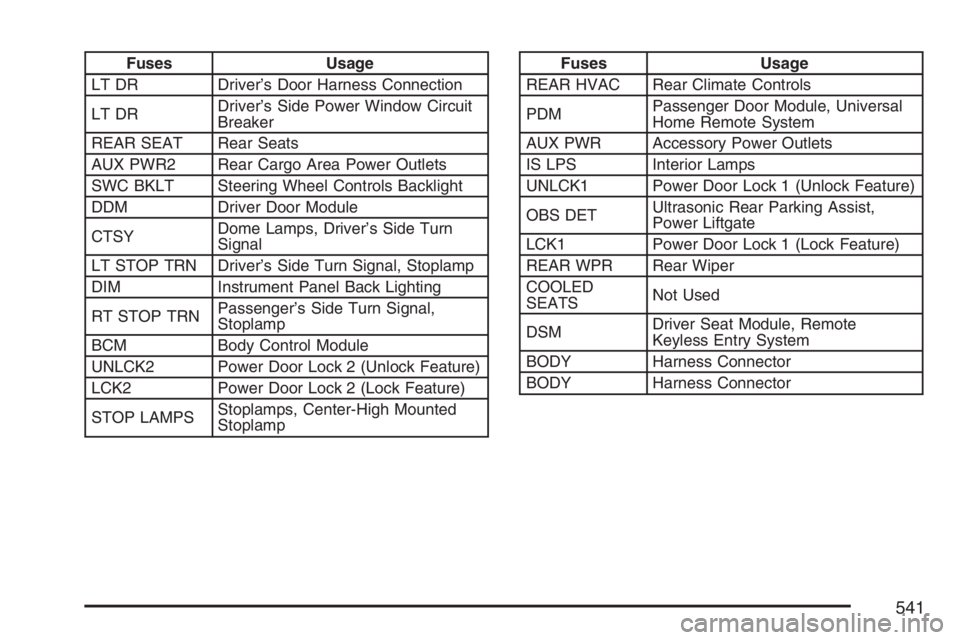

Fuses Usage
LT DR Driver’s Door Harness Connection
LT DRDriver’s Side Power Window Circuit
Breaker
REAR SEAT Rear Seats
AUX PWR2 Rear Cargo Area Power Outlets
SWC BKLT Steering Wheel Controls Backlight
DDM Driver Door Module
CTSYDome Lamps, Driver’s Side Turn
Signal
LT STOP TRN Driver’s Side Turn Signal, Stoplamp
DIM Instrument Panel Back Lighting
RT STOP TRNPassenger’s Side Turn Signal,
Stoplamp
BCM Body Control Module
UNLCK2 Power Door Lock 2 (Unlock Feature)
LCK2 Power Door Lock 2 (Lock Feature)
STOP LAMPSStoplamps, Center-High Mounted
StoplampFuses Usage
REAR HVAC Rear Climate Controls
PDMPassenger Door Module, Universal
Home Remote System
AUX PWR Accessory Power Outlets
IS LPS Interior Lamps
UNLCK1 Power Door Lock 1 (Unlock Feature)
OBS DETUltrasonic Rear Parking Assist,
Power Liftgate
LCK1 Power Door Lock 1 (Lock Feature)
REAR WPR Rear Wiper
COOLED
SEATSNot Used
DSMDriver Seat Module, Remote
Keyless Entry System
BODY Harness Connector
BODY Harness Connector
541

Power (cont.)
Steering Fluid........................................... 461
Windows................................................... 131
Pretensioners, Safety Belt.............................. 60
Programmable Automatic Door Locks........... 121
Q
Questions and Answers About Safety Belts....... 42
R
Radios......................................................... 274
Care of Your CD and DVD Player............. 337
Care of Your CDs and DVDs.................... 336
Navigation/Radio System,
see Navigation Manual.......................... 321
Radio with CD.......................................... 278
Radio with CD and DVD........................... 295
Rear Seat Audio....................................... 332
Setting the Time................................276, 277
Theft-Deterrent.......................................... 334
Understanding Reception.......................... 335
Rainsense™ II Wipers.................................. 193
Reading Lamps............................................ 204Rear Air Conditioning and Heating System...... 220
Rear Air Conditioning and Heating System
and Electronic Climate Controls................ 222
Rear Axle..................................................... 472
Locking..................................................... 347
Rear Door Security Locks............................ 122
Rear Heated Seats........................................ 19
Rear Safety Belt Comfort Guides................... 56
Rear Seat Armrest....................................... 176
Rear Seat Audio (RSA)................................ 332
Rear Seat Entertainment System.................. 321
Rear Seat Passengers, Safety Belts............... 54
Rear Side Window Antenna.......................... 337
Rear Storage Area....................................... 176
Rear Windshield Washer/Wiper.................... 195
Rearview Mirror, Automatic Dimming with
Compass and Temperature Display........... 160
Rearview Mirror, Automatic Dimming with
OnStar
®, Compass and Temperature
Display..................................................... 157
Reclining Seatbacks....................................... 15
Recommended Fluids and Lubricants........... 564
Recovery Hooks........................................... 389
Recreational Vehicle Towing......................... 401
Remote Keyless Entry System..................... 112
603
