2007 FORD FIVE HUNDRED turn signal bulb

Introduction 4
Instrument Cluster 10
Warning lights and chimes 10
Gauges 14
Entertainment Systems 16
AM/FM stereo with CD 16
AM/FM stereo with in-dash six CD 21
Satellite radio information 27
Family entertainment system 30
Navigation system 45
Climate Controls 46
Manual heating and air conditioning 46
Automatic temperature control 48
Rear window defroster 53
Lights 54
Headlamps 54
Turn signal control 58
Bulb replacement 58
Driver Controls 64
Windshield wiper/washer control 64
Steering wheel adjustment 65
Power windows 68
Mirrors 70
Speed control 72
Moon roof 76
Message center 81
Locks and Security 91
Keys 91
Locks 91
Anti-theft system 105
Table of Contents
1
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)

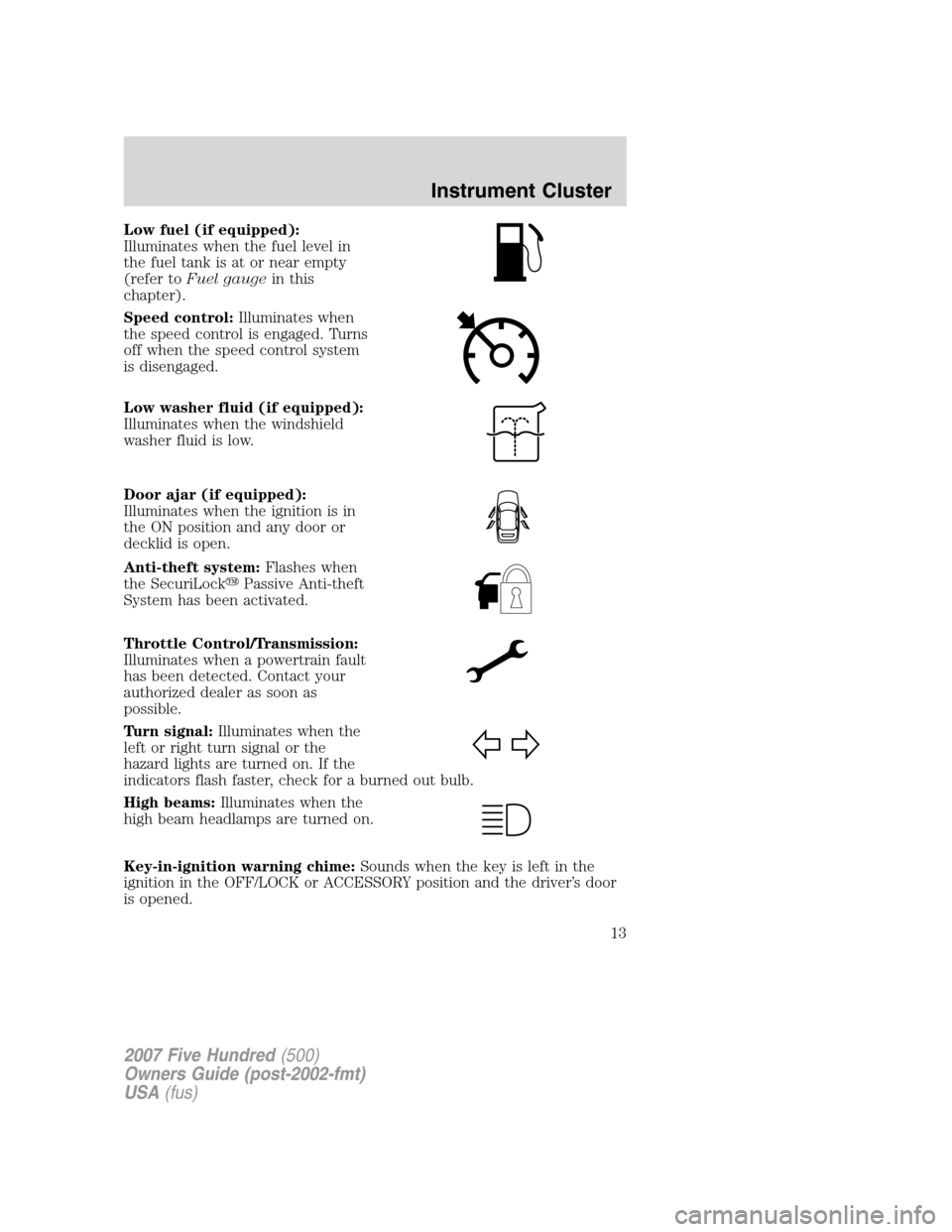

Low fuel (if equipped):
Illuminates when the fuel level in
the fuel tank is at or near empty
(refer toFuel gaugein this
chapter).
Speed control:Illuminates when
the speed control is engaged. Turns
off when the speed control system
is disengaged.
Low washer fluid (if equipped):
Illuminates when the windshield
washer fluid is low.
Door ajar (if equipped):
Illuminates when the ignition is in
the ON position and any door or
decklid is open.
Anti-theft system:Flashes when
the SecuriLockPassive Anti-theft
System has been activated.
Throttle Control/Transmission:
Illuminates when a powertrain fault
has been detected. Contact your
authorized dealer as soon as
possible.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators flash faster, check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the OFF/LOCK or ACCESSORY position and the driver’s door
is opened.
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
13

TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
INTERIOR LAMPS
Dome lamps and map lamps
The map lamps are located on the
overhead console. Press the controls
on either side of each map lamp to
turn on the lamps.
Your vehicle may also have reading
lamps within the rear dome lamp(s).
Press the switches on either side of
the dome lamp to turn on the
lamps.
BULB REPLACEMENT
Headlamp Condensation
The headlamps are vented to equalize pressure. When moist air enters
the headlamp(s) through the vents, there is a possibility that
condensation can occur. This condensation is normal and will clear
within 45 minutes of headlamp operation.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
58

“E” for Europe to ensure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
Function Number of bulbsTrade
number
Headlamp high beam 2 9005
Headlamp low beam 2 9006
Front park/turn lamp 23157AK or
3157A
(amber)
Side marker lamp 2194A
(amber)
Tail lamp/brake/turn signal 2 4057K
Redundant tail lamp 2 916
Backup lamp 2 3156
License plate lamp 2 168
High-mount brake lamp 1 921
Foglamp (if equipped) 2 9145 (H10)
Map lamp 2 12V6W
Dome/reading lamps 3 578
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your authorized dealer.
Replacing the interior bulbs
Check the operation of all bulbs frequently.
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Replacing headlamp (low beam) bulbs
1. Make sure headlamp switch is in the OFF position, then open the
hood.
2. Reach in behind the headlamp assembly to access the bulbs and
connectors.
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
59

Replacing front parking lamp/turn signal bulbs
1. Make sure headlamp switch is in the OFF position, then open the
hood.
2. Reach in behind the headlamp assembly to access the bulb sockets
and connectors.
3. Locate the parking/turn signal
lamp electrical connector and
remove it by pulling it straight off.
4. Remove the bulb socket by
turning it counterclockwise and
pulling it straight out.
5. To remove the bulb, pull it
straight out of the bulb socket.
Install the new bulb(s) in reverse order.
Replacing tail lamp/brake lamp/backup lamp/turn signal lamp bulbs
The tail lamp, brake lamp, backup lamp and turn signal lamp bulbs are
located in the tail lamp assembly. Follow the same steps to replace either
bulb.
•(1)Backup lamp
•(2)Brake/tail/turn lamp
•(3)Tail lamp
1. Make sure the headlamp switch is
in the OFF position and open the
trunk.
2. Carefully pull the carpet away to
expose the backside of the tail lamp
assembly.
3. Remove the nut and washer
assemblies, then pull the lamp assembly away from the vehicle.
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
61

locking and
unlocking doors ......................104
programming entry code .......103
Keys ...........................................106
positions of the ignition .........182
L
Lamps
autolamp system .......................54
bulb replacement
specifications chart ..................58
daytime running light ...............56
fog lamps ...................................55
headlamps .................................54
headlamps, flash to pass ..........55
instrument panel, dimming .....56
interior lamps .....................58–59
replacing bulbs .............59–60, 63
Lane change indicator
(see Turn signal) ........................58
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........186
Load limits .................................174
Locks
autolock .....................................91
childproof ..................................94
doors ..........................................91
Lubricant specifications ...........272
Lug nuts ....................................217
Lumbar support, seats .............111
M
Message center ...........................81
english/metric button ...............86
system check button ................86
warning messages .....................86
Mirrors .........................................70automatic dimming
rearview mirror .........................70
fold away ...................................71
heated ........................................71
side view mirrors (power) .......70
Moon roof ....................................76
Motorcraft parts ........239, 256, 271
N
Navigation system .......................45
O
Octane rating ............................260
Oil (see Engine oil) ..................244
P
Parking brake ............................187
Parts (see Motorcraft parts) ....271
Passenger Occupant
Classification Sensor .................119
Power adjustable foot pedals .....71
Power distribution box
(see Fuses) ...............................207
Power door locks ........................91
Power mirrors .............................70
Power point .................................67
Power steering ..........................189
fluid, checking and adding ....267
fluid, refill capacity ................272
fluid, specifications .................272
Power Windows ...........................68
R
Radio ......................................16, 21
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
282
