2007 FORD FIVE HUNDRED Owners Manual

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine oil (includes
filter change)6.0 quarts (5.7L)Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)
3
XO-5W20-QSP (US)
CXO-5W20- LSP12
(Canada) /
WSS-M2C930-A and API
Certification Mark
Engine coolant11.6 quarts
(11.0L)Motorcraft Premium
Gold Engine Coolant
with bittering agent
(yellow-colored)
4
VC-7-B /
WSS-M97B51-A1
Cooling system stop
leak pellets—Motorcraft Cooling
System Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Power steering fluidBetween MAX and
MIN on reservoirMotorcraft MERCON
AT FXT-2-QDX /
MERCON
Windshield washer fluid 101 oz (3.0L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank 20.0 gallons (75.7) — —
1Approximate dry fill capacity. Actual amount may vary during fluid changes.2Using any transmission fluid other than those that meet the recommended specification may cause
internal transaxle damage.3Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.4Add the coolant type originally equipped in your vehicle.
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
273

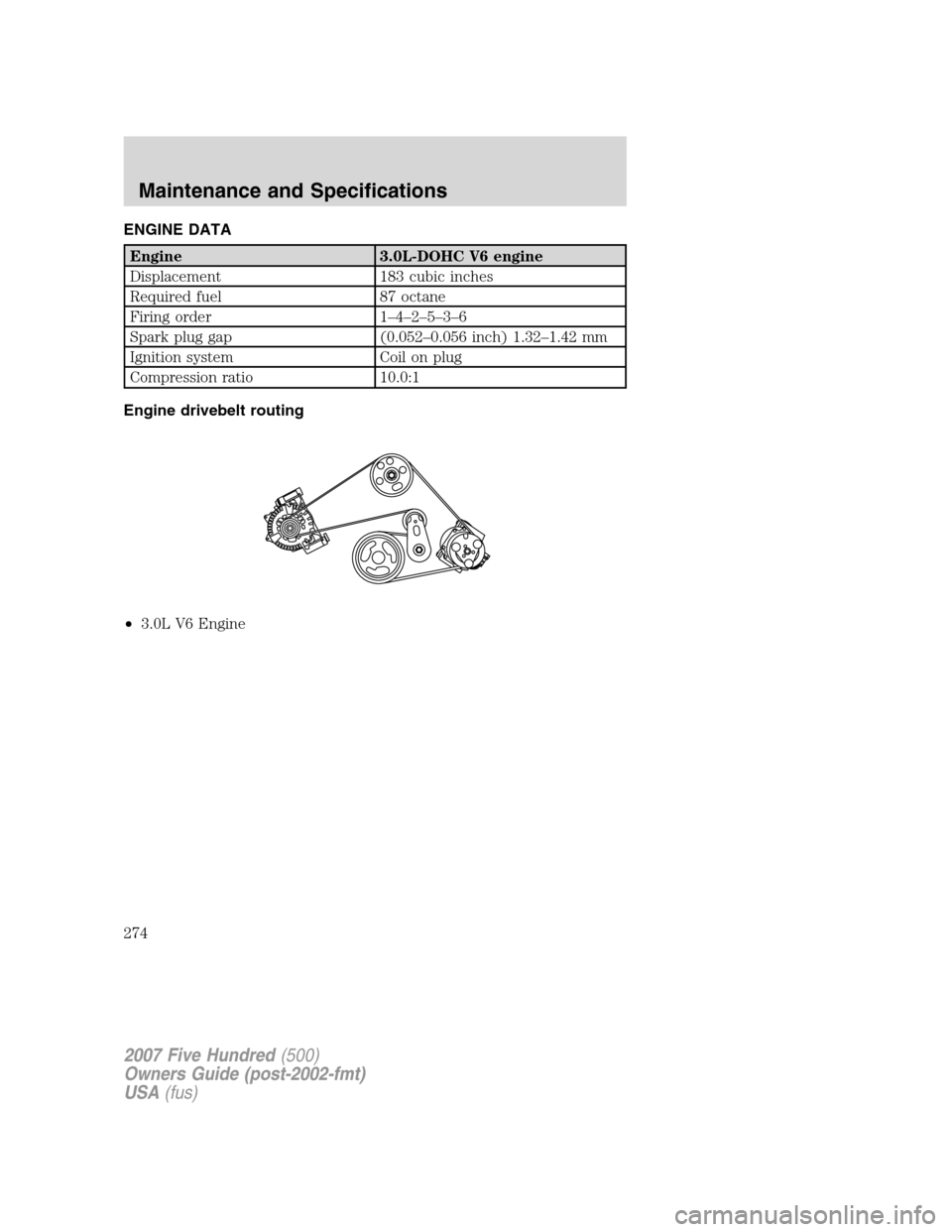

ENGINE DATA
Engine 3.0L-DOHC V6 engine
Displacement 183 cubic inches
Required fuel 87 octane
Firing order 1–4–2–5–3–6
Spark plug gap (0.052–0.056 inch) 1.32–1.42 mm
Ignition system Coil on plug
Compression ratio 10.0:1
Engine drivebelt routing
•3.0L V6 Engine
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
274

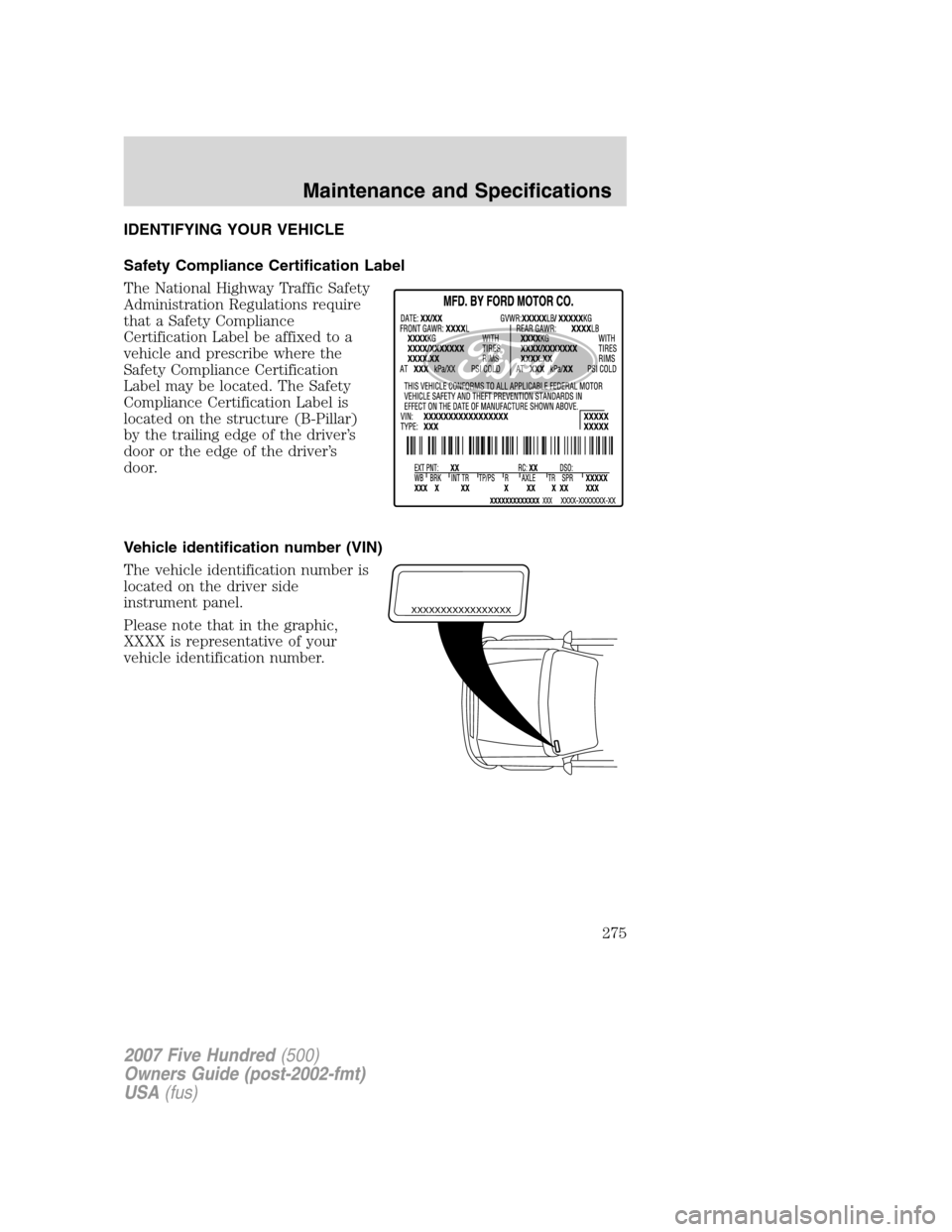

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
275

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
CVT (continuously variable transaxle) C
Six-speed automatic (Aisin F21) A
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
276

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Exterior trim kits
Grille inserts
Splash guards
Wheels
Interior style
Consoles
Electrochromatic compass/temperature interior mirrors
Floor mats
Lifestyle
Ash cup / smoker’s package
Cargo organization and management
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
277

Peace of mind
Mobile-Easehands free communication system
Remote start
Vehicle security systems
Wheel locks
Not all accessories are available for all models.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
278

A
Accessory delay ..........................70
Air cleaner filter .......................271
Air conditioning ....................48, 50
Airbag supplemental restraint
system ................131–132, 140, 142
and child safety seats ............133
description ..............132, 140, 142
disposal ....................................145
driver airbag ............134, 141, 143
indicator light .................140, 145
operation .................134, 141, 143
passenger airbag .....134, 141, 143
side airbag ...............................140
All Wheel Drive (AWD),
driving off road .........................195
Antifreeze
(see Engine coolant) ................250
Anti-lock brake system
(see Brakes) ..............................186
Anti-theft system ..............105, 108
arming the system ..................108
disarming a
triggered system .....................109
triggering .................................109
Audio system (see Radio) ...16, 21
Automatic transaxle
fluid, adding ....................268–269
fluid, checking ................268–269
fluid, refill capacities ..............272
fluid, specification ..................272
Automatic transmission
driving an automatic
overdrive .........................191–192
B
Battery .......................................248acid, treating emergencies .....248
jumping a disabled battery ....217
maintenance-free ....................248
replacement, specifications ...271
servicing ..................................248
Belt-Minder.............................126
Booster seats .............................146
Brakes ........................................185
anti-lock ...................................186
anti-lock brake system (ABS)
warning light ...........................186
fluid, checking and adding ....268
fluid, refill capacities ..............272
fluid, specifications .................272
lubricant specifications ..........272
parking ....................................187
shift interlock ..........................189
Bulbs ............................................58
C
Capacities for refilling fluids ....272
Cargo net .....................................90
Cassette tape player ...................16
Cell phone use ..............................7
Changing a tire .........................210
Child safety restraints ..............146
child safety belts ....................146
Child safety seats ......................150
attaching with
tether straps ...........................154
in front seat ............................151
in rear seat ..............................151
Child safety seats -
booster seats .............................146
Cleaning your vehicle
engine compartment ..............235
instrument panel ....................236
interior .....................................237
plastic parts ............................235
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
279

washing ....................................233
waxing .....................................234
wheels ......................................234
wiper blades ............................236
Climate control (see Air
conditioning or Heating) ......48, 50
Clock ............................................66
Clock adjust
6-CD in dash .............................22
AM/FM/CD .................................17
Compass, electronic
set zone adjustment .................83
Console ........................................67
overhead ....................................66
Controls
power seat ...............................112
steering column ........................75
Coolant
checking and adding ..............250
refill capacities ................255, 272
specifications ..........................272
Cruise control
(see Speed control) ....................72
Cupholder(s) .............................117
Customer Assistance ................202
Ford Extended
Service Plan ............................229
Getting assistance outside
the U.S. and Canada ..............230
Getting roadside assistance ...202
Getting the service
you need .................................225
Ordering additional
owner’s literature ...................231
Utilizing the
Mediation/Arbitration
Program ...................................229D
Daytime running lamps
(see Lamps) ................................56
Dipstick
automatic transmission
fluid ..................................268–269
engine oil .................................244
Driving under special
conditions ..........................196, 199
sand .........................................197
snow and ice ...........................200
through water .................198, 201
DVD system .................................30
E
Electronic message center .........81
Emergencies, roadside
jump-starting ..........................217
Emission control system ..........264
Engine ........................................274
cleaning ...................................235
coolant .....................................250
idle speed control ...................248
lubrication specifications .......272
refill capacities ........................272
service points ..........................242
starting after a collision .........204
Engine block heater .................185
Engine oil ..................................244
change oil soon warning,
message center .......................244
checking and adding ..............244
dipstick ....................................244
filter, specifications ........247, 271
recommendations ...................247
refill capacities ........................272
specifications ..........................272
Exhaust fumes ..........................185
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
280
