2007 FORD FIESTA stop start

211 -00-21 Steering System - General Information 211 -00-21
GENERAL PROCEDURES
Power Steering System Bleeding(l3 41 6 I )
Adapter, Power Steering
Bleeding
211-189 (13-016)
I I Hand Vacuum
PumpIPressure Pump
41 6-DO01 (23-036A)
Bleeding
1. N0TE:When filling the power steering fluid
reservoir, make sure that the power steering
fluid is clean and not agitated prior to use.
The power steering fluid should be poured , slowly into the reservoir to minimize the
possibility of aeration. The power steering
fluid level should be checked with the power
steering fluid cold.
Fill the power steering fluid reservoir to the
MAX mark with the appropriate power
steering fluid.
For additional information, refer to:
Specifications (211-00 Steering System
-
General Information, Specifications).
2. Raise and support the vehicle making sure
that the road wheels are just clear of the
floor. For additional information, refer to:
(1 00-02 Jacking and Lifting)
Jacking (Description and Operation),
Lifting (Description and Operation).
3. N0TE:Do not start the engine at this stage.
N0TE:Make sure that the power steering fluid in
the power steering fluid reservoir does not fall
below the MIN mark, as air could enter the system.
Slowly turn the steering wheel from lock to
lock and add power steering fluid until the
power steering fluid in the power steering
fluid reservoir stops dropping.
4. Check the power steering fluid level. Fill the
power steering fluid reservoir to the MAX
mark with the appropriate power steering
fluid.
For additional information, refer to:
Specifications (211 -00 Steering System
-
General Information, Specifications).
5.
N0TE:When bleeding the power steering
system the vacuum will decrease. Using the
special tools, maintain a sufficient vacuum
of
38cm-Hg. If the vacuum decreases by
more than
5cm-Hg in 5 minutes, the system
should be checked for leaks.
Using the special tools, bleed the power
steering system in the following sequence.
1. Slowly turn the steering wheel from lock to
lock once; then turn the steering wheel to the
right, just off the stop.
2. Using the special tools, create a vacuum of
38cm-Hg. Maintain the vacuum until the air
is evacuated from the system (minimum of
five minutes).
3. Release the vacuum.
4. Repeat the power steering bleeding
procedure, turning the steering wheel to the
left, just off the stop.
6. Remove the special tools. Fill the power
steering fluid reservoir to the MAX mark with
the appropriate power steering fluid as
necessary.
For additional information, refer to:
Specifications (21 1-00 Steering System
-
General Information, Specifications).
7. N0TE:Make sure that the power steering fluid
in the power steering fluid reservoir does
not fall below the MIN mark, as air could
enter the system.
2006.0 Fiesta 1212006 GI 7560en
procarmanuals.com

21 1-00-22 Steering System - General Information 21 1-00-22
GENERAL PROCEDURES
Start the engine and slowly turn the steering
wheel from lock to lock and add power
steering fluid until the power steering fluid
in the power steering fluid reservoir does
not drop.
8. Switch OFF the engine and examine the
power steering hose connections, steering
gear boots, power steering valve body and
power steering pump for external leaks.
9. Check the power steering fluid level. Fill the
power steering fluid reservoir to the MAX
mark with the appropriate power steering
fluid.
For additional information, refer to:
Specifications (211
-00 Steering System -
General Information, Specifications).
10.
N0TE:When bleeding the power steering
system the vacuum will decrease. Using
the special tools, maintain a sufficient
vacuum of
38cm-Hg. If the vacuum
decreases by more than
5cm-Hg in 5
minutes, the system should be checked for
leaks.
Using the special tools, bleed the power
steering system in the following sequence.
1. Start the engine and slowly turn the steering
wheel from lock to lock once; then turn the
steering wheel to the right, just off the stop.
2. Switch OFF the engine.
3. Using the special tools, create a vacuum of
38cm-Hg. Maintain the vacuum until the air
is evacuated from the system (minimum of
five minutes).
4. Release the vacuum.
5. Repeat the power steering bleeding
procedure, turning the steering wheel to the
left, just off the stop.
11. Remove the special tools. Fill the power
steering fluid reservoir to the MAX mark
.
with the appropriate power steering fluid (
as necessary.
For additional information, refer to:
Specifications (211
-00 Steering System -
General Information, Specifications).
12. Start the engine, turn the steering wheel
from lock to lock. If excessive noise is
apparent, repeat the power steering
bleeding procedure.
13. Lower the vehicle.
14.
If the noise level is still unacceptable, leave
the vehicle standing overnight then repeat
the power steering system bleeding
procedure.
- -
2006.0 Fiesta 121zo06 GI 7560en
procarmanuals.com

303-00-1 6 Engine System - General Information 303-00-1 6
DIAGNOSIS AND TESTING
7. Disconnect the glow plug electrical connectors.
8. Remove the glow plugs.
9, Install a suitable compression pressure recorder
with a suitable adapter into the glow plug bore.
N0TE:Operate the starter motor until the reading
on the compression tester stops rising.
1Q Carry out the measurement in accordance with
the instructions supplied with the measuring
device on every cylinder using a suitable
compression pressure recorder with a suitable
adapter. 11.
Detach the compression tester and adapter.
I2 Install the glow plugs.
13 Connect the glow plug electrical connectors.
2006.0 Fiesta 1212006 GI 52554en
procarmanuals.com

303-00-1 9 Engine System - General Information 303-00-1 9
DIAGNOSIS AND TESTING
11. Remove the glow plugs. 16 Install the glow plug power supply.
I ' I2 Install the special tool and a suitable IT Attach the EGR cooler (if equipped).
compression tester into the glow plug bore.
N0TE:Crank the engine with the starter motor until
the reading on the compression tester stops rising.
13 Carry out the measurement on all cylinders,
following the measuring equipment
manufacturer's instructions.
$4 Detach the compression tester and the special
tool.
15 Install the glow plugs.
18. Connect the fuel injector electrical connectors.
I
2006.0 Fiesta 1212006 GI 52554en
procarmanuals.com

303-00-20 Engine System - General Information 303-00-20
DIAGNOSIS AND TESTING
I9 Install the engine upper cover. Measure the compression pressure
2l Raise and support the vehicle. REFER to: - 1.25L Duratec-1 6V
(1 00-02 Jacking and Lifting) 6V (sigrna)/l .GL (
Jacking (Description and Operation),
Lifting (Description and Operation).
2l. Install the glow plug relay.
22 Install the radiator undershield.
23, Install the engine undershield.
Z. Lower the vehicle.
25 Reset the PCM fault memory.
I. Open the central junction box (CJB) and remove
the
fuel pump relay.
N0TE:The engine will start, run for a few seconds
and then stop.
2. Start the engine.
3. Remove the air
cleaner.
REFER to: Air Cleaner - 1.25L Duratec-1 6V
(Sigma)/l.4L Duratec-1 6V (Sigma)ll .6L ( Duratec-I 6V (Sigma) (303-1 2 Intake Air
Distribution and
Filtering, Removal and
Installation).
4. Disconnect the electronic ignition (El) coil
connector from the El coil.
- -- - - -
2006.0 Fiesta 1212006 GI 52554en
procarmanuals.com

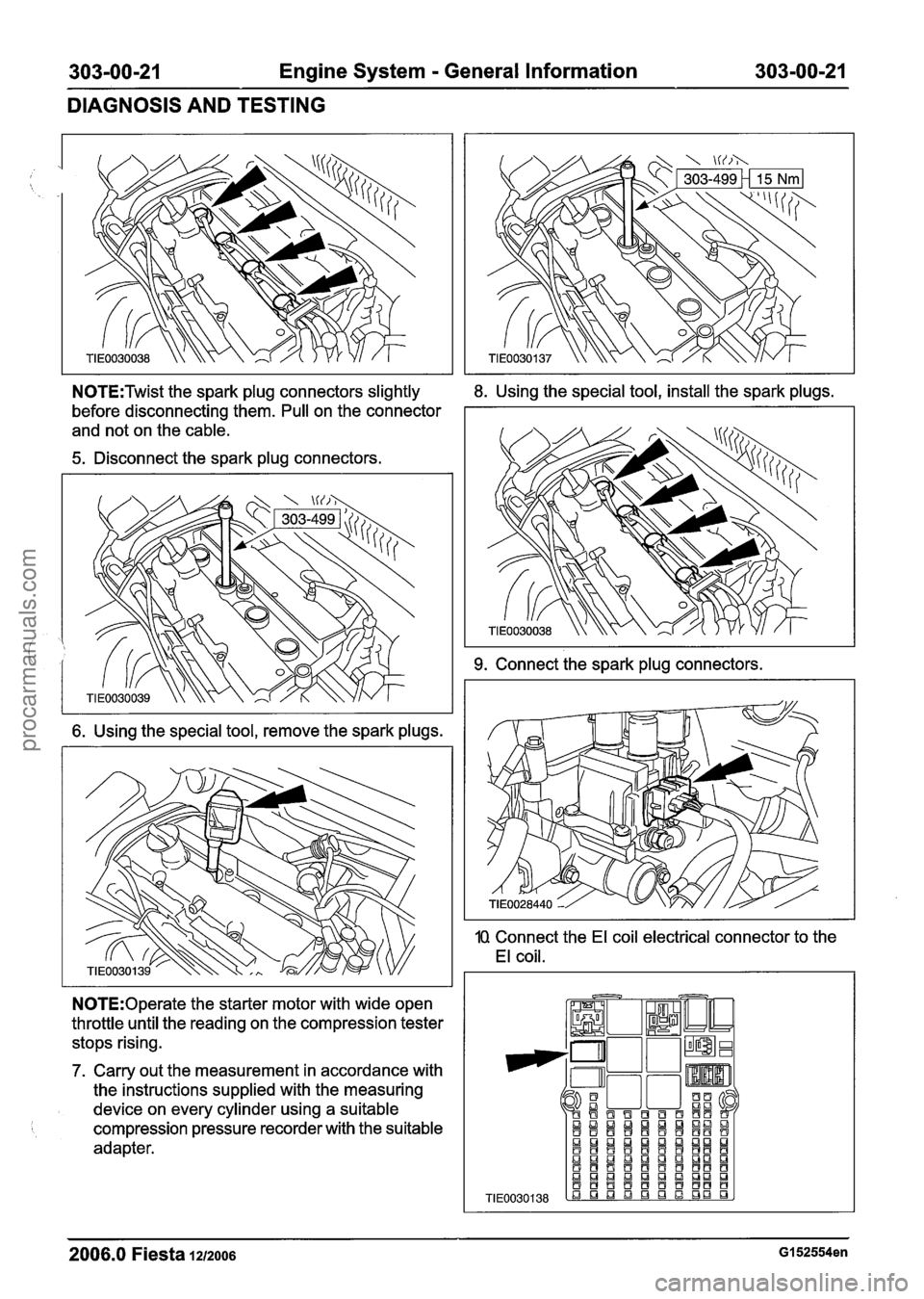

303-00-21 Engine System - General Information 303-00-21
DIAGNOSIS AND TESTING
N0TE:Twist the spark plug connectors slightly 8. Using the special tool, install the spark plugs.
before disconnecting them. Pull on the connector
and not on the cable.
5. Disconnect the spark plug connectors.
6. Using the special tool, remove the spark plugs.
N0TE:Operate the starter motor with wide open
throttle until the reading on the compression tester
stops rising.
7. Carry out the measurement in accordance with
the instructions supplied with the measuring
device on every cylinder using a suitable
compression pressure recorder with the suitable
adapter.
9. Connect the spark plug connectors.
10 Connect the El coil electrical connector to the
El coil.
2006.0 Fiesta 1212006 GI 52554en
TIE0030138
QI!J!J!J~QUQI!J!J aaaaaaaaaa aBQnQIamman aBBaaaBBt3B a!JQ!JaLlnQma aaaaaaBBaf3 aaQaaQmQDa ~a~f3~B~~~B .a q q q L! q gD
procarmanuals.com

303-00-22 Engine System - General Information 303-00-22
DIAGNOSIS AND TESTING
11. Install the fuel pump relay.
I2 Install the air cleaner.
REFER to: Air Cleaner - 1.25L Duratec-1 6V
(Sigma)/l.4L Duratec-16V (Sigma)/l .6L
Duratec-I 6V (Sigma) (303-1 2 Intake Air
Distribution and
Filtering, Removal and
Installation).
13 Using worldwide diagnostic system (WDS), clear
the fault codes from the PCM.
Measure the compression ressure
(Engine
- 1 .3L Duratec-8V P Rocam)) N0TE:Twist the spark plug connectors slightly
1. Open the
central junction box (CJB) and remove
the
fuel pump relay.
before disconnecting them. Pull on the connector
and not on the
cable.
5. Disconnect the spark plug connectors.
N0TE:The engine will start, run for a few seconds
and then stop. 6. Remove the spark plugs.
2. Start the engine.
3. Remove the air
cleaner.
REFER to: Air Cleaner - 1.3L Duratec-8V
(Rocam) (303-12 Intake Air Distribution and
Filtering, Removal and Installation).
N0TE:Operate the starter motor with wide open
throttle until the reading on the compression tester
stops rising.
7. Carry out the measurement in accordance with
the instructions
supplied with the measuring
device on every
cylinder using a suitable
4. Disconnect the electronic ignition (El) coil compression pressure recorder
with the suitable (:
electrical connector from the El coil. adapter.
2006.0 Fiesta 1212006 GI 52554en
procarmanuals.com

303-00-23 Engine System - General Information 303-00-23
DIAGNOSIS AND TESTING
8. Install the spark plugs.
9. Connect the spark plug connectors.
1Q Connect the El coil electrical connector to the
El coil. 11.
Install the fuel pump relay.
I2 Install the air cleaner.
REFER to: Air Cleaner
- 1.3L Duratec-8V
(Rocam) (303-1 2 Intake Air Distribution and
Filtering, Removal and Installation).
13 Using worldwide diagnostic system (WDS), clear
the fault codes from the PCM.
Measure the compression ressure
(Engine
- 2.OL Duratec-HE PMI~))
1. Open the central junction box (CJB) and remove
the fuel pump relay.
N0TE:The engine will start, run for a few seconds
and then stop.
2. Start the engine.
3. Remove the air cleaner.
REFER to: Air Cleaner
- 2.OL Duratec-HE (M14)
(303-1 2 Intake Air Distribution and Filtering,
Removal and Installation).
4. Disconnect
the electronic ignition (El) coil
electrical connector from the El coil.
2006.0 Fiesta 1212006 GI 52554en
