2007 FORD FIESTA Injector

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01 A-1 05 Duratec-1 6V (Sigma)/l .6L
Duratec-1 6V (Sigma) 303-01 A-1 05
DISASSEMBLY AND ASSEMBLY
OF SUBASSEMBLIES
Cylinder Head(21 165 6)
' Disassembly 5. Remove the fuel supply manifold.
I. Disconnect the temperature and manifold Discard the O-ring seals.
absolute pressure (T-MAP) sensor electrical
connector.
2. Disconnect the throttle plate control motor
(DC-ISC) electrical connector.
3. Disconnect the fuel injector electrical
connectors.
6. Remove the intake manifold.
Discard the gaskets.
7. Remove the engine rear lifting eye.
8. Remove the coolant distribution housing and
1 ~~~0001735 the ignition coil (El).
4. Remove the engine wiring harness.
2006.0 Fiesta 1212006 G202085en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01 A-I 07 Duratec-I 6V (Sigma)/l.GL Duratec-1 6V (Sigma)
303-01 A-I 07
DISASSEMBLY AND ASSEMBLY
OF SUBASSEMBLIES
Install the intake manifold. 9. Connect the throttle plate control motor
(DC-ISC) electrical connector.
6. N0TE:lnstall new fuel supply manifold O-ring
seals.
10. Connect the temperature and manifold
Install the fuel supply manifold. absolute pressure (T-MAP)
sensor electrical
connector.
7. Install the engine wiring harness.
8. Connect the fuel injector electrical
connectors.
2006.0 Fiesta 1212006 G202085en
procarmanuals.com

303-01 B-85 Engine - 2.OL Duratec-HE (M14) 303-01 B-85
DISASSEMBLY
Install the drain plug. 12.
Disconnect the oil pressure switch
electrical connector.
10. Detach the engine wiring harness bracket
from the intake manifold. 13.
Disconnect the fuel injector electrical
connectors.
11. Disconnect the knock sensor
(KS) electrical
connector. 14.
Disconnect the camshaft position
(CMP)
sensor electrical connector.
2006.0 Fiesta 1212006 G451309en
procarmanuals.com

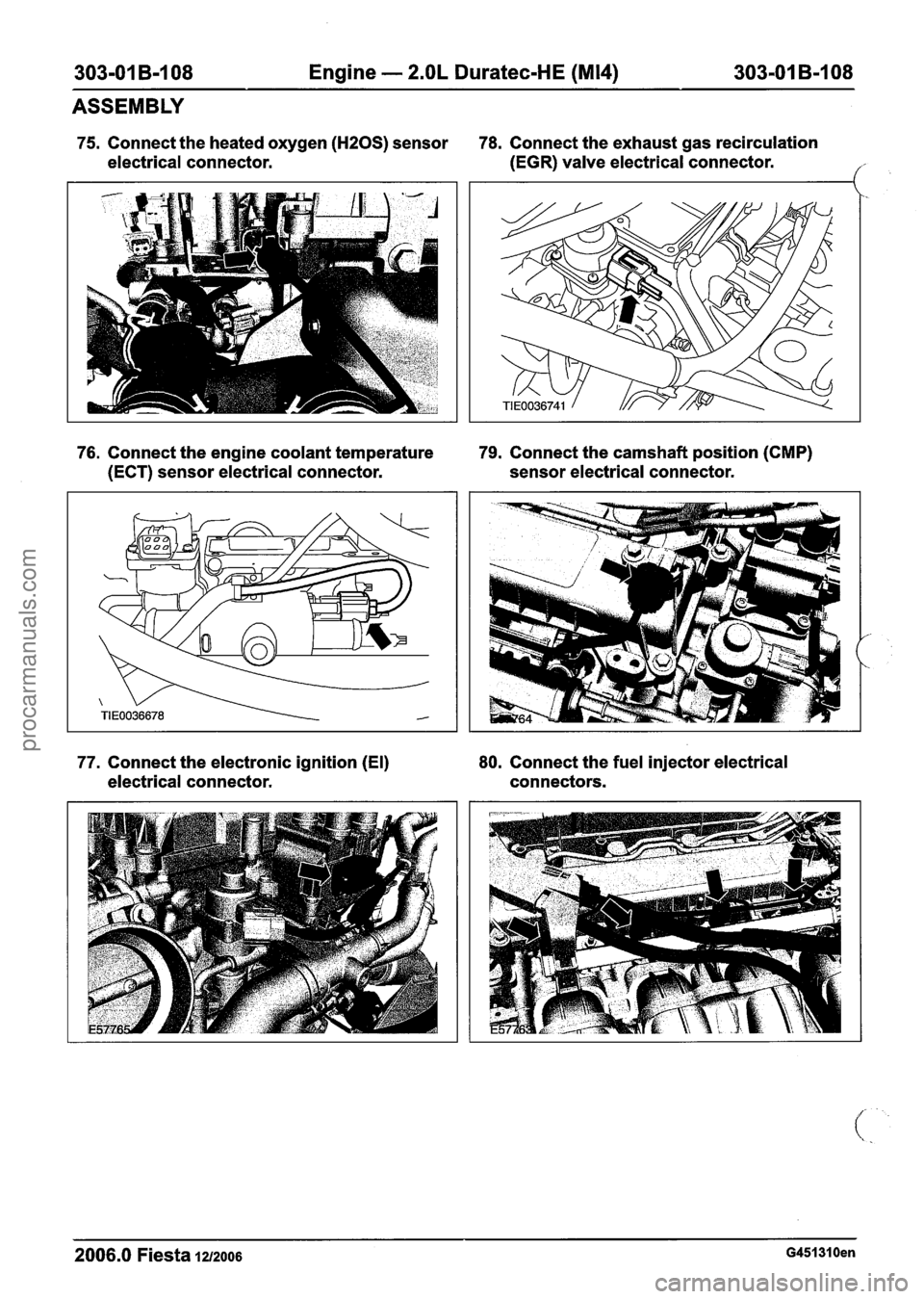

303-01 B-I08 Engine - 2.OL Duratec-HE (M14) 303-01 B-108
ASSEMBLY
75. Connect the heated oxygen (HZOS) sensor 78. Connect the exhaust gas recirculation
electrical connector. (EGR)
valve electrical connector.
('
76. Connect the engine coolant temperature 79. Connect the camshaft position (CMP)
(ECT) sensor electrical connector. sensor electrical connector.
77. Connect the electronic ignition (El) 80.
Connect the fuel injector electrical
electrical connector. connectors.
2006.0 Fiesta 1212006 G451310en
procarmanuals.com

Fuel Charging and Controls - 1.25L
Duratec-1 6V (Sigma)ll.4L Duratec-1 6V
303-04A-3 (Sigma)ll .6L Duratec-1 6V (Sigma) 303-04A-3 - -
DIAGNOSIS AND TESTING
Fuel Charging and Controls
Principles Of Operation
REFER to: Acceleration Control (31 0-02A,
Diagnosis and Testing).
lnspection and Verification
1. Verify the customer concern.
2. Visually inspect for obvious signs of mechanical
or electrical damage.
Visual Inspection Chart
I Mechanical I Electrical I
- Fuel leak(s)
- Blocked or contamin-
ated fuel filter
- Fuel rail
- Vacuum line(s)
- Throttle body
- Wiring harness
- Electrical
connector(s)
- Fuel injector(s)
- Throttle body
I
3. If an obvious cause for an observed or reported
concern is found, correct the cause (if possible)
before proceeding to the next step.
4. If the cause is not visually evident, verify the
symptom and refer to WDS.
2006.0 Fiesta 1212006 G28679en
procarmanuals.com

Fuel Charging and Controls - 1.25L
Duratec-1 6V (Sigma)ll.4L Duratec-1 6V
(Sigma)ll .6L Duratec-1 6V (Sigma)
REMOVAL AND INSTALLATION
8. Disconnect the fuel injector electrical
connectors and remove the fuel charging
wiring harness.
Installation
I. To install, reverse the removal procedure.
2006.0 Fiesta 1212006 GI 89082en
procarmanuals.com

Fuel Charging and Controls - 1.25L
Duratec-1 6V (Sigma)llI4L Duratec-1 6V
303-04A-7 (Sigma)llI6L Duratec-1 6V (Sigma) 303-04A-7
REMOVAL AND INSTALLATION
Fuel Injection Supply Manifold(23 450 0)
Removal
WARNINGS:
A Do not smoke or carry lighted tobacco or
open flame of any type when working on
or near any fuel related components.
Highly flammable vapors are always
present and can ignite. Failure to follow
these instructions may result in personal
injury.
A This procedure involves fuel handling. Be
prepared for fuel spillage at all times and
always observe fuel handling precautions.
Failure to follow these instructions may
result in personal injury.
5. Disconnect the fuel injector electrical
connectors and position the wiring harness
to one side.
1. Release the fuei system pressure. For
additional information, refer to 6. Disconnect the vacuum line from the fuel
Section
31 0-00 [Fuel System - General pressure
regulator.
Information].
2. Disconnect the battery ground cable. For
additional information, refer to
Section
414-01 [Battery, Mounting and
Cables].
3. Remove the air cleaner. For additional
information, refer to Section
303-12 [Intake
Air Distribution and Filtering].
4. Remove the positive crankcase ventilation
(PCV) hose.
7. N0TE:Fuel supply line connectors are white
or are identified by a white band. Fuel return
line connectors are red or are identified by
a red band.
2006.0 Fiesta 1212006 GI 89083en
procarmanuals.com

Fuel Charging and Controls - 1.25L
Duratec-I 6V (Sigma)ll.4L Duratec-I 6V
(Sigma)ll.6L Duratec-1 6V (Sigma)
REMOVAL AND INSTALLATION
Disconnect the fuel supply line from the fuel 10. Remove the fuel pressure regulator.
injection supply manifold. For additional
information, refer to Section 31 0-00 [Fuel
System
- General Information].
8. N0TE:Fuel supply line connectors are white
or are identified by a white band. Fuel return
line connectors are red or are identified by
a red band.
Disconnect the fuel return line from the fuel
injection supply manifold. For additional
information, refer to Section 31 0-00 [Fuel
System
- General Information].
9. Remove the fuel injection supply manifold.
11. Remove and discard the O-ring seal.
12.
N0TE:Discard the fuel injector O-ring seals.
Remove the fuel injectors from the fuel
injection supply manifold.
1. Lift the retaining clip.
2. Slide the retaining clip. .
3. Pull the fuel injector.
2006.0 Fiesta 1212006 GI 89083en
