2007 FORD FIESTA automatic transmission

Automatic Transmission/Transaxle External
Controls
- Vehicles With: 4-Speed Automatic
307-05-1
2 Transmission (AW81-40) 307-05-1 2
REMOVAL AND INSTALLATION
Selector Lever Bezel
Removal
1. Remove the transmission selector lever
knob.
For additional information, refer to
Transmission Selector Lever Knob
- in this
section.
2. Remove the selector lever bezel (selector
lever assembly shown removed for clarity).
Unclip the bezel.
Unclip the lamp.
Installation
1. Install the selector lever bezel (selector lever
assembly shown removed for clarity).
Clip the bezel.
Clip the lamp.
ELEOOl
2. Install the transmission selector lever knob.
For additional information, refer to
Transmission Selector Lever Knob
- in this
section.
2006.0 Fiesta 1212006 G294550en
procarmanuals.com

Automatic TransmissionlTransaxle External
Controls -Vehicles With: 4-Speed Automatic
307-05-1
3 Transmission (AW81-40) 307-05-1 3
REMOVAL AND INSTALLATION

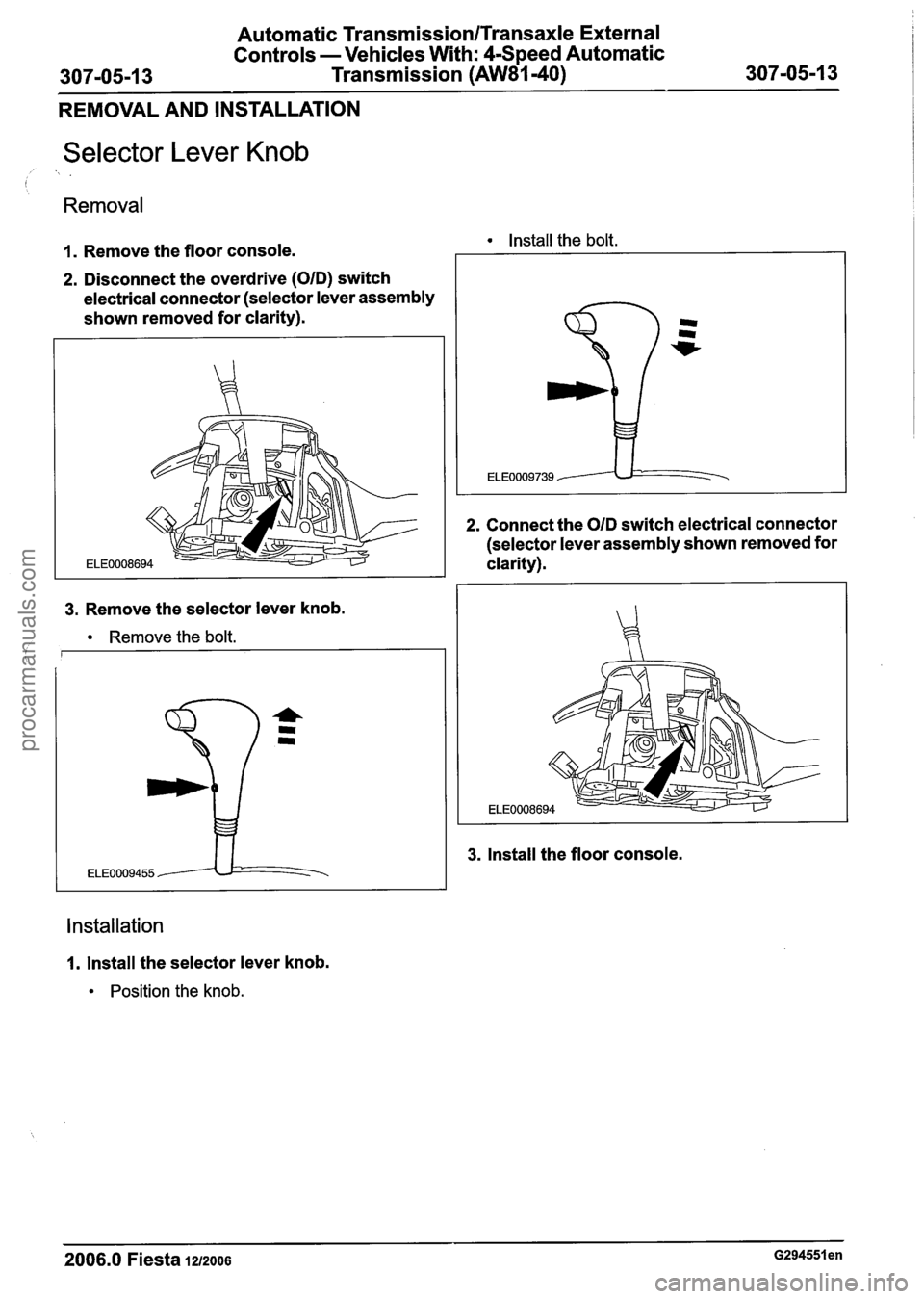

Selector Lever Knob
, > .
Removal
1. Remove the floor console.
2. Disconnect the overdrive (OID) switch
electrical connector (selector lever assembly
shown removed for clarity).
3. Remove the selector lever knob.
Remove the bolt. i
Installation
1. Install the selector lever knob.
Position the knob.
lnstall the bolt.
2. Connect the OID switch electrical connector
(selector lever assembly shown removed for
clarity).
3. Install the floor console.
2006.0 Fiesta 1212006 G294551 en
procarmanuals.com

Automatic Transmission/Transaxle External
Controls -Vehicles With: 4-Speed Automatic
307-05-1 4 Transmission (AW81-40) 307-05-1 4
DISASSEMBLY AND ASSEMBLY

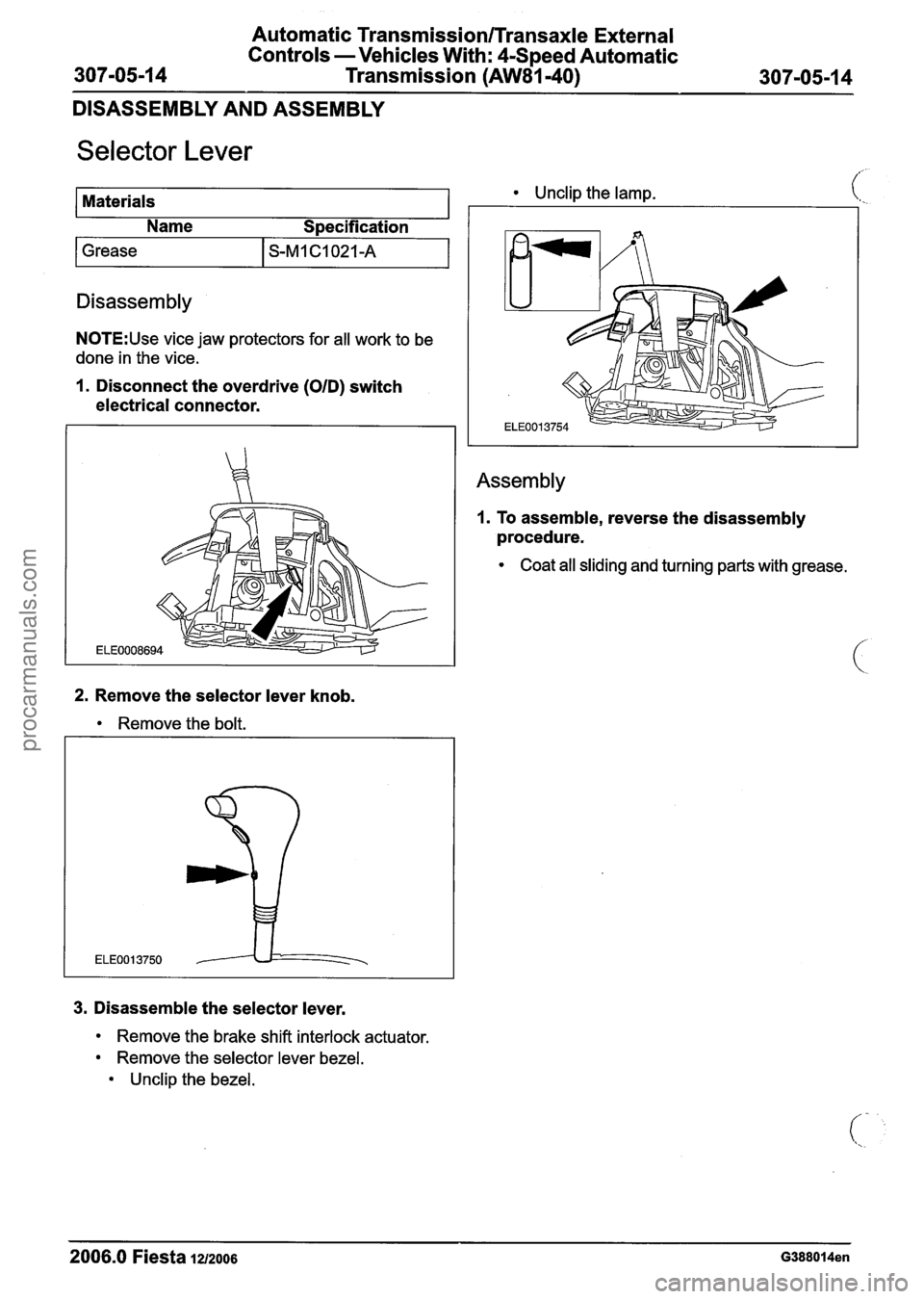

Selector Lever
Materials Unclip the lamp.
I I Name S~ecification
1 Grease I S-MlC1021-A I
Disassembly
N0TE:Use vice jaw protectors for all work to be
done in the vice.
1. Disconnect the overdrive (OID) switch
electrical connector.
Assembly
1. To assemble, reverse the disassembly
procedure.
Coat all sliding and turning parts with grease.
2. Remove the selector lever knob.
Remove the bolt.
3. Disassemble the selector lever.
Remove the brake shift interlock actuator.
Remove the selector lever bezel.
Unclip the bezel.
2006.0 Fiesta 1212006 G388014en
procarmanuals.com

Manual Transmission/Transaxle and Clutch -
308-00-1 2 General Information 308-00-1 2
GENERAL PROCEDURES
Clutch System Bleeding(l6 843 0)
Special Tool(s) 6. Fill the reservoir of the special tool with (,, .
I Hand Vacuum approximately 100 ml of new brake fluid.
7. N0TE:Make sure that the special tool
reservoir is positioned lower than the bleed
nipple.
Install the special tool.
Super DOT 4 Brake
1 Fluid
I
Materials
Name Specification
ESD-M6C57-A
A WARNING: Brake fluid contains polyglycol
ethers and polyglycols. Avoid contact with
the eyes. Wash hands thoroughly after
handling. If brake fluid contacts the eyes,
flush the eyes for 15 minutes with cold
running water. Get medical attention if
irritation persists. If taken internally, drink
8. Using the special tool, bleed the clutch
water and induce vomiting. Get medical system.
attention immediately. Failure to follow
Pump approximately 80 ml of brake fluid into
these instructions may result in personal the clutch svstem. (
injury. w
9. Close the bleed nipple. A CAUTI0N:Y brake fluid is spilt on the
paintwork, the affected area must be 10.
Remove the special tool.
immediately washed down with cold water.
11. Lower the vehicle, if necessary.
N0TE:lf proprietary brake bleeding equipment is
available, this can be used to bleed the clutch
system, following the method below. The maximum
pressure must not exceed
1.5 bar.
N0TE:The clutch control system is self-venting.
The components are arranged in such a way that
small amounts of air trapped in the system are
removed automatically during clutch operation.
12. In order to remove any small amounts of
trapped air remaining in the system,
operate the clutch pedal several times
(maximum five times), using the full clutch
pedal travel.
13. Check the fluid level in the brake fluid
reservoir and top up to the MAX mark with
brake fluid if necessary.
1. Remove the air cleaner, if necessaryfor 14. Install the battery tray, if necessary.
additional information, refer to
Section
303-12 [Intake Air Distribution and 15.
Install the battery, if necessary. For
Filtering]. additional
information, refer to
Section 414-01 [Battery, Mounting and
2. Remove the battery, if necessary. For
Cablesl.
additional information, refer to
Section
414-01 [Battery, Mounting and . 16. Install the air cleaner, if necessary. For
Cables]. additional
information, refer to
Section 303-1
2 [Intake Air Distribution and - 3. Remove the battery tray, if necessary.
Filtering]. (' L 4. Drain the brake fluid reservoir.
17. Test the clutch control system for normal "I-
5. Raise and support the vehicle, if necessary. operation.
For additional information, refer to
Section 100-02 [Jacking and Lifting].
2006.0 Fiesta 1212006 GI 83752en
procarmanuals.com

308103168 Manual Transmission/Transaxle 308103168
INSTALLATION
37. Connect the powertrain control module
(PCM) electrical connector to the PCM.
38. Install the front wheels and tires. For
additional information, refer to
Section
204-04 wheels and Tires].
Vehicles without automated gearshift
39. Adjust the gearshift cables. For additional
information, refer to Section
308-00
[Manual Transmission/Transaxle and Clutch
- General Information].
40. Bleed the clutch system. For additional
information, refer to Section
308m00
[Manual Transmission/Transaxle and Clutch
- General Information].
All vehicles
41. Install the battery tray. For additional
information, refer to Section
41 4-01
[Battery, Mounting and Cables].
42. With the vehicle on a level surface, fill the
transaxle until the oil level is just below the
bottom of the filler hole.
Vehicles with automated gearshift
43m ACAUTION:T~~ worldwide diagnostic
system (WDS) gearshift actuator bleed
option must be carried out
if any part of the
clutch hydraulic system is opened or any
new components are installed.
N0TE:When the WDS gearshift actuator bleed
option is selected, the learn transmission and learn
clutch parameter options will automatically be
completed.
Bleed the clutch system. For additional
information, refer to Section
308-00 [Manual
Transmission/Transaxle and Clutch - General
Information].
2006.0 Fiesta 1212006 GII 3293en
