2007 FORD F150 engine coolant

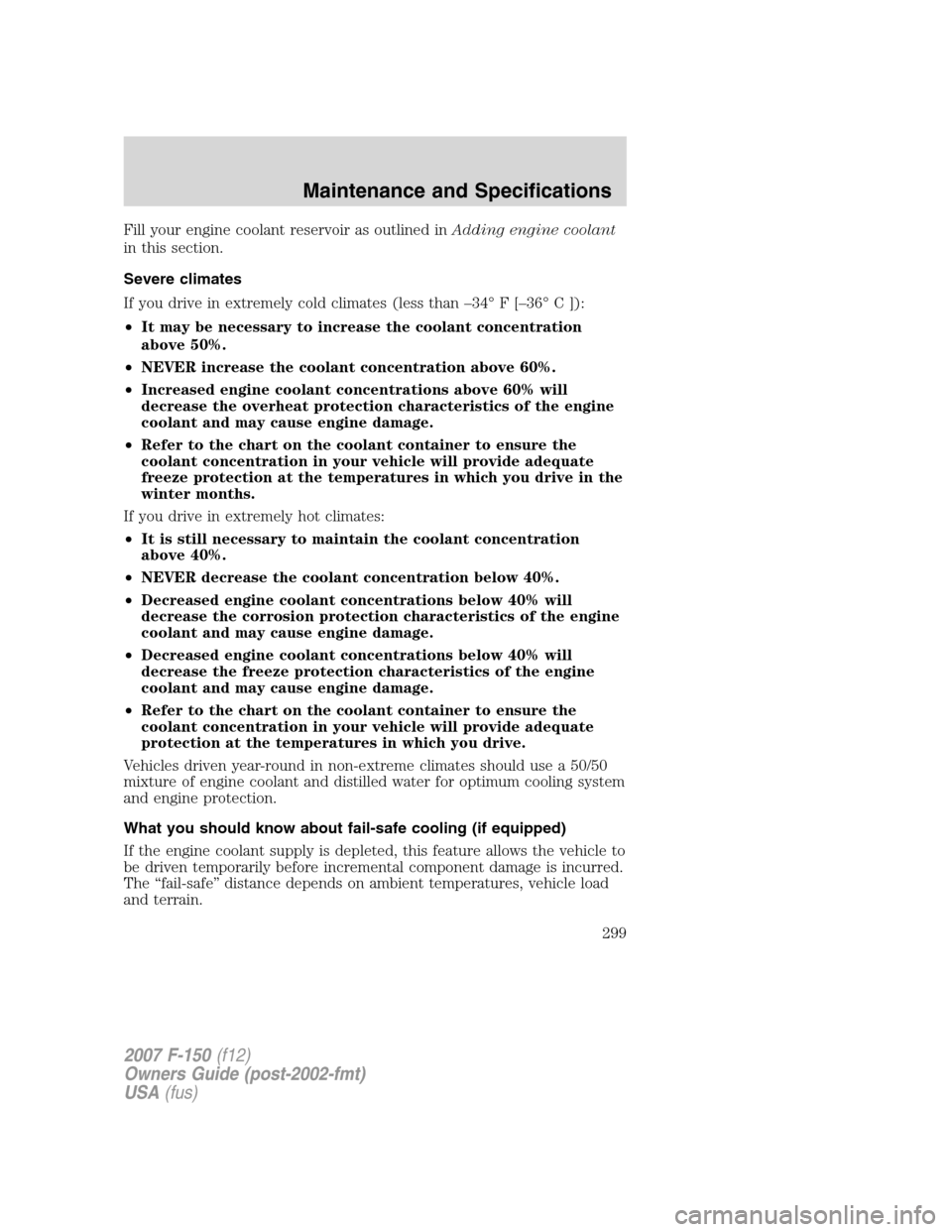

Fill your engine coolant reservoir as outlined inAdding engine coolant
in this section.
Severe climates
If you drive in extremely cold climates (less than –34° F [–36° C ]):
•It may be necessary to increase the coolant concentration
above 50%.
•NEVER increase the coolant concentration above 60%.
•Increased engine coolant concentrations above 60% will
decrease the overheat protection characteristics of the engine
coolant and may cause engine damage.
•Refer to the chart on the coolant container to ensure the
coolant concentration in your vehicle will provide adequate
freeze protection at the temperatures in which you drive in the
winter months.
If you drive in extremely hot climates:
•It is still necessary to maintain the coolant concentration
above 40%.
•NEVER decrease the coolant concentration below 40%.
•Decreased engine coolant concentrations below 40% will
decrease the corrosion protection characteristics of the engine
coolant and may cause engine damage.
•Decreased engine coolant concentrations below 40% will
decrease the freeze protection characteristics of the engine
coolant and may cause engine damage.
•Refer to the chart on the coolant container to ensure the
coolant concentration in your vehicle will provide adequate
protection at the temperatures in which you drive.
Vehicles driven year-round in non-extreme climates should use a 50/50
mixture of engine coolant and distilled water for optimum cooling system
and engine protection.
What you should know about fail-safe cooling (if equipped)
If the engine coolant supply is depleted, this feature allows the vehicle to
be driven temporarily before incremental component damage is incurred.
The “fail-safe” distance depends on ambient temperatures, vehicle load
and terrain.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
299

How fail-safe cooling works
If the engine begins to overheat:
•The engine coolant temperature
gauge will move to the red (hot)
area.
•The mini message center (if
equipped) will indicate “Check
Gauges”, refer toWarning Lights
and Chimesin theInstrument Clusterchapter.
•The message center (if equipped) will indicate a system warning, refer
toMessage Centerin theDriver Controlschapter.
•The
light will illuminate.
If the engine reaches a preset over-temperature condition, the engine
will automatically switch to alternating cylinder operation. Each disabled
cylinder acts as an air pump and cools the engine.
When this occurs the vehicle will still operate. However:
•The engine power will be limited.
•The air conditioning system will be disabled.
Continued operation will increase the engine temperature:
•The engine will completely shut down.
•Steering and braking effort will increase.
Once the engine temperature cools, the engine can be re-started. Take
your vehicle to an authorized dealer as soon as possible to minimize
engine damage.
When fail-safe mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. The vehicle will not be able to maintain high speed
operation and the engine will run rough. Remember that the engine is
capable of completely shutting down automatically to prevent engine
damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to an authorized dealer.
3. If this is not possible, wait a short period for the engine to cool.
4. Check the coolant level and replenish if low.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
300

Never remove the coolant reservoir cap while the engine is
running or hot.
5. Restart the engine and take your vehicle to an authorized dealer.
Driving the vehicle without repairing the engine problem
increases the chance of engine damage. Take your vehicle to an
authorized dealer as soon as possible.
FUEL FILTER
For fuel filter replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the fuel filter.
Replace the fuel filter with an authorized Motorcraft part. The
customer warranty may be void for any damage to the fuel system
if an authorized Motorcraft fuel filter is not used.
WHAT YOU SHOULD KNOW ABOUT AUTOMOTIVE FUELS
Important safety precautions
Do not overfill the fuel tank. The pressure in an overfilled tank
may cause leakage and lead to fuel spray and fire.
The fuel system may be under pressure. If the fuel filler cap is
venting vapor or if you hear a hissing sound, wait until it stops
before completely removing the fuel filler cap. Otherwise, fuel may
spray out and injure you or others.
If you do not use the proper fuel filler cap, excessive vacuum in
the fuel tank may damage the fuel system or cause the fuel cap
to disengage in a collision, which may result in possible personal injury.
Automotive fuels can cause serious injury or death if misused or
mishandled.
Fuel ethanol and gasoline may contain benzene, which is a
cancer-causing agent.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
301

Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete. If
the vehicle is still not ready for I/M testing, the above driving cycle will
have to be repeated.
POWER STEERING FLUID
Check the power steering fluid. Refer to thescheduled maintenance
informationfor the service interval schedules. If adding fluid is
necessary, use MERCONAT F.
1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the reservoir. It should be between the MIN
and MAX lines. Do not add fluid if the level is in this range.
5. If the fluid is low, add fluid in small amounts, continuously checking
the level until it reaches the range between the MIN and MAX lines. Be
sure to put the cap back on the reservoir.
BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the “MIN” and
“MAX” lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range the performance of the
system could be compromised; seek
service from your authorized dealer
immediately.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
314

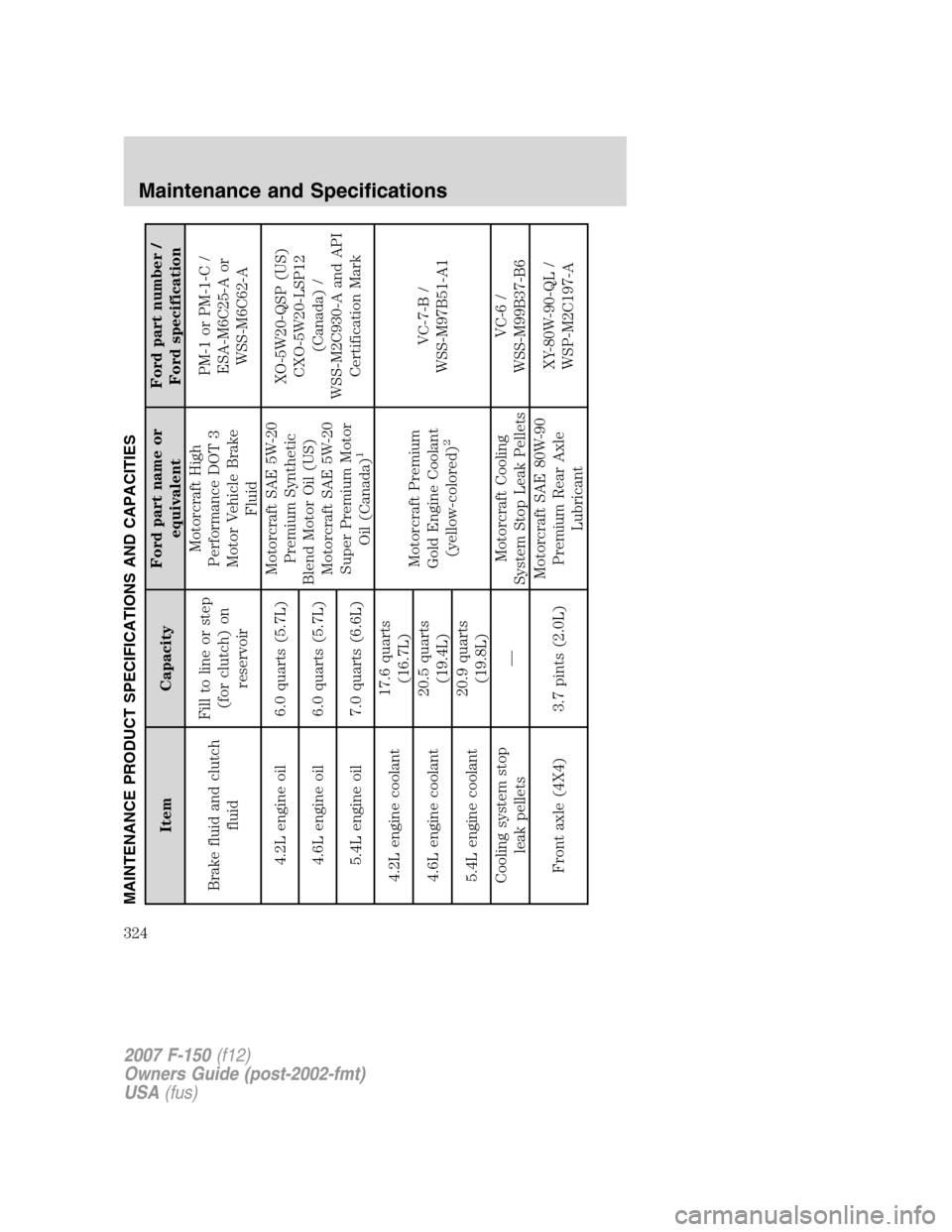

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord part name or
equivalentFord part number /
Ford specification
Brake fluid and clutch
fluidFill to line or step
(for clutch) on
reservoirMotorcraft High
Performance DOT 3
Motor Vehicle Brake
FluidPM-1 or PM-1-C /
ESA-M6C25-A or
WSS-M6C62-A
4.2L engine oil 6.0 quarts (5.7L)Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)
1
XO-5W20-QSP (US)
CXO-5W20-LSP12
(Canada) /
WSS-M2C930-A and API
Certification Mark 4.6L engine oil 6.0 quarts (5.7L)
5.4L engine oil 7.0 quarts (6.6L)
4.2L engine coolant17.6 quarts
(16.7L)
Motorcraft Premium
Gold Engine Coolant
(yellow-colored)
2
VC-7-B /
WSS-M97B51-A1 4.6L engine coolant20.5 quarts
(19.4L)
5.4L engine coolant20.9 quarts
(19.8L)
Cooling system stop
leak pellets—Motorcraft Cooling
System Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Front axle (4X4) 3.7 pints (2.0L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W-90-QL /
WSP-M2C197-A
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
324

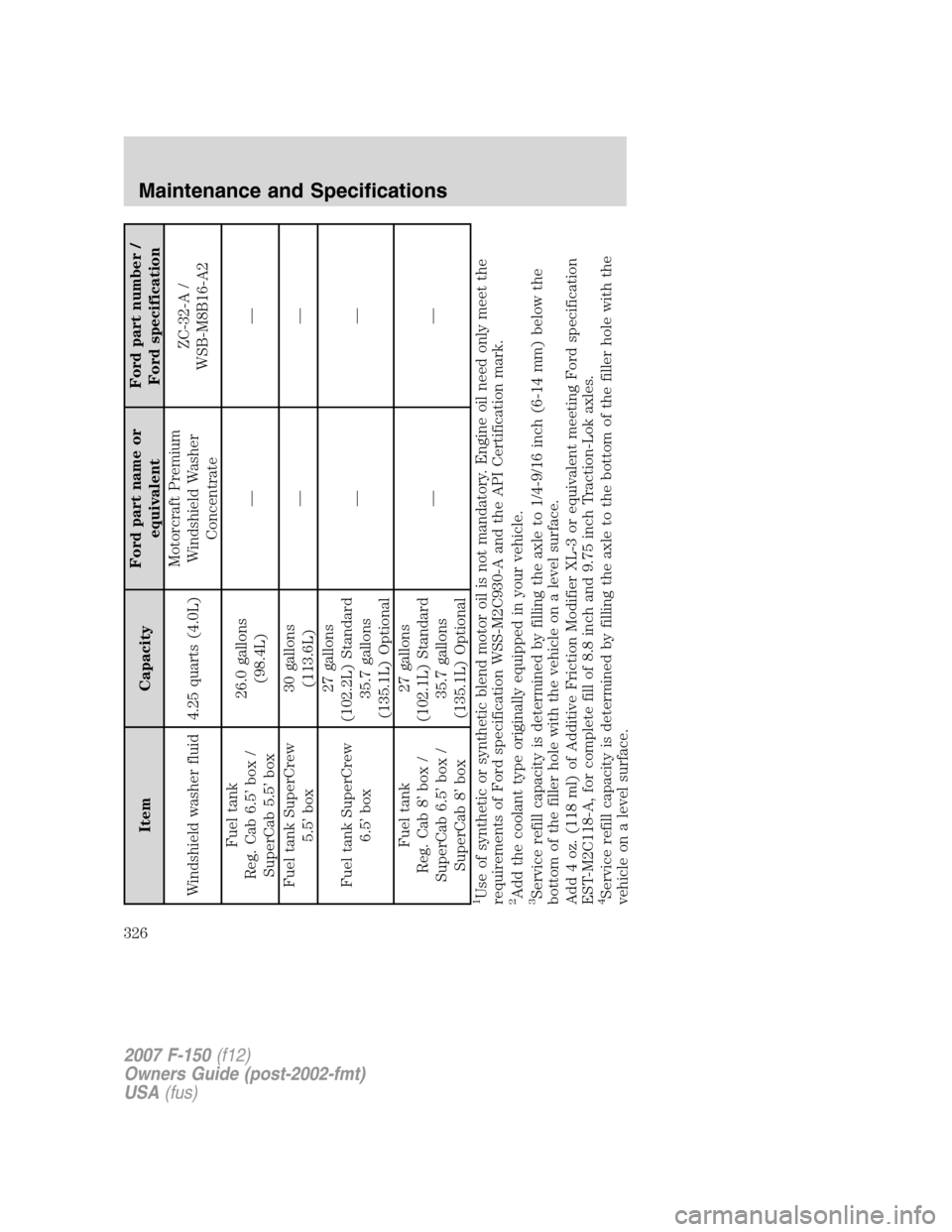

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Windshield washer fluid 4.25 quarts (4.0L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank
Reg. Cab 6.5’ box /
SuperCab 5.5’ box26.0 gallons
(98.4L)——
Fuel tank SuperCrew
5.5’ box30 gallons
(113.6L)——
Fuel tank SuperCrew
6.5’ box27 gallons
(102.2L) Standard
35.7 gallons
(135.1L) Optional——
Fuel tank
Reg. Cab 8’ box /
SuperCab 6.5’ box /
SuperCab 8’ box27 gallons
(102.1L) Standard
35.7 gallons
(135.1L) Optional——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.2Add the coolant type originally equipped in your vehicle.3Service refill capacity is determined by filling the axle to 1/4-9/16 inch (6-14 mm) below the
bottom of the filler hole with the vehicle on a level surface.
Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford specification
EST-M2C118-A, for complete fill of 8.8 inch and 9.75 inch Traction-Lok axles.4Service refill capacity is determined by filling the axle to the bottom of the filler hole with the
vehicle on a level surface.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
326

A
Accessory delay ..........................76
Air cleaner filter ...............320–322
Air conditioning ....................51, 54
Airbag supplemental restraint
system ................................140–141
and child safety seats ............143
description ..............................141
disposal ....................................145
driver airbag ....................141, 144
indicator light .........................145
operation .........................141, 144
passenger airbag .............141, 144
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................295
Anti-lock brake system
(see Brakes) ..............................213
Anti-theft system ......................112
arming the system ..................113
Armrests ....................................117
Audio system
(see Radio) ......................26, 28, 34
Automatic transmission
driving an automatic
overdrive .................................220
fluid, adding ............................316
fluid, checking ........................316
fluid, refill capacities ..............324
fluid, specification ..................324
Auxiliary Input Jack ...................41
Axle
lubricant specifications ..........324
refill capacities ........................324
traction lok ..............................216
B
Battery .......................................293acid, treating emergencies .....293
jumping a disabled battery ....259
maintenance-free ....................293
replacement, specifications ...322
servicing ..................................293
BeltMinder...............................135
deactivating/activating the
BeltMinder............................138
Brakes ........................................212
anti-lock ...................................213
anti-lock brake system (ABS)
warning light ...........................213
fluid, checking and adding ....314
fluid, refill capacities ..............324
fluid, specifications .................324
lubricant specifications ..........324
parking ....................................214
shift interlock ..................217–218
Bulbs ............................................63
C
Capacities for refilling fluids ....324
Cargo cage ...................................99
Cell phone use ..............................9
Changing a tire .........................252
Child safety restraints ..............149
child safety belts ....................149
Child safety seats ......................153
attaching with tether straps ..160
in front seat ....................154, 157
in rear seat ..............154, 157, 160
Cleaning your vehicle
engine compartment ..............275
instrument panel ....................277
interior .....................................279
interior trim ............................279
plastic parts ............................276
safety belts ..............................279
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Index
334

washing ....................................273
waxing .....................................273
wheels ......................................274
wiper blades ............................276
Climate control
(see Air conditioning or
Heating) ...........................48, 51, 54
Clock adjust
6-CD in dash .............................35
AM/FM Stereo ...........................27
AM/FM/CD .................................29
Clutch
fluid ..........................................315
operation while driving ..........223
recommended shift speeds ....224
Compass, electronic ..............87, 89
calibration .................................89
set zone adjustment ...........89–90
Console ........................................69
overhead ....................................70
Controls
power seat ...............................117
steering column ........................81
Coolant
checking and adding ..............295
refill capacities ................298, 324
specifications ..........................324
Cruise control
(see Speed control) ....................79
Customer Assistance ................241
Ford Extended Service
Plan ..........................................270
Getting assistance outside the
U.S. and Canada .....................271
Getting roadside assistance ...241
Getting the service you
need .........................................266
Ordering additional owner’s
literature .................................272Utilizing the
Mediation/Arbitration
Program ...................................270
D
Daytime running lamps
(see Lamps) ................................59
Dipstick
automatic transmission
fluid ..........................................316
engine oil .................................289
Driveline universal joint and
slip yoke ....................................320
Driving under special
conditions ..................223, 232, 236
sand .........................................234
snow and ice ...........................237
through water .................235, 238
DVD system .................................47
E
Electronic message center .........89
Emergencies, roadside
jump-starting ..........................259
Emergency Flashers .................243
Emission control system ..........311
Engine ........................................328
cleaning ...................................275
coolant .....................................295
fail-safe cooling .......................299
idle speed control ...................293
lubrication specifications .......324
refill capacities ........................324
service points ..................285–287
starting after a collision .........243
Engine block heater .................212
Engine oil ..................................289
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Index
335
