2007 FORD EXPLORER seat memory

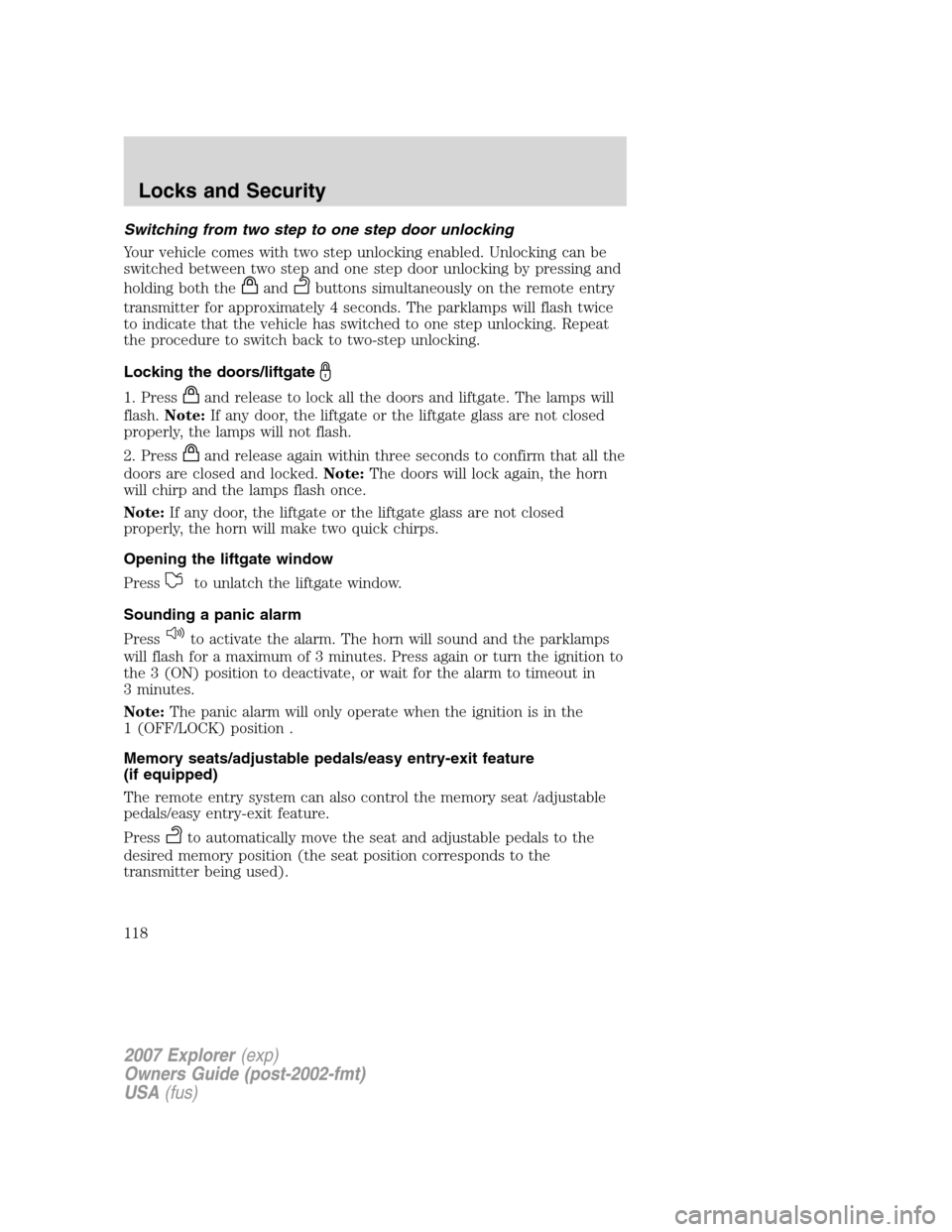

Switching from two step to one step door unlocking
Your vehicle comes with two step unlocking enabled. Unlocking can be
switched between two step and one step door unlocking by pressing and
holding both the
andbuttons simultaneously on the remote entry
transmitter for approximately 4 seconds. The parklamps will flash twice
to indicate that the vehicle has switched to one step unlocking. Repeat
the procedure to switch back to two-step unlocking.
Locking the doors/liftgate
1. Pressand release to lock all the doors and liftgate. The lamps will
flash.Note:If any door, the liftgate or the liftgate glass are not closed
properly, the lamps will not flash.
2. Press
and release again within three seconds to confirm that all the
doors are closed and locked.Note:The doors will lock again, the horn
will chirp and the lamps flash once.
Note:If any door, the liftgate or the liftgate glass are not closed
properly, the horn will make two quick chirps.
Opening the liftgate window
Press
to unlatch the liftgate window.
Sounding a panic alarm
Press
to activate the alarm. The horn will sound and the parklamps
will flash for a maximum of 3 minutes. Press again or turn the ignition to
the 3 (ON) position to deactivate, or wait for the alarm to timeout in
3 minutes.
Note:The panic alarm will only operate when the ignition is in the
1 (OFF/LOCK) position .
Memory seats/adjustable pedals/easy entry-exit feature
(if equipped)
The remote entry system can also control the memory seat /adjustable
pedals/easy entry-exit feature.
Press
to automatically move the seat and adjustable pedals to the
desired memory position (the seat position corresponds to the
transmitter being used).
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
118

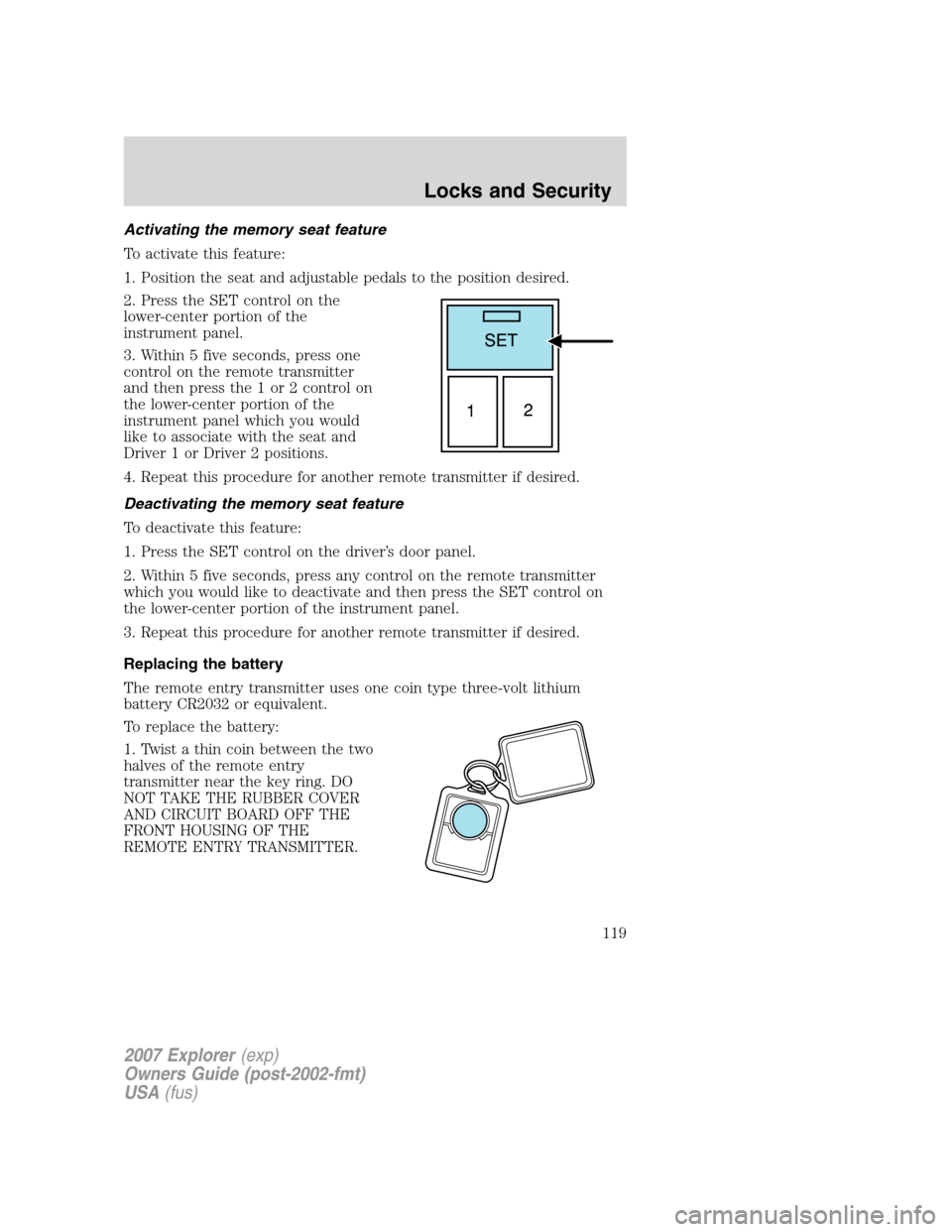

Activating the memory seat feature
To activate this feature:
1. Position the seat and adjustable pedals to the position desired.
2. Press the SET control on the
lower-center portion of the
instrument panel.
3. Within 5 five seconds, press one
control on the remote transmitter
and then press the 1 or 2 control on
the lower-center portion of the
instrument panel which you would
like to associate with the seat and
Driver 1 or Driver 2 positions.
4. Repeat this procedure for another remote transmitter if desired.
Deactivating the memory seat feature
To deactivate this feature:
1. Press the SET control on the driver’s door panel.
2. Within 5 five seconds, press any control on the remote transmitter
which you would like to deactivate and then press the SET control on
the lower-center portion of the instrument panel.
3. Repeat this procedure for another remote transmitter if desired.
Replacing the battery
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.
To replace the battery:
1. Twist a thin coin between the two
halves of the remote entry
transmitter near the key ring. DO
NOT TAKE THE RUBBER COVER
AND CIRCUIT BOARD OFF THE
FRONT HOUSING OF THE
REMOTE ENTRY TRANSMITTER.
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
119

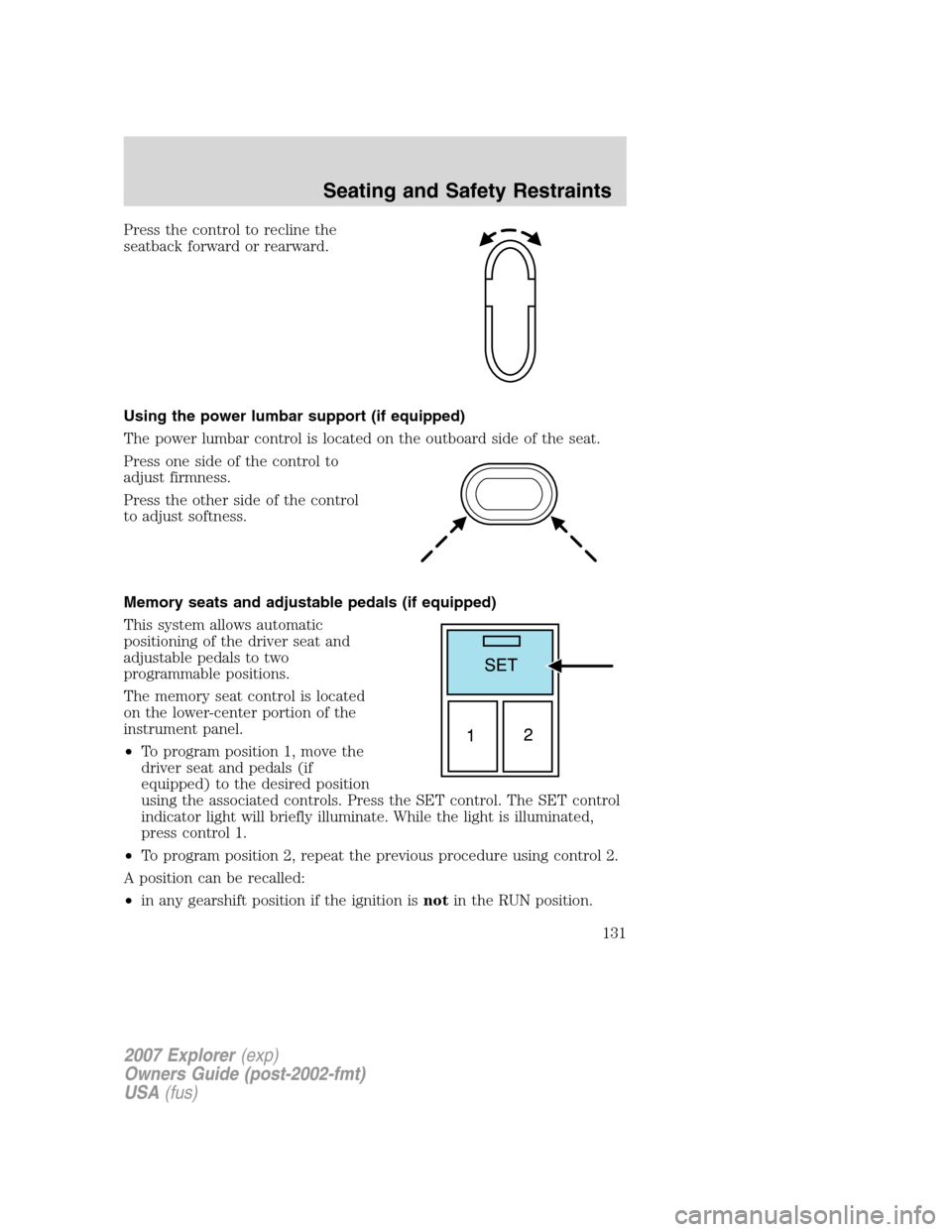

Press the control to recline the
seatback forward or rearward.
Using the power lumbar support (if equipped)
The power lumbar control is located on the outboard side of the seat.
Press one side of the control to
adjust firmness.
Press the other side of the control
to adjust softness.
Memory seats and adjustable pedals (if equipped)
This system allows automatic
positioning of the driver seat and
adjustable pedals to two
programmable positions.
The memory seat control is located
on the lower-center portion of the
instrument panel.
•To program position 1, move the
driver seat and pedals (if
equipped) to the desired position
using the associated controls. Press the SET control. The SET control
indicator light will briefly illuminate. While the light is illuminated,
press control 1.
•To program position 2, repeat the previous procedure using control 2.
A position can be recalled:
•in any gearshift position if the ignition isnotin the RUN position.
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
131

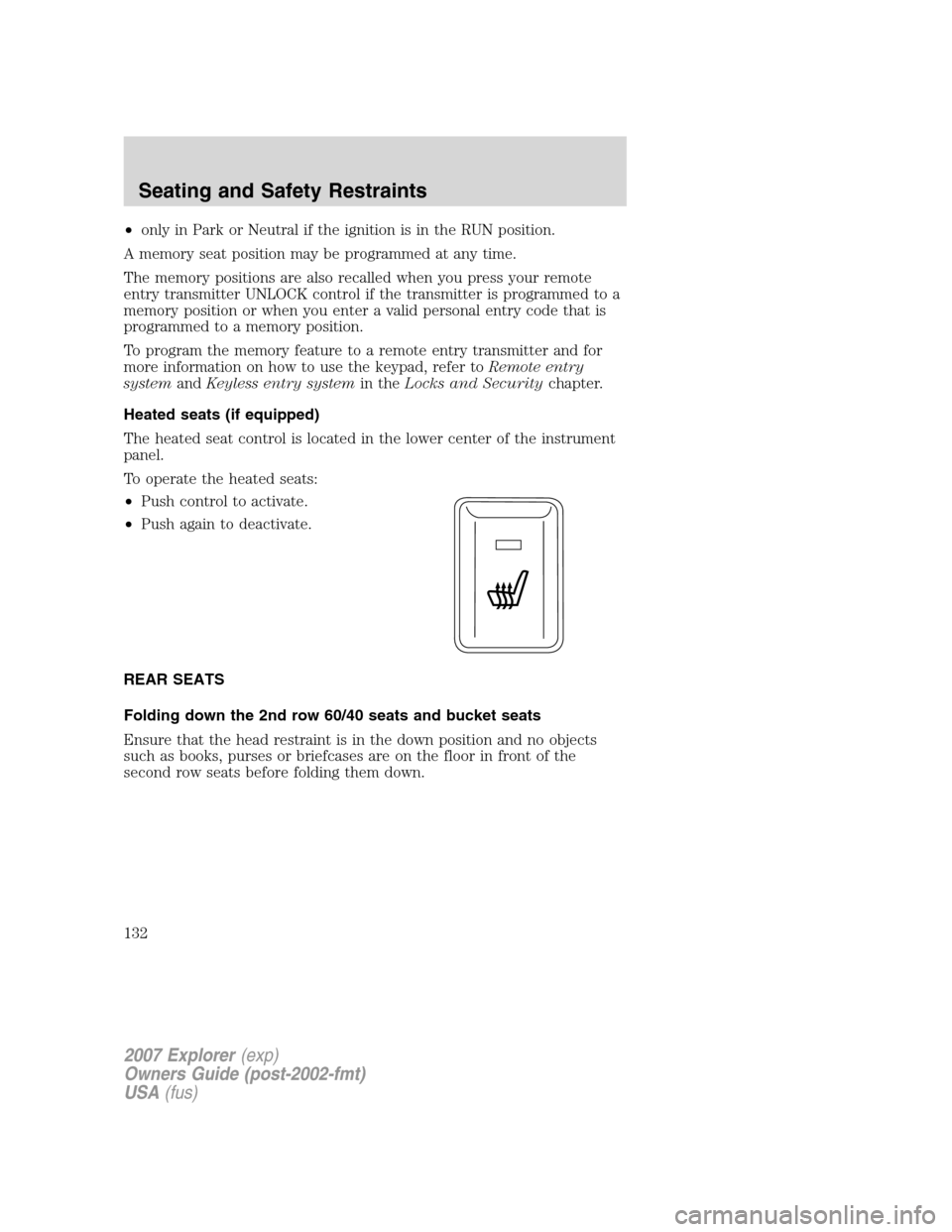

•only in Park or Neutral if the ignition is in the RUN position.
A memory seat position may be programmed at any time.
The memory positions are also recalled when you press your remote
entry transmitter UNLOCK control if the transmitter is programmed to a
memory position or when you enter a valid personal entry code that is
programmed to a memory position.
To program the memory feature to a remote entry transmitter and for
more information on how to use the keypad, refer toRemote entry
systemandKeyless entry systemin theLocks and Securitychapter.
Heated seats (if equipped)
The heated seat control is located in the lower center of the instrument
panel.
To operate the heated seats:
•Push control to activate.
•Push again to deactivate.
REAR SEATS
Folding down the 2nd row 60/40 seats and bucket seats
Ensure that the head restraint is in the down position and no objects
such as books, purses or briefcases are on the floor in front of the
second row seats before folding them down.
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
132

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
14 30A** Memory seats (DSM)
40A** Non-memory seats
15 40A** Rear defrost, Heated mirrors
16 40A** Blower motor
17 30A** Trailer electronic brakes
18 30A** Auxiliary blower motor
19 30A** Running boards
20 — Not used
21 20A* Rear power point
22 20A* Subwoofer
23 20A* 4x4
24 10A* Powertrain Control Module
(PCM) KAP, CAN vent
25 20A* Front power point/Cigar lighter
26 20A* 4x4 module
27 20A* 6R Transmission module
28 20A* Heated seats, Power mirrors
29 20A* Headlamps (right)
30 25A* Rear wiper
31 15A* Fog lamps
32 5A* Power mirrors
33 30A* IVD module
34 20A* Headlamps (left)
35 10A* AC clutch
36 — Not used
37 30A* Front wiper
38 15A* 5R Transmission
39 15A* PCM power
40 15A* Fan clutch, PCV valve, AC clutch
relay, GCC fan
41 15A* SDARS/DVD
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
260

Pedals (see Power
adjustable foot pedals) ...............71
Power adjustable foot pedals .....71
Power deployable running
boards ........................................106
Power distribution box
(see Fuses) ...............................258
Power door locks ......................111
Power mirrors .............................70
Power point ...........................67–68
Power steering ..........................229
fluid, checking and adding ....324
fluid, refill capacity ................329
fluid, specifications .................329
Power Windows ...........................68
Preparing to drive your
vehicle ........................................230
R
Radio ......................................25, 31
Rear window defroster ...............51
Relays ........................................253
Remote entry system .......116–117
illuminated entry ....................121
locking/unlocking
doors ................................117–118
panic alarm .............................118
replacing the batteries ...........119
Reverse sensing system ...........238
Roadside assistance ..................250
Roof rack ...................................110
S
Safety Belt Maintenance ..........153Safety belts (see
Safety restraints) ......139, 142–147
Safety Canopy ...........163, 165–166
Safety defects, reporting ..285–286
Safety restraints ........139, 142–147
BeltMinder
............................149
extension assembly ................148
for adults .........................143–146
for children .....................168–169
Occupant Classification
Sensor ......................................140
safety belt maintenance .........153
warning light and chime ........149
Safety seats for children ..........174
Safety Compliance
Certification Label ....................334
Satellite Radio Information ........41
Seat belts
(see Safety restraints) .............139
Seats ..........................................127
child safety seats ....................174
front seats ...............................128
heated ......................................132
memory seat ...................118, 131
SecuriLock passive anti-theft
system ........................................124
Setting the clock
AM/FM single CD .....................26
AM/FM/In-dash 6 CD ................32
Snowplowing .................................8
Spark plugs,
specifications .....................328, 333
Special notice
ambulance conversions ..............8
utility-type vehicles ....................7
Specification chart,
lubricants ...................................329
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Index
342
