2007 FORD EXPLORER adding oil

•4.0L V6 engine
•4.6L V8 engine
•Oil levels above the upper hole may cause engine damage. Some oil
must be removed from the engine by an authorized dealer.
7. Put the indicator back in and ensure it is fully seated.
Adding engine oil
1. Check the engine oil. For instructions, refer toChecking the engine
oilin this chapter.
2. If the engine oil level is not within the normal range, add only certified
engine oil of the recommended viscosity. Remove the engine oil filler cap
and use a funnel to pour the engine oil into the opening.
3. Recheck the engine oil level. Make sure the oil level is not above the
upper hole on the engine oil level indicator (dipstick).
4. Install the indicator and ensure it is fully seated.
5. Fully install the engine oil filler cap by turning the filler cap clockwise
until three clicks can be heard.
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
302

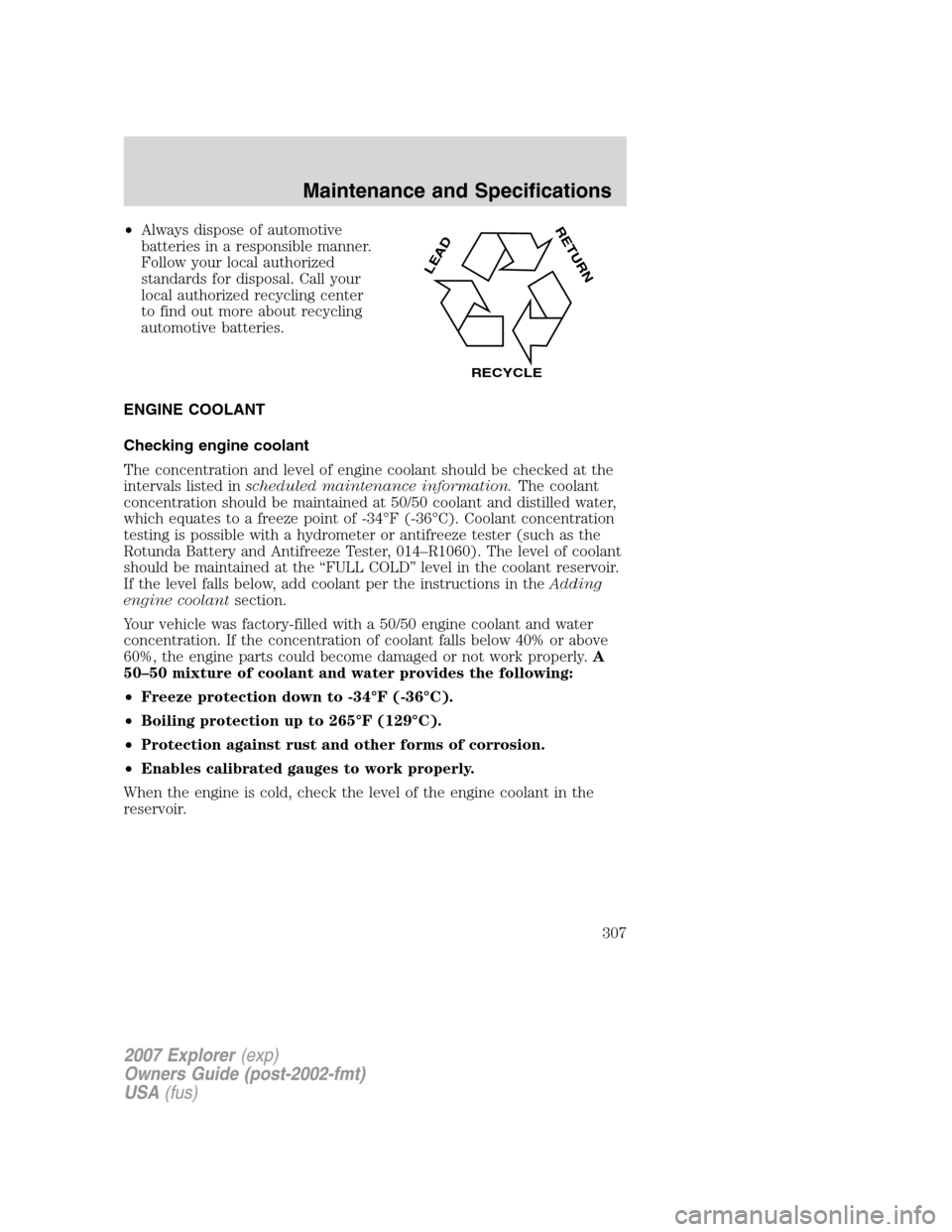

•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
intervals listed inscheduled maintenance information.The coolant
concentration should be maintained at 50/50 coolant and distilled water,
which equates to a freeze point of -34°F (-36°C). Coolant concentration
testing is possible with a hydrometer or antifreeze tester (such as the
Rotunda Battery and Antifreeze Tester, 014–R1060). The level of coolant
should be maintained at the “FULL COLD” level in the coolant reservoir.
If the level falls below, add coolant per the instructions in theAdding
engine coolantsection.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50–50 mixture of coolant and water provides the following:
•Freeze protection down to -34°F (-36°C).
•Boiling protection up to 265°F (129°C).
•Protection against rust and other forms of corrosion.
•Enables calibrated gauges to work properly.
When the engine is cold, check the level of the engine coolant in the
reservoir.
L
E
A
D
RETURN
RECYCLE
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
307

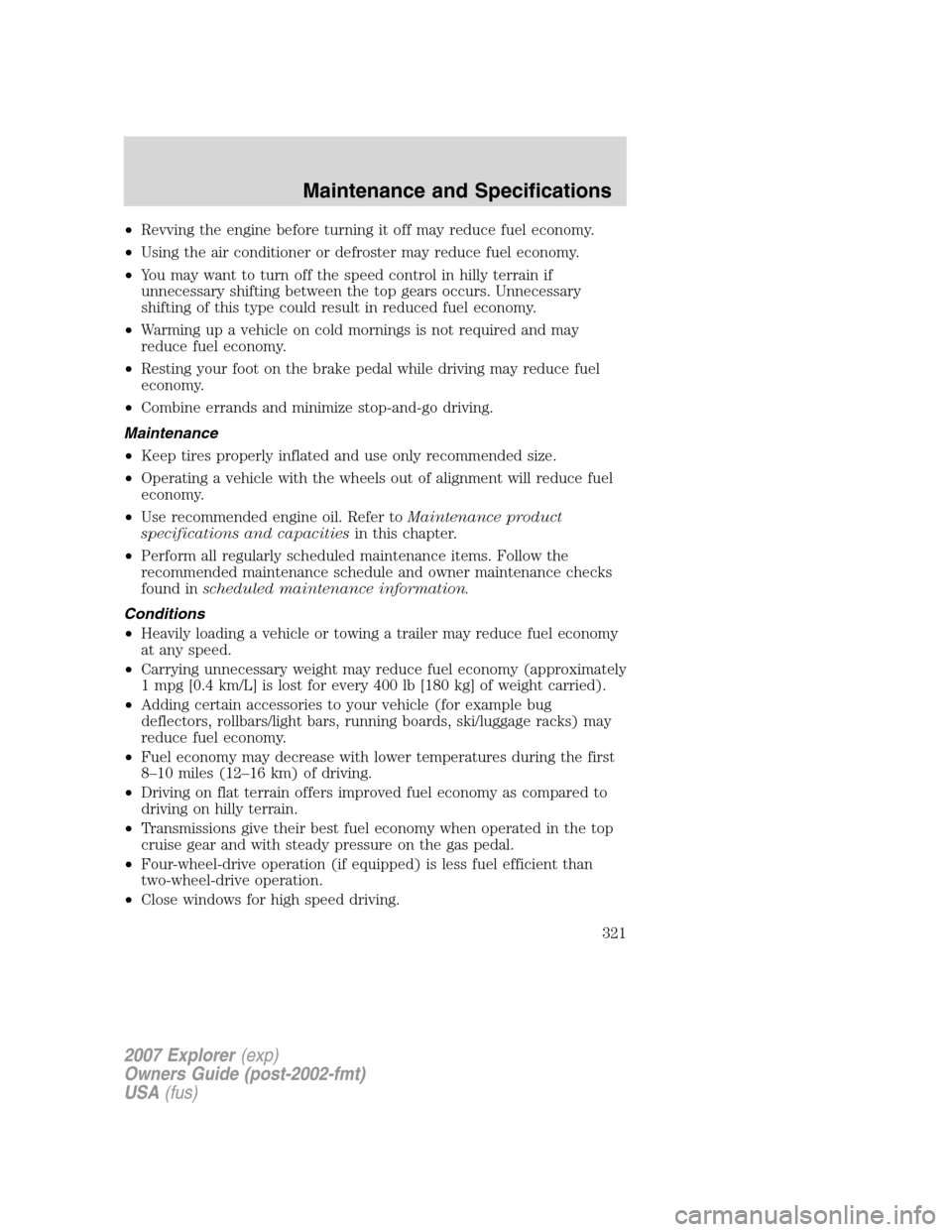

•Revving the engine before turning it off may reduce fuel economy.
•Using the air conditioner or defroster may reduce fuel economy.
•You may want to turn off the speed control in hilly terrain if
unnecessary shifting between the top gears occurs. Unnecessary
shifting of this type could result in reduced fuel economy.
•Warming up a vehicle on cold mornings is not required and may
reduce fuel economy.
•Resting your foot on the brake pedal while driving may reduce fuel
economy.
•Combine errands and minimize stop-and-go driving.
Maintenance
•Keep tires properly inflated and use only recommended size.
•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toMaintenance product
specifications and capacitiesin this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle or towing a trailer may reduce fuel economy
at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
•Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
•Fuel economy may decrease with lower temperatures during the first
8–10 miles (12–16 km) of driving.
•Driving on flat terrain offers improved fuel economy as compared to
driving on hilly terrain.
•Transmissions give their best fuel economy when operated in the top
cruise gear and with steady pressure on the gas pedal.
•Four-wheel-drive operation (if equipped) is less fuel efficient than
two-wheel-drive operation.
•Close windows for high speed driving.
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
321

washing ....................................287
waxing .....................................288
wheels ......................................288
wiper blades ............................291
Climate control (see Air
conditioning or Heating) ............47
Clock adjust
6-CD in dash .............................32
AM/FM/CD .................................26
Compass, electronic ....................87
calibration .................................88
set zone adjustment .........87, 101
Console ..................................66–67
overhead ....................................65
rear ............................................67
Controls
power seat ...............................129
steering column ........................74
Coolant
checking and adding ..............307
refill capacities ................311, 329
specifications ..........................329
Cruise control
(see Speed control) ....................71
Customer Assistance ................250
Ford Extended Service
Plan ..........................................283
Getting assistance outside
the U.S. and Canada ..............284
Getting roadside
assistance ................................250
Getting the service you
need .........................................279
Ordering additional
owner’s literature ...................285
Utilizing the Mediation/
Arbitration Program ...............283D
Daytime running lamps
(see Lamps) ................................54
Defrost
rear window ..............................51
Dipstick
automatic transmission
fluid ..........................................325
engine oil .................................300
Driveline universal joint
and slip yoke .............................326
Driving under special
conditions ..................238, 243, 246
sand .........................................245
snow and ice ...........................247
through water .................245, 249
Dual automatic temperature
control (DATC) ...........................47
DVD system .................................44
E
Electronic message
center .....................................81, 92
Emergencies, roadside
jump-starting ..........................272
Emergency Flashers .................252
Emission control system ..........322
Engine ........................................333
cleaning ...................................289
coolant .....................................307
fail-safe cooling .......................312
idle speed control ...................305
lubrication specifications .......329
refill capacities ........................329
service points ..................297–298
starting after a collision .........252
Engine block heater .................222
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Index
339

Engine oil ..................................300
checking and adding ..............300
dipstick ....................................300
filter, specifications ........303, 328
recommendations ...................303
refill capacities ........................329
specifications ..........................329
Exhaust fumes ..........................222
F
Fail safe cooling ........................312
Floor mats .................................107
Fluid capacities .........................329
Foglamps .....................................53
Four-Wheel Drive vehicles .......240
driving off road .......................242
indicator light .........................241
preparing to drive your
vehicle .....................................230
Fuel ............................................313
calculating fuel
economy ......................82, 94, 319
cap ...........................................316
capacity ...................................329
choosing the right fuel ...........317
comparisons with EPA fuel
economy estimates .................322
detergent in fuel .....................318
filling your vehicle
with fuel ..................313, 316, 319
filter, specifications ........313, 328
fuel pump shut-off switch .....252
improving fuel economy ........319
octane rating ...................317, 333
quality ......................................318
running out of fuel .................318
safety information relating
to automotive fuels ................313
Fuses ..................................253, 255G
Garage door opener ....................65
Gas cap (see Fuel cap) ............316
Gas mileage
(see Fuel economy) .................319
Gauges .........................................18
GAWR
(Gross Axle Weight Rating)
calculating ...............................211
GVWR
(Gross Vehicle Weight Rating)
calculating ...............................211
H
Hazard flashers .........................252
Head restraints .........................127
Headlamps ...................................53
aiming ........................................55
bulb specifications ....................58
daytime running lights .............54
flash to pass ..............................54
high beam .................................54
turning on and off ....................53
Heating
heating and air
conditioning system ...........45, 47
Homelink wireless control
system ..........................................77
Hood ..........................................296
How to get going ........................21
I
Ignition ...............................219, 333
Illuminated visor mirror .............64
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Index
340
