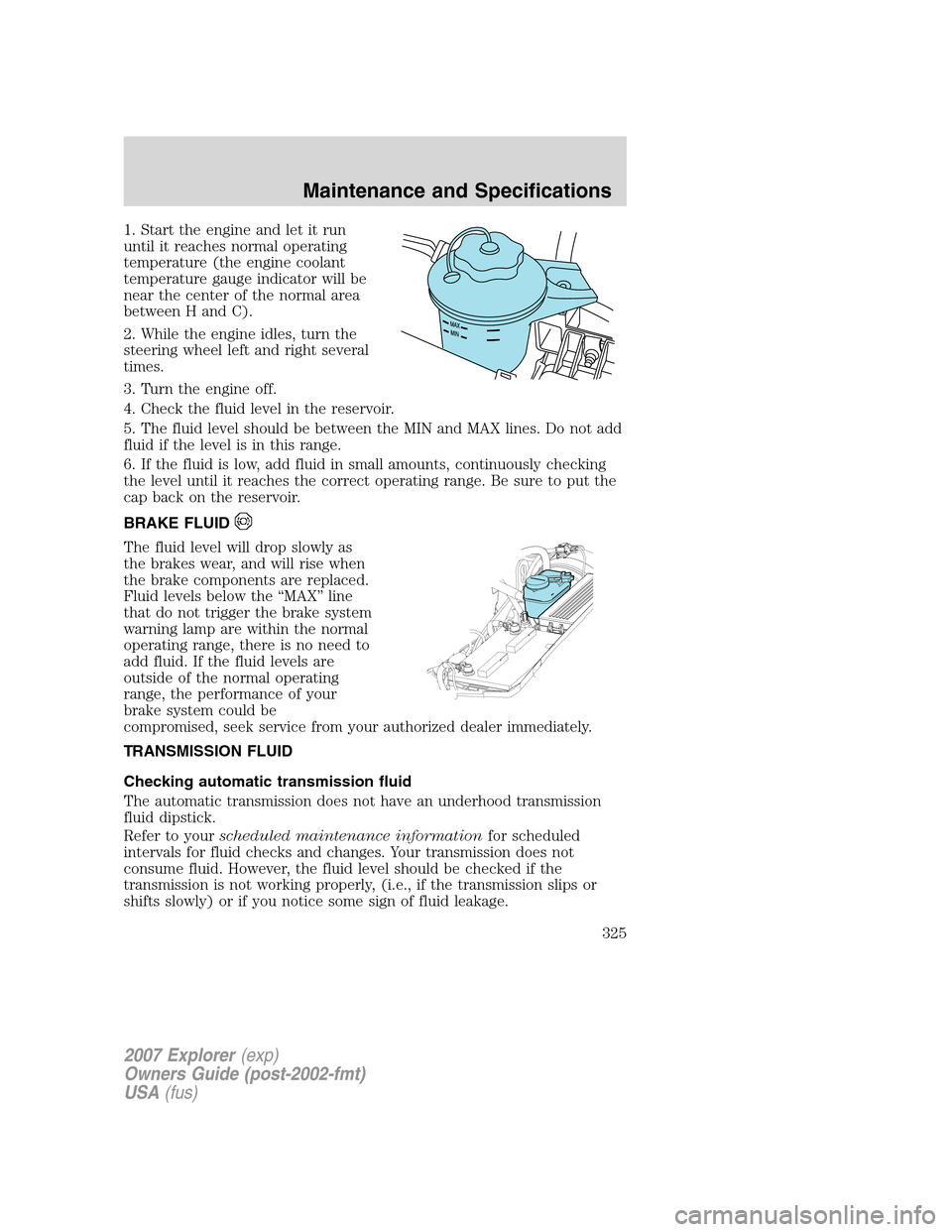

1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the reservoir.
5. The fluid level should be between the MIN and MAX lines. Do not add
fluid if the level is in this range.
6. If the fluid is low, add fluid in small amounts, continuously checking
the level until it reaches the correct operating range. Be sure to put the
cap back on the reservoir.
BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels below the “MAX” line
that do not trigger the brake system
warning lamp are within the normal
operating range, there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range, the performance of your
brake system could be
compromised, seek service from your authorized dealer immediately.
TRANSMISSION FLUID
Checking automatic transmission fluid
The automatic transmission does not have an underhood transmission
fluid dipstick.
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, (i.e., if the transmission slips or
shifts slowly) or if you notice some sign of fluid leakage.
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
325

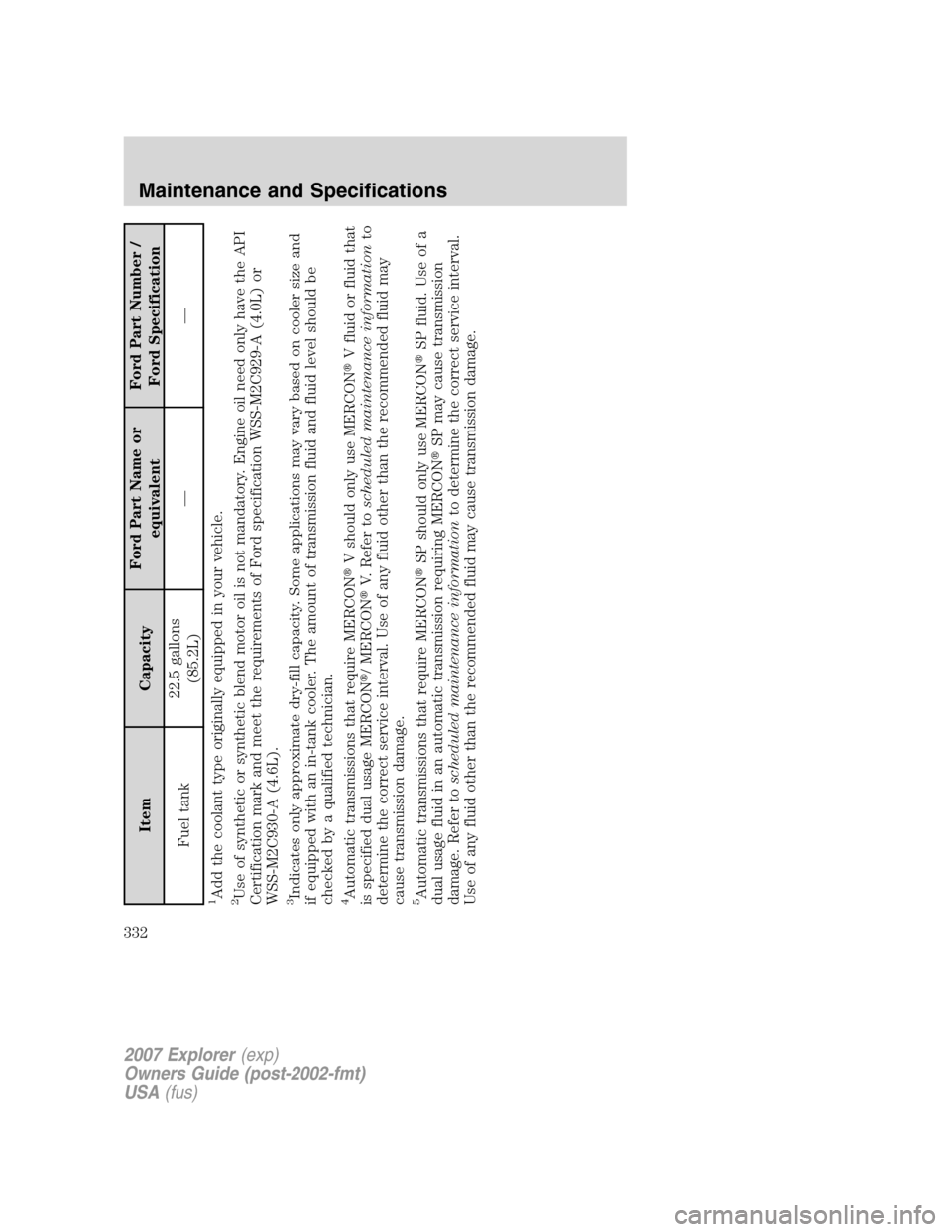

Item CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Fuel tank22.5 gallons
(85.2L)——
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only have the API
Certification mark and meet the requirements of Ford specification WSS-M2C929-A (4.0L) or
WSS-M2C930-A (4.6L).3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be
checked by a qualified technician.4Automatic transmissions that require MERCONV should only use MERCONV fluid or fluid that
is specified dual usage MERCON/ MERCONV. Refer toscheduled maintenance informationto
determine the correct service interval. Use of any fluid other than the recommended fluid may
cause transmission damage.5Automatic transmissions that require MERCONSP should only use MERCONSP fluid. Use of a
dual usage fluid in an automatic transmission requiring MERCONSP may cause transmission
damage. Refer toscheduled maintenance informationto determine the correct service interval.
Use of any fluid other than the recommended fluid may cause transmission damage.
