2007 FORD EXPEDITION automatic transmission fluid

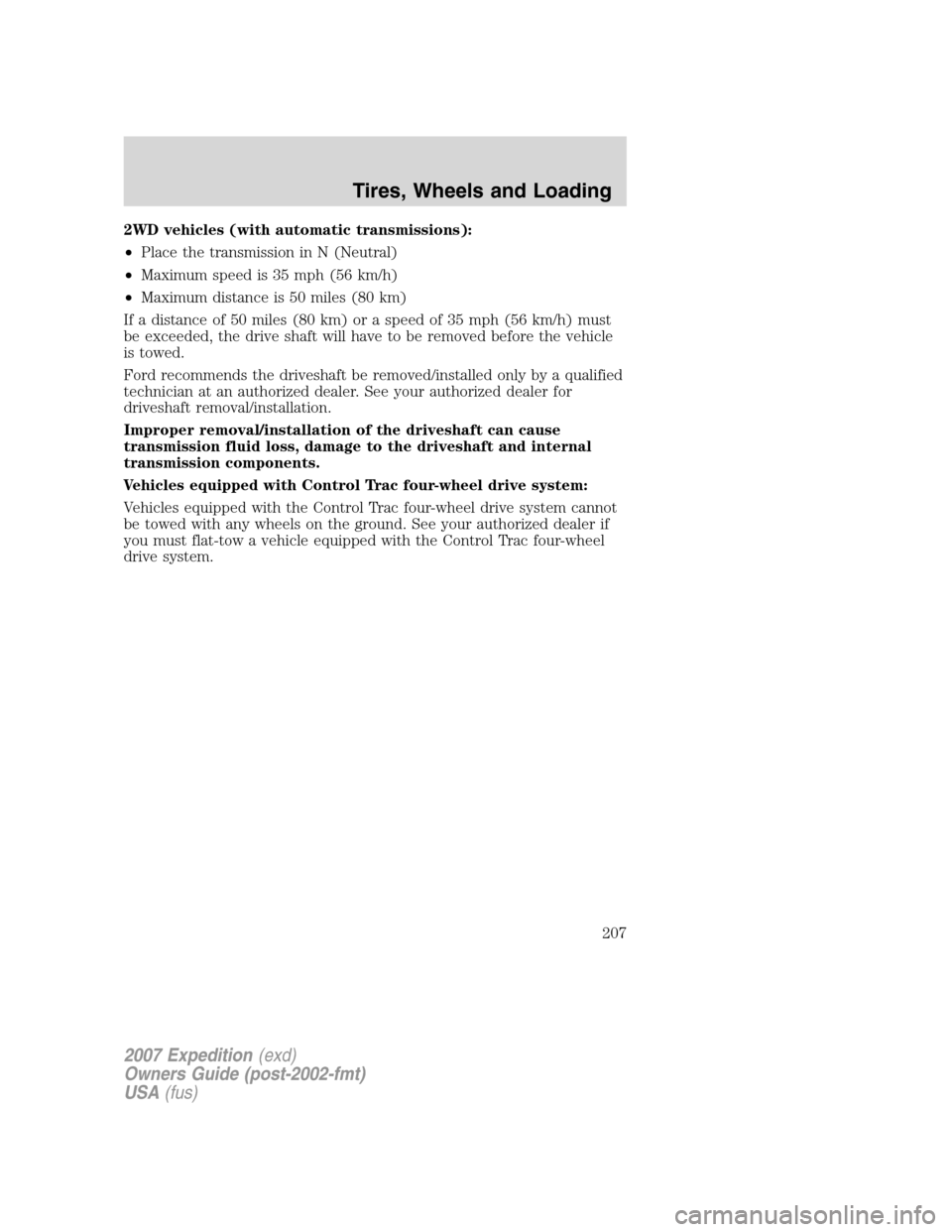

2WD vehicles (with automatic transmissions):
•Place the transmission in N (Neutral)
•Maximum speed is 35 mph (56 km/h)
•Maximum distance is 50 miles (80 km)
If a distance of 50 miles (80 km) or a speed of 35 mph (56 km/h) must
be exceeded, the drive shaft will have to be removed before the vehicle
is towed.
Ford recommends the driveshaft be removed/installed only by a qualified
technician at an authorized dealer. See your authorized dealer for
driveshaft removal/installation.
Improper removal/installation of the driveshaft can cause
transmission fluid loss, damage to the driveshaft and internal
transmission components.
Vehicles equipped with Control Trac four-wheel drive system:
Vehicles equipped with the Control Trac four-wheel drive system cannot
be towed with any wheels on the ground. See your authorized dealer if
you must flat-tow a vehicle equipped with the Control Trac four-wheel
drive system.
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Tires, Wheels and Loading
207

TRANSMISSION FLUID
Checking automatic transmission fluid
The automatic transmission does not have a transmission fluid dipstick.
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, (i.e., if the transmission slips or
shifts slowly) or if you notice some sign of fluid leakage.
Transmission fluid should be checked by an authorized dealer. If
required, fluid should be added by an authorized dealer.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
To reduce the risk of vehicle damage and/or personal burn
injuries do not start your engine with the air cleaner removed
and do not remove it while the engine is running.
Changing the air filter element
1. Locate the Mass Air Flow Sensor
electrical connector on the air outlet
tube. This connector will need to be
unplugged.
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
311

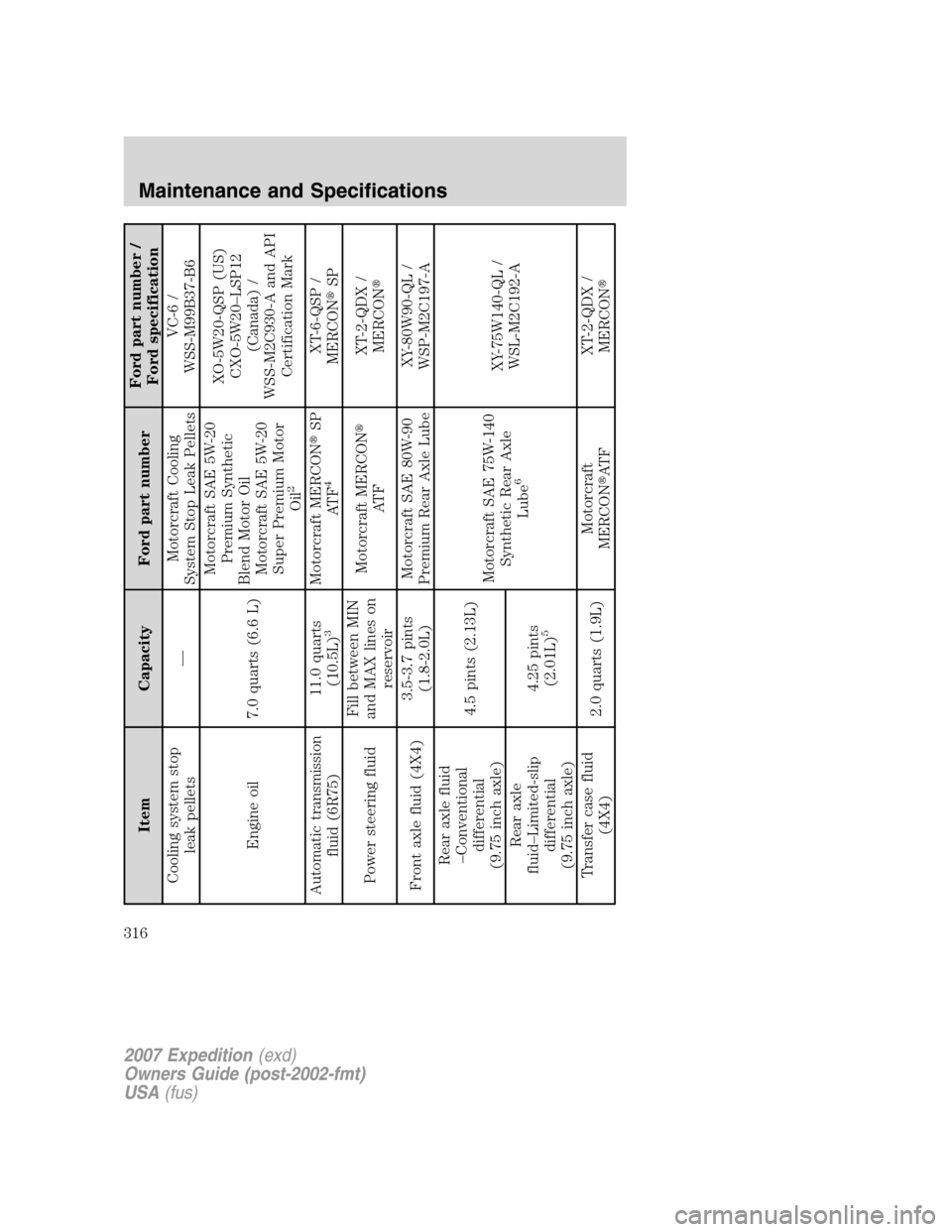

Item Capacity Ford part numberFord part number /
Ford specification
Cooling system stop
leak pellets—Motorcraft Cooling
System Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Engine oil 7.0 quarts (6.6 L)Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil
Motorcraft SAE 5W-20
Super Premium Motor
Oil
2
XO-5W20-QSP (US)
CXO-5W20–LSP12
(Canada) /
WSS-M2C930-A and API
Certification Mark
Automatic transmission
fluid (6R75)11.0 quarts
(10.5L)
3
Motorcraft MERCON
SP
AT F
4
XT-6-QSP /
MERCON
SP
Power steering fluidFill between MIN
and MAX lines on
reservoirMotorcraft MERCON

AT FXT-2-QDX /
MERCON

Front axle fluid (4X4)3.5-3.7 pints
(1.8-2.0L)Motorcraft SAE 80W-90
Premium Rear Axle LubeXY-80W90-QL /
WSP-M2C197-A
Rear axle fluid
–Conventional
differential
(9.75 inch axle)4.5 pints (2.13L)
Motorcraft SAE 75W-140
Synthetic Rear Axle
Lube
6
XY-75W140-QL /
WSL-M2C192-A
Rear axle
fluid–Limited-slip
differential
(9.75 inch axle)4.25 pints
(2.01L)
5
Transfer case fluid
(4X4)2.0 quarts (1.9L)Motorcraft
MERCON
AT FXT-2-QDX /
MERCON

2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
316

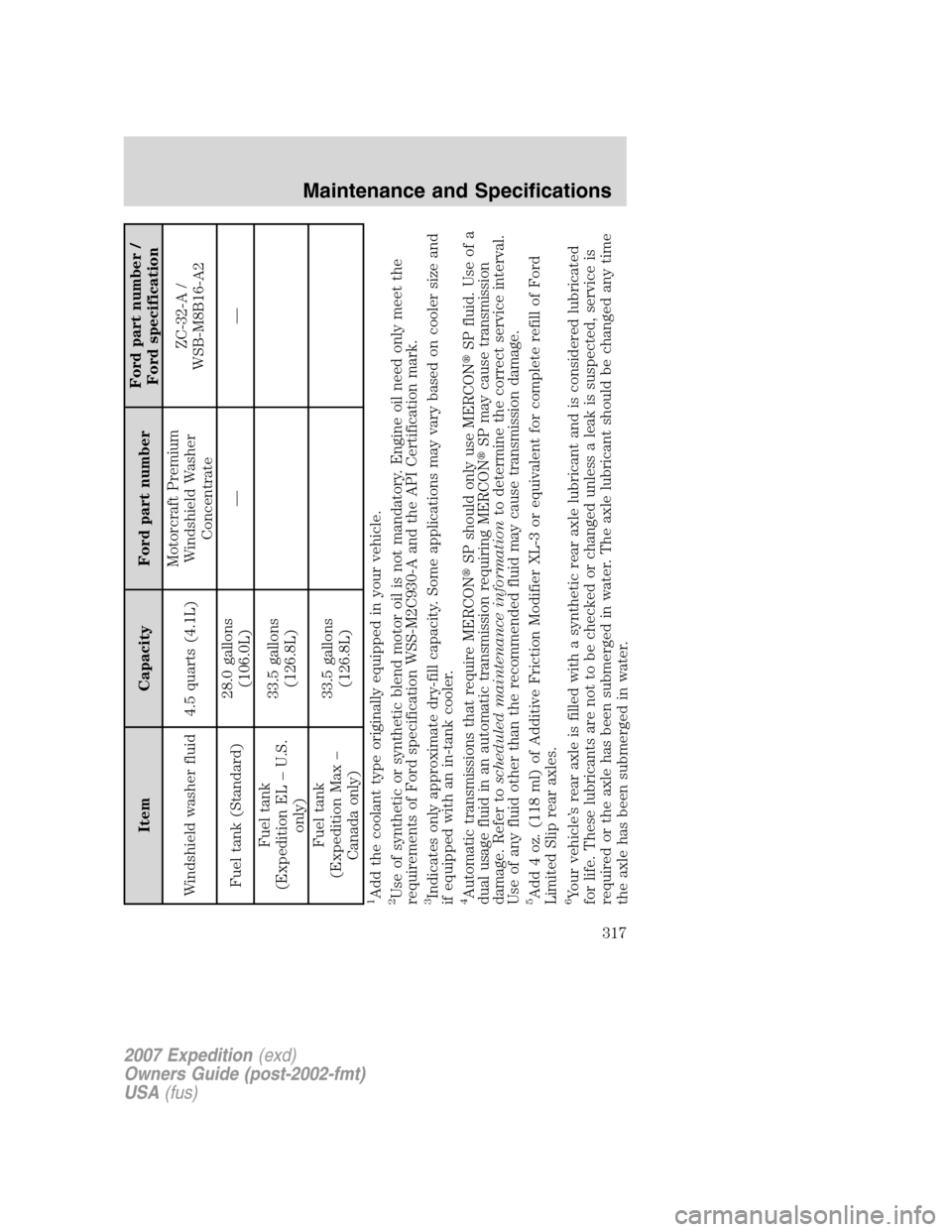

Item Capacity Ford part numberFord part number /
Ford specification
Windshield washer fluid 4.5 quarts (4.1L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank (Standard)28.0 gallons
(106.0L)——
Fuel tank
(Expedition EL – U.S.
only)33.5 gallons
(126.8L)
Fuel tank
(Expedition Max –
Canada only)33.5 gallons
(126.8L)
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler.4Automatic transmissions that require MERCON
SP should only use MERCON
SP fluid. Use of a
dual usage fluid in an automatic transmission requiring MERCON
SP may cause transmission
damage. Refer toscheduled maintenance informationto determine the correct service interval.
Use of any fluid other than the recommended fluid may cause transmission damage.5Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent for complete refill of Ford
Limited Slip rear axles.6Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated
for life. These lubricants are not to be checked or changed unless a leak is suspected, service is
required or the axle has been submerged in water. The axle lubricant should be changed any time
the axle has been submerged in water.
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
317

A
ABS (see Brakes) .....................212
Accessory delay ..........................70
AdvanceTrac ..............................215
Air cleaner filter ...............311, 314
Air suspension ...........................220
description ..............................220
Airbag supplemental restraint
system ................147–148, 152, 154
and child safety seats ............149
description ..............148, 152, 154
disposal ....................................157
driver airbag ............150, 152, 155
indicator light .................152, 156
operation .................150, 152, 155
passenger airbag .....150, 152, 155
side airbag ...............................152
Antifreeze
(see Engine coolant) ................293
Anti-lock brake system
(see Brakes) ......................212–213
Anti-theft system
arming the system ..................115
Armrests ....................................120
Audio system (see Radio) ...22, 28
Automatic transmission
driving an automatic
overdrive .................................224
fluid, adding ............................311
fluid, checking ........................311
fluid, refill capacities ..............315
fluid, specification ..................315
Auxiliary Input Jack ...................35
Auxiliary power point .................67
Axle
lubricant specifications ..........315refill capacities ........................315
B
Battery .......................................291
acid, treating emergencies .....291
jumping a disabled battery ....259
maintenance-free ....................291
replacement, specifications ...314
servicing ..................................291
BeltMinder
...............................144
Brakes ........................................212
anti-lock ...........................212–213
anti-lock brake system (ABS)
warning light ...........................213
fluid, checking and adding ....310
fluid, refill capacities ..............315
fluid, specifications .................315
lubricant specifications ..........315
parking ....................................214
shift interlock ..................222–223
Bulbs ............................................57
C
Capacities for refilling fluids ....315
Cargo cover ...............................101
Cargo management system ......101
Cassette tape player ...................22
Cell phone use ..............................7
Changing a tire .........................250
Child safety restraints ..............157
child safety belts ....................157
Child safety seats ......................161
in front seat ............................162
in rear seat ......................162, 165
Cleaning your vehicle
engine compartment ..............278
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Index
323

instrument panel ....................279
interior .....................................280
interior trim ............................280
plastic parts ............................278
safety belts ..............................280
washing ....................................276
waxing .....................................277
wheels ......................................277
wiper blades ............................279
Clock adjust
6-CD in dash .............................29
AM/FM/CD .................................23
Compass, electronic ....................83
calibration .................................84
set zone adjustment ...........84, 86
Console ........................................67
overhead ..............................66–67
Controls
power seat ...............................121
steering column ........................76
Coolant
checking and adding ..............293
refill capacities ................297, 315
specifications ..........................315
Cruise control
(see Speed control) ....................74
Customer Assistance ................240
Ford Extended Service Plan...272
Getting assistance outside
the U.S. and Canada ..............273
Getting roadside assistance ...240
Getting the service you
need .........................................268
Ordering additional owner’s
literature .................................274
Utilizing the
Mediation/Arbitration
Program ...................................272D
Daytime running lamps
(see Lamps) ................................53
Defrost
rear window ..............................51
Dipstick
automatic transmission fluid...311
engine oil .................................288
Driving under special
conditions ..................227, 234, 237
sand .........................................236
snow and ice ...........................238
through water .................236, 239
DVD system .................................42
E
Electronic message center .........85
Emergencies, roadside
jump-starting ..........................259
Emission control system ..........307
Engine ........................................318
cleaning ...................................278
coolant .....................................293
fail-safe cooling .......................297
idle speed control ...................291
lubrication specifications .......315
refill capacities ........................315
service points ..........................285
starting after a collision .........242
Engine block heater .................211
Engine oil ..................................288
change oil soon warning,
message center .......................288
checking and adding ..............288
dipstick ....................................288
filter, specifications ........290, 314
recommendations ...................290
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Index
324

Speed control ..............................74
Starting your vehicle ........208–210
jump starting ..........................259
Steering wheel
controls ......................................76
tilting .........................................65
T
Tilt steering wheel ......................65
Tire Pressure Monitoring
System (TPMS)
Driving .....................................236
Roadside Emergencies ...........250
Tires, Wheels and Loading ....189
Warning Displays ................10, 92
Tires ...........................174–176, 250
alignment ................................183
care ..........................................179
changing ..................250, 253–254
checking the pressure ............179
inflating ...................................177
label .........................................188
replacing ..................................180
rotating ....................................183
safety practices .......................182
sidewall information ...............184
snow tires and chains ............193
spare tire .................................251
terminology .............................176
tire grades ...............................175
treadwear ........................175, 179
Towing .......................................200
recreational towing .................206
trailer towing ..........................200wrecker ....................................266
Transmission .............................222
brake-shift interlock
(BSI) ................................222–223
fluid, checking and adding
(automatic) .............................311
fluid, refill capacities ..............315
lubricant specifications ..........315
Trunk .........................................109
Turn signal ..................................55
V
Vehicle Identification Number
(VIN) ..........................................319
Vehicle loading ..........................193
Ventilating your vehicle ...........211
W
Warning lights (see Lights) .......10
Washer fluid ..............................286
Water, Driving through .............239
Windows
power .........................................69
rear wiper/washer .....................65
Windshield washer fluid and
wipers ..........................................64
checking and adding fluid .....286
liftgate reservoir .....................286
replacing wiper blades ...........287
Wrecker towing .........................266
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Index
328
