TRANSAXLE FLUID
Checking automatic transaxle fluid
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes.Your transaxle does not consume
fluid. However, the fluid level should be checked if the transaxle is not
working properly, i.e., if the transaxle slips or shifts slowly or if you
notice some sign of fluid leakage.
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is warmed up
(approximately 20 miles [30 km]). If your vehicle has been
operated for an extended period at high speeds, in city traffic
during hot weather or pulling a trailer, the vehicle should be
turned off for about 30 minutes to allow fluid to cool before
checking.
1. Drive the vehicle 20 miles (30 km) or until it reaches normal operating
temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Latch the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
7. Remove the dipstick and inspect the fluid level. The fluid should be in
the designated areas for normal operating temperature.
Low fluid level
Do not drive the vehicle if the fluid
level is in the add range or does not
show at all on the dipstick.
Correct fluid level
The transmission fluid should be checked at normal operating
temperature 149°F (65°C) on a level surface. The normal operating
temperature can be reached after approximately 20 miles (30 km) of
driving.
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
299

Item Capacity Ford part nameFord part number /
Ford specification
Automatic
transmission fluid10.0 quarts
(9.5L)
3
M otorcraft MERCON
V
AT F
4
XT-5-QM /
MERCON
V
Rear differential
(AWD) fluid2.4 pints (1.15L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Power Transfer Unit
(PTU) fluid (AWD)
5
12 ounces (0.35L)Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
Windshield washer
fluid4.7 5 quarts
(4.5L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank
(front-wheel drive)19.2 gallons
(72.7L)——
Fuel tank (all-wheel
drive)20.8 gallons
(78.7L)——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.2Add the coolant type originally equipped in your vehicle.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.4Automatic transmissions that require MERCON
V should only use MERCON
V fluid or fluid that
is specified dual usage MERCON
/MERCON
V. Refer toscheduled maintenance informationto
determine the correct service interval. Use of any fluid other than the recommended fluid may
cause transmission damage.5See your authorized dealer for fluid level checking or filling.
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
304

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
6F50 6–Speed Automatic Transaxle J
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
307

A
Accessory delay ..........................90
AdvanceTrac ..............................216
Air cleaner filter ...............300–302
Air conditioning ..........................70
Airbag supplemental restraint
system ................152–153, 161, 164
and child safety seats ............154
description ..............153, 161, 164
disposal ....................................167
driver airbag ............155, 162, 165
indicator light .........161, 163, 166
operation .................155, 162, 165
passenger airbag .....155, 162, 165
side airbag ...............................161
All Wheel Drive (AWD),
driving off road .........................226
Antifreeze
(see Engine coolant) ................281
Anti-lock brake system
(see Brakes) ..............................215
Anti-theft system ......................124
Audio system
(see Radio) ......................17, 21, 27
Automatic transaxle
fluid, adding ............................299
fluid, checking ........................299
Automatic transmission
driving an automatic
overdrive .................................222
fluid, refill capacities ..............303
fluid, specification ..................303
Auxiliary input jack (Line in) ....34
Auxiliary power point .................88
Axle
lubricant specifications ..........303B
Battery .......................................279
acid, treating emergencies .....279
jumping a disabled battery ....249
maintenance-free ....................279
replacement, specifications ...302
servicing ..................................279
Belt-Minder
.............................148
Booster seats .............................168
Brakes ........................................214
anti-lock ...................................215
anti-lock brake system (ABS)
warning light ...........................215
fluid, checking and adding ....298
fluid, refill capacities ..............303
fluid, specifications .................303
lubricant specifications ..........303
parking ....................................216
shift interlock ..........................220
Bulbs ............................................79
C
Capacities for refilling fluids ....303
Cargo management system ......109
Cell phone use ..............................7
Changing a tire .................242, 245
Child safety restraints ..............168
child safety belts ....................168
Child safety seats ......................171
attaching with tether straps ..175
in front seat ............................172
in rear seat ..............................172
Child safety seats - booster
seats ...........................................168
Cleaning your vehicle
engine compartment ..............266
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Index
310

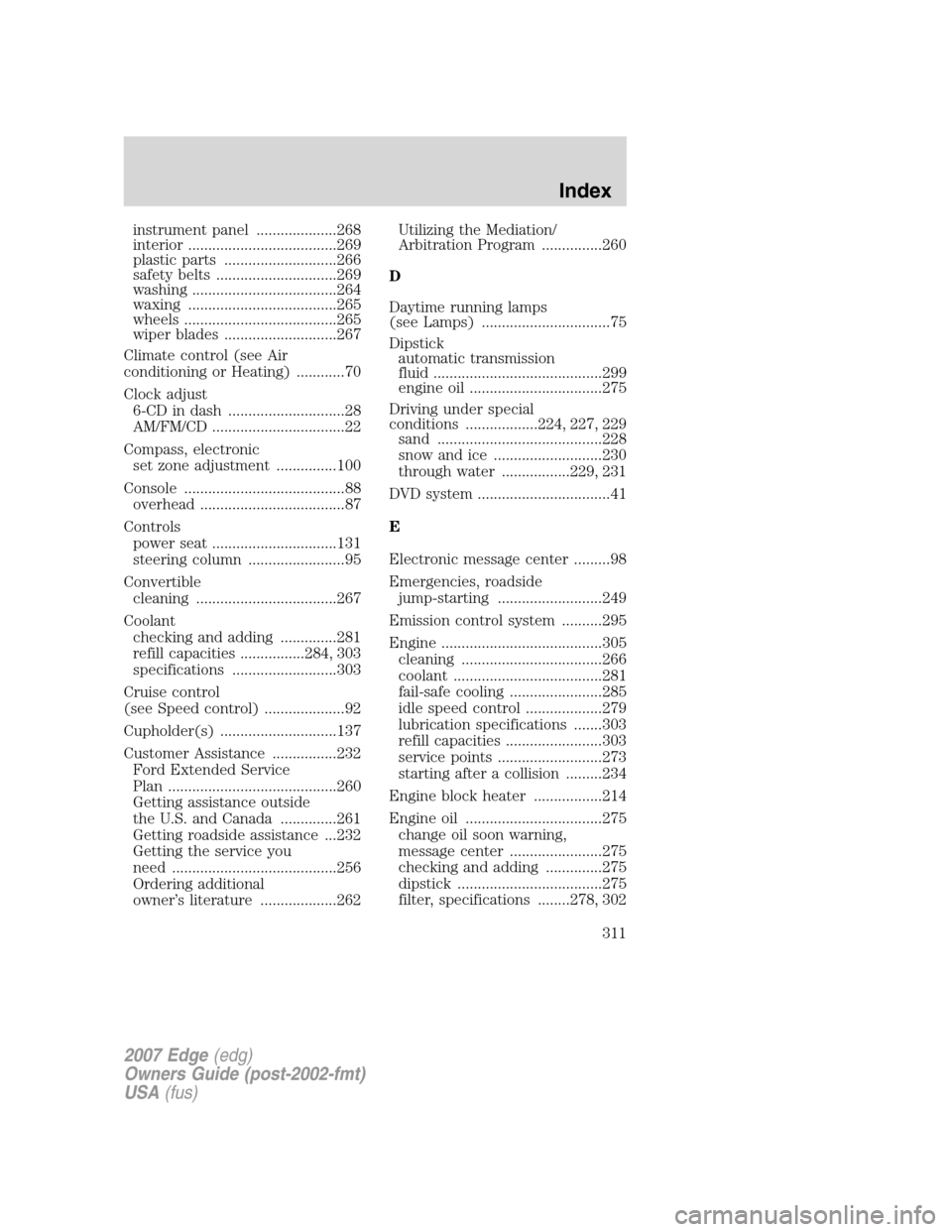

instrument panel ....................268
interior .....................................269
plastic parts ............................266
safety belts ..............................269
washing ....................................264
waxing .....................................265
wheels ......................................265
wiper blades ............................267
Climate control (see Air
conditioning or Heating) ............70
Clock adjust
6-CD in dash .............................28
AM/FM/CD .................................22
Compass, electronic
set zone adjustment ...............100
Console ........................................88
overhead ....................................87
Controls
power seat ...............................131
steering column ........................95
Convertible
cleaning ...................................267
Coolant
checking and adding ..............281
refill capacities ................284, 303
specifications ..........................303
Cruise control
(see Speed control) ....................92
Cupholder(s) .............................137
Customer Assistance ................232
Ford Extended Service
Plan ..........................................260
Getting assistance outside
the U.S. and Canada ..............261
Getting roadside assistance ...232
Getting the service you
need .........................................256
Ordering additional
owner’s literature ...................262Utilizing the Mediation/
Arbitration Program ...............260
D
Daytime running lamps
(see Lamps) ................................75
Dipstick
automatic transmission
fluid ..........................................299
engine oil .................................275
Driving under special
conditions ..................224, 227, 229
sand .........................................228
snow and ice ...........................230
through water .................229, 231
DVD system .................................41
E
Electronic message center .........98
Emergencies, roadside
jump-starting ..........................249
Emission control system ..........295
Engine ........................................305
cleaning ...................................266
coolant .....................................281
fail-safe cooling .......................285
idle speed control ...................279
lubrication specifications .......303
refill capacities ........................303
service points ..........................273
starting after a collision .........234
Engine block heater .................214
Engine oil ..................................275
change oil soon warning,
message center .......................275
checking and adding ..............275
dipstick ....................................275
filter, specifications ........278, 302
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Index
311

positioning ...............................242
storage .....................................242
Jump-starting your vehicle ......249
K
Keyless entry system ...............122
autolock ...................................112
keypad .....................................123
locking and unlocking
doors ........................................124
programming entry code .......123
Keys ...................................110, 126
positions of the ignition .........211
L
Lamps
autolamp system .......................74
bulb replacement
specifications chart ..................79
daytime running light ...............75
fog lamps ...................................75
headlamps .................................74
headlamps, flash to pass ..........75
instrument panel, dimming .....76
interior lamps .....................78, 80
replacing bulbs .........................80
Lane change indicator
(see Turn signal) ........................78
Liftgate ......................................108
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........215
Load limits .................................199
Locks
autolock ...................................112
childproof ................................116
doors ........................................112
Lubricant specifications ...........303
Lug nuts ....................................248Lumbar support, seats .............129
M
Message center ...........................98
english/metric button .............103
system check button ..............102
warning messages ...................105
Mirrors .........................................91
automatic dimming rearview
mirror ........................................91
fold away ...................................92
heated ........................................92
programmable memory ..........118
side view mirrors (power) .......91
Moon roof ....................................96
Motorcraft parts ........270, 286, 302
N
Navigation system .......................67
O
Octane rating ............................290
Oil (see Engine oil) ..................275
Overdrive ...................................222
P
Parking brake ............................216
Parts (see Motorcraft parts) ....302
Passenger Occupant
Classification Sensor .................139
Power distribution box
(see Fuses) ...............................238
Power door locks ......................112
Power mirrors .............................91
Power point .................................88
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Index
313
