2007 FORD ECONOLINE engine

ENGINE DATA
Engine*4.6L V8 engine 5.4L V8 engine 6.8L V10 engine
Cubic inches 281 330 415
Required fuel 87 octane 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Ignition
systemCoil on plug Coil on plug Coil on plug
Spark plug
gap0.052–0.056 inch
(1.32–1.42mm)0.052–0.056 inch
(1.32–1.42mm)0.052–0.056 inch
(1.32–1.42mm)
Compression
ratio9.4:1 9.0:1 9.0:1
*Refer to thePower Stroke Direct Injection Turbo Diesel Owner’s
Guide Supplementfor diesel engine information.
Engine drivebelt routing
•4.6L V8 and 5.4L V8 Engines without A/C
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
250
ProCarManuals.com

•4.6L V8 and 5.4L V8 Engines with A/C
•6.8L V10 Engine
VEHICLE IDENTIFICATION NUMBER
Complete Ford built vehicles
The vehicle identification number is attached to your vehicle in the
following places:
•The top of the instrument panel on the driver’s side.
•On the certification label. This
label is required by the National
Highway Traffic Safety
Administration and is made of
special material. If it is tampered
with, it will be destroyed or a
destruction pattern will appear.
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
251
ProCarManuals.com

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Certification label for incomplete vehicles
On completed derivations of incomplete vehicles, the certification label is
affixed at a location determined by a subsequent stage manufacturer of
the completed vehicle. In these cases the completed vehicle is
manufactured in two or more stages by two or more separate
manufacturers.
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
252
ProCarManuals.com

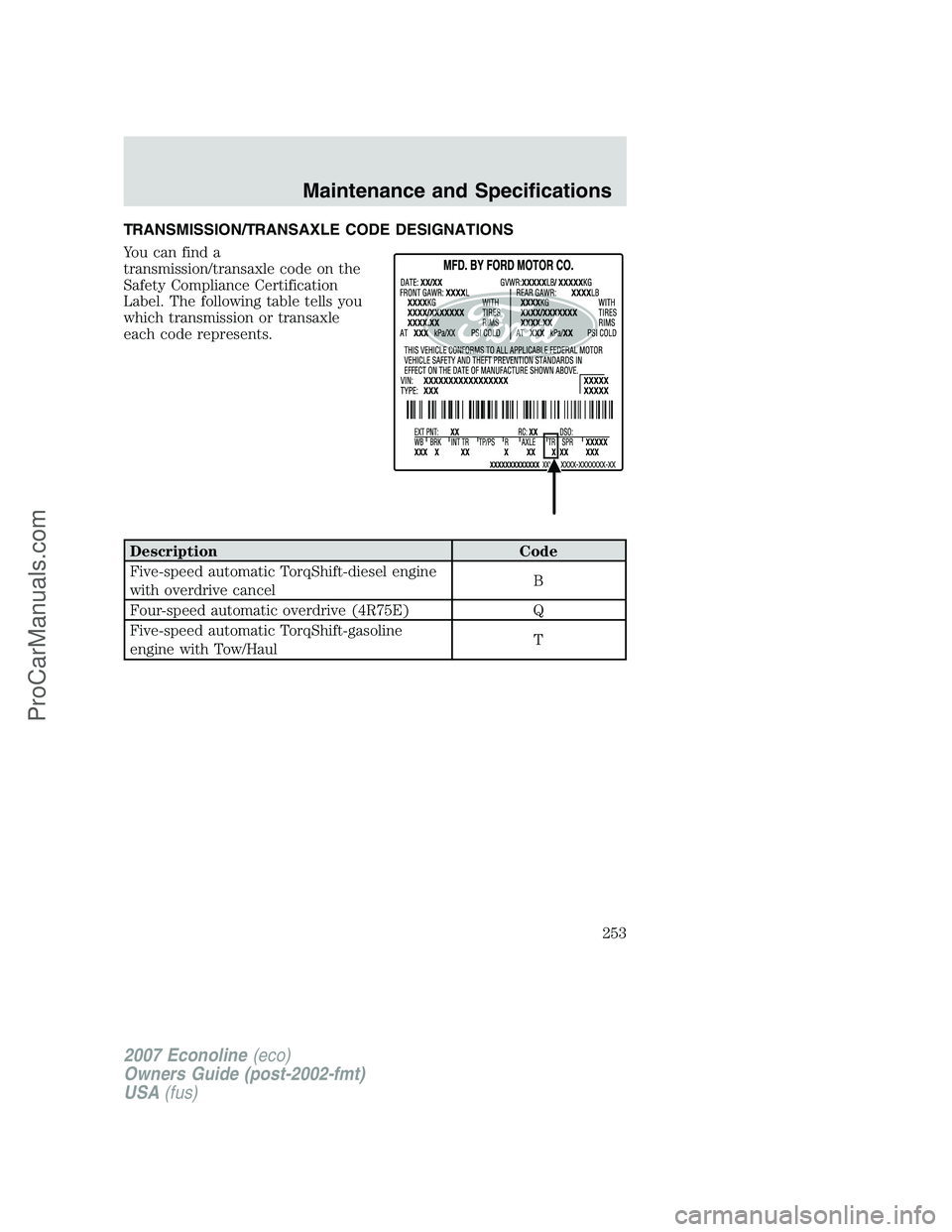

TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Five-speed automatic TorqShift-diesel engine
with overdrive cancelB
Four-speed automatic overdrive (4R75E) Q
Five-speed automatic TorqShift-gasoline
engine with Tow/HaulT
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
253
ProCarManuals.com

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Door edge guards
Front end covers
Headlamps, fog lights and Daytime Running Lamps (DRLs)
Running boards
Splash guards
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
254
ProCarManuals.com

A
Accessory delay ..........................49
AdvanceTrac ..............................148
Air cleaner filter ...............240–242
Airbag supplemental restraint
system ....................................78–79
and child safety seats ..............80
description ................................79
disposal ......................................82
driver airbag ..............................81
indicator light ...........................82
operation ...................................81
passenger airbag .......................81
passenger deactivation
switch ........................................83
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................218
Anti-lock brake system
(see Brakes) ..............................147
Audio system
(see Radio) ......................19, 21, 25
Automatic transmission
driving an automatic
overdrive .................155, 158, 160
fluid, adding ............................237
fluid, checking ........................237
fluid, refill capacities ..............244
fluid, specification ..................244
Auxiliary power point .................48
Axle
lubricant specifications ..........244
refill capacities ........................244
traction lok ..............................152
B
Battery .......................................216acid, treating emergencies .....216
battery saver .............................34
jumping a disabled battery ....188
maintenance-free ....................216
replacement, specifications ...242
servicing ..................................216
Belt-Minder
...............................74
Booster seats ...............................89
Brakes ........................................146
anti-lock ...................................147
anti-lock brake system (ABS)
warning light ...........................147
fluid, checking and adding ....237
fluid, refill capacities ..............244
fluid, specifications .................244
lubricant specifications ..........244
parking ....................................148
shift interlock ..........................154
Break-in period .............................5
Bulbs ............................................39
C
Capacities for refilling fluids ....244
Cell phone use ..............................9
Child safety restraints ................88
child safety belts ......................88
Child safety seats ........................92
in front seat ..............................93
in rear seat ................................93
tether anchorage hardware .....96
Child safety seats - booster
seats .............................................89
Cleaning your vehicle
engine compartment ..............204
exterior ....................................207
instrument panel ....................206
interior .....................................206
plastic parts ............................205
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
256
ProCarManuals.com

safety belts ..............................206
washing ....................................202
waxing .....................................203
wheels ......................................203
wiper blades ............................205
Climate control (see Air
conditioning or Heating) ......31–33
Clock adjust
6-CD in dash .......................22, 27
AM/FM .......................................20
Compass, electronic ....................47
calibration .................................48
set zone adjustment .................47
Console
overhead ..............................45–46
Controls
power seat .................................63
Coolant
checking and adding ..............218
refill capacities ................222, 244
specifications ..........................244
Cruise control
(see Speed control) ....................51
Customer Assistance ................166
Ford Extended Service
Plan ..........................................198
Getting assistance outside the
U.S. and Canada .....................199
Getting roadside assistance ...166
Getting the service you
need .........................................194
Ordering additional owner’s
literature .................................200
Utilizing the
Mediation/Arbitration
Program ...................................198D
Daytime running lamps
(see Lamps) ................................35
Dipstick
automatic transmission
fluid ..........................................237
engine oil .................................213
Driveline universal joint and
slip yoke ....................................237
Driving under special
conditions
through water .........................165
E
Emergencies, roadside
jump-starting ..........................188
Emergency Flashers .................168
Emission control system ..........233
Engine ........................................250
cleaning ...................................204
coolant .....................................218
diesel ...........................................7
fail-safe cooling .......................223
idle speed control ...................216
lubrication specifications .......244
refill capacities ........................244
service points ..........................211
starting after a collision .........168
Engine block heater .................146
Engine oil ..................................213
checking and adding ..............213
dipstick ....................................213
filter, specifications ........215, 242
recommendations ...................215
refill capacities ........................244
specifications ..........................244
Event data recording ....................6
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
257
ProCarManuals.com

L
Lamps
bulb replacement
specifications chart ..................39
daytime running light ...............35
headlamps .................................34
headlamps, flash to pass ..........35
instrument panel, dimming .....36
interior lamps ...........................38
replacing bulbs .........................40
Lane change indicator
(see Turn signal) ........................38
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........147
Load limits .................................124
Loading instructions .................130
Locks ............................................55
autolock .....................................55
doors ..........................................55
Lubricant specifications ...........244
Lug nuts ....................................187
Lumbar support, seats ...............63
M
Mirrors
fold away ...................................51
side view mirrors (power) .......50
Motorcraft parts ........208, 224, 242
O
Octane rating ............................228
Oil (see Engine oil) ..................213
P
Parking brake ............................148Parts (see Motorcraft parts) ....242
Power distribution box
(see Fuses) ...............................174
Power door locks ........................55
Power mirrors .............................50
Power point .................................48
Power steering ..........................151
fluid, checking and adding ....236
fluid, refill capacity ................244
fluid, specifications .................244
Power Windows ...........................49
Preparing to drive your
vehicle ........................................152
R
Radio ................................19, 21, 25
Relays ................................170, 177
Remote entry system .................57
illuminated entry ......................61
locking/unlocking doors ...........58
panic alarm ...............................58
replacement/additional
transmitters ...............................60
replacing the batteries .............59
Reverse sensing system ...........163
Roadside assistance ..................166
S
Safety Belt Maintenance ............78
Safety belts (see Safety
restraints) ........................68, 70–72
Safety defects, reporting ..200–201
Safety restraints ..............68, 70–72
Belt-Minder
.............................74
extension assembly ..................77
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
259
ProCarManuals.com
