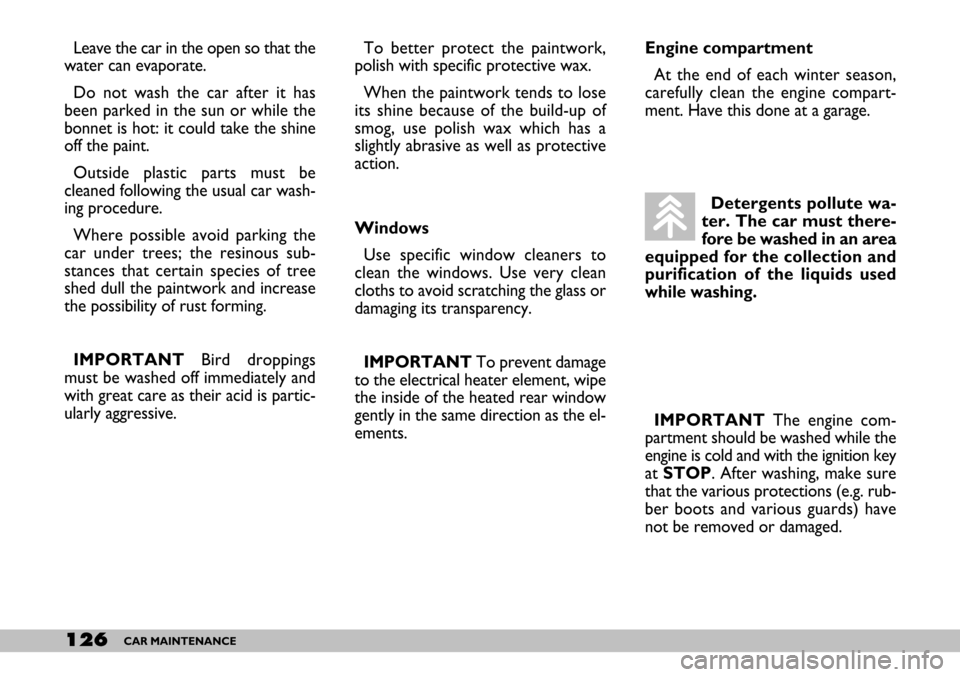

126CAR MAINTENANCE
Engine compartment
At the end of each winter season,
carefully clean the engine compart-
ment. Have this done at a garage. Leave the car in the open so that the
water can evaporate.
Do not wash the car after it has
been parked in the sun or while the
bonnet is hot: it could take the shine
off the paint.
Outside plastic parts must be
cleaned following the usual car wash-
ing procedure.
Where possible avoid parking the
car under trees; the resinous sub-
stances that certain species of tree
shed dull the paintwork and increase
the possibility of rust forming.
IMPORTANT Bird droppings
must be washed off immediately and
with great care as their acid is partic-
ularly aggressive.Detergents pollute wa-
ter. The car must there-
fore be washed in an area
equipped for the collection and
purification of the liquids used
while washing.
IMPORTANTThe engine com-
partment should be washed while the
engine is cold and with the ignition key
at STOP. After washing, make sure
that the various protections (e.g. rub-
ber boots and various guards) have
not be removed or damaged. To better protect the paintwork,
polish with specific protective wax.
When the paintwork tends to lose
its shine because of the build-up of
smog, use polish wax which has a
slightly abrasive as well as protective
action.
Windows
Use specific window cleaners to
clean the windows. Use very clean
cloths to avoid scratching the glass or
damaging its transparency.
IMPORTANT To prevent damage
to the electrical heater element, wipe
the inside of the heated rear window
gently in the same direction as the el-
ements.
146INDEX
Dashboard ................................. 20
Demisting
– front side windows .............. 34
– rear window ......................... 34
– windscreen ............................ 34
Dimensions ................................. 137
Dipped beam headlights
– bulb replacement ................. 96
– control .................................... 37
Direction indicators
– control .................................... 38
– front bulb replacement ....... 97
– rear bulb replacement ........ 99
– side bulb replacement ......... 98
Doors ........................................... 45
Driving style ................................ 78
Driving your car ......................... 70
Electric windows ..................... 46
Electrical power steering
system ........................................ 61
Electronic control units ............ 120
Engine
– cooling .................................... 116
– identification code ............... 129
– ignition/fuel feed ................... 131
– oil level ................................... 114
– specifications ......................... 130
Engine compartment
(washing) ................................... 126Engine coolant level ................... 116
Engine oil
– checking the level ................ 115
– consumption ......................... 115
– specifications ......................... 140
Engine oil consumption ............ 115
Engine oil level ............................ 115
EOBD system ............................. 60
Fiat CODE system .................. 6
Foglights
– bulb replacement ................. 98
– direction ................................. 54
– on/off button ......................... 40
Fuel
– consumption ......................... 142
– fuel cut-off switch ................ 41
– gauge ....................................... 23
Fuel consumption -
CO
2emissions .......................... 142
Fuel cut-off switch ..................... 25-41
Fuel filler cap ............................... 68
Fuel gauge .................................... 23
Fuses ............................................. 104
Gearbox
– gearbox use ........................... 72
– type ......................................... 131
Getting to know your car ......... 6
Handbrake ......................... 72-132
Hazard lights
– control .................................... 40
Headlights
– beam direction ..................... 53
– slant compensation .............. 53
Head restraints ........................... 30
Heated rear window ................. 40
Heater controls .......................... 33
Heating ......................................... 33
Heating ......................................... 33
Horn ............................................. 41
Identification data .................... 128
Ignition switch ............................ 22
In an emergency ......................... 86
Individual settings ....................... 29
Instrument panel ........................ 22
Instruments ................................. 23
Jack
– use .................................... 90-106
– warnings ................................. 89
Jacking the car ............................ 106
Keys ........................................... 6
– duplicate copies .................... 7
