2007 FIAT SEICENTO WATER

12GETTING TO KNOW YOUR CAR
AIRBAGPRETENSIONERS
AND
CLOCK SPRING2019
07
2018 2017
01 02 03 04 05 06
08 09 10 11 122015
07
2014 2013
01 02 03 04 05 06
08 09 10 11 12
ATTENZIONE:
CAUTION:
ACHTUNG: ATTENTION:
fig. 7b
P4Q00226
Operations which lead
to knocks, vibrations or
localised heating (over
100°C for a maximum of 6
hours) in the area around the
pretensioners may cause damage
or trigger them. These devices
are not affected by vibrations
caused by irregularities of the
road surface or low obstacles
such as kerbs, etc. Contact a Fiat
Dealership for any assistance.A small amount of smoke may be
produced. This smoke is in no way
toxic and presents no fire hazard.
The pretensioner does not require
any maintenance or greasing. Anything
that modifies its original conditions in-
validates its efficiency. If due to unusual
natural events (floods, sea storms,
etc.) the device has been affected by
water and mud, it must necessarily be
replaced.
The pretensioner can
only be used once.
After a collision that has
triggered it, have it replaced at
a Fiat Dealership. The validity of
the device is written on the plate
located on the front left door
post. The pretensioners should
be replaced at a Fiat Dealership
as this date approaches..PRETENSIONERS
To increase the efficiency of the front
and rear (where provided) seat belts,
the Fiat Panda is fitted with preten-
sioners. These devices “feel”, through
a sensor, that a violent crash is in
progress and rewind the seat belts a
few centimetres. In this way they en-
sure that the seat belt adheres per-
fectly to the wearer before the re-
straining action begins.
The seat belt locks to indicate that
the device has intervened; the seat belt
cannot be drawn back up even when
guiding it manually.
IMPORTANTTo obtain the high-
est degree of protection from the ac-
tion of the pretensioning device, wear
the seat belt keeping it firmly close to
the chest and pelvis.

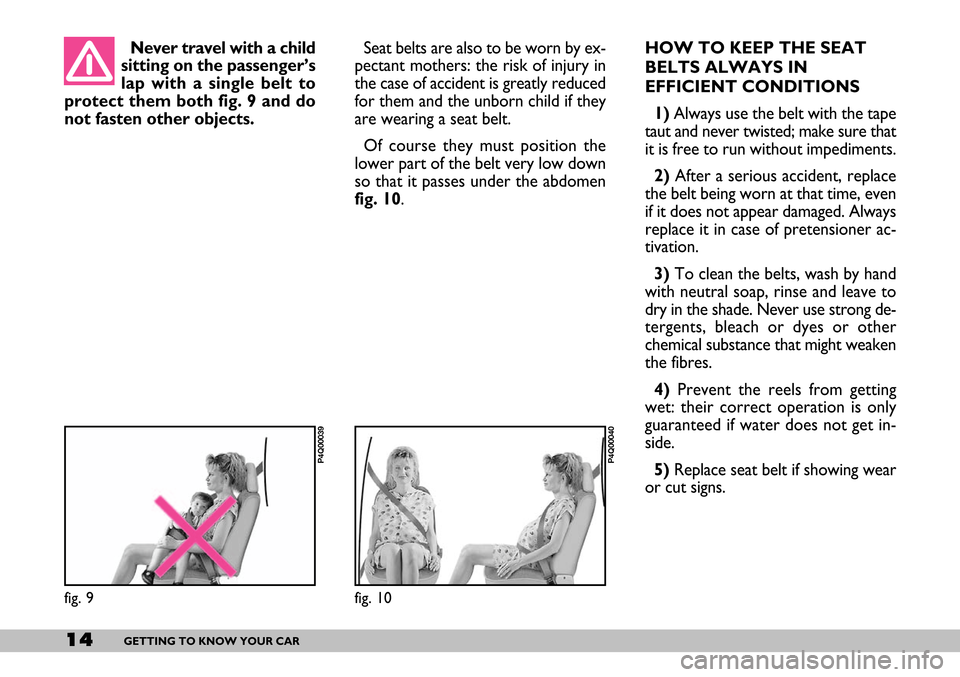

14GETTING TO KNOW YOUR CAR
Seat belts are also to be worn by ex-
pectant mothers: the risk of injury in
the case of accident is greatly reduced
for them and the unborn child if they
are wearing a seat belt.
Of course they must position the
lower part of the belt very low down
so that it passes under the abdomen
fig. 10.
fig. 10
P4Q00040
Never travel with a child
sitting on the passenger’s
lap with a single belt to
protect them both fig. 9 and do
not fasten other objects.
fig. 9
P4Q00039
HOW TO KEEP THE SEAT
BELTS ALWAYS IN
EFFICIENT CONDITIONS
1)Always use the belt with the tape
taut and never twisted; make sure that
it is free to run without impediments.
2)After a serious accident, replace
the belt being worn at that time, even
if it does not appear damaged. Always
replace it in case of pretensioner ac-
tivation.
3)To clean the belts, wash by hand
with neutral soap, rinse and leave to
dry in the shade. Never use strong de-
tergents, bleach or dyes or other
chemical substance that might weaken
the fibres.
4)Prevent the reels from getting
wet: their correct operation is only
guaranteed if water does not get in-
side.
5)Replace seat belt if showing wear
or cut signs.

74DRIVING YOUR CAR
WHEN TRAVELLING
– The first rule of safe driving is pru-
dence.
– Prudence also means putting your-
self into a position where you can pre-
dict wrong or imprudent behaviour
from other drivers.
– Stick closely to the rules of the
road in the particular country where
the vehicle is being driven and, above
all, do not exceed speed limits.
– Ensure that, besides yourself, all
the other passengers in the car have
their seat belts fastened, that children
are sitting in the appropriate child
seats and any animals in the car are
placed in suitable compartments.
– You should be physically fit and
mentally alert before setting out on
long journeys. Always fasten both front
and back seat belts and
those of any child seats.
Travelling with the seat belts un-
fastened increases the risk of in-
jury or death if you are in a colli-
sion.
Driving while drunk or
under the influence of
drugs or certain medi-
cines is dangerous for both you
and other road users.
Water, ice or salt on
road surfaces can deposit
on brake disks, reducing
braking efficiency on the first
braking.
Consider that fitting ex-
tra spoilers, alloy rims or
non standard wheel caps
can reduce ventilation of the
brakes and reduce their effi-
ciency under conditions of violent
or repeated braking or long
downhill travel.
Do not drive with ob-
jects on the floor in front
of the driver’s seat: they
could get caught under the ped-
als making braking or accelerat-
ing impossible. Pay attention to the
mats: even a minor prob-
lem to the braking sys-
tem may require increases brake
pedal stroke with respect to nor-
mal.
– Do not drive too many hours at a
time but stop at intervals to stretch
your legs and recover your energies.
– Constantly change the air in the
passenger compartment.
– Never coast downhill (i.e. with the
engine off): if you do, you lose the aid
of the engine brake, brakes booster
and power steering, so that braking
and steering require greater effort.

94IN AN EMERGENCY
GENERAL INSTRUCTIONS
When a light is not working, check
that it has not fused before changing
the bulb.
For location of fuses, refer to
IF A
FUSE BLOWS
in this chapter.
Before replacing a bulb that does not
work, check that the contacts are not
oxidised.
Burnt-out bulbs must be replaced
with ones of the same type.
Always check the height of the head-
light beam after changing a bulb.
fig. 11
P4Q00160
IMPORTANTOn the inside sur-
face of the headlight there could ap-
pear a slight coat of fogging; this does
not show a defect, since it is a natural
occurrence due to low temperature
and to the degree of humidity in the
air; it will soon disappear as soon as
the lights are turned on. The presence
of drops inside the headlight shows
water seepage, refer to the Fiat
Dealership.

116CAR MAINTENANCE
fig. 5
P4Q01042
Do not travel with the
windscreen washer reser-
voir empty. The wind-
screen washer is fundamental for
improving visibility. Some windscreen wiper
additives on the market
are flammable. The en-
gine compartment contains hot
parts which could start a fire in
the event of contact.
BRAKE FLUID fig. 5
Unscrew cap check that the fluid
level in the reservoir is at maximum.
Fluid level in the reservoir shall not
exceed the MAXmark. Check coolant level when the engine
is cold. The level should be included
between the MIN and MAXrefer-
ence lines on the reservoir.
If the level is low, top up slowly
through the filler on the reservoir
with a 50-50 mixture of distilled wa-
ter and FL Selenia PARAFLU UP
fluid until the level approaches the
MAX line.
A 50-50 mixture of PARAFLU UP
and distilled water gives freeze pro-
tection to –35°C.
The engine cooling sys-
tem works with
PARAFLU UP. Top up
only with the same fluid con-
tained in the cooling circuit.
PARAFLU UP cannot be mixed
with other fluids. Should this take
place, do not start the engine and
contact Fiat Dealership.
WINDSCREEN/REAR
WINDOW WASHER LIQUID
To add liquid remove the cap A-
fig. 4.
Use a mixture of water and
TUTELA PROFESSIONAL SC35
fluid in the following concentrations:
30% of TUTELA PROFESSIONAL
SC35and 70% of water in summer.
50% of TUTELA PROFESSIONAL
SC35and 50% of water in winter.
fig. 4
P4Q01041

The symbol πon the
container indicates syn-
thetic brake fluid distin-
guishing it from mineral fluid. Us-
ing mineral type fluid would
damage the special rubber brak-
ing system gaskets beyond re-
pair.
117CAR MAINTENANCE
Brake fluid is poisonous
and highly corrosive.
Wash the concerned
parts immediately with water
and mild soap in the event of an
accidental contact. Call a doctor
immediately if swallowed. If fluid has to be added, it is sug-
gested to use the brake fluid in table
"Fluids and lubricants" (see chapter
"Technical characteristics").
NOTE Clean accurately the tank cap
and the surrounding surface.
At plug opening, pay maximum at-
tention in order to prevent any impu-
rities from entering the tank.
For topping up, always use a funnel
with integrated filter with mesh equal
to or lower than 0.12 mm.
IMPORTANTBrake fluid absorbs
moisture, for this reason, if the vehi-
cle is mainly used in areas with a high
degree of atmospheric humidity, the
fluid should be replaced at more fre-
quent intervals than specified in the
“Service schedule”.
Make sure that the
highly corrosive brake
fluid does not drip onto
the paintwork. If it does, wash it
off immediately with water.
AIR CLEANER
REPLACEMENT
Loosen the screws A-fig. 6, remove
the cover B and remove the filtering
element C-fig. 7 to be replaced.
fig. 6
P4Q01043
fig. 7
P4Q01044
From time to time check the instru-
ment panel warning light by pressing
the reservoir cover (with the ignition
key at MAR) instrument panel warn-
ing light
xshould come on.

118CAR MAINTENANCE
BATTERY
The Fiat 600 battery is of the “lim-
ited maintenance” type. Under normal
conditions it will not need to be
topped up with distilled water.
REPLACING THE BATTERY
If required, replace the battery with
a genuine spare part presenting the
same specifications. If a battery with
different specifications is fitted, the
frequencies shown in the
SCHEDULED
SERVICING
ill no longer be valid. Refer
to the instructions provided by the
battery manufacturer. Batteries contain sub-
stances that are very
harmful for the environ-
ment. You are advised to have
the battery changed at a Fiat
Dealership. It is properly
equipped for disposing of used
batteries in an environmentally-
friendly way that complies with
the law.
CHECKING THE BATTERY
FLUID LEVEL (electrolyte)
Check the electrolyte level and top
up, if required, at the frequency
shown in the
SERVICE SCHEDULEin this
chapter. Have this operation carried
out at a Fiat Dealership. The liquid in the battery
is poisonous and corro-
sive. Do not let it touch
the skin or eyes. Do not bring
naked flames or possible sources
of sparks near to the battery: risk
of fire and explosion.
Incorrect fitting of elec-
trical and electronic ac-
cessories can seriously
damage the car.

125CAR MAINTENANCE
TIPS FOR KEEPING
THE BODYIN GOOD
CONDITIONS
Paintwork
The paintwork is not only to make
your car look attractive but also to
protect the steel.
If your car is scuffed or scratched
deeply you are therefore advised to
touch up the paintwork as necessary
to prevent rust from forming.
Only use genuine products when
touching up the paintwork (see the
TECHNICAL SPECIFICATIONSchapter.
Ordinary maintenance of the paint-
work means washing it. The frequency
you should do this depends on the
conditions and the environment the
car is driven in. For example, in areas
with a high level of air pollution, or on
roads sprinkled with road saltwash
the car more frequently.Detergents pollute wa-
ter. For this reason, the
car must be washed in an
area equipped for the collection
and purification of the liquids
used while washing.
To wash the car properly:
1) Remove the aerial from the roof
to avoid damaging it in an automatic
car wash.
2) Wash the body using a low pres-
sure jet of water.
3) Wipe a sponge with a slightly
soapy solution over the bodywork,
frequently rinsing the sponge.
4) Rinse well with water and dry
with a jet of air or a chamois leather.
When drying the car, be careful to
get at those parts which are not so
easily seen e.g. the door frames, bon-
net and around the headlights where
water can most readily collect.
– the use of zinc-plated (or pre-
treated) sheet steel which is highly re-
sistant to rust;
– the spraying of the underbody, en-
gine compartment, inside the wheel-
arches and other parts with wax-
based products with a high protective
capacity;
– spraying plastic-coating materials
to protect the most exposed points:
under the door, inside the wings, the
edges etc.;
– the use of “open” box sections to
prevent condensation and water from
building up and rusting the inside of
the parts.
BODY AND UNDERBODY
WARRANTY
Your Fiat 600 is covered by guaran-
tee against any original structural or
body part being holed by rust. Refer
to the “Warranty Booklet” for the
general conditions of this guarantee.
