2007 FIAT SEDICI check engine

197

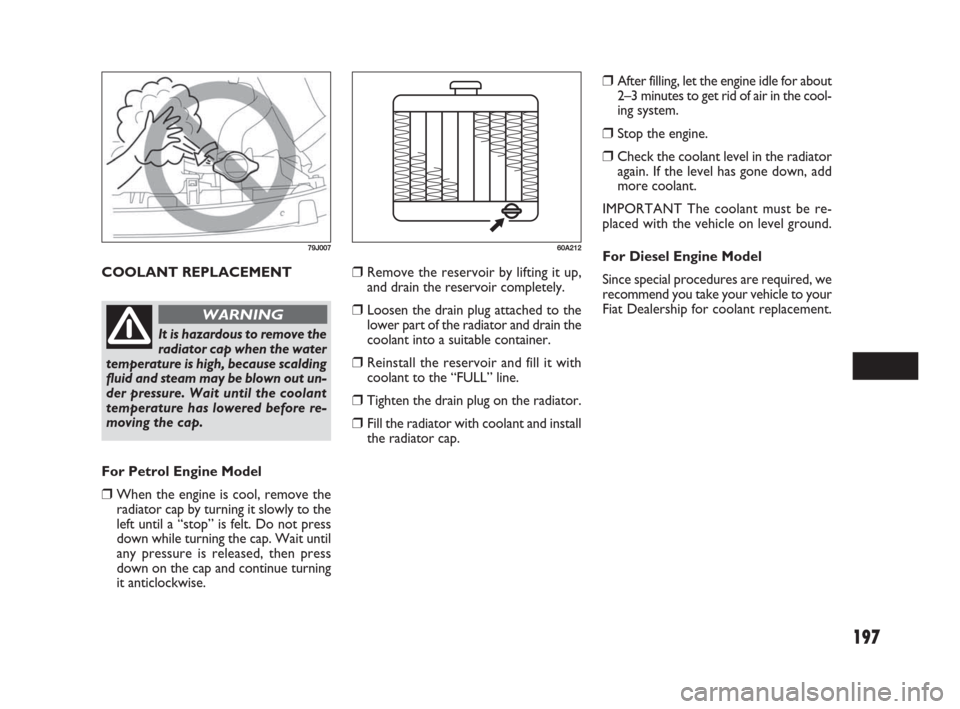

COOLANT REPLACEMENT
79J007
It is hazardous to remove the
radiator cap when the water
temperature is high, because scalding
fluid and steam may be blown out un-
der pressure. Wait until the coolant
temperature has lowered before re-
moving the cap.
WARNING
For Petrol Engine Model
❒When the engine is cool, remove the
radiator cap by turning it slowly to the
left until a “stop” is felt. Do not press
down while turning the cap. Wait until
any pressure is released, then press
down on the cap and continue turning
it anticlockwise.
❒After filling, let the engine idle for about
2–3 minutes to get rid of air in the cool-
ing system.
❒Stop the engine.
❒Check the coolant level in the radiator
again. If the level has gone down, add
more coolant.
IMPORTANT The coolant must be re-
placed with the vehicle on level ground.
For Diesel Engine Model
Since special procedures are required, we
recommend you take your vehicle to your
Fiat Dealership for coolant replacement.
❒Remove the reservoir by lifting it up,
and drain the reservoir completely.
❒Loosen the drain plug attached to the
lower part of the radiator and drain the
coolant into a suitable container.
❒Reinstall the reservoir and fill it with
coolant to the “FULL” line.
❒Tighten the drain plug on the radiator.
❒Fill the radiator with coolant and install
the radiator cap.
60A212
181-224 Fiat16 New GB 27-11-2007 11:30 Pagina 197

198

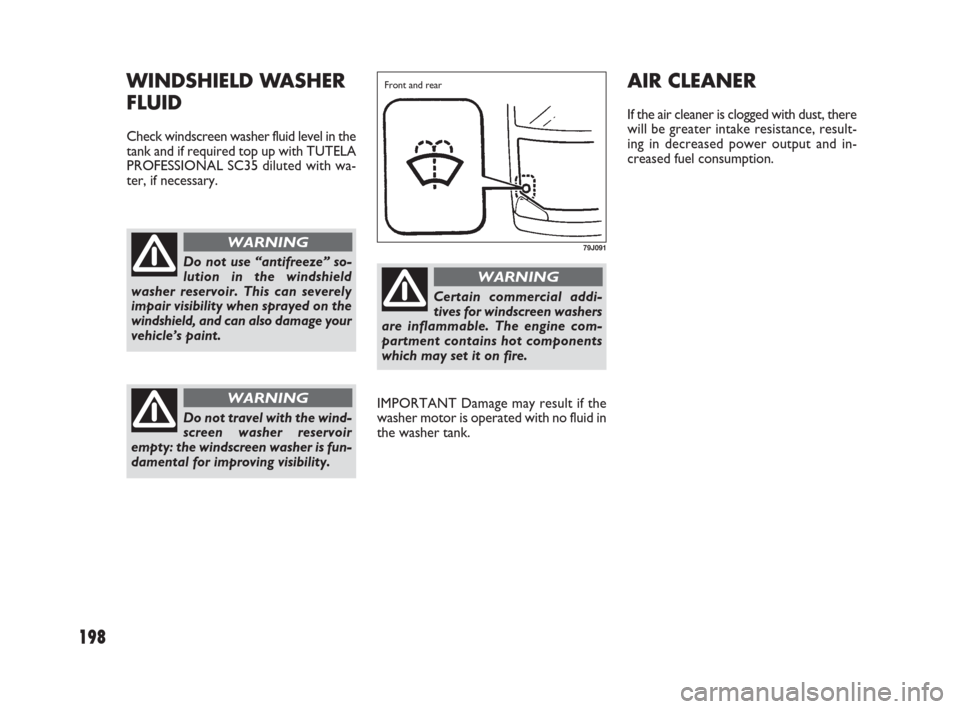

AIR CLEANER
If the air cleaner is clogged with dust, there
will be greater intake resistance, result-
ing in decreased power output and in-
creased fuel consumption.
IMPORTANT Damage may result if the
washer motor is operated with no fluid in
the washer tank.
79J091
Front and rearWINDSHIELD WASHER
FLUID
Check windscreen washer fluid level in the
tank and if required top up with TUTELA
PROFESSIONAL SC35 diluted with wa-
ter, if necessary.
Do not use “antifreeze” so-
lution in the windshield
washer reservoir. This can severely
impair visibility when sprayed on the
windshield, and can also damage your
vehicle’s paint.
WARNING
Certain commercial addi-
tives for windscreen washers
are inflammable. The engine com-
partment contains hot components
which may set it on fire.
WARNING
Do not travel with the wind-
screen washer reservoir
empty: the windscreen washer is fun-
damental for improving visibility.
WARNING
181-224 Fiat16 New GB 27-11-2007 11:30 Pagina 198

202
NOTE With disc brakes, the fluid level can
be expected to gradually fall as the brake
pads wear.
BRAKES
BRAKE FLUID
Check the brake fluid level by looking at
the reservoir in the engine compartment.
Check that the fluid level is between the
“MAX” and “MIN” lines. If the brake flu-
id level is near the “MIN” line, fill it up to
the “MAX” line with TUTELA TOP 4 SAE
J1704 o DOT4 brake fluid.
79J010
Failure to follow the guide-
lines below can result in per-
sonal injury or serious damage to the
brake system.
– If the brake fluid in the reservoir
drops below a certain level, the brake
warning light on the instrument pan-
el will come on (the engine must be
running with the parking brake fully
disengaged). Should the light come
on, immediately ask your Fiat Deal-
ership to inspect the brake system.
– A rapid fluid loss indicates a leak in
the brake system which should be in-
spected by your Fiat Dealership im-
mediately.
WARNING– Brake fluid can harm your
eyes and damage painted
surfaces. Use caution when refilling
the reservoir.
– Do not use any fluid other than SAE
J1704 or DOT4 brake fluid. Do not
use reclaimed fluid or fluid that has
been stored in old or open contain-
ers. It is essential that foreign parti-
cles and other liquids are kept out of
the brake fluid reservoir.
WARNING
Brake fluid is harmful or fa-
tal if swallowed, and harm-
ful if it comes in contact with skin or
eyes. If swallowed, do not induce
vomiting. Immediately contact a poi-
son control center or a physician. If
brake fluid gets in eyes, flush eyes
with water and seek medical atten-
tion. Wash thoroughly after handling.
Solution can be poisonous to animals.
Keep out of the reach of children and
animals.
WARNING
181-224 Fiat16 New GB 27-11-2007 11:30 Pagina 202

203

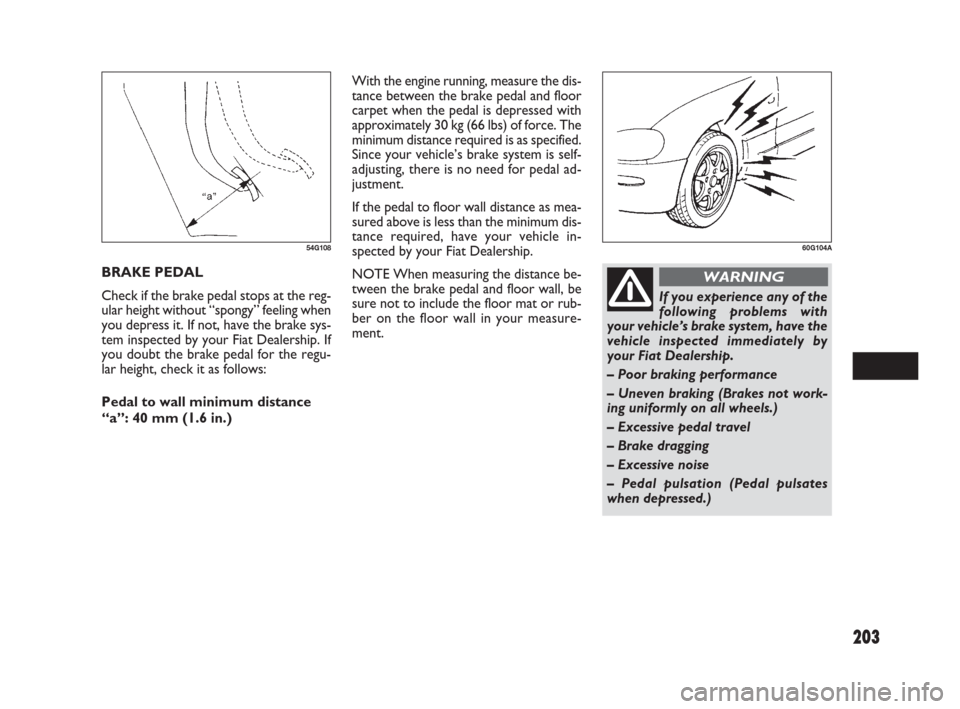

With the engine running, measure the dis-
tance between the brake pedal and floor
carpet when the pedal is depressed with
approximately 30 kg (66 lbs) of force. The
minimum distance required is as specified.
Since your vehicle’s brake system is self-
adjusting, there is no need for pedal ad-
justment.
If the pedal to floor wall distance as mea-
sured above is less than the minimum dis-
tance required, have your vehicle in-
spected by your Fiat Dealership.
NOTE When measuring the distance be-
tween the brake pedal and floor wall, be
sure not to include the floor mat or rub-
ber on the floor wall in your measure-
ment. BRAKE PEDAL
Check if the brake pedal stops at the reg-
ular height without “spongy” feeling when
you depress it. If not, have the brake sys-
tem inspected by your Fiat Dealership. If
you doubt the brake pedal for the regu-
lar height, check it as follows:
Pedal to wall minimum distance
“a”: 40 mm (1.6 in.)
54G10860G104A
If you experience any of the
following problems with
your vehicle’s brake system, have the
vehicle inspected immediately by
your Fiat Dealership.
– Poor braking performance
– Uneven braking (Brakes not work-
ing uniformly on all wheels.)
– Excessive pedal travel
– Brake dragging
– Excessive noise
– Pedal pulsation (Pedal pulsates
when depressed.)
WARNING
181-224 Fiat16 New GB 27-11-2007 11:30 Pagina 203

211

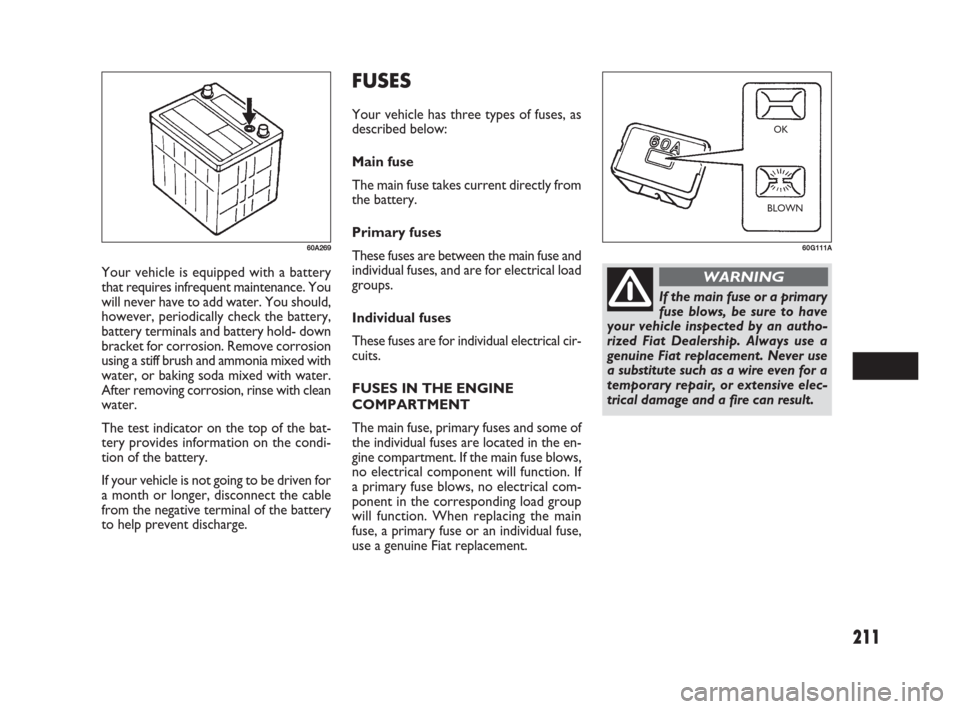

Your vehicle is equipped with a battery
that requires infrequent maintenance. You
will never have to add water. You should,
however, periodically check the battery,
battery terminals and battery hold- down
bracket for corrosion. Remove corrosion
using a stiff brush and ammonia mixed with
water, or baking soda mixed with water.
After removing corrosion, rinse with clean
water.
The test indicator on the top of the bat-
tery provides information on the condi-
tion of the battery.
If your vehicle is not going to be driven for
a month or longer, disconnect the cable
from the negative terminal of the battery
to help prevent discharge.
FUSES
Your vehicle has three types of fuses, as
described below:
Main fuse
The main fuse takes current directly from
the battery.
Primary fuses
These fuses are between the main fuse and
individual fuses, and are for electrical load
groups.
Individual fuses
These fuses are for individual electrical cir-
cuits.
FUSES IN THE ENGINE
COMPARTMENT
The main fuse, primary fuses and some of
the individual fuses are located in the en-
gine compartment. If the main fuse blows,
no electrical component will function. If
a primary fuse blows, no electrical com-
ponent in the corresponding load group
will function. When replacing the main
fuse, a primary fuse or an individual fuse,
use a genuine Fiat replacement.
60A26960G111A
OK
BLOWN
If the main fuse or a primary
fuse blows, be sure to have
your vehicle inspected by an autho-
rized Fiat Dealership. Always use a
genuine Fiat replacement. Never use
a substitute such as a wire even for a
temporary repair, or extensive elec-
trical damage and a fire can result.
WARNING
181-224 Fiat16 New GB 27-11-2007 11:30 Pagina 211

231

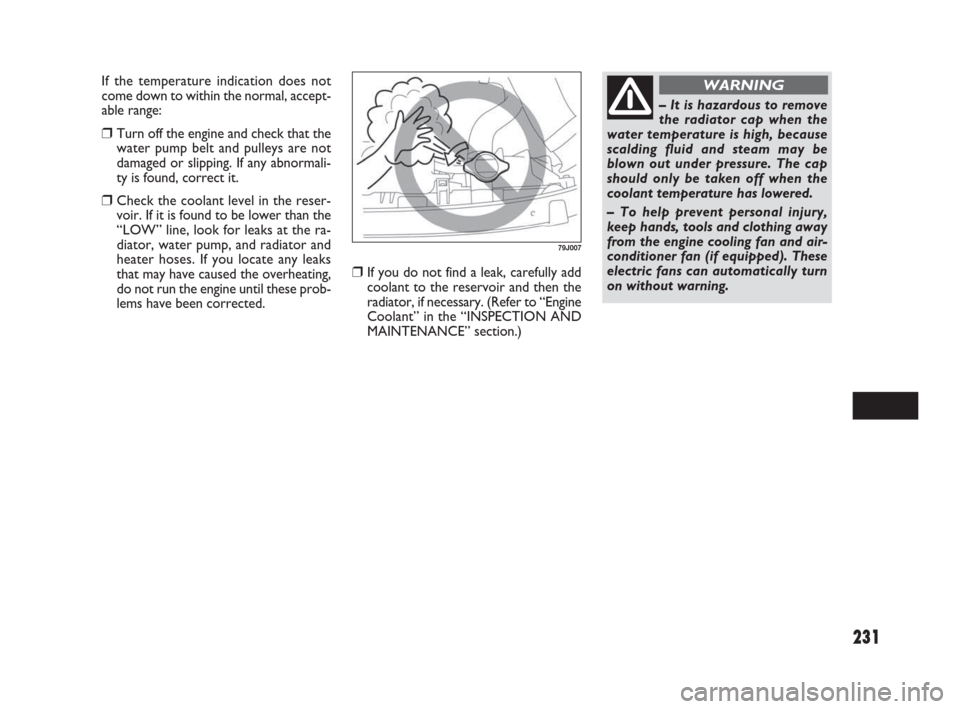

❒If you do not find a leak, carefully add
coolant to the reservoir and then the
radiator, if necessary. (Refer to “Engine
Coolant” in the “INSPECTION AND
MAINTENANCE” section.) If the temperature indication does not
come down to within the normal, accept-
able range:
❒Turn off the engine and check that the
water pump belt and pulleys are not
damaged or slipping. If any abnormali-
ty is found, correct it.
❒Check the coolant level in the reser-
voir. If it is found to be lower than the
“LOW” line, look for leaks at the ra-
diator, water pump, and radiator and
heater hoses. If you locate any leaks
that may have caused the overheating,
do not run the engine until these prob-
lems have been corrected.
79J007
– It is hazardous to remove
the radiator cap when the
water temperature is high, because
scalding fluid and steam may be
blown out under pressure. The cap
should only be taken off when the
coolant temperature has lowered.
– To help prevent personal injury,
keep hands, tools and clothing away
from the engine cooling fan and air-
conditioner fan (if equipped). These
electric fans can automatically turn
on without warning.
WARNING
225-232 Fiat16 New GB 27-11-2007 11:53 Pagina 231

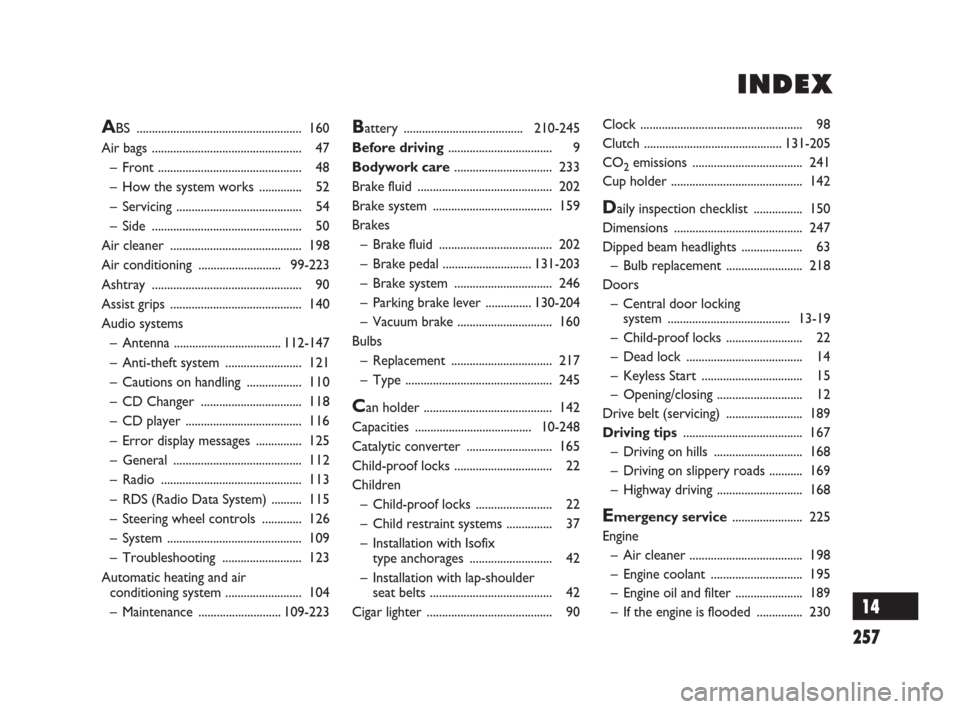

257
Battery .......................................210-245
Before driving.................................. 9
Bodywork care................................ 233
Brake fluid ............................................ 202
Brake system ....................................... 159
Brakes
– Brake fluid ..................................... 202
– Brake pedal .............................131-203
– Brake system ................................ 246
– Parking brake lever ...............130-204
– Vacuum brake ............................... 160
Bulbs
– Replacement ................................. 217
– Type ................................................ 245
Can holder .......................................... 142
Capacities ......................................10-248
Catalytic converter ............................ 165
Child-proof locks ................................ 22
Children
– Child-proof locks ......................... 22
– Child restraint systems ............... 37
– Installation with Isofix
type anchorages ........................... 42
– Installation with lap-shoulder
seat belts ........................................ 42
Cigar lighter ......................................... 90Clock ..................................................... 98
Clutch .............................................131-205
CO
2emissions .................................... 241
Cup holder ........................................... 142
Daily inspection checklist ................ 150
Dimensions .......................................... 247
Dipped beam headlights .................... 63
– Bulb replacement ......................... 218
Doors
– Central door locking
system ........................................13-19
– Child-proof locks ......................... 22
– Dead lock ...................................... 14
– Keyless Start ................................. 15
– Opening/closing ............................ 12
Drive belt (servicing) ......................... 189
Driving tips....................................... 167
– Driving on hills ............................. 168
– Driving on slippery roads ........... 169
– Highway driving ............................ 168
Emergency service....................... 225
Engine
– Air cleaner ..................................... 198
– Engine coolant .............................. 195
– Engine oil and filter ...................... 189
– If the engine is flooded ............... 230
ABS ...................................................... 160
Air bags ................................................. 47
– Front ............................................... 48
– How the system works .............. 52
– Servicing ......................................... 54
– Side ................................................. 50
Air cleaner ........................................... 198
Air conditioning ...........................99-223
Ashtray ................................................. 90
Assist grips ........................................... 140
Audio systems
– Antenna ...................................112-147
– Anti-theft system ......................... 121
– Cautions on handling .................. 110
– CD Changer ................................. 118
– CD player ...................................... 116
– Error display messages ............... 125
– General .......................................... 112
– Radio .............................................. 113
– RDS (Radio Data System) .......... 115
– Steering wheel controls ............. 126
– System ............................................ 109
– Troubleshooting .......................... 123
Automatic heating and air
conditioning system ......................... 104
– Maintenance ...........................109-223
I I
N N
D D
E E
X X
14
257-264 Fiat16 New GB 27-11-2007 11:55 Pagina 257

258
– Fuel filter........................................... 201
– Fuel filler cap ................................... 132
– Fuel gauge ........................................ 84
– Improving fuel economy .............. 166
– Instantaneous fuel
consumption (gauge) ......................... 92
Fuel filler cap .......................................... 132
Fuel gauge ............................................... 84
Fuses ........................................................ 211
Gear oil
– Changing .................................193-248
– Level check .................................... 194
– Specifications.................................. 193
General information.................... 239
Glove box ............................................ 91
Hazard warning lights ....................... 85
Hazard warning lights ........................ 85
Head restraints ................................... 30
Headlight levelling switch .................. 87
Headlights
– Bulb replacement ......................... 218
– Headlight levelling switch ........... 87
Heated rear window .......................... 88
Heating and air conditioning
system .........................................99-223
Heating system .............................99-104
Horn ...................................................... 68
Identification data .............................. 230
Ignition switch ..................................... 58
Information display ......................91-94
– Illumination cancel switch .......... 89
Inspection and maintenance.... 181
– Maintenance schedule ................. 183
– Severe driving conditions ........... 188
Instrument cluster .............................. 71
– Meter illumination
(control) ..................................82-87
Instrument panel........................... 69
Interior lights ................................138-218
Isofix type child restraint system
(installation)........................................ 42
Jack ......................................................... 144
Jacking instructions.............................. 226
Jump starting instructions.................. 227
Keys ....................................................... 11
– Battery replacement..................... 20
– Keyless Entry................................. 18
Luggage compartment
– Capacity/volume .......................... 247
– Extension (folding rear seats)..... 134
– Luggage compartment cover ..... 146
– Luggage compartment light ....... 146
– Luggage restraint loops .............. 145
– Rear door opening ...................... 23
Luggage compartment light .............. 146 – If the engine overheats ............... 230
– If the starter does not operate .. 229
– Jump starting ................................. 227
– Serial number ............................... 240
– Spark plugs .................................... 199
– Starting ........................................... 165
– Technical specifications .............. 244
– Temperature gauge ..................... 84
Engine coolant ..................................... 195
Engine coolant temperature gauge .. 84
Engine hood ......................................... 140
Engine oil consumption ..................... 152
Engine oil
– Changing .................................191-248
– Level check .................................... 190
– Specifications ................................ 189
Engine oil filter (change) .................... 191
ESP (Electronic Stability Program) ... 161
Exhaust gas ........................................... 150
External lights ...............................63-218
Eyeglasses holder ................................ 142
Fiat CODE (Immobilizer system) .... 11
Frame hooks .......................................... 143
Front fog lights ....................................... 89
Fuel
– Capacities/refuelling ...............10-248
– Consumption .................................. 241
257-264 Fiat16 New GB 27-11-2007 11:55 Pagina 258
