2007 FIAT PANDA traffic program

8
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
1
2
3
4
5
6
7
8
9
10
11
12
AF-TA
PTY
¯˙
Tape slot
˚
SRC-SC
BN-AS
N
˜
O
MENU-PS
÷
Alternative frequency (AF) /Traffic
information (TA)
Programme Type
Reverse
ject Tape
Audio source selection/Scan function
Frequency band selection
Automatic station tuning
Manual station tuning
Automatic station tuning
Menu function/Scan function
Manual station tuningTA ON/OFF
PTY ON/OFF
Eject Tape
Select Tape, Radio or
CD Changer (if provided)
FM1, FM2, FMT, MW, LW
Automatic station tuning
TP: seek +
PTY: seek +
AF: seek +
Manual station tuning
TP: seek +
PTY: seek +
AF: seek +
Automatic station tuning
TP: seek -
PTY: seek -
AF: seek -
Menu on/off
Manual station tuning
TP: seek -
PTY: seek -
AF: seek - AF ON/OFF
PTY: displays selected programme type
FM/AM station scan
Store automatically
in FMT station range
Fast automatic station tuning
TP: seek +
PTY: seek +
AF: seek +
Fast manual station tuning
TP: seek +
PTY: seek +
AF: seek +
Fast automatic station tuning
TP: seek -
PTY: seek -
AF: seek -
Scan preset stations
Fast manual station tuning
TP: seek -
PTY: seek -
AF: seek -
ButtonButtons and front panel
Letters or symbol FunctionRADIO mode
Short-push function (less than 2 sec.) Long-push function (over 2 sec.)
001-050 ING 21-06-2007 15:48 Pagina 8

12
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
GENERAL
The set possesses the following functions:
RADIO SECTION
❒PLL tuning with FM/AM/MW/LW frequency bands;
❒RDS (Radio Data System) with TA (traffic
information) - PTY (Program Type) - EON
(Enhanced Other Network) - REG (Regional
programmes);
❒AF: alternative frequency search selection in RDS
mode;
❒emergency alarm presetting;
❒automatic/manual station tuning;
❒manual storage of 30 stations: 18 in the FM band (6
in FM1, 6 in FM2, 6 in FMT), 6 in the MW band and
6 in the LW band;
❒automatic storage (AUTOSTORE function) of 6
stations in FMT band;
❒DX/LO function (sensitivity adjusting in searching
radio stations);❒Scan function (scanning stored stations);
❒automatic Stereo/Mono switching.
TAPE SECTION
❒Autoreverse;
❒Tape fast forward/rewind;
❒CrO
2tape equalizing;
❒MSS function (previous/next track automatic
search);
❒Repeat function (repetition of last track);
❒Scan function (scan tape tracks);
❒DOLBY B (noise reduction circuit) (*);
❒Powered tape loading and eject.
(*) The DOLBY reduction circuit is made under the licence of Dol-
by Laboratories Licensing Corporation. DOLBY and the (M)
symbol with double D are patented brands of Dolby Labora-
tories Licensing Corporation.
001-050 ING 21-06-2007 15:48 Pagina 12

16
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
EON (Enhanced Other Network)
Function that allows the radio to tune automatically on
a different station than the one being listened to which
broadcasts traffic information.
Fader
Function with which it is possible to suitably adjust the
sound from the front or rear speakers.
Hicut (treble reduction)
Function with which it is possible to reduce the treble
tones, in accordance with the signal transmitted.
Loudness
Function that emphasises the bass and treble tones
when listening at low level. It is cut off with the
volume set to maximum.
MSS (previous/next track search)
With this function it is possible to listen to next or
previous track on the tape.Mute
This function enables to mute the active source. This
function is activated automatically, if a cell phone is
connected to the radio, when a phone call is being
received.
Presettings
Number of radio stations that can be stored manually
or automatically.
PTY (Program Type)
This function allows the presetting of a category of
programmes such as for instance, news bulletins,
music, sport, etc. The set automatically gives priority
to the type of programme selected when the
transmission starts, interrupting the one in progress.
RDS (Radio Data System)
This is an additional radio information system which
uses the 57 kHz subcarrier of normal FM broadcasts.
With this function it is possible to receive different
types of information such as station names, alternative
frequencies, automatic tuning to traffic bulletins or
special programmes selected through the PTY
function.
001-050 ING 21-06-2007 15:48 Pagina 16

REG (Regional transmission reception function)
Function with which it is possible to tune only to local
(regional) stations).
Repeat (Repetition of the track)
Function with which it is possible to listen
continuously to the last track played on the Compact
Disc.
RM (Radio Monitor)
Function with which it is possible to listen to the radio
during tape fast forward/rewind.
Scan
Function with which it is possible to listen, for approx.
10 seconds, to all the radio stations stored, or the
beginning of all the tracks contained on a cassette or
Compact Disc.
Scrolling
Function with which it is possible to receive different
programmes in the same network (in the FM band
only).PLL tuning
Digital tuning with Phase Lock Loop circuit to obtain
the best radio channel tuning.
Soft Mute
Function that gradually highers and lowers the volume
when Mute is turned on or off.
Sound Flavour
A function that sets the best equalizing possible
depending on the type of music selected (Classic, Jazz,
Rock, etc.).
TA (Traffic information)
Function with which it is possible to receive the traffic
information broadcast by the stations enabled, also
when tuned to another station or listening to a
tape/CD.
Treble (Treble tones)
This adjusts the treble tones.
17
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
TAPES PLAYER
001-050 ING 21-06-2007 15:48 Pagina 17

If the TA function is on (traffic information), the tuner
only searches stations which broadcast traffic bulletins.
If the PTY function is on, the tuner only searches PTY
stations. When searching, the display alternatively
shows the type of programme and the word
“SEARCH”.
If the station on which the tuner stops is one of the
stations stored with the preset buttons, the display will
show the presetting number for a few seconds.
Manual tuning
This allows manual station searching in the chosen
band.
Proceed as follows:
❒Select the band with button 7 (BN-AS): FM1, FM2,
FMT, MW or LW;
❒Press briefly and repeatedly button 9 (
˜) or 12
(
÷) to start searching in the chosen band.
Pressing one of the buttons 9 (
˜) or 12 (÷)
longer obtains fast forward searching, which is
stopped when the button is released.To turn on manual tuning search it is necessary to turn
off the PTY and AF (alternative frequencies), if on.
If the station tuned is a station stored with the preset
buttons, the display will show the presetting number
for a few seconds.
Scan function (station scanning)
Keeping button 6 (SRC-SC) pressed until the “beep”,
starts scanning the stations in the frequency band
selected (FM, MW, LW). Each station found will be
heard for a few seconds and the name and frequency
will flash on the display. While searching the display
will show “FM SCAN”, “AM SCAN” or “PTY SCAN”
for a few seconds.
If the TA function is on (traffic information), the system
will search only the stations that broadcast traffic
bulletins. If the PTY function is on, the system will only
search PTY stations.
27
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
TAPES PLAYER
001-050 ING 21-06-2007 15:48 Pagina 27

The behaviour of the set during AutoSTore is as
follows:
❒at the beginning of the AutoSTore function all the
other functions are disabled;
❒pressing one of the radio function buttons, e.g.: 2
(PTY), 8 (
N), 9 (˜), 10 (O), 12 (÷), (13), (14),
(15), (16), (17), (18) the automatic storage process
is interrupted, the last station heard before
AutoSTore was turned on is tuned and the function
associated with the button pressed is run;
❒pressing button 1 (AF-TA) during AutoSTore will
interrupt it, the TA function (traffic information) will
be turned on/off and a new automatic storage
process will be started;
❒changing the listening source (Radio, Tape, CD
Changer) during automatic storage will not
interrupt the AutoSTore function.
❒activating the AutoSTore function in MW or LW
bands will automatically select the FMT band where
the function is then run.
IMPORTANT Sometimes the AutoSTore function is
unable to find 6 stations with a strong signal. In this
case, the free preset buttons will be shown on the
display, for about 2 seconds, by 4 dashes and the last
station heard will be returned.Listening to stored stations
Proceed as follows:
❒select the required frequency band (FM, MW, LW);
❒briefly press one of the six station storage buttons.
The display will show the number that corresponds to
the button.
In bands FM1, FM2 and FMT, if reception is poor and
the AF alternative frequency search function is active,
the station with the strongest signal that is
broadcasting the same programme will be sought
automatically.
AF function
(alternative frequency search)
Within the RDS system the radio can work in two
different modes:
❒“AF ON”: alternative frequency search on (the
display shows “AF”);
❒“AF OFF”: alternative frequency search off.
31
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
TAPES PLAYER
001-050 ING 21-06-2007 15:48 Pagina 31

32
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER

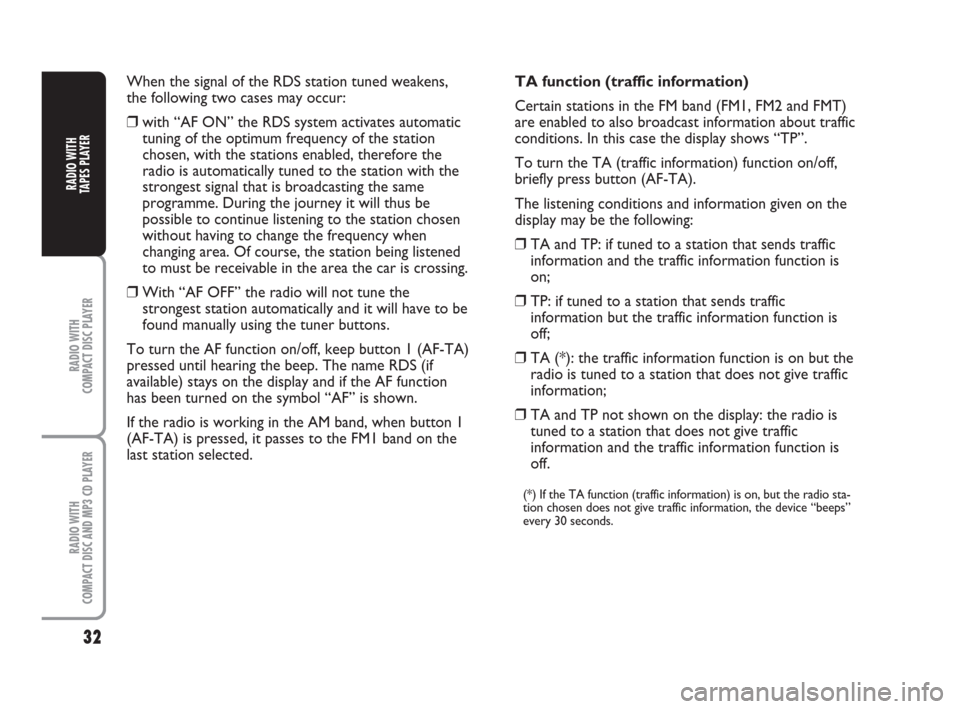

When the signal of the RDS station tuned weakens,
the following two cases may occur:
❒with “AF ON” the RDS system activates automatic
tuning of the optimum frequency of the station
chosen, with the stations enabled, therefore the
radio is automatically tuned to the station with the
strongest signal that is broadcasting the same
programme. During the journey it will thus be
possible to continue listening to the station chosen
without having to change the frequency when
changing area. Of course, the station being listened
to must be receivable in the area the car is crossing.
❒With “AF OFF” the radio will not tune the
strongest station automatically and it will have to be
found manually using the tuner buttons.
To turn the AF function on/off, keep button 1 (AF-TA)
pressed until hearing the beep. The name RDS (if
available) stays on the display and if the AF function
has been turned on the symbol “AF” is shown.
If the radio is working in the AM band, when button 1
(AF-TA) is pressed, it passes to the FM1 band on the
last station selected.TA function (traffic information)
Certain stations in the FM band (FM1, FM2 and FMT)
are enabled to also broadcast information about traffic
conditions. In this case the display shows “TP”.
To turn the TA (traffic information) function on/off,
briefly press button (AF-TA).
The listening conditions and information given on the
display may be the following:
❒TA and TP: if tuned to a station that sends traffic
information and the traffic information function is
on;
❒TP: if tuned to a station that sends traffic
information but the traffic information function is
off;
❒TA (*): the traffic information function is on but the
radio is tuned to a station that does not give traffic
information;
❒TA and TP not shown on the display: the radio is
tuned to a station that does not give traffic
information and the traffic information function is
off.
(*) If the TA function (traffic information) is on, but the radio sta-
tion chosen does not give traffic information, the device “beeps”
every 30 seconds.
001-050 ING 21-06-2007 15:48 Pagina 32

IMPORTANT If the TA function is on and the station
tuned is not able to provide traffic information or it is
no longer able to provide this information (the display
will not show “TP”), so after about 1 minute in which
the radio is in these conditions:
❒if listening to a tape another station is sought that is
enabled to transmit traffic information;
❒if when listening to the radio a “beep” is given to
alert that it is not possible to receive traffic
information, to interrupt it, it is necessary to tune
to a station that can provide traffic information or
switch off the TA function.
The TA function is interrupted in the following cases:
❒in radio mode: press a preset button during a traffic
bulletin;
❒pressing button 6 (SRC-SC) during a traffic bulletin;
❒by automatic/manual tuning or AutoSTore;
❒turning the Mute function on.Emergency alarm reception
In the RDS mode the radio is set to receive
emergency announcements in the case of exceptional
circumstances or events that may cause general danger
(earthquakes, floods, etc.), if they are broadcast by the
station tuned.
This function is activated automatically and cannot be
deactivated.
Program Type function (PTY)
(selecting a type of programme)
To turn on the PTY function, which makes it possible
to give top priority to PTY programmes, when
present, which may involve emergency messages or
various topics (e.g.: music, news bulletins), briefly press
button 2 (PTY) until the display shows “PTY” and the
subject of the last station heard (e.g.: “NEWS”).
After about 2 seconds the station name or frequency
is shown on the display.
IMPORTANT To turn on the PTY function, the radio
must be in the FM band.
35
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
TAPES PLAYER
001-050 ING 21-06-2007 15:48 Pagina 35
