2007 FIAT PANDA key

14
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
Entering the secret code
Entry of the secret code is required to allow the radio
to work after each reconnection to the car electric
system.
Connecting the radio to the car supply, the display
shows the word “CODE” for about 2 seconds,
followed by four dashes “----”.
The secret code comprises four figures from 1 to 6,
each corresponding to one of the dashes.
To enter the first digit of the code, press the
corresponding key of the preset stations (from 1 to 6).
Enter the other code digits in the same way.
If the four figures are not entered within 20 seconds,
the display shows the word “CODE” for 2 seconds
and then four dashes “----”. This is not to be
considered as an incorrect code entry.
After entering the fourth digit (within 20 seconds), the
radio starts working.If a wrong code is entered, the radio sounds a “beep”,
the display shows the word “CODE” for 2 seconds
and then four dashes “----” to warn the user that it is
necessary to enter the correct code.
Every time the user enters a wrong code, the waiting
time increases gradually (1 min, 2 min, 4 min, 8 min, 16
min, 30 min, 1h, 2h, 4h, 8h, 16h, 24h) until reaching a
maximum of 24 hours.
The waiting time will be shown on the display with the
word “WAIT”. When this goes off it is possible to
start the new code entry procedure.
CODE Card
This the document that certifies possession of the
radio. The Code Card contains the radio model, serial
number and secret code.
The secret code shall be entered again each time the
sound system power is disconnected.
IMPORTANT Keep the Code Card carefully to be
able to give the related data to the competent
authorities in the event of theft.
001-050 ING 21-06-2007 15:48 Pagina 14

20
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
FUNCTIONS AND ADJUSTMENTS
IGN TIME function
(system power on/off) (where provided)
The set is switched on pressing the “ON” button (21).
With the ignition key at MAR the “ON” button is
always lit to facilitate turning on the radio.
This function enables to switch the sound system off
according to two different modes. Use button 9 (
˜)
or 12 (
÷) to turn this function on/off.
The display will show the selected mode:
❒“00 MIN”: deactivation dependent on ignition key;
the sound system will turn off automatically as soon
as the ignition key is turned to STOP;
❒“20 MIN”: deactivation independent of ignition key;
the sound system will stay on for max. 20 minutes
after turning the ignition key to STOP.
IMPORTANT Should the sound system turn off
automatically after turning the ignition key to STOP
(for both immediate or 20-minute delayed
deactivation), it will turn on automatically when
turning the ignition key to MAR. When the sound
system is turned off using the relevant button 21
“ON”, it will stay off even when turning the key to
MAR.Selecting Radio/Tape/
CD Changer
Pressing briefly and repeatedly the 6 (SRC-SC) button
it is possible to select the following functions in
sequence:
❒TUNER (Radio);
❒TAPE (Cassette) (only if the tape is inserted);
❒CHANGER (CD Changer) (only if the CD Changer
is connected).
After each change of the listening source, the display
shows the function selected: TUNER, TAPE or
CHANGER for about 2.5 seconds and then starts
playing.
001-050 ING 21-06-2007 15:48 Pagina 20

24
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
❒adjusting or deactivating a function requiring info
display;
❒activating a new function (e.g.: TA or Tel Mute
function or inserting a tape).
IMPORTANT On versions not fitted with rear
speakers, the Fader function shall be set to “F” (front)
to avoid sound system output power reduction and
volume muting if Fader is set to = R+9.
Loudness function
The Loudness function improves the sound volume
when listening at low level, increasing the basses and
trebles. It is cut off when the volume is set to
maximum.
To switch the function on/off, keep button 19 (AUD)
pressed until hearing the “beep”. The function
condition (on or off) is shown on the display for few
seconds by “LD ON” or “LD OFF”.TELEPHONE PROVISION
(where provided)
If the vehicle is equipped with a free-hands kit, the car
radio volume control is connected, when a telephone
call is received, to the telephone input, thus preventing
listening to the tuned station or the CD. The
telephone sound is always received to a set volume;
yet, it can be adjusted during conversation, by means
of button 22 (VOL+) or button 20 (VOL –).
The fixed telephone volume can be adjusted through
the “PHONE” function of the menu (see paragraph
“MENU”).
The only car radio buttons active during telephone
calls are:
❒20, 21 and 22 (ON , VOL+, VOL-: for car radio
switch-on/off and volume control;
❒1 (AF-TA): traffic information.
When the volume is turned off during a telephone call,
the display will indicate “PHONE”.
During telephone calls, all functions, except for
AutoSTore and Search (operating mode selection) are
disabled.
The phone call volume will be turned off when a
PTY31 announcement or a traffic news bulletin is
broadcast; press button 15 (AF-TA) to interrupt the
bulletin.
When the car radio is ON and the engine is OFF (with
the key in STOP position), the car radio will not turn
off when a telephone call is received; it will
automatically turn off when the call is over.
001-050 ING 21-06-2007 15:48 Pagina 24

IGN TIME function (system power off)
(where provided)
This function enables to switch the sound system off
according to two different modes. To turn the
function on/off use button 9 (
˜) or 12 (÷).
The display will show the selected mode:
❒“00 MIN”: deactivation dependent on ignition key;
the sound system will turn off automatically as soon
as the ignition key is turned to STOP;
❒“20 MIN”: deactivation independent of ignition key;
the sound system will stay on for max. 20 minutes
after turning the ignition key to STOP.
IMPORTANT: Should the sound system turn off
automatically after turning the ignition key to STOP
(for both immediate or 20-minute delayed
deactivation), it will turn on automatically when
turning the ignition key to MAR. When the sound
system is turned off using the relevant button 21
(ON/OFF), it will stay off even when turning the key
to MAR.TAPES PLAYER (TAPE)
Activating the tape player
To turn the tape player on, even when the set is off,
insert the cassette in the slot (4) with the tape
rightwards.
If the cassette is already in, press button 6
(SRC-SC) to select the tape function. Playing will start
automatically.
Playing a cassette
After turning on the tape player, the tape begins playing
automatically and the display shows either “SIDE A” or
“SIDE B” depending on which side is playing. When the
cassette is inserted, the player starts playing side A of
the tape.
If the cassette is inserted, the display shows the
wording “CC-IN”, which remains on the display eve
when different operating modes are chosen (Radio or
CD Changer). The symbol goes off after ejection of
the tape.
41
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
TAPES PLAYER
001-050 ING 21-06-2007 15:48 Pagina 41

58
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
Entering the secret code
Turning the sound system on, if code is requested the
display will show“CODE” for about 2 seconds,
followed by four dashes “----”.
The secret code comprises four figures from 1 to 6,
each corresponding to one of the dashes.
To enter the first digit of the code, press the
corresponding key of the preset stations (from 1 to
6). Enter the other code digits in the same way.
If the four figures are not entered within 20 seconds,
the display shows the word “CODE” for 2 seconds
and then four dashes “----”. This is not to be
considered as an incorrect code entry.
After entering the fourth digit (within 20 seconds), the
radio starts working.If a wrong code is entered, the radio sounds a “beep”,
the display shows the word “CODE” for 2 seconds
and then four dashes “----” to warn the user that it is
necessary to enter the correct code.
Every time the user enters a wrong code, the waiting
time increases gradually (1 min, 2 min, 4 min, 8 min, 16
min, 30 min, 1h, 2h, 4h, 8h, 16h, 24h) until reaching a
maximum of 24 hours.
The waiting time will be shown on the display with the
word “WAIT”. When this goes off it is possible to
start the new code entry procedure.
CODE Card
This the document that certifies possession of the
radio. The Code Card contains the radio model, serial
number and secret code.
IMPORTANT Keep the Code Card carefully to be
able to give the related data to the competent
authorities in the event of theft.
051-098 ING 21-06-2007 15:49 Pagina 58

64
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
Selecting Radio/Compact Disc/CD Changer
Pressing briefly and repeatedly button
1 (SOURCE-SCAN) it is possible to select the
following functions in sequence:
❒TUNER (Radio);
❒CD (Compact Disc) (only if the Compact Disc is
inserted);
❒CHANGER (CD Changer) (only if the CD Changer
is connected).
After each change of the listening source, the display
shows the function selected: TUNER, CD or
CHANGER for about 2.5 seconds. The set will then
start playing. FUNCTIONS AND ADJUSTMENTS
Switching on
The set is switched on pressing the button/knob 18
(VOLUME ON/OFF).
If the radio is turned on with the ignition key at STOP,
it will turn off automatically after about 20 minutes. It
is however possible to turn the radio on again for
other 20 minutes by pressing the button/knob 18
(VOLUME ON/OFF).
The radio will keep the same previous settings, except
for the volume level which, if set to over 20, will
anyway be brought to 20.
Turning the radio off
Keep button/knob 18 (VOLUME ON/OFF) pressed.
051-098 ING 21-06-2007 15:49 Pagina 64

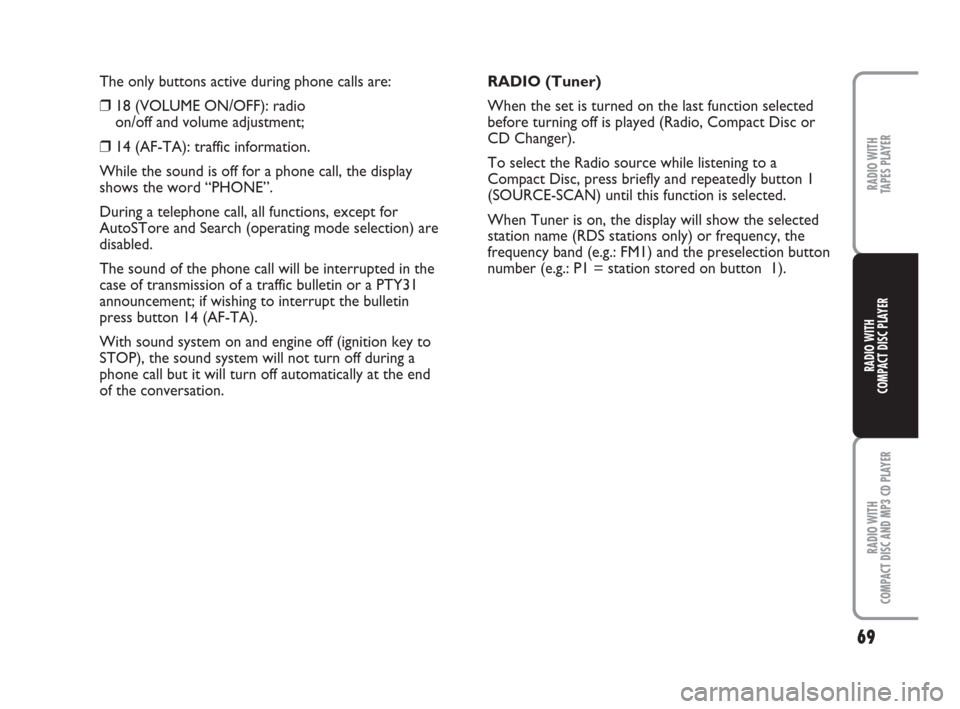

69
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
The only buttons active during phone calls are:
❒18 (VOLUME ON/OFF): radio
on/off and volume adjustment;
❒14 (AF-TA): traffic information.
While the sound is off for a phone call, the display
shows the word “PHONE”.
During a telephone call, all functions, except for
AutoSTore and Search (operating mode selection) are
disabled.
The sound of the phone call will be interrupted in the
case of transmission of a traffic bulletin or a PTY31
announcement; if wishing to interrupt the bulletin
press button 14 (AF-TA).
With sound system on and engine off (ignition key to
STOP), the sound system will not turn off during a
phone call but it will turn off automatically at the end
of the conversation.RADIO (Tuner)
When the set is turned on the last function selected
before turning off is played (Radio, Compact Disc or
CD Changer).
To select the Radio source while listening to a
Compact Disc, press briefly and repeatedly button 1
(SOURCE-SCAN) until this function is selected.
When Tuner is on, the display will show the selected
station name (RDS stations only) or frequency, the
frequency band (e.g.: FM1) and the preselection button
number (e.g.: P1 = station stored on button 1).
051-098 ING 21-06-2007 15:49 Pagina 69

87
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
IGNITION TIMER function (switching on/off
mode) (where provided)
This function allows you to set the radio switch-off
mode between two different type of behaviour. To
actuate the function, use button 5 (
÷) or (˜).
The display will indicate the selected mode:
❒“00 MIN”: switch-off depends on the ignition key;
the radio will automatically turn off when the key is
brought to the STOP position;
❒“20 MIN”: switch-off does not depend on the
ignition key; the radio remains ON for a maximum
time of 20 minutes after positioning the key to the
STOP position.
IMPORTANT If the radio turns off automatically after
positioning the key to STOP (for immediate switch-off
or delayed switch-off after 20 minutes), it will turn on
automatically by turning the key to MAR. On the
contrary, if the radio is turned off by means of button
18 (ON/OFF VOLUME), it will remain OFF if the key
is turned to MAR position.COMPACT DISC PLAYER
Selecting the Compact Disc player
To turn on the Compact Disc player integrated in the
set, proceed as follows:
❒insert a CD (if the set is off, the CD player will turn
on automatically): the first track will be played;
or
❒if a CD is already inserted, turn the set on and press
briefly and repeatedly button 1 (SOURCE-SCAN) to
select “CD”: the last heard track will be played.
With CD inserted, the display shows “CD” and “CD”
operating mode will automatically be selected.
For optimal playing use only original CDs. When using
R/RW CDs, use top quality CDs mastered at the as
low as possible speed.
051-098 ING 21-06-2007 15:49 Pagina 87
