ABS failure fig. 88
If warning light >lights up on the instru-
ment panel, together with the message on
the reconfigurable multifunction display
(where provided), see section “Warning
lights and messages”.
In this case the braking system will still be
effective, although without the anti-lock
device. Drive carefully to the nearest Fiat
Dealership to have the system checked.EBD failure fig. 89
It is indicated by the turning on of warn-
ing lights >and xon the instrument
panel, together with the message on the
reconfigurable multifunction display
(where provided), see section “Warning
lights and messages”.
In this case with sharp braking the rear
wheels might lock too early, with the pos-
sibility of skidding . Drive extremely care-
fully to the nearest Fiat Dealership to have
the system checked. ABS INTERVENTION
When the ABS cuts in, you will feel the
brake pedal pulsating slightly and the sys-
tem get noisier: it means that the speed
should be altered to fit the type of road sur-
face.
fig. 88F0G0158mfig. 89F0G0159mWhen the ABS cuts in, and
you feel the brake pedal pul-
sating, do not remove your foot, but
keep it pressed; in doing so you will
stop in the shortest amount of space
possible under the current road con-
ditions.
WARNING
If the ABS system cuts in, it
is a sign that the grip be-
tween the tyre and the road surface
has reached the limit: you must slow
down to match the speed to the road
grip available.
WARNING
The ABS exploits the road
hold available as much as
possible but cannot increase it. You
should always drive carefully on slip-
pery surfaces and avoid any unnec-
essary risks.
WARNING
060-080 Panda New GB 21-06-2007 13:48 Pagina 68

69
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
If only the warning light x
turns on together with the
message on the reconfigurable multi-
function display (where provided),
stop the car immediately and contact
the nearest Fiat Dealership. Fluid
leaks from the hydraulic system, in
fact, can compromise the braking sys-
tem, both traditional systems and sys-
tems with ABS.
WARNINGESP SYSTEM (Electronic
Stability Program)
(where provided)
GENERAL INFORMATION
The ESP system is an electronic system
controlling the car stability in the event of
tyre grip loss.
The ESP system is therefore particularly
useful when grip conditions of the road sur-
faces changes.
In addition to the ESP system, ASR system
(antislip regulation system) and HILL
HOLDER, also the MSR system (adjusting
the engine braking torque) and the HBA
system (improving the braking force dur-
ing emergency braking) are provided.
ESP INTERVENTION
It is signalled by the blinking of the warn-
ing lightáon the instrument panel, to in-
form the driver that the car is in critical
stability and grip conditions.ESP system activation
The ESP system is automatically activat-
ed when the car is started and cannot be
de-activated.
Failure indications
In the event of failure, the ESP system is
automatically disconnected, the warning
light
ácomes on with fixed light on the
instrument panel, together with the mes-
sage on the reconfigurable multifunction
display (where provided) and with the but-
ton led ASR OFF (see section “Warning
lights and messages”). In this case contact
a Fiat Dealership as soon as possible.
Performance of the ESP sys-
tem, in terms of active safe-
ty should not induce the driver to take
pointless and unnecessary risks. The
style of driving must in any case al-
ways be adapted to the conditions of
the road surface, visibility an traffic.
Road safety is always the driver’s re-
sponsibility.
WARNING
060-080 Panda New GB 21-06-2007 13:48 Pagina 69

70
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
FAILURE INDICATIONS
System failure is indicated by the turning
on of warning light *on the instrument
panel, together with the message on the
reconfigurable multifunction display
(where provided), see section “Warning
lights and messages”.
IMPORTANT The Hill Holder system is
not a parking brake therefore, never leave
the car without having engaged the hand-
brake, turned the engine off and engaged
the first speed.ASR SYSTEM
(Antislip Regulation)
The ASR function controls car drive and
cuts in automatically every time one or
both driving wheels slip.
In slipping conditions, two different con-
trol systems are activated:
❒if slipping involves both driving wheels,
the ASR function intervenes reducing
the power transmitted by the engine;
❒ if the slipping involves only one driving
wheel, the ASR system cuts in auto-
matically braking the wheel that is slip-
ping.
The action of the ASR is particularly help-
ful in the following circumstances:
❒ slipping of the inner wheel due to the
effect of dynamic load changes or ex-
cessive acceleration;
❒ too much power transmitted to the
wheels also in relation to the conditions
of the road surface;
❒ acceleration on slippery, snowy or
frozen surfaces;
❒ in the case of loss of grip on a wet sur-
face (aquaplaning). HILL HOLDER SYSTEM
(where provided)
This system is an integral part of the ESP
system and it is provided to facilitate start-
ing on slopes. It will activate automatical-
ly with the following conditions:
❒Uphill: car at a standstill on a road with
a gradient higher than 2%, engine run-
ning, clutch and brake pedal pressed,
gearbox to neutral or engaged gear oth-
er than reverse;
❒Downhill: car at a standstill on a road
with a gradient higher than 2%, engine
running, clutch and brake pedal pressed
and reverse gear engaged.
At pickup the ESP system control unit will
keep brake force on wheels until reaching
the torque suitable for starting, or in any
case for max. 2 seconds in order to pass
easily from the brake pedal to the accel-
erator pedal.
After two seconds without starting, the
system will deactivate automatically by re-
leasing gradually the brake force. At re-
leasing, the typical brake disengagement
noise indicating that the car is going to
move will be heard.
During the use of the space-
saver spare wheel, the ESP
system carries on working. However,
you must remind that the space-saver
spare wheel has dimensions smaller
than the standard tyre and therefore
its grip is reduced as to the other car
tyres.
WARNING
For correct operation of the
ESP system, the tyres must
absolutely be of the same brand and
type on all wheels, in perfect condi-
tions and, above all, of type, brand
and size specified.
WARNING
060-080 Panda New GB 21-06-2007 13:48 Pagina 70

71
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

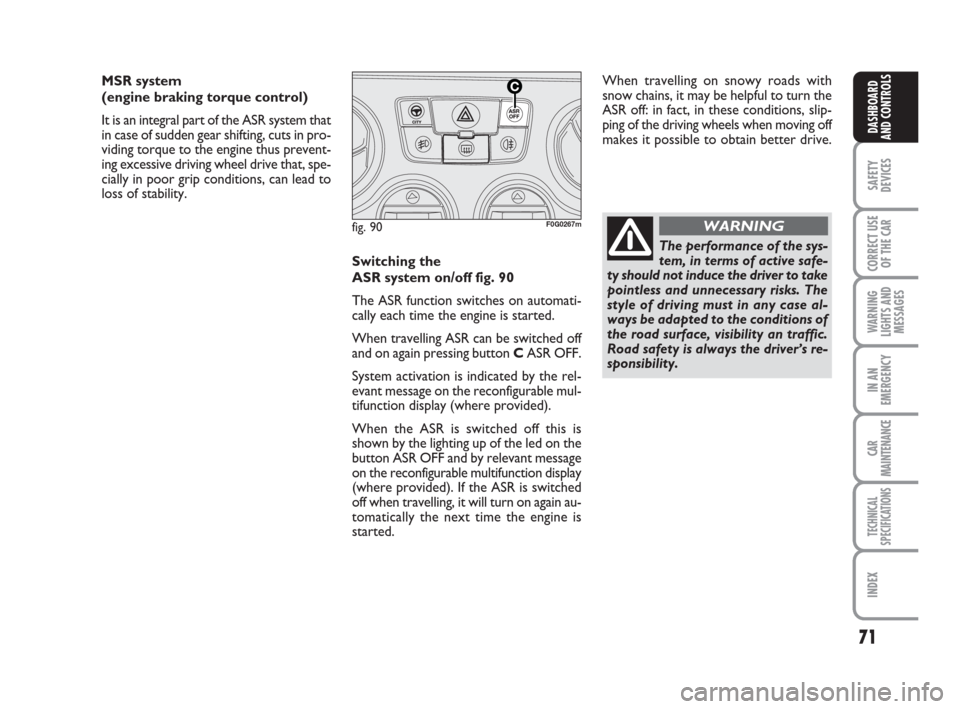

Switching the
ASR system on/off fig. 90
The ASR function switches on automati-
cally each time the engine is started.
When travelling ASR can be switched off
and on again pressing button CASR OFF.
System activation is indicated by the rel-
evant message on the reconfigurable mul-
tifunction display (where provided).
When the ASR is switched off this is
shown by the lighting up of the led on the
button ASR OFF and by relevant message
on the reconfigurable multifunction display
(where provided). If the ASR is switched
off when travelling, it will turn on again au-
tomatically the next time the engine is
started.When travelling on snowy roads with
snow chains, it may be helpful to turn the
ASR off: in fact, in these conditions, slip-
ping of the driving wheels when moving off
makes it possible to obtain better drive. MSR system
(engine braking torque control)
It is an integral part of the ASR system that
in case of sudden gear shifting, cuts in pro-
viding torque to the engine thus prevent-
ing excessive driving wheel drive that, spe-
cially in poor grip conditions, can lead to
loss of stability.
fig. 90F0G0267m
The performance of the sys-
tem, in terms of active safe-
ty should not induce the driver to take
pointless and unnecessary risks. The
style of driving must in any case al-
ways be adapted to the conditions of
the road surface, visibility an traffic.
Road safety is always the driver’s re-
sponsibility.
WARNING
060-080 Panda New GB 21-06-2007 13:48 Pagina 71

72
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IMPORTANT After eliminating the in-
convenience, to check the system com-
pletely, Fiat Dealerships are obliged to run
a bench test and, if necessary, road tests
which may also call for a long journey.
“DUALDRIVE” ELECTRIC
POWER STEERING
SYSTEM
(where provided)
Certain versions feature a new electrical-
ly controlled power steering system called
“Dualdrive” working only with ignition key
at MARand engine running, that can be
customised by the driver according to the
driving conditions.
IMPORTANT When turning quickly the
ignition key, power steering full operation
is obtained after 1-2 seconds.
EOBD SYSTEM (petrol
versions)
The EOBD system (European On Board
Diagnosis) allows continuous diagnosis of
the components of the car correlated with
emissions. It also alerts the driver, by turn-
ing on the warning light
Ufig. 91on the
instrument panel together with relevant
message on the reconfigurable multifunc-
tion display (where provided), when these
conditions are no longer in peak condi-
tions (see section “Warning lights and
messages”).
The objective is:
❒to keep the system efficiency under
control;
❒warn when a fault causes emissions lev-
els to increase;
❒warn of the need to replace deterio-
rated components.
The system has a diagnostic connector
that can be interfaced with appropriate
tools, which makes it possible to read the
error codes stored in the control unit, to-
gether with a series of specific parameters
for engine operation and diagnosis.
This check can also be performed by traf-
fic controller agents.
fig. 91F0G0161m
If turning the ignition key to
MAR, the warning light Udoes not turn on or if, while
travelling it turns on glowing
steadily or flashing (together with the
message on the reconfigurable multi-
function display (where provided), con-
tact Fiat Dealership as soon as possi-
ble. Warning light
Uoperation can be
checked by means of special equip-
ment by traffic agents. Always comply
with the traffic regulations in force in
the country where you are travelling.
060-080 Panda New GB 21-06-2007 13:48 Pagina 72

73
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
FAILURE INDICATIONS fig. 94
Any failure is indicated by instrument pan-
el warning light
gcoming on together
with the message on the reconfigurable
multifunction display (where provided),
see section “Warning lights and mes-
sages”).
In the event of electric power steering sys-
tem failure, the car can be driven with me-
chanical steering.
IMPORTANT In some circumstances, fac-
tors independent from the electric pow-
er steering could cause the illumination of
the warning light
gon the instrument
panel. ACTIVATION/DEACTIVATION
CITY FUNCTION fig. 92 and 93
To connect/disconnect the CITY function,
press button A.
Connection of this function is signalled by
CITYwarning light coming on.
When the CITYfunction is on, the steer-
ing wheel effort is lighter and thus parking
operations are easier: therefore this func-
tion is particularly useful for driving in city
centres.
fig. 92F0G0145mfig. 93F0G0162mfig. 94F0G0163m
It is absolutely forbidden to
carry out whatever after-
market operation involving steering
system or steering column modifica-
tions (e.g.: installation of anti-theft
device) that could badly affect per-
formance and safety, cause the lapse
of warranty and also result in non-
compliance of the car with homolo-
gation requirements.
WARNING
060-080 Panda New GB 21-06-2007 13:48 Pagina 73

74
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
PARKING SENSORS
(where provided)
Parking sensors are located in the rear
bumper fig. 95and their function is to in-
form the driver, through an intermittent
buzzer, about the presence of obstacles
behind the car.
ACTIVATION
The sensors are automatically activated
when the reverse gear is engaged.
The sound produced by the acoustic alarm
becomes louder when the distance be-
tween the car and the obstacle decreases.
BUZZER WARNINGS
When the reverse gear is engaged an in-
termittent acoustic signal is automatically
activated (short beep indicating that sen-
sors are active).
The acoustic signal:
❒ becomes louder as the reduction of dis-
tance between the car and the obsta-
cle decreases;
❒ becomes continuous when the distance
between the car and the obstacle is less
that 30 cm and stops if the distance rais-
es;
❒is constant if the distance is unvaried.Direction distances
Central action radius 120 cm
Side action radius 60 cm
If several obstacles are detected, the con-
trol unit indicates the nearest one. We suggest to stop immediately the car,
turn off the engine for about 20 seconds
and then re-start the car. If the warning
light
gstays on together with the mes-
sage on the reconfigurable multifunction
display (where provided), contact Fiat
Dealership.
IMPORTANT The steering may become
slightly stiff following parking manoeuvres
including a great deal of steering. This is
normal and caused by a system to prevent
motor overheating. No servicing is re-
quired. The electric power steering sys-
tem will return to normal operation the
next time the car is used.
fig. 95F0G0692m
Always switch the engine off,
remove the key from the
starting device and actuate the steer-
ing lock before carrying out any main-
tenance operation, especially when
the wheels are raised from the
ground. In case this is not possible
(e.g. when the key must be in MAR
position or the engine running); re-
move the electric power steering
main fuse before carrying out any
maintenance operation.
WARNING
060-080 Panda New GB 21-06-2007 13:48 Pagina 74

75
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
GENERAL WARNINGS
❒When parking, take the utmost care to
obstacles that may be set above or un-
der the sensors.
❒Objects set close to the car rear part,
under certain circumstances are not de-
tected and could therefore cause dam-
ages to the car.
❒Indications sent by the sensors can be
altered by dirt, snow or ice deposited
on the sensors or by ultrasound sys-
tems (e.g.: truck pneumatic brakes or
pneumatic hammers) set nearby the
car. FAILURE INDICATIONS
In the event of sensor failures, the driver
is warned when engaging reverse by a 3-
second beep.
OPERATION WITH TRAILER
Parking sensor operation is deactivated
automatically when the trailer electric ca-
ble plug is fitted into the car tow hook
socket.
Sensors are reactivated automatically
when removing the trailer cable plug.
For proper operation, the
parking sensors shall always
be clean from mud, dirt, snow
or ice. When cleaning the sen-
sors, take the utmost care to prevent
their damaging; do not use therefore
dry or rough clothes. Sensors shall be
washed with clean water and car de-
tergent, if required. In washing stations,
clean sensors quickly keeping the
vapour jet/high pressure washing noz-
zles at 10 cm at least from the sensors.
Parking manoeuvres howev-
er are always under the dri-
ver’s responsibility that shall always
check the absence of people (spe-
cially children) or animals in the ma-
noeuvre space. This system is just a
help for the driver but she/he shall
never reduce attention during dan-
gerous manoeuvres even if performed
at low speed.
WARNING
060-080 Panda New GB 21-06-2007 13:48 Pagina 75
