2007 FIAT PANDA Control

183
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
disc (self-ventilating for 1.3 Multijet engine)
drum, self-centering shoes with control cylinder for each wheel
controlled by hand lever, it works on rear brakes
SUSPENSIONS
1.1 - 1.2 - 1.3 Multijet
Front
Rear
STEERING
1.1 - 1.2 - 1.3 Multijet
Type
Minimum steering
cycle mMc Pherson independent wheels, mechanical cross member,
shock absorbers and helical springs; stabiliser bar for versions with electric
power steering.
twisting axle with interconnected wheels; twisting axle and
two tubular arms with shock absorbers and helical springs.
rack and pinion with electric power steering (where provided)
9.1
BRAKES
1.1 - 1.2 - 1.3 Multijet
Service brakes:
– front
– rear
Parking brake
IMPORTANT Water, ice and antifreeze salt on roads may deposit on the brake discs thus reducing braking efficiency at first braking.
177-196 Panda New GB 21-06-2007 13:53 Pagina 183

UNDERSTANDING TYRE
MARKING fig. 5
Example: 155/80 R 13 79T
155 = Nominal width (S, distance be-
tween sidewalls in mm).
80 = Percentage height/width ratio (H/
S).
R = Radial tyre.
13 = Rim diameter in inches (Ø).
79 = Load rating.
T = Maximum speed rating.
WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless tyres
with radial carcass. The homologated tyres
are listed in the Log book.
IMPORTANT In the event of discrepan-
cies between the information provided on
this “Owner handbook” and the “Log
book”, consider the specifications shown
in the log book only.
Attaining to the prescribed size, to ensure
safety of the car in movement, it must be
fitted with tyres of the same make and
type on all wheels.
IMPORTANT Do not use inner tubes
with Tubeless tyres.
184
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
fig. 5F0G0111m
SPACE-SAVER SPARE WHEEL
Pressed steel rim. Tubeless tyre.
WHEEL GEOMETRY
Front wheel toe-in measured from rim to
rim: 0 ± 1 mm
The values refer to the car in running or-
der.
177-196 Panda New GB 21-06-2007 13:53 Pagina 184

Load rating
70= 335 kg 81= 462 kg
71= 345 kg 82= 475 kg
72= 355 kg 83= 487 kg
73= 365 kg 84= 500 kg
74= 375 kg 85= 515 kg
75= 387 kg 86= 530 kg
76= 400 kg 87= 545 kg
77= 412 kg 88= 560 kg
78= 425 kg 89= 580 kg
79= 437 kg 90= 600 kg
80= 450 kg 91= 615 kg Maximum speed rating
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
Maximum speed rating
for snow tyres
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S= up to 210 km/h.UNDERSTANDING RIM
MARKING fig. 5
Example: 5,00 B x 13 H2
5,00 = rim width in inches 1.
B = rim drop centre outline (side pro-
jection where the tyre bead rests)
2.
13 = rim nominal diameter in inches
(corresponds to diameter of the
tyre to be mounted) 3= Ø.
H2 = “hump” shape and number (relief
on the circumference holding the
Tubeless tyre bead on the rim).
185
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
177-196 Panda New GB 21-06-2007 13:53 Pagina 185

186
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
5,00 B x 13 H2
(steel)
5J x 14 H2
(alloy)4,50 B 13 HS135/80 B13 82M
135/80 R13 82P 155/80 R 13 79T
165/65 R 14 79T 155/80 R 13 79T M+S
165/65 R 14 79T M+S
2.0
2.0
2.2
2.2
2.0
2.02.2
2.2
2.3
2.3
2.2
2.22.2
2.2
2.2
2.2
2.2
2.2 1.8
1.8
1.8
1.8
1.8
1.8 155/80 R 13 79T
165/65 R 14 79T
155/80 R 13 79T
165/65 R 14 79T
155/80 R 13 79T M+S
165/65 R 14 79T M+S2.8 165/65 R 14 79T
(only for
Dynamic versions)
2.8 COLD TYRE INFLATION PRESSURE (bar)
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm.
Recheck pressure value with cold tyres.
Versions Tyre Medium load Full load Space-saverspare
Front Rear Front Rear wheel
Petrol
Multijet
Snow tyres
Version Rim Standard Snow Optional Space-saverspare wheeltyre tyre tyre Rim Tyre
Actual
Active
Dynamic
Emotion
177-196 Panda New GB 21-06-2007 13:53 Pagina 186

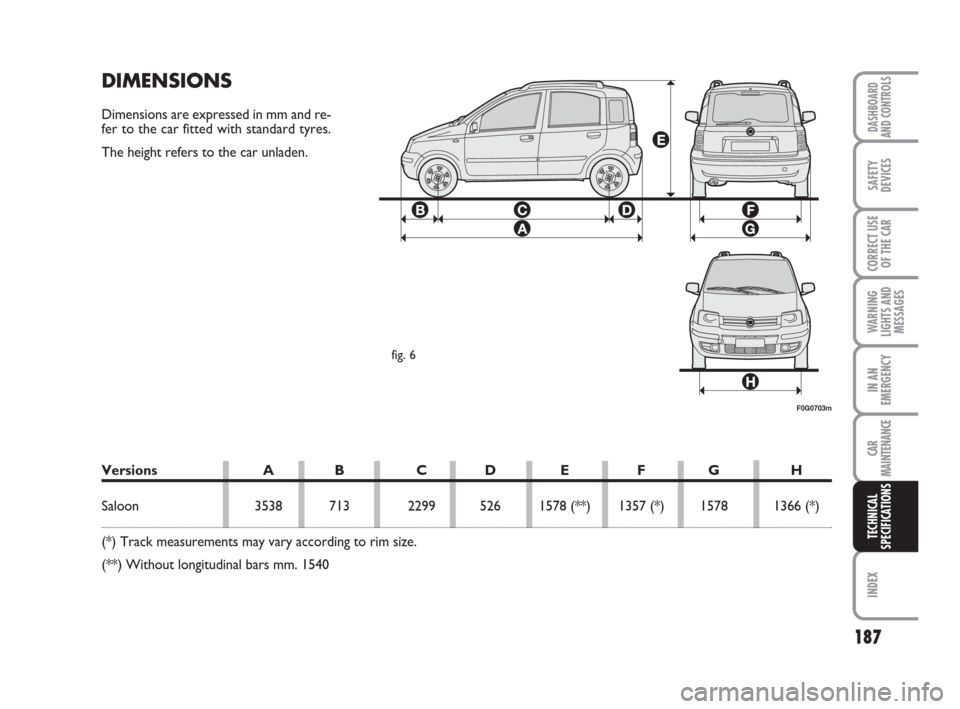

DIMENSIONS
Dimensions are expressed in mm and re-
fer to the car fitted with standard tyres.
The height refers to the car unladen.
187
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
F0G0703m
fig. 6
Versions A B C D E F G H
Saloon 3538 713 2299 526 1578 (**) 1357 (*) 1578 1366 (*)
(*) Track measurements may vary according to rim size.
(**) Without longitudinal bars mm. 1540
177-196 Panda New GB 21-06-2007 13:53 Pagina 187

188
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
BOOT VOLUME
Unladen boot volume (V.D.A. Standards) in dm
3
Single and double Rear slidingrear seat seat
Under rear parcel shelf with rear seat
in normal position
At waist edge with rear seat back rest folded
Max. to roof with rear seat back rest folded
Max. to roof with rear seat back rest folded
(with sunroof)
(*) With seat completely backward
(**) With seat completely forward206
490
860
815176 (*) / 235 (**)
416
786
741
PERFORMANCE
Top admitted speed after initial car use in km/h.
1.1
Actual
Active
1.2
Dynamic
Emotion
1.3 Multijet 70CV
Dynamic
Emotion
1.3 Multijet 75CV
Dynamic
Emotion150
150
155
155
160
160
165
165
177-196 Panda New GB 21-06-2007 13:53 Pagina 188

189
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
1.3 Multijet
935
445
750
660
1380
900
400
50
60 1.2
860
445
730
660
1305
800
400
50
60 1.1
840
415
730
640
1255
800
350
50
60
WEIGHTS
Weights (kg)
Weight empty (including fluids,
90% fuel in the tank and no optional)
Payload (*) including the driver:
Maximum admitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– trailer with brakes:
– trailer without brakes:
Maximum load on roof (***):
Maximum load on tow hitch
(trailer with brakes):
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload.
(**) Loads not be exceeded. The driver is responsible for arranging the loads in the boot and/or on the roof so that they
comply with these limits.
(***) Lineaccessori Fiat roof rack, max capacity: 50 kg.
177-196 Panda New GB 21-06-2007 13:53 Pagina 189

190
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
1.3 Multijet
35 (▲)
5 (▲)
4.6
2.5 (●)
2.8 (●)
1.65
0.55
0.40
1.8 1.2
35
5
4.6
2.5
2.8
1.65
0.55
0.40
1.8 1.1
35
5
4.6
3.1
3.5
1.65
0.55
0.40
1.8
CAPACITIES
Fuel tank: litres
including a reserve of: litres
Engine cooling system:
litres
Engine sump: litres
Engine sump and filter: litres
Gearbox/differential casing:
litres
Hydraulic brake circuit:
- with ABS kg
- without ABS kg
Windscreen and rear window
washer fluid reservoir: litres
(❑) For particularly hard climate conditions, we recommend use of a 60% Paraflu UP and 40% demineralized water mixture.
Specified fuels and
recommended products
Unleaded petrol with no less
than 95 R.O.N.
(▲) Diesel fuel for motor vehi-
cles (Specification EN590)
Mixture of distilled water and
PARAFLU UPat 50%
(❑)
SELENIA 20K
(●) SELENIA WR
TUTELA CAR ZC 75 SYNTH
TUTELA TOP 4
Mixture of water and
TUTELA PROFESSIONAL
SC 35
177-196 Panda New GB 21-06-2007 13:53 Pagina 190
