2007 FIAT PANDA Index

92
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
FITTING THE ISOFIX TYPE
SEAT
0 and 0+ group
For children of this weight group (babies
up to 13 kg), the child’s seat is facing back-
wards and the child restrained by the
child’s seat belts D-fig. 14.
As the child grows, passing to weight
group 1, remove the child’s seat from the
base and refit it facing forwards.For proper mounting proceed as follows:
❒check whether the release lever Bis at
rest position (inward);
❒find the presetting brackets A, then po-
sition the child restraint system with
the fastening devices Caligned with the
brackets;
❒ push the child restraint system until
hearing locking clicks;
❒check proper locking by moving the
child’s seat with force: the built-in safe-
ty mechanism actually inhibits improp-
er coupling with only one coupling
locked.
fig. 14F0GXXXXm
GROUP 1
For proper mounting proceed as follows:
❒check whether the release lever B-
fig. 15is at rest position (inward);
❒find the presetting brackets A, then po-
sition the child restraint system with
the fastening devices Caligned with the
brackets;
fig. 15F0G0052m
081-100 Panda New GB 21-06-2007 13:49 Pagina 92

93
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
❒ push the child restraint system until
hearing locking clicks;
❒check proper locking by moving the
child’s seat with force: the built-in safe-
ty mechanism actually inhibits improp-
er coupling with only one coupling
locked.
With this configuration, the child is se-
cured also by the car seat belts and by the
upper belts. To apply car seat belts to
child’s seat refer to the child’s seat hand-
book.
AIR BAGS
The car is fitted with front air bags (for
versions/markets where applicable) for the
driver and the passenger and front side
bags (side bag - window bag).
FRONT AIR BAGS
The front air bag (driver and passenger)
has been designed to protect the occu-
pants in the event of head-on crashes of
medium-high severity, by placing the cush-
ion between the occupant and the steer-
ing wheel or dashboard.
Front air bags are designed to protect
car’s occupants in front crashes and there-
fore non-activation in other types of col-
lisions (side collisions, rear shunts, roll-
overs, etc.) is not a system malfunction.
In case of front crash, an electronic con-
trol unit, when required, triggers the in-
flation of the cushion according to the
severity of the collision.The cushion immediately inflates, placing
itself as a protection between the body
of the front occupants and the structure
that could cause injuries. Immediately af-
ter, the cushion deflates.
The front air bag (driver and passenger) is
not a replacement of but complementary
to the use of belts, which should always
be worn, as specified by law in Europe and
most non-European countries.
In case of crash, a person not wearing the
seat belt moves forward and may come in-
to contact with the cushion while it is still
inflating. Under this circumstance the pro-
tection offered by the air bag is reduced.
081-100 Panda New GB 21-06-2007 13:49 Pagina 93

94
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
The driver’s and passenger’s front Air bags
have been designed and calibrated to im-
prove the protection of a person wear-
ing seat belts.
At their maximum inflation, their volume
fills most of the space between the dash-
board and the passenger.
In minor side crashes (for which the re-
straining action of the seat belts is suffi-
cient), the air bags are not deployed. Al-
so in this case it is of vital importance to
wear the seat belts since in case of side
crash they guarantee proper positioning
of the occupant. DRIVER’S FRONT AIR BAG fig. 16
It consists of an instant-inflating cushion
contained in a special recess in the cen-
tre of the steering wheel. Front air bag may not be activated in the
following situations:
❒in collisions against highly deformable
objects not affecting the car front sur-
face (e.g. bumper collision against guard
rail);
❒car wedging under other vehicles or
protective barriers (for example under
a truck or guard rail);
as it offers no additional protection com-
pared with the seat belts, consequently,
it would be pointless. Therefore, failure to
come into action in the above circum-
stances does not mean that the system is
not working properly.
fig. 16
CHF
E
F0G0693m
Do not apply stickers or oth-
er objects to the steering
wheel or to the air bag cover on the
passenger’s side or on the side roof
lining. Never put objects (e.g. mobile
phones) on the dashboard on pas-
senger side since they could interfere
with proper passenger air bag infla-
tion and also cause serious injury.
WARNING
081-100 Panda New GB 21-06-2007 13:49 Pagina 94

95
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
MANUALLY DEACTIVATING
THE PASSENGER’S FRONT
AIR BAG
Should it be absolutely necessary to car-
ry a child on the front seat, the passenger’s
air bag on the car can be deactivated.
Deactivation/reactivation takes place with
ignition key at STOPand operating it in
the special key switch in the glovebox.
The key can be fitted and extracted in
both positions.
IMPORTANT Operate the switch only
when the engine is not running and the ig-
nition key is removed. PASSENGER’S FRONT AIR BAG
fig. 17
It consists of an instant-inflating cushion
contained in a special recess in the dash-
board; its volume is bigger than the dri-
ver’s one.
fig. 17F0G0057m
SERIOUS DANGER: Never
place cradle child’s seats on
the front passenger seat of
cars fitted with passenger
air bag. Air bag activation
could cause serious injuries,
even mortal. In the case of need, al-
ways deactivate the passenger’s air
bag when a child’s seat is placed on
the front seat. The front passenger’s
seat shall be adjusted in the most
backward position to prevent any
contact between child’s seat and
dashboard. Even if not compulsory by
law, you are recommended to reacti-
vate the air bag immediately as soon
as child transport is no longer neces-
sary.
WARNING
081-100 Panda New GB 21-06-2007 13:49 Pagina 95

96
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
SIDE AIR BAGS
(Side bag - Window
bag)
SIDE BAG fig. 19
It consists of an instant inflation cushion
housed in the back rest of the front seat
and has the task to increase protection
of the occupants’ chest in the event of a
side crash of medium-high severity.
The key-operated switch has two posi-
tions fig. 18:
❒passenger’s front air bag activated (ON
position P): warning light Fon in-
strument cluster off; it is absolutely pro-
hibited to carry a child on the front
seat.
❒passenger’s front air bag deactivated
(OFFposition F): warning light F
on instrument cluster on; it is possible
to carry a child protected by special re-
straint system on the front seat.
The warning light Fon the cluster stays
on permanently until the passenger’s air
bag is reactivated.
Deactivation of the passenger’s front air
bag does not inhibit operation of the side
air bag.
fig. 19F0G0058mfig. 18F0G0170m
081-100 Panda New GB 21-06-2007 13:49 Pagina 96

97
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
If you are having the car scrapped, have
the air bag system deactivated at a Fiat
Dealership first. If the car changes own-
ership, the new owner must be informed
of the method of use of air bags and the
above warnings and also be given this
“Owner Handbook”.
IMPORTANT The triggering of preten-
sioners, front air bags and side bags is de-
cided in a differentiated manner by the
electronic control unit, depending on the
type of crash. The failure to deploy one or
more of them does not mean that the sys-
tem is not working properly. IMPORTANT When the airbag inflates it
emits a small amount of dusts. These dusts
are harmless and is not the beginning of
a fire; then the unfold cushion surface and
the car interiors can be covered by a dusty
remains: this dust can irritate skin and
eyes. In case of contact, wash yourself us-
ing neutral soap and water. Expiration
dates of pyrotechnic charge and coil con-
tact are indicated on the label inside the
glovebox. As these dates approach, con-
tact Fiat Dealership to have them re-
placed.
IMPORTANT Should an accident occur in
which any of the safety devices is activat-
ed, take the car to a Fiat Dealership to
have the devices activated replaced and to
have the system checked.
All control, repair and replacement op-
erations concerning the Air bags must on-
ly be carried out c/o Fiat Dealership.
Never rest head, arms and
elbows on the door, on the
windows and in the windowbag area
to prevent possible injuries during in-
flation phase.
WARNING
Never put head, arms and el-
bows out of window.
WARNING
WINDOW BAG fig. 20
They are “curtain” cushions located be-
hind the side coverings of the roof and
covered by proper finishings, studied for
the head protection to offer the best pro-
tection to the front and rear occupants
in the event of side crash, thanks to the
wide cushion inflation surface.
IMPORTANT In the event of side crash,
you can obtain the best protection by the
system keeping a correct position on the
seat, allowing thus a correct window bag
unfolding.
IMPORTANT The front air bags and/or
side bags may be deployed if the car is sub-
ject to heavy knocks or accidents involv-
ing the underbody area, such as for ex-
ample violent shocks, against steps, kerbs
or low obstacles, falling of the car in big
holes or sags in the road.
fig. 20F0G0059m
081-100 Panda New GB 21-06-2007 13:49 Pagina 97

98
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES

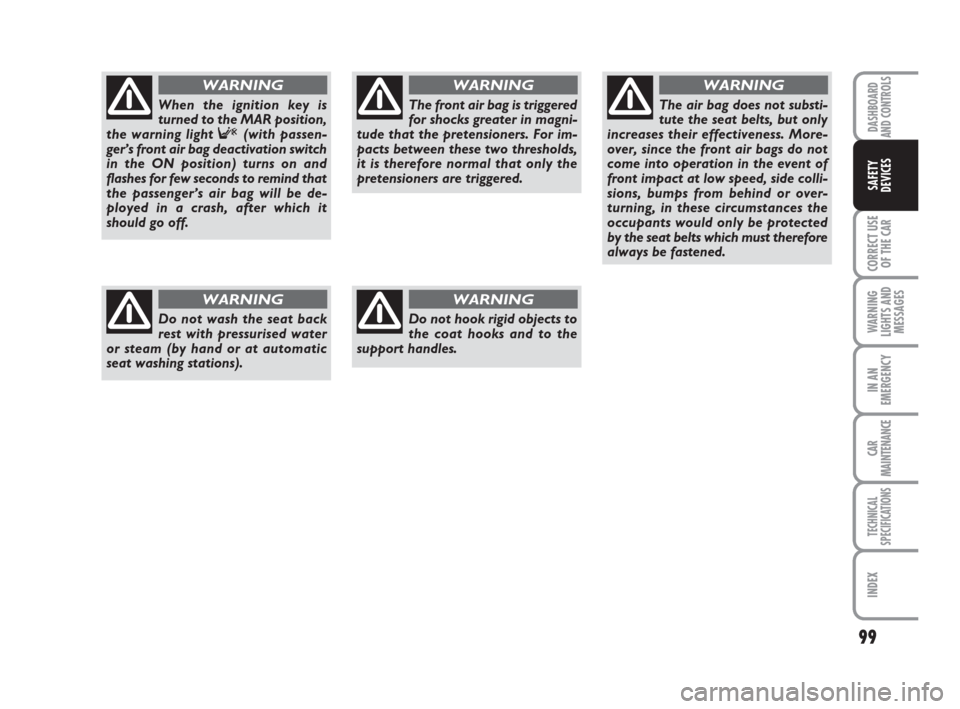

GENERAL WARNINGS
If when turning the key to
MAR the warning light ¬
does not turn on or if it stays on when
travelling there could be a failure in
safety systems; in this event air bags
or pretensioners could not trigger in
case of impact or, in a minor num-
ber of cases, they could trigger acci-
dentally. Contact Fiat Dealership im-
mediately to have the system
checked.
WARNING
Do not cover the backrest of
front seats with trims or cov-
ers that are not suitable to be used
with side bags.
WARNING
Never travel with objects on
your lap, in front of your
chest or with a pipe, pencil, etc. be-
tween your lips; injury may result in
the event of the air bag being trig-
gered.
WARNING
Always keep your hands on
the steering wheel rim when
driving, so that if the air bag is trig-
gered, it can inflate without meeting
any obstacles which could cause seri-
ous harm to you. Do not drive with
the body bent forwards, keep the seat
back rest in the erect position and
lean your back well against it.
WARNING
Remember that with the key
engaged and at MAR, even if
the engine is not running, the air bags
may be triggered on a stationary car
if it is bumped by another moving car.
Therefore, never seat children on the
front seat even when the car is sta-
tionary. On the other hand remem-
ber that if the key is at STOP, no safe-
ty system (air bags or pretensioners)
is triggered in the event of an impact;
in this case, failure to come into ac-
tion cannot be considered as a sign
that the system is not working prop-
erly.
WARNING
If the car has been stolen or
an attempt to steal it has
been made, if it has been subjected to
vandals or floods, have the air bag
system checked by Fiat Dealership.
WARNING
081-100 Panda New GB 21-06-2007 13:49 Pagina 98

99
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
Do not wash the seat back
rest with pressurised water
or steam (by hand or at automatic
seat washing stations).
WARNING
The front air bag is triggered
for shocks greater in magni-
tude that the pretensioners. For im-
pacts between these two thresholds,
it is therefore normal that only the
pretensioners are triggered.
WARNING
Do not hook rigid objects to
the coat hooks and to the
support handles.
WARNING
The air bag does not substi-
tute the seat belts, but only
increases their effectiveness. More-
over, since the front air bags do not
come into operation in the event of
front impact at low speed, side colli-
sions, bumps from behind or over-
turning, in these circumstances the
occupants would only be protected
by the seat belts which must therefore
always be fastened.
WARNING
When the ignition key is
turned to the MAR position,
the warning light F(with passen-
ger’s front air bag deactivation switch
in the ON position) turns on and
flashes for few seconds to remind that
the passenger’s air bag will be de-
ployed in a crash, after which it
should go off.
WARNING
081-100 Panda New GB 21-06-2007 13:49 Pagina 99
