Page 18 of 32
16
Message on reconfigurable
multifunction display Warning light
on dial

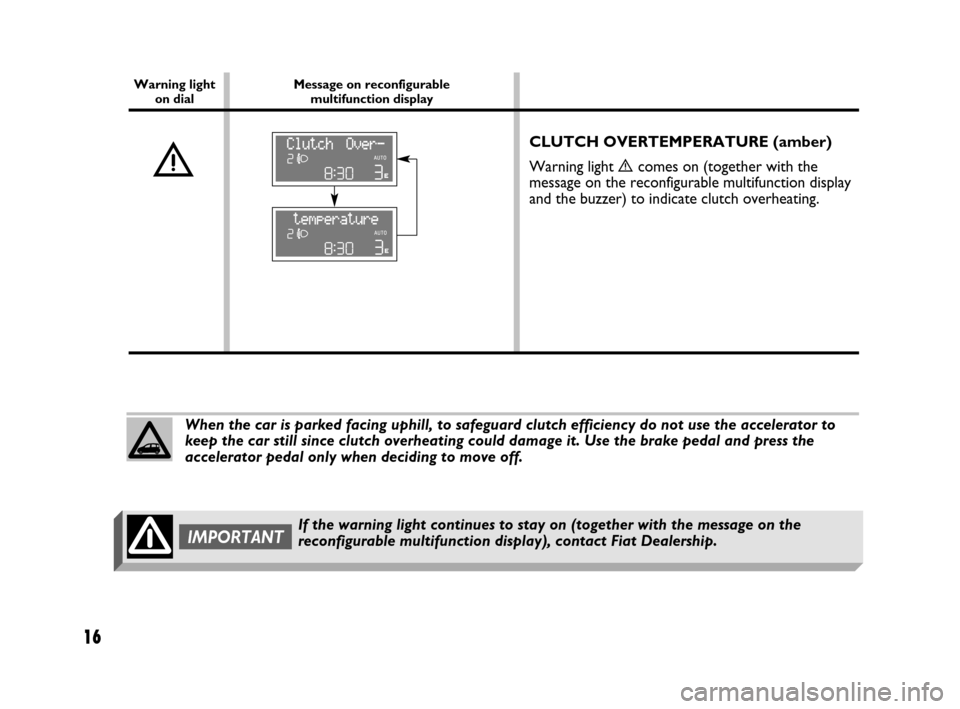

CLUTCH OVERTEMPERATURE (amber)
Warning light
ècomes on (together with the
message on the reconfigurable multifunction display
and the buzzer) to indicate clutch overheating.è
When the car is parked facing uphill, to safeguard clutch efficiency do not use the accelerator to
keep the car still since clutch overheating could damage it. Use the brake pedal and press the
accelerator pedal only when deciding to move off.
If the warning light continues to stay on (together with the message on the
reconfigurable multifunction display), contact Fiat Dealership.IMPORTANT
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 16
Page 19 of 32
17
PUSH BRAKE PEDAL -
DELAYED STARTUP (amber)
Warning light
ècomes on (together with the
messages displayed in turns and in sequence on the
reconfigurable multifunction display and the buzzer)
to indicate brake pedal failure when trying to start
the engine.
IMPORTANT Messages are displayed only if at
startup a gear other than neutral (N) is engaged.
Warning light
on dial Message on reconfigurable
multifunction display
è
If the warning light continues to stay on (together with the message on the
reconfigurable multifunction display), contact Fiat Dealership.IMPORTANT
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 17 2
Page 20 of 32
18
GEAR NOT AVAILABLE (amber)
Warning light
ècomes on (together with the
message on the reconfigurable multifunction display
and the buzzer) in the following cases:
❒system failure inhibiting gear shifting;
or
❒system failure allowing to engage only first gear
(1), second gear (2) or reverse (R).
Message on reconfigurable
multifunction display Warning light
on dial
è
If the warning light continues to stay on (together with the message on the
reconfigurable multifunction display), contact Fiat Dealership.IMPORTANT
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 18
Page 21 of 32
19
OPERATION NOT ALLOWED (amber)
Warning light
ècomes on (together with the
message on the reconfigurable multifunction display
and the buzzer) when the system refuses the
request to change gear since certain indispensable
conditions are lacking.è
Warning light
on dial Message on reconfigurable
multifunction display
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 19
Page 22 of 32
20
PUSH BRAKE PEDAL -
REPEAT OPERATION (amber)
Warning light
ècomes on (together with the
message on the reconfigurable multifunction display
and in certain cases with the buzzer) when trying to
engage first gear, second gear or reverse, with car
stopped and engine on, without pressing the brake
pedal.è
Message on reconfigurable
multifunction display Warning light
on dial
If the warning light continues to stay on (together with the message on the
reconfigurable multifunction display), contact Fiat Dealership.IMPORTANT
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 20 2
Page 23 of 32
21
Message on reconfigurable
multifunction displayWarning light
on dial
SET TO NEUTRAL (N) (amber)
Warning light
ècomes on (together with the
message on the reconfigurable multifunction display
and the buzzer) to warn the driver that neutral shall
be engaged.
Engage neutral (N), displayed message and warning
light shall go offè
If the warning light continues to stay on (together with the message on the
reconfigurable multifunction display), contact Fiat Dealership.IMPORTANT
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 21
