Page 25 of 32
SERVICE SCHEDULE
Check Dualogic gearbox oil level every 20,000 km.
CHECKING OIL LEVEL
DUALOGIC GEARBOX HYDRAULIC
SYSTEM OIL
To have the oil level checked contact Fiat Dealership
only.
23
AIR CLEANER
1.28VVERSIONS
Refer to Owner Handbook to replace the air cleaner.
Used gearbox oil contains dangerous substances for the environment. For changing the oil we advise
contacting Fiat Dealerships who are equipped for disposing of used oil respecting nature and the
law.
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 23
Page 27 of 32
25

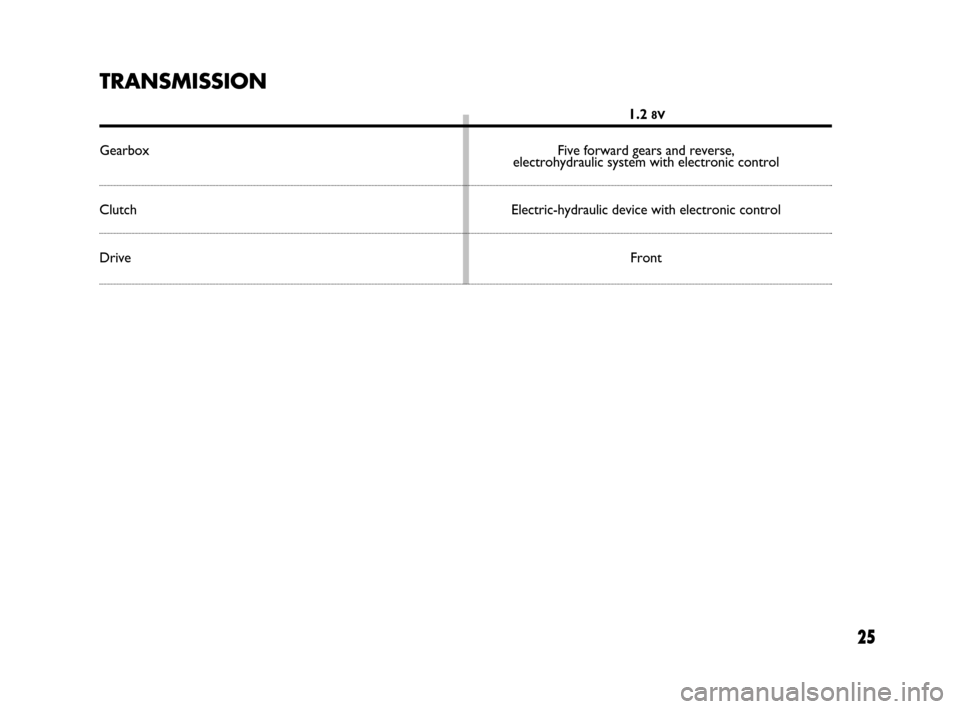

TRANSMISSION
1.2 8V
Gearbox Five forward gears and reverse,
electrohydraulic system with electronic control
Clutch Electric-hydraulic device with electronic control
DriveFront
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 25
Page 29 of 32
27
CAPACITIES
Dualogic gearbox hydraulic system
Specified fuels
Recommended products
TUTELA CAR CS SPEED -
Special oil with
“ATF DEXRON III” additive 1.28V
kg
0.59 litres
0.70
CO2emissions according to 1999/100/EC Directive (gr x 100 km)
CO
2emission value referred to combined consumption is 127 (gr x 100 km).
CO2EMISSIONS
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 27
