13
FIAT PANDA 4 x 4
20 40 60 80 100 120 140 160 180
●● ●
●● ●●●●●●●
●●
●
●●●●
●●●●
●●
●● ●●●●●●●
●● ●
●● ●●●●●●●
●●●●
●● ●
Thousands of km
Change air cleaner cartridge
(every 30,000 km/for 1.3 Multijet engine)
Top up fluids
(engine coolant, brakes, windscreen, battery, etc.)
Check timing belt
(excluding 1.3 Multijet engines)
Replace timing belt (*)
(excluding 1.3 Multijet engine)
Change spark plugs (petrol versions)
Check engine control system operation
(through diagnosis socket)
Check mechanical transmission oil level
Change engine oil and oil filter
(every 30,000 km/for 1.3 Multijet engine)
Change brake fluid (or every 2 years)
Change pollen filter (or every year)
Check exhaust emissions/smoke (1.3 Multijet engine)
Replace fuel filter cartridge (Green-filter)
(1.3 Multijet engine)
(*) Or every 3 years for particularly demanding use:
– cold/hot climates,
– driving in the city, idling for a long time,
– dusty roads or roads covered with sand and/or salt.
Or every 5 years, regardless of the km covered and the car conditions of use.
603.83.460 PANDA 4X4 GB 26-06-2007 11:19 Pagina 13
22
FIAT PANDA 4 x 4

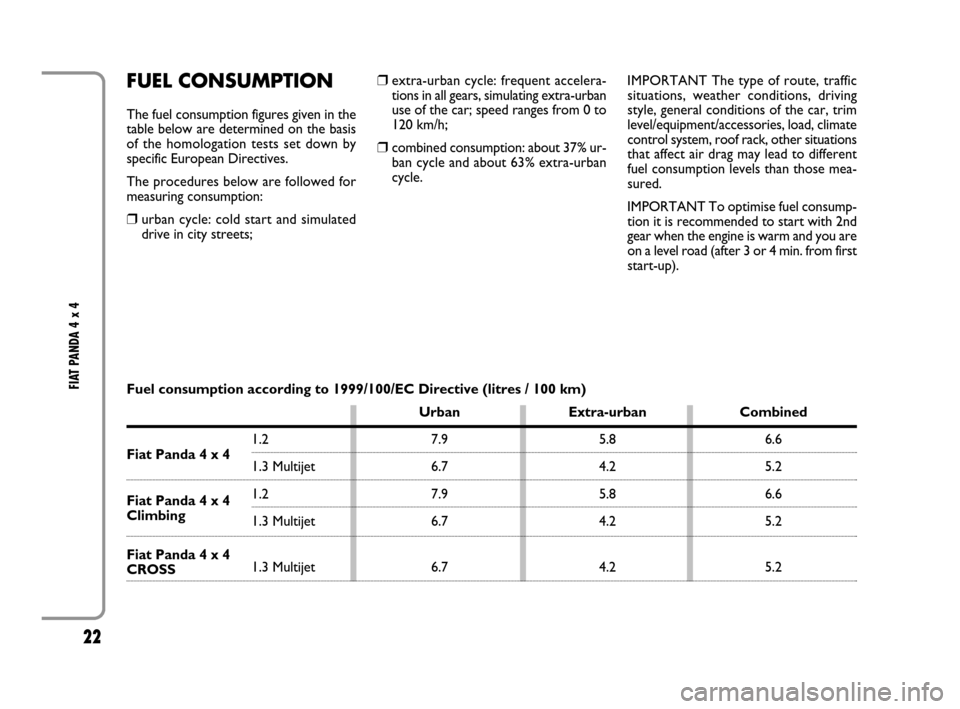

FUEL CONSUMPTION
The fuel consumption figures given in the
table below are determined on the basis
of the homologation tests set down by
specific European Directives.
The procedures below are followed for
measuring consumption:
❒urban cycle: cold start and simulated
drive in city streets;
❒extra-urban cycle: frequent accelera-
tions in all gears, simulating extra-urban
use of the car; speed ranges from 0 to
120 km/h;
❒combined consumption: about 37% ur-
ban cycle and about 63% extra-urban
cycle.IMPORTANT The type of route, traffic
situations, weather conditions, driving
style, general conditions of the car, trim
level/equipment/accessories, load, climate
control system, roof rack, other situations
that affect air drag may lead to different
fuel consumption levels than those mea-
sured.
IMPORTANT To optimise fuel consump-
tion it is recommended to start with 2nd
gear when the engine is warm and you are
on a level road (after 3 or 4 min. from first
start-up).
Fiat Panda 4 x 4
Fiat Panda 4 x 4
Climbing
Fiat Panda 4 x 4
CROSS
Fuel consumption according to 1999/100/EC Directive (litres / 100 km)
Urban Extra-urban Combined
1.2 7.9 5.8 6.6
1.3 Multijet 6.7 4.2 5.2
1.2 7.9 5.8 6.6
1.3 Multijet 6.7 4.2 5.2
1.3 Multijet 6.7 4.2 5.2
603.83.460 PANDA 4X4 GB 26-06-2007 11:19 Pagina 22
