16

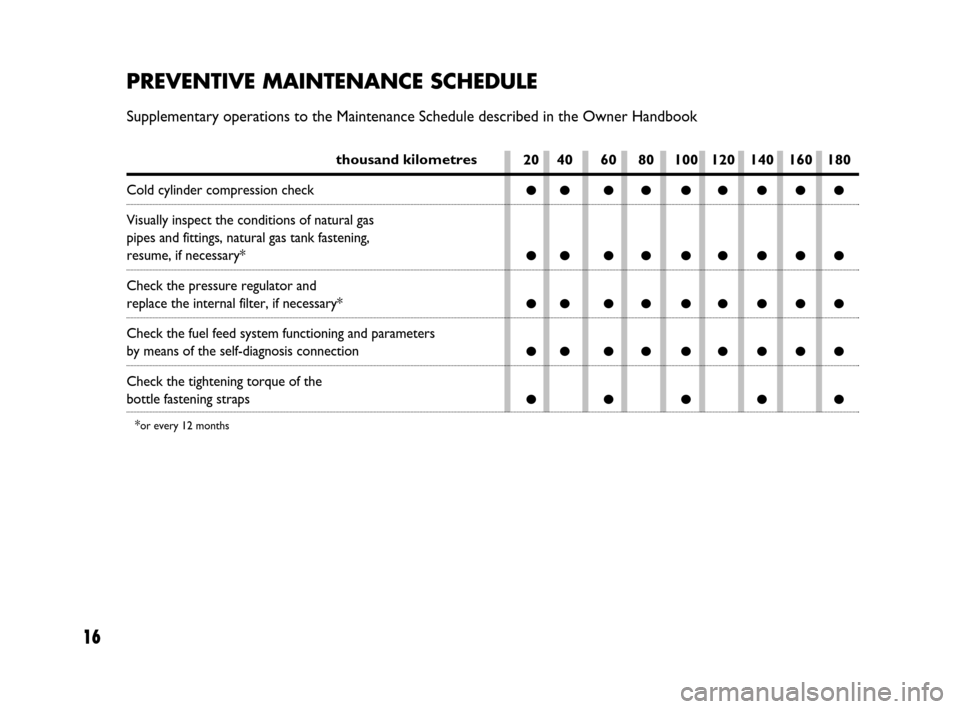

PREVENTIVE MAINTENANCE SCHEDULE
Supplementary operations to the Maintenance Schedule described in the Owner Handbook
thousand kilometres
Cold cylinder compression check
Visually inspect the conditions of natural gas
pipes and fittings, natural gas tank fastening,
resume, if necessary*
Check the pressure regulator and
replace the internal filter, if necessary*
Check the fuel feed system functioning and parameters
by means of the self-diagnosis connection
Check the tightening torque of the
bottle fastening straps
*or every 12 months
20 40 60 80 100 120 140 160 180
●● ● ● ● ● ● ● ●
●● ● ● ● ● ● ● ●
●● ● ● ● ● ● ● ●
●● ● ● ● ● ● ● ●
●●●●●
603.83.424 Multipla NatPow gb 5-10-2007 15:27 Pagina 16
17
BODY VERSION CODE
Description
Fiat Multipla 186AMC1A 06G
Fiat Multipla
4-seater VAN 186BMC1A 02W
ENGINE
1.6
GENERAL REMARKS
Engine identification code 182B6000
Engine cycle Otto
Number and position of cylinders 4, in-line
Number of valves per cylinder 4
Pistor diameter and stroke mm 80.5 x 78.4
Total displacement cm31596
Compression ratio 10.5 : 1
kW
EC maximum rating HP
corresponding engine speed rpm
Nm
EC maximum torque kgm
corresponding engine speed rpm
Spark plugs NGK BKR6EKC
Fuel
Fuelling
by natural gas
68
92
5750
126
12.84
4000
Natural gas
Fuelling by
Petrol
76
103
5750
143
14.6
4000
Unleaded petrol
95 RON
