Fuse box in engine compartment
USERFUSE AMPERE
Dashboard control unit 1F1 70
Power steering control unitF2 70
Ignition switchF3 20
Dashboard control unit 2F4 50
ABS / ESP control unitF5 60
Radiator electric fan (low speed) (all versions)F6 30
Radiator electric fan (high speed) (all versions excluded 1.2 16V, 1.4 16V heated) F7 40
Climate control electric fanF8 30
Headlight washerF9 20
HornF10 15
Electronic injection secondary servicesF11 15
Right main beam headlightF14 10
Left main beam headlightF15 10
+15 Electronic injection system / Dualogic gearbox (*)F16 7,5
Electronic injection primary servicesF17 10
+30 Engine control unit / Radiator electric fan remote control switch (1.9 Multijet) (*) F18 7.5
CompressorF19 7.5
Heated diesel oil filter (Multijet)F20 30
Fuel pumpF21 15
Electronic injection primary services (1.2 16V, 1.4 16V)F22 15
Electronic injection primary services (Multijet)F22 20
+30 Dualogic gearbox (*)F23 15
+15 Electric power steering (*)F24 7,5
Front fog lightsF30 15
(*) +30 = battery directive positive terminal (not under key)
+15 = positive terminal under key

253
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
Fuses external to engine compartment fusebox
USERFUSE AMPERE
Dualogic gearbox pumpP01 30
Glow plug warming (Multijet)P04 50
(*) +30 = battery directive positive terminal (not under key)
+15 = positive terminal under key
Optional fusebox (on auxiliary bracket)
USERFUSE AMPERE
+30 Outside radio amplifier (*)F54 15
+30 Sunroof (*)F58 20
(*) +30 = battery directive positive terminal (not under key)
+15 = positive terminal under key

254
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
IF THE BATTERY IS FLAT
WARNING The battery charging procedure is
described only for information purposes. This
operation should be carried out by Fiat Dealership.
Charging should be slow at low amp rating for 24
hours. Charging for a longer time may damage the
battery.
Charge the battery as follows:
❒disconnect battery negative terminal;❒connect the charger cables to the battery
terminals, observing the poles;
❒turn on the charger;
❒when you have finished, turn the charger off before
disconnecting the battery;
❒reconnect battery negative terminal.
WARNING If the vehicle is fitted with alarm system,
turn it off with the remote control (see “Alarm” in the
“Dashboard and controls” chapter).
WARNINGThe liquid in the battery is poisonous and corrosive. Do not let it touch the skin or
eyes. Recharging the battery should be done in a well ventilated area away from
naked flames or possible sources of sparks: explosion and fire risk.
WARNINGDo not attempt to recharge a frozen battery. Thaw it first, otherwise it could
explode. If the battery froze, make sure the internal elements are not broken
(short-circuit risk) and that the casing is not cracked (risk of spilling the poisonous
and corrosive fluid).

255
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
F0H0203m
JACKING THE CAR
If the car is to be lifted, go to a Fiat Dealership which is equipped with
the arm hoist or workshop lift.
Jack up the car only by positioning the jack arms or the shop jack in the
points shown in the figures.
TOWING THE CAR
The car is delivered with two tow rings: the short tow ring shall be fitted
at the front and the long one at the back.
Tow rings are arranged in tool container.
Side figures show how rear (long) ring was arranged, within spare wheel
and in the container of kit Fix & Go automatic, respectively.
F0H0342m
F0H0361m

256
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
HOW TO REMOVE TOW HITCH CAPS
To avoid damaging the cap (A), proceed as follows:
❒take the screwdriver provided in the tool kit;
❒insert the screwdriver in the cap slot (B);
❒put the hand thumb on the cap to prevent damaging it (see the figure);
❒remove the cap (without turning it) making a movement
perpendicular to the supporting surface (see the figure).
F0H0250m
F0H0251m

257
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
WARNING
WARNING
Do not start the engine when towing the car.
WARNINGWhile the car is being towed with the
engine off, remember that the brake
pedal and steering will require more
effort as you no longer have the benefit
of the brake booster and the electrical
power steering. Do not use flexible cables
to tow. Avoid jerking. Whilst towing,
ensure that the coupling to the car does
not damage the surrounding components.
When towing the car, you must comply
with the specific traffic regulations
regarding the tow hitch and how to tow
on the road. TOW RING HOOKING
Proceed as follows:
❒take the tow ring (B) from its support;
❒tighten the ring on the rear or front threaded pin.
F0H0204m
F0H0205m
Before starting to tow, turn the ignition
key to MAR and then to STOP. Do not
remove the key. If the key is removed, the
steering lock engages automatically which
prevents the wheels being turned.

258
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CAR
MAINTENANCE
C C
A A
R R
M M
A A
I I
N N
T T
E E
N N
A A
N N
C C
E E
SCHEDULED SERVICING .................................................. 259
SERVICE SCHEDULE ........................................................... 260
ANNUAL INSPECTION SCHEDULE .............................. 262
ADDITIONAL CHECKS ..................................................... 262
CHECKING FLUID LEVELS ............................................... 265
DIESEL FUEL FILTER (green filter) ................................... 272
BATTERY ................................................................................ 273
WHEELS AND TYRES ......................................................... 277
RUBBER HOSES .................................................................... 279
WINDSCREEN/REAR WINDOW WIPERS .................. 279
BODYWORK ........................................................................ 282
INTERIORS............................................................................. 285

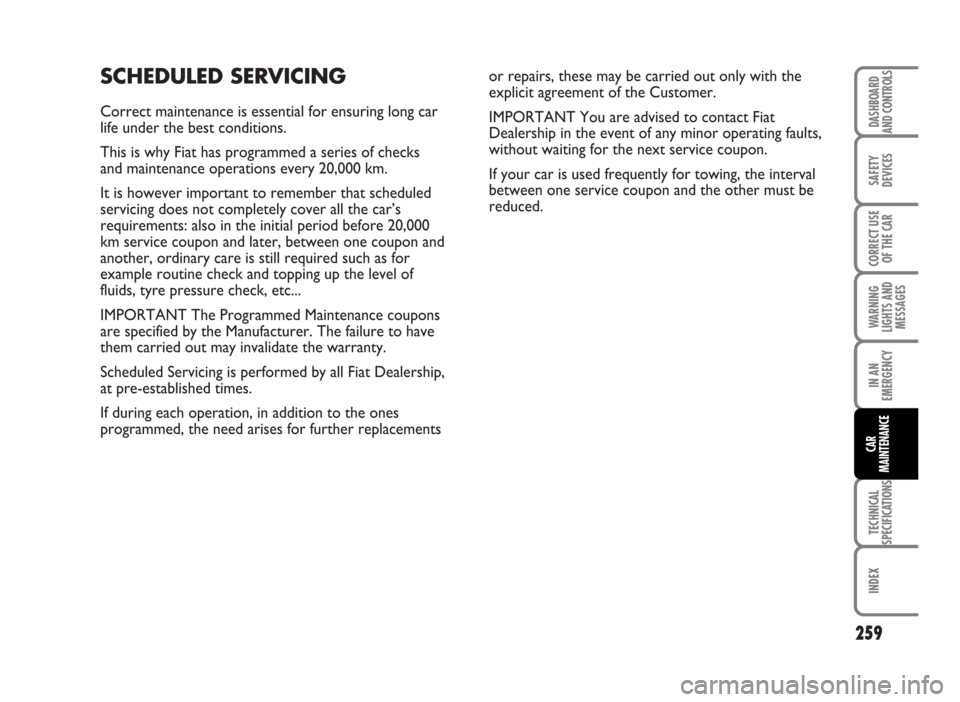

SCHEDULED SERVICING
Correct maintenance is essential for ensuring long car
life under the best conditions.
This is why Fiat has programmed a series of checks
and maintenance operations every 20,000 km.
It is however important to remember that scheduled
servicing does not completely cover all the car’s
requirements: also in the initial period before 20,000
km service coupon and later, between one coupon and
another, ordinary care is still required such as for
example routine check and topping up the level of
fluids, tyre pressure check, etc...
IMPORTANT The Programmed Maintenance coupons
are specified by the Manufacturer. The failure to have
them carried out may invalidate the warranty.
Scheduled Servicing is performed by all Fiat Dealership,
at pre-established times.
If during each operation, in addition to the ones
programmed, the need arises for further replacementsor repairs, these may be carried out only with the
explicit agreement of the Customer.
IMPORTANT You are advised to contact Fiat
Dealership in the event of any minor operating faults,
without waiting for the next service coupon.
If your car is used frequently for towing, the interval
between one service coupon and the other must be
reduced.
