2007 FIAT GRANDE PUNTO bluetooth

8181
Problem Probable Cause Possible Solution
The system prompted to enter a PIN
number, but no phone pairing
procedure was running
When in close proximity of the car,
answering a phone call directly using
the mobile phone “answer” button, will
automatically activate the free-hands
phone function (the caller’s voice is
played through the car speakers)
Select option DELETE USERSon
the system and delete all pairings; then,
pair the phone again
SETTING FUNCTIONS -
MANAGING USER DATA AND
PHONEBOOK
SETTING FUNCTIONS - PAIRING
YOUR MOBILE PHONE
Refer to your mobile phone owner’s
manual to find out how to set up the
default location for phone audio when a
phone call is received After you delete the pairing-related
user information on your mobile
phone, the Bluetooth
®pairing
relationship between your mobile
phone and Blue&Me™ Navwill no
longer work
Some types of mobile phones require
you to set the phone to choose
between automatic incoming call
transfer to the system or
non-automatic incoming call transfer
(you will transfer the call using the
mobile phone keypad, as required)
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 81

8383
Problem Probable Cause Possible Solution
Phone numbers containing
international dialling codes
(e.g.: +39 Italy, +44 UK,
+33 France, etc.) are difficult to call Replace “+” with “00”
(e.g.: +39 becomes 0039). On certain mobile phones, when
downloading names and/phone
numbers to the hands-free system,
the sign “+” is omitted
Problem Probable Cause Possible Solution
The paired phone, sometimes disconnects
and re-connects to the car hands-free
phone system for no apparent reason
Models: Audiovox
®SMT 5600/Orange™
(HTC) C500
In certain cases, it is not possible to
call the numbers in the
LAST CALLSlistAfter completing the pairing procedure,
select “Blue&Me” from the list of
Bluetooth
®wireless
technology enabled devices.
Press the MENU button on the keypad
and select option 4 (“Set device as
Hands-free”),then press
ß/MAINto
establish the Bluetooth®connection
– In the list of Bluetooth
®wireless
technology enabled devices select
“Blue&Me” (name identifying the
Blue&Me™ Navsystem installed on
your car)
In order for the Bluetooth
®
connection to work properly,
the phone must recognize the car
system as hands-free device
On certain mobile phones the sign
“+” of the international dialling code
is omitted
Phone-specific: Audiovox® / Orange™
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 83

8686
Phone-specific: Nokia®
Problem Probable Cause Possible Solution
Before establishing a connection with
Blue&Me™ Navpaired Nokia
®mobile
phone, the phone display screen prompts
with a confirmation message
(e.g.:“Accept connection request)
During an active phone call on the
hands-free phone system of the car,
the Bluetooth
®wireless technology
connection is disconnected when pressing
button SRC/OKto switch the audio
output from the device to the mobile phone
Models: Nokia®6820, 6230, 7610 or 6600
While handling two phone conversations
via call waiting on a Nokia®mobile phone,when pressing SRC/OKto transfer audio output to the mobile phone, only one of the phone conversations is transferred
When pressing SRC/OKto switch the audio output of the phone conversation
from the Nokia®mobile phone to the hands-free kit, nothing happensOn your mobile phone navigate to
“Connectivity” →“Bluetooth
®”.
Select the next menu using the key
on the right side. Select “Blue&Me”
and then “Authorized”
The phone call is still active on the
mobile phone. If you wish to
reconnect and use the hands-free kit
again, press
ß/MAIN
–
Press
ß/MAINor ‘to reconnect
the phone conversation to the
hands-free feature Nokia
®mobile phones do not allow
Blue&Me™ Navto automatically
establish the Bluetooth
®wireless
technology connection
To establish connection you must set
your mobile phone
Pressing SRC/OKduring an active
phone call on this type of phone dis-
connects the Bluetooth
®wireless
technology connection
The ability to transfer audio output
for two active phone conversations
to the mobile phone is not supported
by the system when paired with a
Nokia
®mobile phone
–
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 86

9090
Problem Probable Cause Possible Solution
When getting into the car during a phone
conversation, after turning the key to
MAR, the phone conversation is not
switched automatically to the
hands-free phone system
Models: Sony–Ericsson®Z600
After pairing the mobile phone,
the hands-free phone system
keeps in memory only the last
20 calls
Models: Sony–Ericsson®Z600
After connecting and disconnecting
the mobile phone, the carrier’s name
is no longer displayed on the instrument
panel display
Model: Sony–Ericsson®T637–
–
To prevent this problem, after turning
the mobile phone on, wait for 30
seconds at least before connecting it to
the hands-free kit This mobile phone requires a specific
setting for transferring automatically
the audio output to an external
Bluetooth
®wireless technology
device
This is the max. number of calls that
can be stored
–
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 90

9191
MESSAGE READER
Problem Probable Cause Possible Solution
I receive SMS messages on the
cellular telephone but not on
Blue&Me™ Nav
SMS texts received from your phone
carrier service center show abnormal
displaying of sender's name or number
Blue&Me™ Navstopped receiving
messages from your cellular
telephone
You cannot display some SMS
messages, present on your cellular
telephone, on Blue&Me™ NavSMS
message list
Not all cellular telephones support SMS
messages transfer to Blue&Me™ Nav
Not all mobile phones support correct
transfer of the phone carrier's name
sending the SMS text to Blue&Me™ Nav
You might have set by mistake
the option NOT ACTIVE from menu
notification settings
Blue&Me™ Navis capable to read
and store last 20 received SMS
messages while the telephone set is
connected to the system. Messages
received in other contexts are not
transferred to Blue&Me™ NavCheck that your cellular telephone
supports the function for transmitting SMS
Messages by Bluetooth technology or, for
further information, see chapter “LIST OF
TELEPHONE SETS
SUPPORTED BYBlue&Me™ Nav”,
or site www.fiat.com
–
Set, on menu notification settings,
either VISUAL+ACOUSTIC notification
or NOT VISUAL notification
READER FUNCTIONS
SMS MESSAGES, paragraph
NOTIFICATION SETTINGS
SMS messages stored by Blue&Me™ Nav
can be deleted
READER FUNCTIONS SMS
MESSAGES, paragraphs SMS MESSAGES
MANAGEMENT AND DELETING ALL
SMS MESSAGES
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 91

98
The car is located in a country or region
whose maps are not present on the USB
device and the destination entered is not
therefore available.
❒The mobile phone registered is off.
❒Your Bluetooth®mobile phone is not
registered
❒The registered mobile phone is not
within the system’s radius of action (it
must be located within 10 metres of
the system).
❒The Bluetooth®connection between
the system and mobile phone has been
disabled on your mobile phone
(“Blue&Me” identifier).
❒The telephone number of the selected
point of interest is not available on the
map.
Incorrect selection of the deletion
functionEnsure that the preloaded map software
contains all the countries or regions required
to define the required route (from the car’s
current position to the destination).
❒Turn on the mobile phone.
❒Register the mobile phone.
SETTING FUNCTIONS – REGISTER
MOBILE PHONE.
❒Ensure the mobile phone you have
registered on the car’s handsfree
system is within the system’s radius of
action.
❒Ensure that the Bluetooth®connec-
tion to the car’s handsfree system
(“Blue&Me” identifier) is activated on
your mobile phone.
❒–
You can delete the entire list of recent des-
tinations by selecting the DELETE ALL
option or by speaking the command
“delete all” with voice interaction.
NAVIGATION FUNCTIONS –
RECENT DESTINATIONS
Problem Probable Cause Possible Solution
The display indicates:
ROUTE CALCULATION
NOT POSSIBLE
It is not possible to call the telephone
number for a point of interest
(e.g. Restaurant)
It is not possible to delete the list
of RECENT DESTINATIONS
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 98

9999

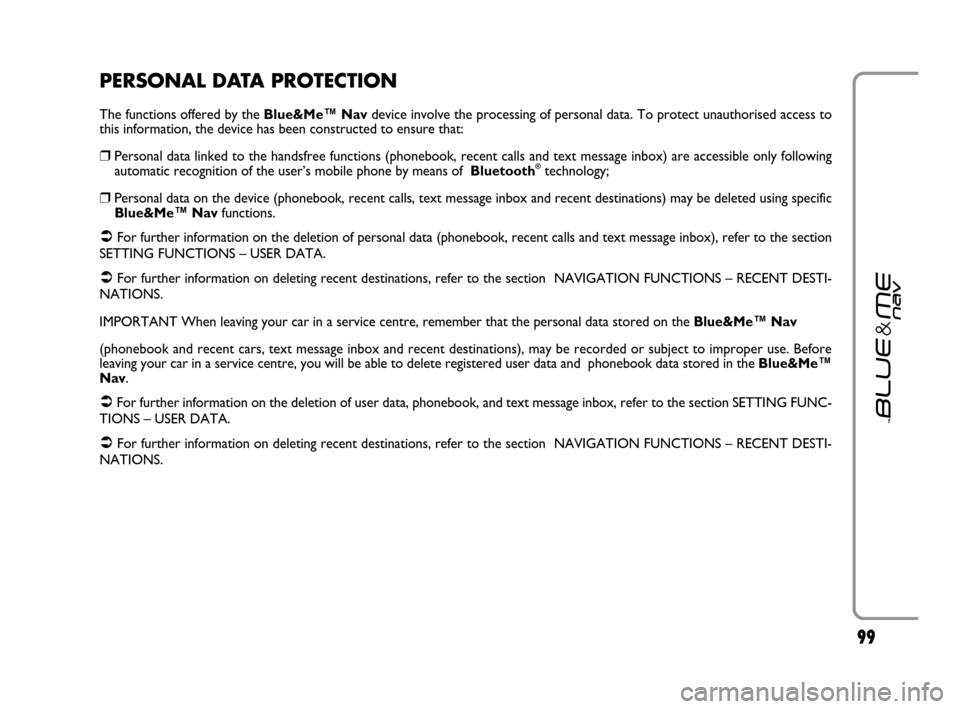

PERSONAL DATA PROTECTION
The functions offered by the Blue&Me™ Navdevice involve the processing of personal data. To protect unauthorised access to
this information, the device has been constructed to ensure that:
❒Personal data linked to the handsfree functions (phonebook, recent calls and text message inbox) are accessible only following
automatic recognition of the user’s mobile phone by means of Bluetooth®technology;
❒Personal data on the device (phonebook, recent calls, text message inbox and recent destinations) may be deleted using specific
Blue&Me™ Navfunctions.
For further information on the deletion of personal data (phonebook, recent calls and text message inbox), refer to the section
SETTING FUNCTIONS – USER DATA.
For further information on deleting recent destinations, refer to the section NAVIGATION FUNCTIONS – RECENT DESTI-
NATIONS.
IMPORTANT When leaving your car in a service centre, remember that the personal data stored on the Blue&Me™ Nav
(phonebook and recent cars, text message inbox and recent destinations), may be recorded or subject to improper use. Before
leaving your car in a service centre, you will be able to delete registered user data and phonebook data stored in the Blue&Me™
Nav.
For further information on the deletion of user data, phonebook, and text message inbox, refer to the section SETTING FUNC-
TIONS – USER DATA.
For further information on deleting recent destinations, refer to the section NAVIGATION FUNCTIONS – RECENT DESTI-
NATIONS.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 99
