2007 FIAT DUCATO technical specifications

212
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
MODEL PLATE fig. 1
The plate is to be found on the front cross
member of the engine compartment and
it bears the following identification data:
AManufacturer’s name.
BHomologation number.
CVehicle type code.
DChassis number.
EMaximum vehicle weight fully loaded.
FMaximum vehicle weight fully loaded
with trailer.
GMaximum vehicle weight on front axle.HMaximum vehicle weight on rear axle.
IEngine type.
LBody version code.
MSpare part code.
NSmoke opacity index.
IDENTIFICATION DATA
You are advised to note the identification
codes. The identification data stamped and
given on the plates and their position are
the following:
❒Model plate.
❒Chassis marking.
❒Bodywork paint identification plate.
❒Engine marking.
fig. 1F0N0143m

213
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CHASSIS MARKING fig. 3
These are to be found respectively: on the
internal wheelhouse on passenger’s side
A-fig. 3 and on the bottom of the wind-
screen fig. 4.
❒vehicle model;
❒chassis number.ENGINE MARKING
Engine marking is stamped on the cylinder
block and includes the model and the se-
rial number.
BODYWORK PAINT
IDENTIFICATION PLATE fig. 2
The plate is to be found on the front cross
member of the engine compartment and
it bears the following identification data:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch up code.
fig. 2F0N0160mfig. 3F0N0162m
fig. 4F0N0161m

214
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
ENGINE CODES - BODYWORK VERSIONS
VersionsEngine code
100 Multijet4HV
120 MultijetSOFIM F1AE0481D
130 MultijetSOFIM F1AE0481N
160 MultijetSOFIM F1CE0481D
Below is an example of body version with relevant key valid for any body version:
Key: 250 A A M F A AX
MODEL
CAPACITY
ENGINE
TRANSMISSION/DRIVING AXLES
BODYWORK
WHEELBASE
VERSION

215
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CAPACITY
A3,000 kg
B3,300 kg
C3,500 kg LIGHT
D3,500 kg HEAVY
E4,005 kg
ENGINES
A100 Multijet
C120 Multijet
D160 Multijet
E130 Multijet
TRANSMISSION
MMechanical gearbox
AAutomatic gearbox
BODYWORK
AChassis-cab chassisGLong cab body
BChassis without cabHLong cab chassis
CChassis-cab floorMMinibus
DBodyPPanorama
ESchoolbus for primary schoolRMixed 6/9 seats
LSchoolbus for secondary schoolUChassis without cab “Floor”
FVan
WHEELBASE
AShort wheelbase
BMedium wheelbase
CLong wheelbase
DMedium long wheelbase

216
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
ENGINE
GENERAL
Engine code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Maximum power (EEC) kW
HP
corresponding ratio rpm
Maximum torque (EEC) Nm
corresponding ratio rpm
Fuel
120 Multijet
Sofim F1AE0481D
Diesel
4 in line
88 x 94
2287
19 ± 0.5
88
120
3600
320
2000
Diesel fuel for
motor vehicles
(Specification EN590)
130 Multijet
Sofim F1AE0481N
Diesel
4 in line
88 x 94
2287
19 ± 0.5
95,5
130
3600
320
2000
Diesel fuel for
motor vehicles
(Specification EN590)
160 Multijet
Sofim F1CE0481D
Diesel
4
in line
95.8 x 104
2999
19
115,5
157
3500
400
1600
Diesel fuel for
motor vehicles
(Specification EN590)
100 Multijet
4HV
Diesel
4 in line
86 x 94.6
2198
17.5
74
100
2900
250
1500
Diesel fuel for
motor vehicles
(Specification EN590)

217
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

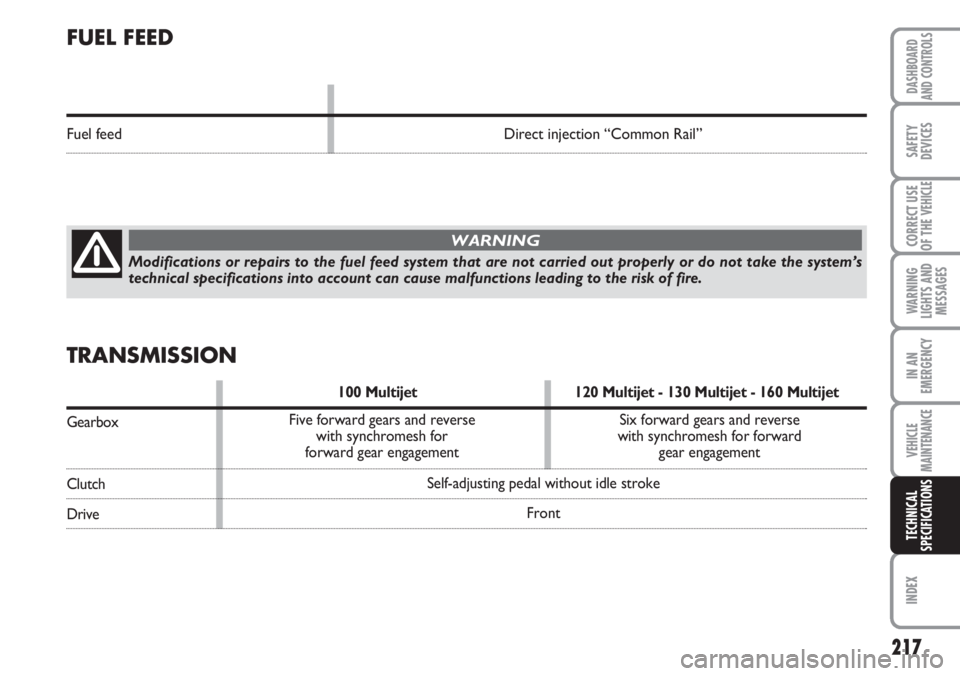

FUEL FEED
Fuel feed Direct injection “Common Rail”
Modifications or repairs to the fuel feed system that are not carried out properly or do not take the system’s
technical specifications into account can cause malfunctions leading to the risk of fire.
WARNING
TRANSMISSION
100 Multijet 120 Multijet - 130 Multijet - 160 Multijet
Gearbox
Clutch
DriveSelf-adjusting pedal without idle stroke
Front Five forward gears and reverse
with synchromesh for
forward gear engagementSix forward gears and reverse
with synchromesh for forward
gear engagement

218
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

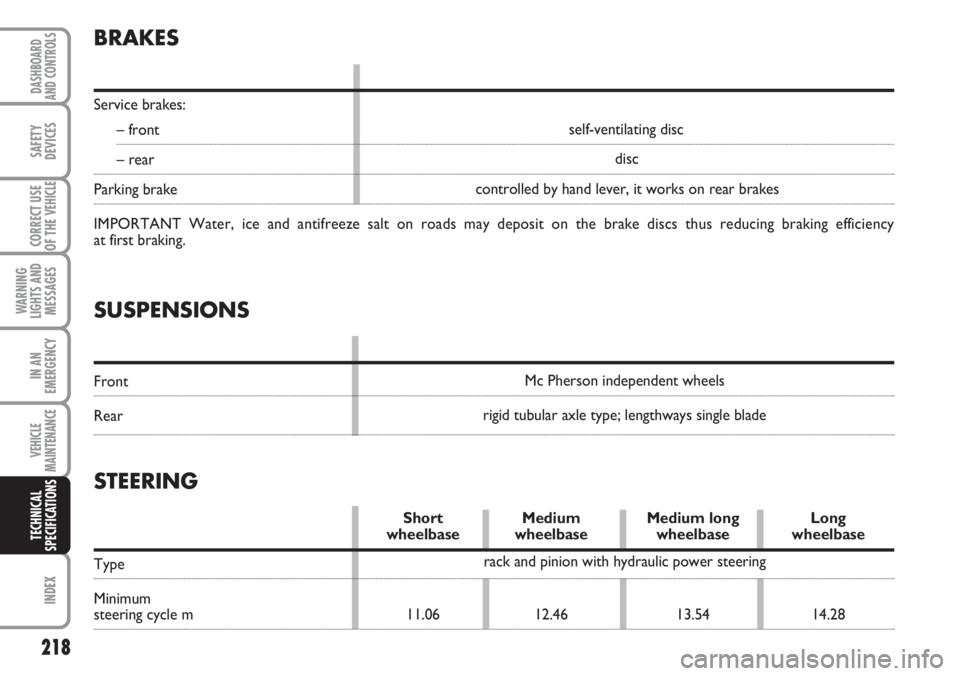

SUSPENSIONS
Front
Rear
BRAKES
Service brakes:
– front
– rear
Parking brake
IMPORTANT Water, ice and antifreeze salt on roads may deposit on the brake discs thus reducing braking efficiency
at first braking.
Mc Pherson independent wheels
rigid tubular axle type; lengthways single blade controlled by hand lever, it works on rear brakesdisc self-ventilating disc
rack and pinion with hydraulic power steering
STEERING
Short Medium Medium long Long wheelbase wheelbase wheelbase wheelbase
Type
Minimum
steering cycle m 11.06 12.46 13.54 14.28

219
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
UNDERSTANDING TYRE
MARKING fig. 4
Example: 215/70 R 15 109S
215 = Nominal width (S, distance be-
tween sidewalls in mm).
70 = Percentage height/width ratio (H/
S).
R = Radial tyre.
15 = Rim diameter in inches (Ø).
109 = Load rating (capacity).
S = Maximum speed rating.
WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless tyres
with radial carcass. The homologated tyres
are listed in the Log book.
IMPORTANT In the event of discrepan-
cies between the information provided on
this “Owner handbook” and the “Log
book”, consider the specifications shown
in the log book only.
To ensure safety of the vehicle in move-
ment, it must be fitted with tyres of the
same make and type on all wheels.
IMPORTANT Do not use inner tubes
with Tubeless tyres.
fig. 4F0N0113m
SPARE WHEEL
Printed steel rim.
Tubeless tyre (same as those fitted).
WHEEL GEOMETRY
Front wheel toe-in measured
from rim to rim: – 1 ± 1 mm
The values refer to the vehicle in running
order.
