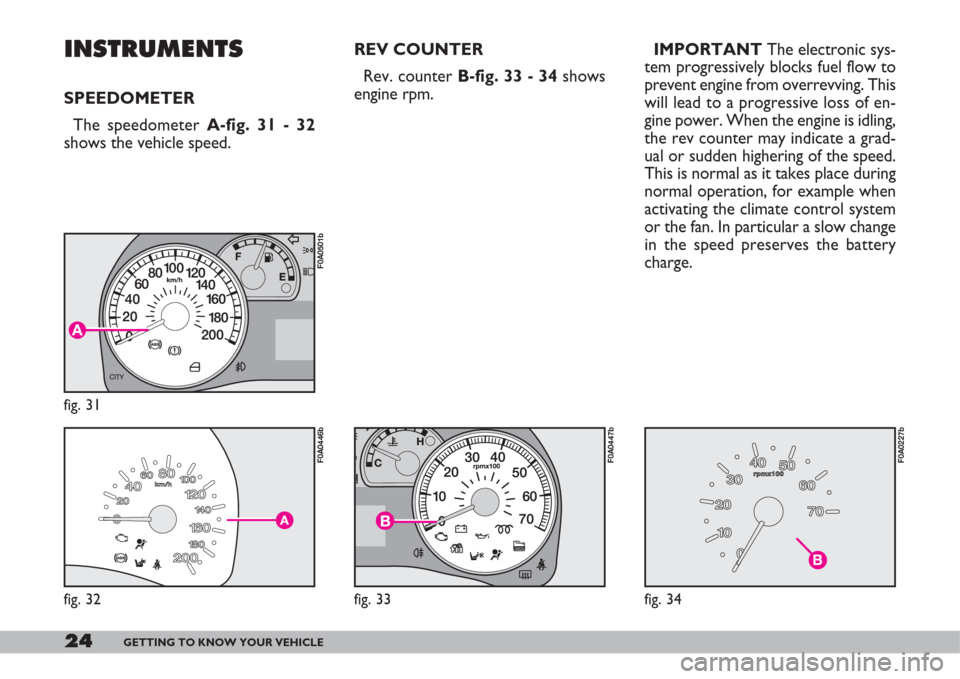

24GETTING TO KNOW YOUR VEHICLE
INSTRUMENTS
SPEEDOMETER
The speedometer A-fig. 31 - 32
shows the vehicle speed.REV COUNTER
Rev. counter B-fig. 33 - 34shows
engine rpm.
fig. 31
F0A0501b
fig. 32
F0A0446b
fig. 33
F0A0447b
fig. 34
F0A0227b
IMPORTANTThe electronic sys-
tem progressively blocks fuel flow to
prevent engine from overrevving. This
will lead to a progressive loss of en-
gine power. When the engine is idling,
the rev counter may indicate a grad-
ual or sudden highering of the speed.
This is normal as it takes place during
normal operation, for example when
activating the climate control system
or the fan. In particular a slow change
in the speed preserves the battery
charge.

25GETTING TO KNOW YOUR VEHICLE
If the needle reaches the
red area, stop the engine
immediately and contact
a Fiat Dealership.
fig. 35
F0A0343b
fig. 37
F0A0226b
FUEL LEVEL GAUGE
The needle shows the fuel present in
the tank. When the fuel reserve warn-
ing light A-fig. 35 - 36 comes on (on
certain versions with the dedicated
message on the reconfigurable multi-
function display) it means that there
are approximately 5-7 litres of fuel left
in the tank.
E- tank empty.
F - tank full.
Never travel with the tank almost
empty: lack of fuel could damage the
catalyser.IMPORTANTThe needle will
point to Eand the reserve warning
light Awill flash to indicate a fault in
the system. Contact a Fiat Dealer-
shipto have the system checked.
ENGINE COOLANT
TEMPERATURE GAUGE
This gauge shows the temperature of
the engine coolant fluid and begins
working when the fluid temperature
exceeds approx. 50 °C.
Under normal conditions, the needle
should move to different positions of
the scale according to the working
conditions and engine cooling condi-
tions.
fig. 36
F0A0225b
C- Low engine coolant temperature
H- High engine coolant temperature
Warning light B-fig. 35 - 37 comes
on (on certain versions with the ded-
icated message on the reconfigurable
multifunction display) to indicate that
engine coolant temperature is too
high; in this event stop the engine and
contact Fiat Dealership.

35GETTING TO KNOW YOUR VEHICLE
vice schedule, see section “Vehicle
maintenance”. Service indications will
be displayed km or mi according to
previous unit setting. When a pro-
grammed maintenance interval
(coupon) is near to come, turning the
ignition key to MAR, the display will
show the message “Service” followed
by the number of km/mi to go before
vehicle servicing. “Scheduled servicing”
message is displayed in km/mi or days
according to the approaching service
interval. Contact Fiat Dealershipto
carry out any service operation pro-
vided by the “Service schedule” or
“Annual inspection schedule”, and to
reset the display. Scheduled Servicing (Service)
Through this function it is possible to
display information connected to
proper vehicle servicing.
Proceed as follows:
– briefly press button MODE: ser-
vice in km or mi, according to previ-
ous setting, will be displayed (see para-
graph “Distance unit”);
– press button +or –to select dis-
playing in days;
– briefly press button MODEto go
back to the menu screen or press the
button for long to go back to the stan-
dard screen.
NoteThe “Service schedule” in-
cludes vehicle maintenance every
20,000 km (or 12,000 mi) or every
year; this is shown automatically, with
the ignition key at MAR, starting from
2,000 km (or 1,240 mi) or 30 days
from this deadline and it is shown again
every 200 km (or 124 mi) or 3 days.
Below 200 km servicing indications are
displayed more frequently. As con-
cerns 1.3 Multijet versions, change air
cleaner, engine oil and engine oil fil-
ter at the intervals specified in the Ser-Exit Menu
This is the last function that closes
the circular setting cycle listed in the
initial menu screen.
Briefly press button MODEto go
back to the standard screen.
Press button – to return to the first
menu option (Speed Beep).

36GETTING TO KNOW YOUR VEHICLE
– Average consumption
– Instant consumption (present on
multifunction display and reconfig-
urable multifunction display)
– Average speed
– Travel time (driving time).
“Trip B”, available on reconfigurable
multifunction display only, shall be
used to display the figures relating to:
– Trip distance B
– Average consumption B
– Average speed B
– Travel time B (driving time).
NoteThe “Trip B” function can be
excluded (see paragraph “Trip B
On/Off”). “Range to empty” cannot be
reset.TRIP COMPUTER
General features
The “Trip computer” displays infor-
mation (with ignition key at MAR, re-
lating to the operating status of the ve-
hicle. This function comprises the
“General trip” concerning the com-
plete mission of the vehicle and “Trip
B” (on reconfigurable multifunction
display only) concerning the partial ve-
hicle mission. This function (as shown
in fig. 48) is contained within the com-
plete mission.
Both functions are resettable (reset
- start of new mission).
“General Trip” displays the figures
relating to:
– Range
– Trip distanceVALUES DISPLAYED
Range (*)
This value shows the distance in km
(or mi) that the vehicle can still cover
before needing fuel, assuming that dri-
ving conditions are kept unvaried. The
display will show “——” in the fol-
lowing cases:
– value lower than 50 km (or 30 mi)
– vehicle left parked with engine run-
ning for long.
(*) On Natural Power versions, for petrol con-
sumption only.
Trip distance
This value shows the distance cov-
ered from the start of the new mis-
sion.

37GETTING TO KNOW YOUR VEHICLE
Travel time
This value shows the time elapsed
since the start of the new mission.
IMPORTANTLacking information,
Trip computer values are displayed
with “----” When normal operating
condition is reset, calculation of dif-
ferent units will restart regularly. Val-
ues displayed before the failure will
not be reset.
TRIP button fig. 46 and fig. 47
(Natural Power versions)
Button TRIPshall be used (with ig-
nition key at MAR), to display and to
reset the previously described values
to start a new mission:
– short push to display the different
values
– long push to reset and then start
a new mission. Average consumption (*)
This value shows the average con-
sumption from the start of the new
mission.
(*) On Natural Power versions, for petrol con-
sumption only.
Instant consumption
This value shows instant fuel con-
sumption (this value is updated second
by second). If parking the vehicle with
engine on, the display will show “----”.
Average speed
This value shows the vehicle average
speed as a function of the overall time
elapsed since the start of the new mis-
sion.New mission
Reset can be:
– “manual” resetting by the user, by
pressing the relevant button;
– “automatic” resetting, when the
“Trip distance” reaches 3999.9 km or
9999.9 km (according to the type of
display) or when the “Travel time”
reaches 99.59 (99 hours and 59 min-
utes);
– after disconnecting/reconnecting
the battery.
IMPORTANTThe reset operation
in the presence of the screens con-
cerning the “General Trip” will also re-
set the “Trip B”. The reset operation
in the presence of the screens con-
cerning the “Trip B” makes it possi-
ble to reset only the information as-
sociated with this function.

Otherwise wait for few seconds to al-
low the engine cooling, then open
slowly and carefully the cap, top up
coolant and check whether its level is
falling between MINand MAXmarks
in the reservoir. Check visually any
leak. If, when restarting, the warning
light comes on again, contact Fiat
Dealership.
–vehicle heavy duty(e.g.: towing
trailer uphill of fully laden vehicle): de-
crease speed, if the warning light stays
on, stop the vehicle. Wait for 2 or 3
minutes leaving the engine on and
slightly accelerated to further activate
the circulation of the coolant fluid,
then switch the engine off. Check
proper coolant level as described pre-
viously.
40GETTING TO KNOW YOUR VEHICLE
AIR BAG FAILURE
(red) (where provided)
Turning the ignition key to
MARthe warning light turns
on, but it should go off after
few seconds.
The warning light stays on glowing
steadily if there is a failure in the air
bag system.
On certain versions the dedicated
message is displayed.
¬
The failure of the warn-
ing light
¬(warning light
off) is also indicated by
the flashing for more than the
normal 4 seconds of the passen-
ger’s front air bag deactivated
warning light
F.
If when turning the igni-
tion key to MAR, the
warning light
¬does not
turn on or stays on when travel-
ling there could be a failure in
safety systems; in this event air
bags or pretensioners could not
trigger in case of impact or, in a
minor number of cases, they
could trigger accidentally. Con-
tact Fiat Dealership immediate-
ly to have the system checked.
HIGH TEMPERATURE
ENGINE COOLANT
FLUID (red)
Turning the ignition key to MARthe
warning light turns on, but it should go
off after few seconds.
The warning light turns on when the
engine is overheated.
If the warning light comes on, pro-
ceed as follows:
– normal driving conditions: stop
the vehicle, switch off the engine and
check whether the water level in the
reservoir is not below theMINmark.
ç

EBD
FAILURE
(red) (amber)
The turning on at the same time of
warning lights
xand >with the en-
gine running indicates an EBD system
failure or that the system is unavail-
able; in this case heavy braking may
cause the rear wheels to lock before
time, with the possibility of skidding.
41GETTING TO KNOW YOUR VEHICLE
LOW BATTERY
CHARGE (red)
Turning the ignition key
to MARthe warning light turns on,
but it should go out as soon as the en-
gine is started (with the engine running
at idle speed a brief delay in going out
is allowed).
If the warning light stays on, contact
immediately Fiat Dealership. IMPORTANTUnder severe use of
the vehicle, keep the engine on and
slightly accelerated for few minutes
before switching it off. On certain ver-
sions the dedicated message is dis-
played.
w
Drive with the utmost care to the
nearest Fiat Dealershipto have the
system checked.
On certain versions the dedicated
message is displayed.
x>
LOW ENGINE
OIL PRESSURE
(red)
EXHAUST OIL
(Multijet versions) (red)
Low engine oil pressure
Turning the ignition key to MARthe
warning light turns on, but it should go
out as soon as the engine is started.
On certain versions the dedicated
message is displayed.
If the warning light
v
turns on when the vehicle
is travelling (on certain
versions together with the mes-
sage on the display) stop the en-
gine immediately and contact a
Fiat Dealership.
v
SEAT BELTS NOT
FASTENED (red)
The warning light on the di-
al turns on glowing steadily with
vehicle stationary and driver’s or pas-
senger’s seat belt not fastened cor-
rectly. The warning light will turn on
flashing when, with vehicle moving, dri-
ver’s or passenger’s seat belt are not
fastened correctly.
<
Exhaust oil (Multijet versions)
The warning light with turn on flash-
ing together with the message on the
display when the system detects that
the engine oil is exhaust.
After the first indication, at each en-
gine starting the warning light
v
will go on flashing for 60 seconds and
then for 2 hours until oil is changed.
If warning light
v
flashes, contact Fiat Deal-
ership immediately to
have oil changed and instrument
panel warning light turned off.

42GETTING TO KNOW YOUR VEHICLE
EOBD engine control system
failure
Under normal conditions, turning the
ignition key to MAR, the warning light
turns on, but it should go out as soon
as the engine is started. The initial
turning on indicates that the warning
light is working properly. If the warn-
ing light stays on or turns on when
travelling:
– glowing steadily: means a fault in
the supply/ignition system which could
cause high emissions at the exhaust,
possible lack of performance, poor
handling and high consumption levels.
On certain versions the dedicated
message is displayed.
In these conditions it is possible to
continue driving without however re-
quiring heavy effort or high speed from
the engine. Prolonged use of the ve-
hicle with the warning light on may
cause damages. Contact Fiat Deal-
ershipas soon as possible. The warn-
ing light goes off if the fault disappears,
but it is still stored by the system.
– flashing: indicates the possibility
of damage to the catalyst (see “EOBD
system” in this section). INJECTION SYSTEM
FAILURE
(Multijet versions -
amber)
EOBD SYSTEM FAILURE
(petrol versions - amber)
Injection system failure
Turning the ignition key to MAR the
warning light turns on but it should go
off after engine starting.
If the warning light stays on or turns
on when travelling, means a fault in the
supply/ignition system which could
cause high emissions at the exhaust,
possible lack of performance, poor
handling and high consumption levels.
On certain versions the dedicated
message is displayed.
In these conditions it is possible to
continue driving without however re-
quiring heavy effort or high speed from
the engine. In any case, contact Fiat
Dealershipas soon as possible. INCOMPLETE
DOOR LOCKING
(red)
On certain versions the warning
light turns on when one or more
doors or the tailgate are not proper-
ly shut.
On certain versions the dedicated
message is displayed; symbols
¯/ ˙
indicate respectively left / right door
open.
A buzzer will sound when doors/tail-
gate are open and the vehicle is mov-
ing (only for versions with reconfig-
urable multifunction display).
´U
