TRIP button fig. 26
The TRIPbutton, set on right steering
column stalk, shall be used (with ignition
key at MAR), to display and to reset the
previously described values to start a new
mission:
– short push to display the different val-
ues;
– long push to reset and then start a new
mission.New mission
Reset can be:
– “manual” resetting by the user, by press-
ing the relevant button;
– “automatic” resetting, when the “trip
distance” reaches 9999,9 km or when the
“trip time” reaches 99.59 (99 hours and
59 minutes);
– after disconnecting/reconnecting the
battery.
IMPORTANT The reset operation in the
presence of the screens concerning the
“Trip A” makes it possible to reset only
the information associated with this func-
tion.
IMPORTANT The reset operation in the
presence of the screens concerning the
“Trip B” makes it possible to reset only
the information associated with this func-
tion.
fig. 26F0Q0647m
Start of journey procedure
With ignition key at MAR, press and keep
button TRIPpressed for over 2 seconds
to reset.
Exit Trip
The TRIPfunction is quitted automati-
cally after all values have been displayed or
by keeping button MODEpressed for
over 1 second.
023-036 BRAVO GB 10-05-2007 10:06 Pagina 36

37
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 27F0Q0654m
Fabric upholstery of your car
is purpose-made to withstand
common wear resulting from
normal use of the car. It is
however absolutely necessary to pre-
vent hard and/or prolonged scratch-
ing/scraping caused by clothing acces-
sories like metallic buckles, studs, “Vel-
cro” fixings, etc. that stressing locally
the fabric could break yarns and dam-
age the upholstery as a consequence.
Only make adjustments when
the car is stationary.
Once you have released the
lever, check that the seat is
firmly locked in the runners by
trying to move it back and
forth. Failure to lock the seat in place
could result in the seat moving sud-
denly and the driver losing control of
the car.
SEATS
MANUALLY ADJUSTABLE
FRONT SEATS fig. 27
Moving the seat backwards
or forwards
Lift the lever A(on the internal side of the
seat) and push the seat forwards or back-
wards: in driving position the arms should
rest on the rim of the steering wheel.
Seat height adjustment
Move repeatedly lever Bupwards or
downwards to achieve the required
height.
IMPORTANT Adjustment must be car-
ried out only seated in the seat.
Back rest angle adjustment
Turn the knob C.
Lumbar adjustment
(where provided)
To adjust, turn the knob D.
037-056 BRAVO GB 10-05-2007 9:00 Pagina 37

38
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
ELECTRICALLY ADJUSTABLE
FRONT SEATS (where provided)
fig. 28
Adjustment is possible when the ignition
key is at MARor within 1 minute with ig-
nition key at STOPor removed.
When opening one of the front doors, it
is possible to adjust the seat on the side
of the door opened for about 3 minutes
or until closing the door.Seat adjustment controls are the
following:
Multifunction control A:
❒to adjust height;
❒to move seat backwards or forwards.
Multifunction control B:
❒back rest angle adjustment;
❒lumbar adjustment.fig. 28F0Q0601m
Seat warming (where provided)
fig. 29
With ignition key at MAR, press buttons
Cto switch the seat warming on/off.
The led on the button will light up when
the function is on.
fig. 29F0Q0013m
037-056 BRAVO GB 10-05-2007 9:00 Pagina 38

HEAD RESTRAINTS
FRONT
Head restraints are adjustable in height
and they lock automatically in the required
position.
❒to raise: raise the head restraint until
hearing the locking click.
❒to lower: press button A-fig. 30and
lower the head restraint.
On some versions, the front head re-
straints are equipped with an anti-whiplash
device, which is able to reduce the dis-
tance between the head and head restraint
in the case of rear impact, limiting damage
caused by whiplash.
If the front head restraint is anti-whiplash
type, the head restraint may move if pres-
sure is exercised on the back-rest through
the torso or hand. This behaviour is typ-
ical of the system and should not treated
as a malfunction.REAR
Car is can be equipped with two head
restraints for side seats and, according to
versions, also with a third head restraint
for the central seat.
To lift out head restraint: take it com-
pletely out from the seat back (position of
use) until hearing a click.
To bring it back to the original position
(non-use position): press button
A-fig. 31and lower the head restraint
down into its seat.
IMPORTANT Rear seat passengers shall
always set the head restraints in the po-
sition of use.fig. 30F0Q0655m
Remember that the head re-
straints should be adjusted
to support the back of your head and
not your neck. Only in this position
do they exert their protective action.
WARNING
To optimise head restraint
protective action, adjust the
seat back upright and keep your head
as close as possible to the head re-
straint.
WARNING
fig. 31F0Q0656m
39
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
037-056 BRAVO GB 10-05-2007 9:00 Pagina 39

40
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
STEERING WHEEL
The steering wheel can be adjusted both
axially and in height.
Release the lever A-fig. 32pulling it to-
wards the steering wheel, then adjust it in
the most suitable position and lock it push-
ing the lever Afully forwards.
It is absolutely forbidden to
carry out whatever after-
market operation involving steering
system or steering column modifica-
tions (e.g.: installation of anti-theft
device) that could badly affect per-
formance and safety, cause the lapse
of warranty and also result in non-
compliance of the car with homolo-
gation requirements.
WARNING
Any adjustment of the steer-
ing wheel position must be
carried out only with the car station-
ary and the engine turned off.
WARNING
REARVIEW MIRRORS
DRIVING MIRROR
The mirror is fitted with a safety device
that causes it to be released in the event
of a violent crash.
Using lever A-fig. 33the mirror can be
adjusted to two different positions: nor-
mal or antiglare.
fig. 32F0Q0657m
fig. 33F0Q0659m
037-056 BRAVO GB 10-05-2007 9:00 Pagina 40

41
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
DOOR MIRRORS

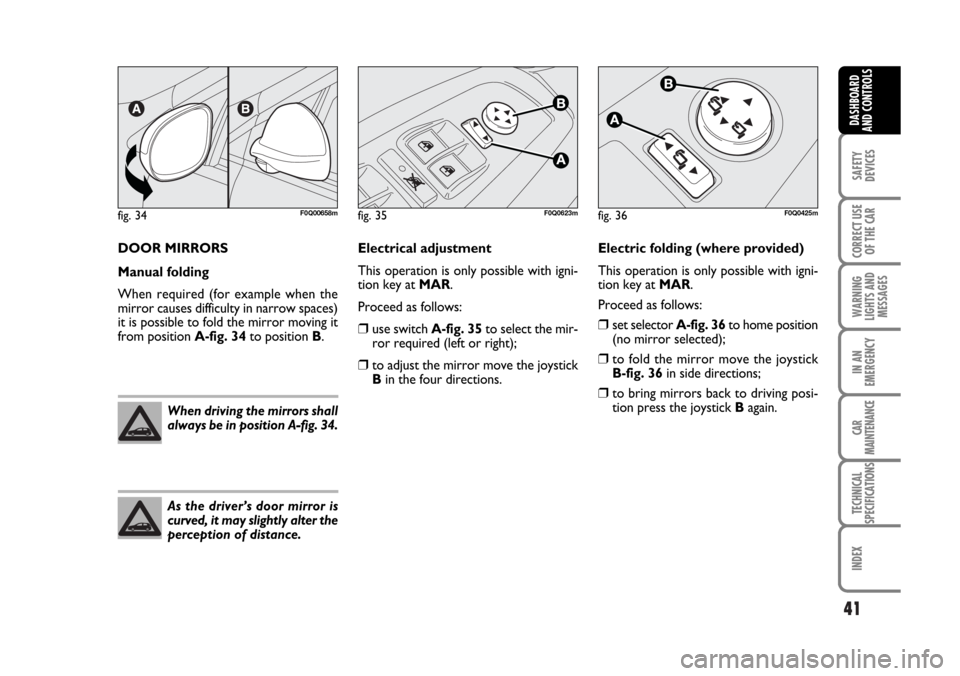

Manual folding
