2007 DODGE SPRINTER headlamp

13 At a glance
Cockpit
1
Function
Page
1
Door control panel
22
2
Light switch
77
3
Combination switch\4Turn signals
\4High-beam headlamps
\4Windshield wipers
\4Rear window wiper*
79
77
126
127
4
Cruise control lever*
147
5
Horn
6
Steering wheel without/
with* buttons
17
Function
Page
7
Instrument cluster
14, 84
8
Storage compartment
9
Storage compartment with
interior lamp
80
Overhead control panel*
19
a
Rear-view mirror*
125
b
Warning display for Park-
tronic system*
150
c
Opens / closes the right-
hand side window
144
d
Jack and vehicle tool kit
300
e
Glove box
165
Function
Page
f
Center console
18
g
Selector lever (automatic
transmission)
111
h
Ignition lock
67
j
Additional switch unit
20
k
Handbrake
115
l
Steering wheel adjustment
76
m
Hood lock release
185
n
Additional switch unit
20

16 At a glanceInstrument cluster
1
Indicator and warning lamps
Page
v
ESP
® warning lamp
43
268
ASR warning lamp
44
45
268
/
Coolant level too low
275
D
Coolant temperature too
high
275
1
Restraint systems
malfunction
272
Brake fluid level too low
269
EBV malfunction
268
Malfunction in trailer's
brake booster
269
N
Engine oil level warning
274
±
Engine diagnostic
indicator lamp
277
q
Pre-glow system, diesel
engine only
111
276
Turn signal, left
79
Indicator and warning lamps
Page
X
Combination low tire
pressure/TPMS mal-
function telltale, USA
only
278
Low tire pressure tell-
tale, Canada only
278
J
Windshield washer/
headlamp cleaning sys-
tem* washer fluid level
too low
280
Door open
280
2
Brake pads / linings
worn
273
Turn signal, right
79
-
ABS malfunction
271
k
ASR malfunction
270
BAS malfunction
270
#
ESP
® malfunction
272
A
Reserve fuel
276
Fuel filler flap open
276
Indicator and warning lamps
Page
Water in the fuel
280
#
Battery charge malfunc-
tion
273
.
Defective bulb
280
Handbrake applied
115
B
Low-beam headlamps
on
77
™
Operating speed gover-
nor on*
154
A
High-beam headlamps
on
77
<
Seat belt reminder
280
iVehicles with steering wheel buttons:
Corresponding messages may also be
shown in display9 (\2page 93).

77 Controls in detail
Lighting
3
Legal requirements may impose variations
in certain countries.
The light switch is located between the
driver’s door and the steering wheel.
1Light switch
2Front foglamp* indicator lamp
3Rear foglamp indicator lampSwitching on the low-beam headlamps
\1Turn light switch to B.
TheB indicator lamp in the instru-
ment cluster lights up.
Switching on the high-beam headlamps
The combination switch is located on the
left of the steering wheel.
1High-beam headlamps
2Headlamp flasher
iIf you are traveling in countries where
vehicles are driven on the opposite side
of the road to that in which the vehicle
is registered, you must have the head-
lamps:
\4partially masked (halogen head-
lamps)
\4switched over (bi-xenon head-
lamps)
You will find further information in the
“Operation” section (\2page 180).
Light switchU
Automatic headlamp control*
M
Lights off
C
Parking lamps, license plate and
instrument lighting on
B
Low-beam headlamps on
N82.10-2527-31

78 Controls in detailLighting
3
\1Turn key to position1 in ignition lock
(\2page 67).
\1Turn light switch to B.
\1Press combination switch forward 1.
The indicator lampA in the instru-
ment cluster lights up.
Headlamp flasher
\1Turn key to position1 in ignition lock
(\2page 67).
\1Pull combination switch briefly in
direction2.
Constant headlamp mode*
On vehicles with steering wheel buttons,
you can set constant headlamp mode
(\2page 102). This does not apply to coun-
tries in which there is a legal requirement
to use constant headlamp mode.\1Turn light switch to M.
The low-beam headlamps, parking
lamps and license plate lamp are
switched on when the engine is
running.
TheB indicator lamp in the instru-
ment cluster lights up.
Automatic headlamp control*
The parking lamps, low-beam headlamps
and license plate lamp are switched on au-
tomatically when the brightness of ambi-
ent light falls below a predetermined level.\1Turn light switch toU.
The parking lamps are switched on / off
automatically when the key is in posi-
tion 1 (\2page 67) in the ignition lock.
The parking lamps, low-beam head-
lamps and license plate lamp are
switched on / off automatically when
the engine is running, depending on the
ambient light conditions.
Only use manual headlamp mode when
you are driving in countries where driving
with the low-beam headlamps switched on
is required by law.
\1In this case, turn the light switch to
B.
Warning
G
If the light switch is atU:
\4the headlamps could switch off tempo-
rarily due to extreme glare, e.g. from on-
coming traffic
\4the lights do not switch on automatically
in foggy conditions
Set the light switch to B. Otherwise you
are endangering yourself and others.
If it is dark, only turn the light switch from
U toB when the vehicle is stationary.
You could otherwise cause an accident if the
headlamps were to switch off briefly.
Automatic headlamp mode is only a driving
aid. You are responsible for the vehicle’s
lighting at all times.

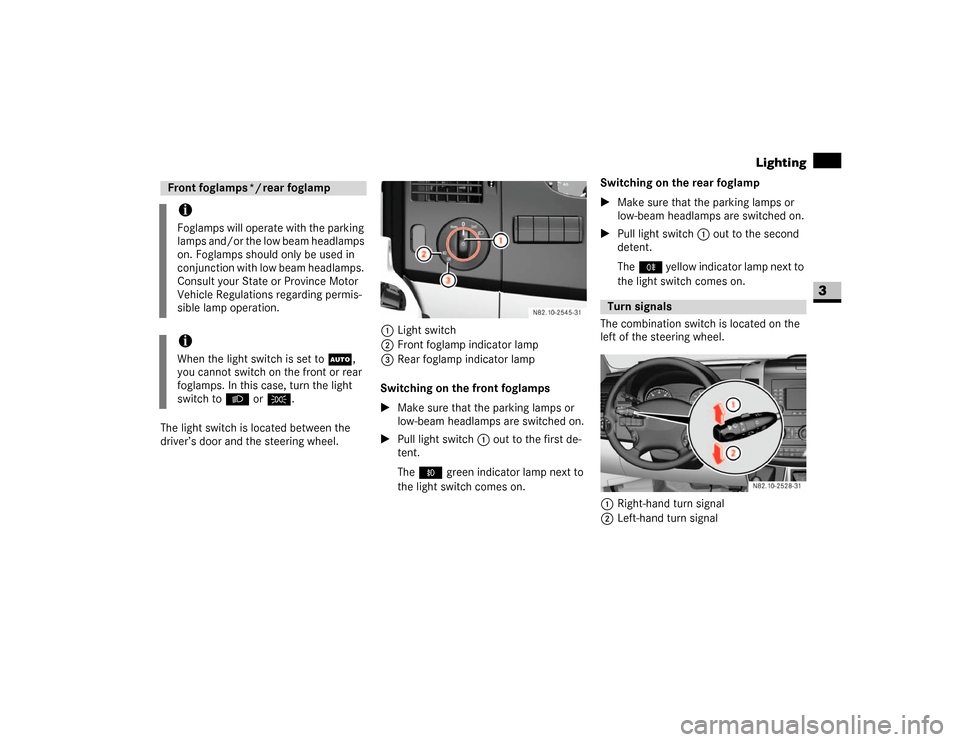

79 Controls in detail
Lighting
3
The light switch is located between the
driver’s door and the steering wheel.1Light switch
2Front foglamp indicator lamp
3Rear foglamp indicator lamp
Switching on the front foglamps
\1Make sure that the parking lamps or
low-beam headlamps are switched on.
\1Pull light switch1 out to the first de-
tent.
The‡ green indicator lamp next to
the light switch comes on.Switching on the rear foglamp
\1Make sure that the parking lamps or
low-beam headlamps are switched on.
\1Pull light switch1 out to the second
detent.
The† yellow indicator lamp next to
the light switch comes on.
The combination switch is located on the
left of the steering wheel.
1Right-hand turn signal
2Left-hand turn signalFront foglamps */ rear foglampiFoglamps will operate with the parking
lamps and/or the low beam headlamps
on. Foglamps should only be used in
conjunction with low beam headlamps.
Consult your State or Province Motor
Vehicle Regulations regarding permis-
sible lamp operation.iWhen the light switch is set toU,
you cannot switch on the front or rear
foglamps. In this case, turn the light
switch to B orC.
Turn signals
N82.10-2528-31

85 Controls in detail
Lighting
3
With the lights switched on, you can adjust
the brightness of the instrument lighting
using the and buttons.
\1Brighter: press the button.
\1Dimmer: press the button.The red band in the tachometer indicates
the engine’s overrevving range.
To protect the engine, the fuel supply is in-
terrupted when the red band is reached.
Warning
G
No messages can be displayed if the instru-
ment cluster and / or the display is malfunc-
tioning.
You will not then be able to see information
about the vehicle status, such as speed and
outside temperature, warning and indicator
lamps, malfunction and warning messages
or the malfunction of systems. Handling
characteristics may be affected.
Contact a qualified specialist workshop im-
mediately which has the necessary special-
ist knowledge and tools to carry out the
work required.
The manufacturer recommends that you use
an authorized Sprinter Dealer for this pur-
pose. In particular, work relevant to safety
or on safety-related systems must be car-
ried out at a qualified specialist workshop.
Only use adjustment buttons , , ,
or when traffic conditions permit.
You will otherwise be unable to observe road
and traffic conditions and could cause an ac-
cident.
Do not reach through the steering wheel to
press the adjustment buttons. This will
make the steering wheel much more difficult
to control. Your attention will also be divert-
ed from the road and traffic conditions. This
could cause you to lose control of the vehi-
cle and could lead to an accident.
Do not rest your head or chest on the steer-
ing wheel or dashboard when operating the
adjustment buttons. See the safety precau-
tions for airbags (\2page 31).Instrument lightingiVehicles with automatic headlamp
mode*:
The instrument lighting also adjusts in
line with the automatic headlamp
mode.
Tachometer!
CAUTION
Do not drive in the overrevving range.
Doing so could damage the engine.
Environmental note
H
Avoid high engine speeds. These could in-
crease your vehicle’s fuel consumption un-
necessarily and damage the environment
through increased pollutant emissions.SpeedometeriIn some countries, a signal sounds
when the vehicle reaches the maximum
speed limit, e.g. at 75 mph
(120 km/h).

102 Controls in detailOperating system with steering wheel buttons*
3
Setting the day
\1Select the
Clock/Date
submenu using
theæ or ç button.
\1Press thej or k button repeat-
edly until you see the Date Day
mes-
sage in the display.
\1Set the day by pressing theæ or
ç button.
Setting the day
\1Select the
Clock/Date
submenu using
theæ or ç button.
\1Press thej or k button repeat-
edly until you see the Date Month
mes-
sage in the display.\1Set the month by pressing theæ or
ç button.
Setting the year
\1Select the
Clock / Date
submenu using
theæ or ç button.
\1Press thej or k button repeat-
edly until you see the Date Year
mes-
sage in the display.
\1Set the year by pressing theæ or
ç button.Lighting submenu
*
You can reach the
Lighting
submenu via
the
Settings
menu (\2page 96).
Setting constant headlamp mode*
If you have set constant headlamp mode
and the light switch is at M, the follow-
ing light up automatically when the engine
is running:
\4The parking lamps and low-beam head-
lamps
\4The tail lamps
\4The license plate lamp
For safety reasons, it is only possible to
change this setting when the vehicle is sta-
tionary. The factory setting is
Constant
in
countries in which constant headlamp
mode is mandatory. N54.32-2265-31
N54.32-2266-31N54.32-2267-31
Function
Page
Set constant headlamp mode*
102
Switch the locator lighting on or
off*
103
Switch the exterior lighting
delayed switch-off on or off*
104

103 Controls in detail
Operating system with steering wheel buttons*
3
\1Press theæ or ç to select the
Lighting
submenu.
\1Press thej or k button repeat-
edly until you see the
Hdlmp. mode
mes-
sage in the display.
The current setting is highlighted.
\1Press theæ or ç button to se-
lect whether you wish to operate the
lighting manually or whether you wish
to set constant headlamp mode.Switching the locator lighting on or off*
If you switch the locator lighting to
On, the
following lamps light up in the dark after
you have unlocked the vehicle using the
key:
\4The parking lamps
\4The tail lamps
\4The license plate lamp
\4The front foglampsThe locator lighting automatically switches
off after 40 seconds or when you:
\4open the driver’s door
\4insert the key into the ignition lock
\4lock the vehicle with the key
\1Press theæ or ç to select the
Lighting
submenu.
\1Press thej or k button repeat-
edly until you see the
Loc. lighting

message in the display.
The current setting is highlighted.
\1Press the æ or ç button to
switch the locator lighting
On or
Off
.
iFor safety reasons, it is not possible to
reset the
Hdlmp. mode
function to the
factory setting while the vehicle is in
motion. You will see the following mes-
sage in the display: Setting only pos-
sible at standstill
N54.32-2268-31
USA only:
If you turn the light switch toC
orB, the corresponding light
switches on. Constant headlamp mode
remains activated if the light switch is
turned toU.
Canada only:
If you turn the light switch toB, the
low-beam headlamps are switched on.
Constant headlamp mode remains acti-
vated if the light switch is turned
toC orU.
N54.32-2269-31
