2007 DODGE POWER WAGON hood release

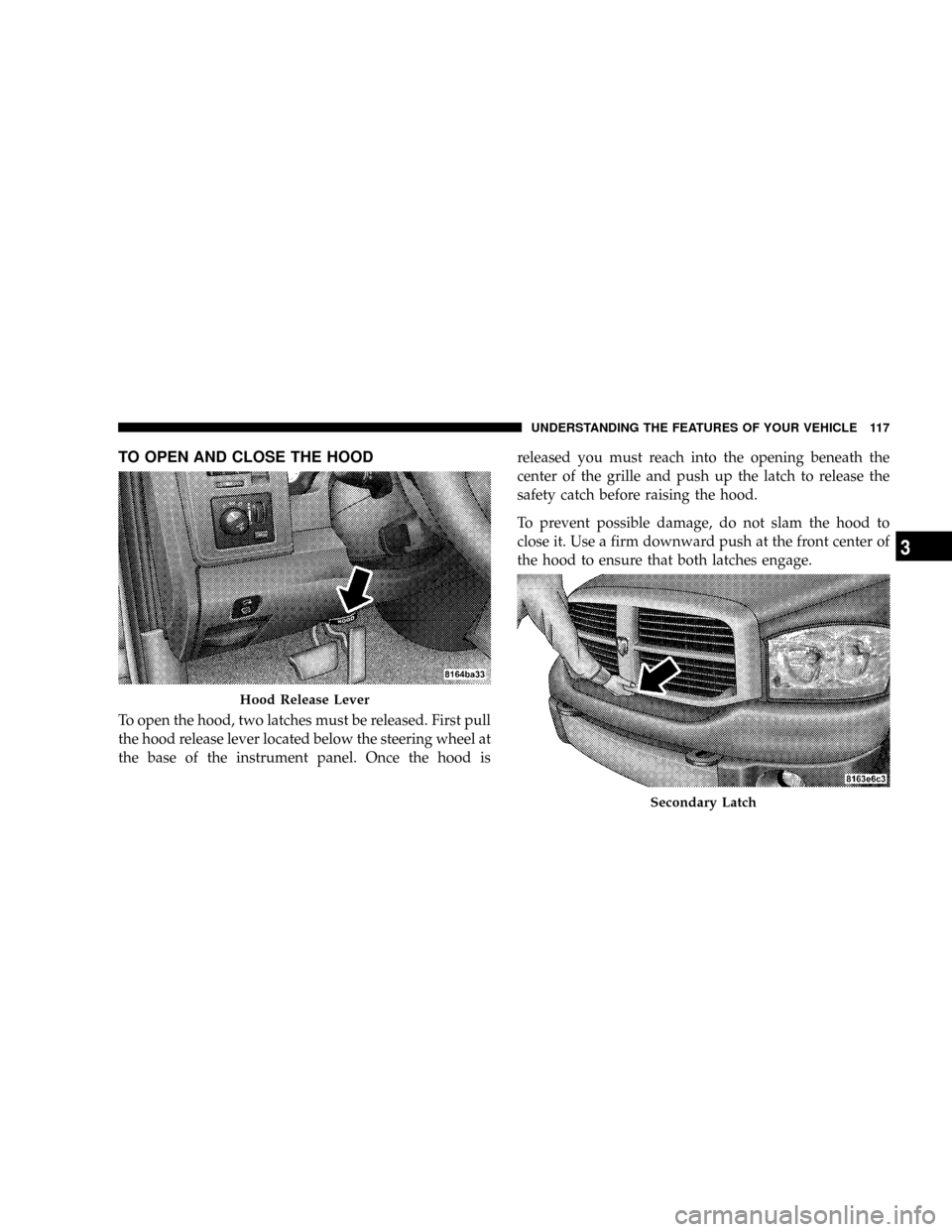

TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released. First pull
the hood release lever located below the steering wheel at
the base of the instrument panel. Once the hood isreleased you must reach into the opening beneath the
center of the grille and push up the latch to release the
safety catch before raising the hood.
To prevent possible damage, do not slam the hood to
close it. Use a firm downward push at the front center of
the hood to ensure that both latches engage.
Hood Release Lever
Secondary Latch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117
3

Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, doors, tailgate and hood hinges, should be
lubricated periodically to assure quiet, easy operation
and to protect against rust and wear. Prior to the appli-
cation of any lubricant, the parts concerned should be
wiped clean to remove dust and grit; after lubricating
excess oil and grease should be removed. Particular
attention should also be given to hood latching compo-
nents to insure proper function. When performing other
underhood services, the hood latch, release mechanism
and safety catch should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the fall and spring. Apply a small
amount of a high quality lubricant such as MopartLock
Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
The rubber edges of the wiper blades and the windshield
should be cleaned periodically with a sponge or soft cloth
and a mild nonabrasive cleaner. This will remove accu-
mulations of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
Windshield Washers
The fluid reservoir is located under the hood and should
be checked for fluid level at regular intervals. Fill the
reservoir with windshield washer solvent only (not ra-
diator antifreeze).
MAINTAINING YOUR VEHICLE 401
7

Passing............................. 124
Switch.............................. 120
Heated Mirrors.......................86,154
Heated Seats........................... 115
Heater............................... 230
Heater, Engine Block..................... 249
High Beam/Low Beam Select (Dimmer) Switch . . 124
Hitches
Trailer Towing........................ 349
Hoisting.............................. 375
HomeLinkt(Garage Door Opener) Transmitter . . . 139
Hood Release.......................... 117
Hoses................................ 408
Hub Caps............................. 373
Ignition............................... 13
Cables (Spark Plug Wires)................ 393
Key ...............................12,13
Wiring System (Spark Plug Wires).......... 393Ignition Key Removal..................... 13
Illuminated Entry........................ 20
Infant Restraint........................58,59
Inflation Pressure Tires.................... 332
Inside Rearview Mirror.................... 83
Instrument Cluster....................172,173
Instrument Panel and Controls.............. 171
Instrument Panel Lens Cleaning............. 424
Integrated Power Module (Fuses)............ 425
Interior Appearance Care.................. 423
Interior Lights.......................... 119
Intermittent Wipers (Delay Wipers)........... 125
Introduction............................. 4
Jack Location........................... 367
Jack Operation.......................... 369
Jump Starting.......................... 375
Key, Replacement........................ 17
480 INDEX
