MIRRORS
Inside Day/Night Mirror
Adjust the mirror to center on the view through the rear
window. A two-point pivot system allows for horizontal
and vertical mirror adjustment.
Annoying headlight glare can be reduced by moving the
small control under the mirror to the night position
(toward rear of vehicle). The mirror should be adjusted
while set in the day position (toward windshield).
Automatic Dimming Inside Mirror Ð If Equipped
This mirror automatically adjusts for annoying headlight
glare from vehicles behind you. You can turn the feature
on or off by pressing the button at the base of the mirror.
A light in the button will indicate when the dimming
feature is activated.
Adjusting Rearview MirrorAutomatic Dimming Mirror
64 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
To avoid damage to the mirror during cleaning,
never spray any cleaning solution directly onto the
mirror. Apply the solution onto a clean cloth and
wipe the mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.
NOTE:The passenger side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side convex mirror could cause you to
collide with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger side convex mirror.
Exterior Mirrors Folding Feature Ð If Equipped
Some models have exterior mirrors that are hinged. The
hinge allows the mirror to pivot forward and rearward to
resist damage. The hinge has three detent positions, full
forward, full rearward, and normal.
Driver's Side Outside Mirror Auto Dimmer Ð If
Equipped
This mirror automatically adjusts for annoying headlight
glare from vehicles behind you. You can turn this feature
on or off by pressing the button at the base of the Inside
Rearview Mirror.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 65
3

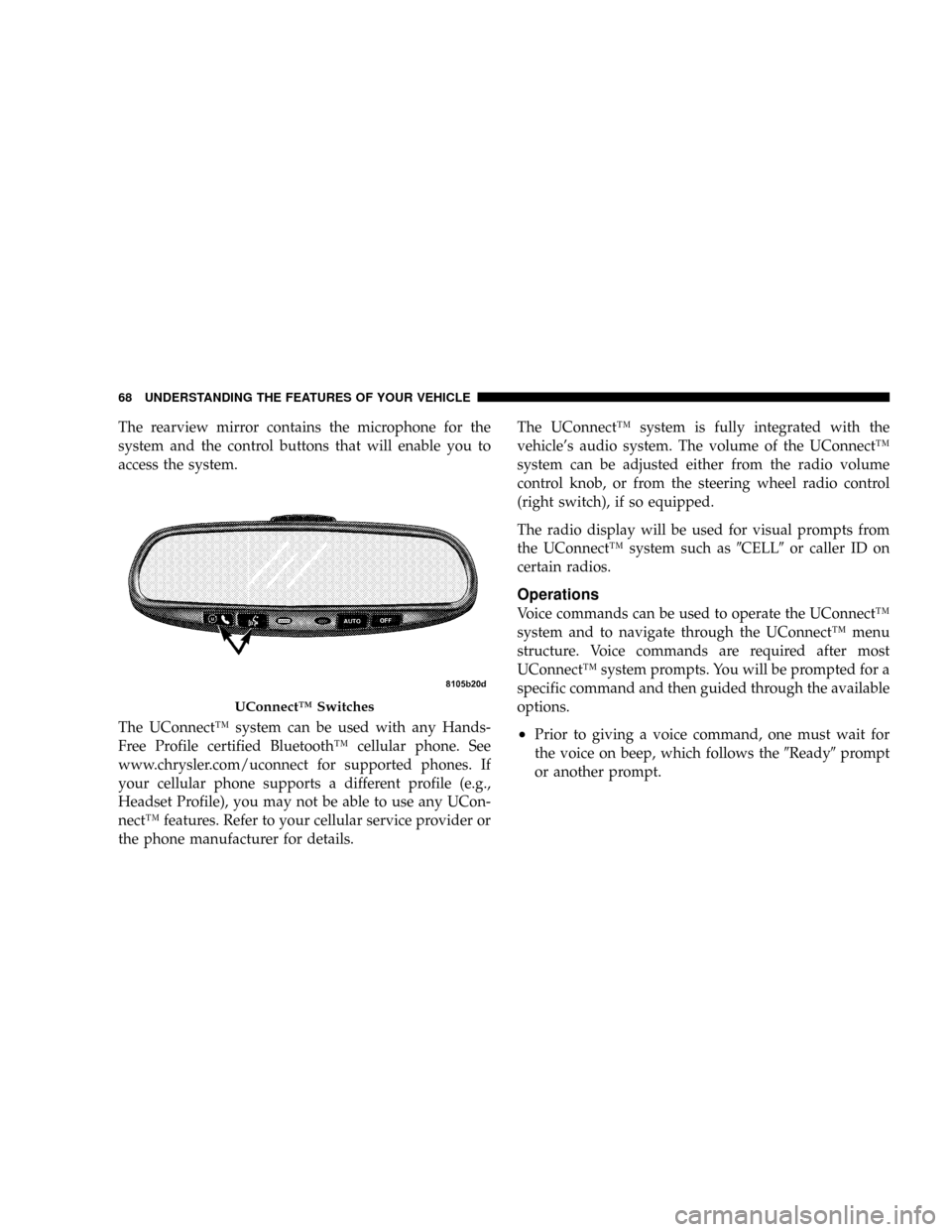

The rearview mirror contains the microphone for the
system and the control buttons that will enable you to
access the system.
The UConnectŸ system can be used with any Hands-
Free Profile certified BluetoothŸ cellular phone. See
www.chrysler.com/uconnect for supported phones. If
your cellular phone supports a different profile (e.g.,
Headset Profile), you may not be able to use any UCon-
nectŸ features. Refer to your cellular service provider or
the phone manufacturer for details.The UConnectŸ system is fully integrated with the
vehicle's audio system. The volume of the UConnectŸ
system can be adjusted either from the radio volume
control knob, or from the steering wheel radio control
(right switch), if so equipped.
The radio display will be used for visual prompts from
the UConnectŸ system such as9CELL9or caller ID on
certain radios.
Operations
Voice commands can be used to operate the UConnectŸ
system and to navigate through the UConnectŸ menu
structure. Voice commands are required after most
UConnectŸ system prompts. You will be prompted for a
specific command and then guided through the available
options.
²Prior to giving a voice command, one must wait for
the voice on beep, which follows the9Ready9prompt
or another prompt.
UConnectŸ Switches
68 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments, which may
scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag or micro-fiber towel. A mild
soap solution may be used, but do not use high alcohol
content or abrasive cleaners. If soap is used, wipe clean
with a clean damp rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.If the belts need cleaning, use MopartTotal Clean, a mild
soap solution, or lukewarm water. Do not remove the
belts from the vehicle to wash them.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Cleaning the Center Console Cup Holders
Perform the following steps to clean the center console
cup holders:
²Grab the center of the rubber portion of the cup holder
firmly and lift upward to remove.
²Soak the rubber cup holder liner in a mixture of
medium hot tap water and one teaspoon of mild liquid
dish soap. Let soak for approximately one hour.
²After one hour pull the liner from the water and dip it
back into the water about six times. This will loosen
any remaining debris.
²Rinse the liner thoroughly under warm running water.
Shake the excess water from the liner and dry the
outer surfaces with a clean soft cloth.
MAINTAINING YOUR VEHICLE 319
7

Cavity Car-
tridge
FuseMini
FuseDescription
38 Ð 5 Amp
OrangeOverhead Console
39 Ð 10 Amp
RedHeated Mirrors - if
equipped
40 Ð 10 Amp
RedHeated Seats - if
equipped/Inside Rear-
view Mirror
41 Ð 10 Amp
RedTire Pressure Monitoring
- if equipped
42 30 Amp
PinkÐ Front Blower Motor
43 30 Amp
PinkÐ Amplifier - if equipped/
Antenna/Rear Defrost
44 20 Amp
BlueÐ Amplifier - if equipped/
Front Control Module
(FCM)/Sunroof - if
equipped
*Cavities 11, 12, and 13 contain self-resetting fuses
(circuit breakers) that are only serviceable by an autho-
rized dealer. The Cluster is fused by the 25 amp circuitbreaker in Cavity 11. The Passenger Seat Switch is fused
by the 25 amp circuit breaker in Cavity 12. The Door
Modules and the Driver Express Power Window Switch
(if equipped) are fused by the 25 amp circuit breaker in
Cavity 13. If you experience temporary or permanent loss
of these systems, see your authorized dealer for service.
CAUTION!
²When installing the Power Distribution Center
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Power Distribu-
tion Center, and possibly result in a electrical
system failure.
²When replacing a blown fuse, it is important to
use only a fuse having the correct amperage
rating. The use of a fuse with a rating other than
indicated may result in a dangerous electrical
system overload. If a properly rated fuse contin-
ues to blow, it indicates a problem in the circuit
that must be corrected.
MAINTAINING YOUR VEHICLE 325
7

HomeLinkt(Garage Door Opener)
Transmitter........................... 107
Hood Release.......................... 92
Hoses............................. 311,312
Ignition............................... 11
Key ................................ 11
Ignition Key Removal.................... 11
Illuminated Entry....................... 17
Immobilizer (Sentry Key).................. 12
Infant Restraint.......................48,49
Inflation Pressure Tires................... 140
Information Center, Vehicle............... 143
Inside Rearview Mirror................... 64
Instrument Cluster...................134,135
Instrument Panel and Controls............. 133
Instrument Panel Lens Cleaning............ 319
Interior Appearance Care................. 318
Interior Fuses.......................... 320
Interior Lights.......................... 97
Intermittent Wipers (Delay Wipers).......99,197
Introduction............................ 4Jump Starting......................... 282
Key, Programming....................... 14
Key, Replacement....................... 13
Key, Sentry (Immobilizer).................. 12
Key-In Reminder........................ 12
Keyless Entry System..................... 17
Keys................................. 11
Knee Bolster........................... 39
Lane Change and Turn Signals.............. 96
Lap/Shoulder Belts...................... 31
LATCH (Lower Anchors and Tether for
CHildren)...........................51,53
Latch Plate............................ 32
Latches............................... 59
Hood............................... 92
Lead Free Gasoline...................... 253
Life of Tires........................... 241
Liftgate............................... 28
Liftgate Window Wiper/Washer............ 197
Lights..............................59,93
Airbag.......................44,47,59,137
370 INDEX

Child Protection....................... 23
Door............................... 21
Power Door.......................... 22
Low Tire Pressure System................ 246
Lower Anchors and Tether for CHildren
(LATCH)............................51,53
Lubrication, Body....................... 304
Luggage Rack (Roof Rack)................ 126
Lumbar Support........................ 89
Maintenance Free Battery................. 301
Maintenance Procedures.................. 295
Maintenance Schedule................... 336
Schedule ªAº........................ 349
Schedule ªBº........................ 339
Malfunction Indicator Light (Check
Engine)...........................142,293
Manual, Service........................ 359
Methanol............................. 254
Mini-Trip Computer..................... 145
Mirrors............................... 64
Automatic Dimming.................... 64
Electric Remote....................... 66Exterior Folding....................... 65
Heated.............................. 66
Outside............................. 65
Rearview............................ 64
Vanity.............................. 66
Modifications/Alterations, Vehicle............ 7
Monitor, Tire Pressure System............. 246
Mopar Parts........................294,358
MTBE/ETBE.......................... 254
Multi-Function Control Lever............... 96
Navigation Radio....................... 173
Navigation System...................... 173
New Vehicle Break-In Period............... 56
Occupant Restraints...................... 30
Octane Rating, Gasoline (Fuel)............. 253
Odometer............................ 135
Trip ............................... 135
Oil, Engine.........................295,332
Capacity............................ 331
Change Interval...................... 296
Checking........................... 295
372 INDEX

Dipstick............................ 295
Disposal............................ 298
Filter...........................298,332
Filter Disposal....................... 298
Materials Added to.................... 297
Recommendation..................297,331
Viscosity.........................297,331
Onboard Diagnostic System............292,293
Opener, Garage Door (HomeLinkt) ......... 107
Operating Precautions................... 292
Outside Rearview Mirrors................. 65
Overhead Console...................... 106
Overheating, Engine..................... 276
Owner's Manual (Operator Manual)......... 359
Panic Alarm........................... 19
Parking Brake......................... 217
Parking On Hill........................ 217
Passing Light........................... 96
Pedals, Adjustable...................... 102
Personal Settings....................... 151
Pets.................................. 56
Phone, Cellular......................... 67Phone, Hands-Free (UConnectŸ)............ 67
Placard, Tire and Loading Information....... 233
Power
Brakes............................. 219
Distribution Center (Fuses).............. 320
Door Locks.......................... 22
Mirrors............................. 66
Outlet (Auxiliary Electrical Outlet)........ 115
Seats............................... 87
Steering.........................221,304
Steering, Checking.................... 304
Sunroof............................ 112
Windows............................ 25
Pregnant Women and Seat Belts............. 38
Pretensioners
Seat Belts............................ 36
Programmable Electronic Features.....108,111,151
Programming Transmitters (Remote
Keyless Entry)....................19,108,111
Radial Ply Tires........................ 240
Radiator Cap (Coolant Pressure Cap)........ 309
Radio Broadcast Signals.................. 154
INDEX 373
10
