75
II
A
E L E C T R O N I C S T A B I L I T Y P R O G R A M M E
The ESP system offers increased driving safety but is not in place to encourage the driver to take addi-tional risks or to drive at excessive speeds.
The functioning of this system is subject to compliance with the manufacturer’s recommendations o n w h e e l s ( t y r e s a n d r i m s ) , b r a k e parts and electronic components, as well as with the assembly and repair procedures approved by CITROËN.repair procedures repair procedures
After any collision, have this system checked by a CITROËN dealer.After any collision, have this system collision, have this
ELECTRONIC STABILITY PROGRAMME (ESP) AND TRACTION CONTROL (ASR)
These systems are closely associated with ABS and additional to it. In the event of a loss of control of the vehicle by the driver, the ESP system acts automatically on one or more wheels and also on the engine to bring the vehicle back on trajectory. The ASR system optimises traction and prevents wheel spin by acting on the brakes of the driving wheels as well as on the engine. It also improves steering stability during acceleration.
OPERATION
When either the ESP or the ASR system is brought into operation the warning lamp “ESP/ASR ” fl a s h e s .
DEACTIVATION
I n e x c e p t i o n a l c o n d i t i o n s ( v e h i c l e s t u c k i n s n o w , s o f t g r o u n d , e t c . ) i t m a y prove useful to deactivate the ESP/ASR systems to allow the wheels to spin and thus regain traction.
Press on button A, the “ESP/ASR” warning lamp, as well as the lamp on the button A, light up. The ESP/ASR systems are no longer active.
The ESP/ASR systems will activate again:Automatically after the ignition has been switched off.
Automatically when you drive at above approx. 50 km/h (approx. 3 0 m p h ) .Manually with another press on button A.
OPERATIONAL ANOMALY
Should there be a system malfunction, the “ESP/ASR” warning lamp will light up.
Contact a CITROËN dealer to have the system checked.
Page 75 of 216
77
II
As the vehicle approaches the obstacle, the sound signal becomes more and more urgent and the shaded areas are displayed closer and closer to the vehicle.
Proximity sensors are located in the front and rear bumpers of your vehi-cle.
When manœuvring in either forward or reverse gear, at a low speed less than approx. 10 km / h (6 mph), they inform you of the presence of any obstacle that is within their zone of detection by: A sound signal emitted by the front or rear loudspeakers.ADisplay of the outline of your vehicle with shading corresponding t o the area where an obstacle is detected.
As the vehicle approaches the obstacle, the sound signal tells you the posi-tion of the obstacle according to whether the sound is coming from the front LH or RH or the rear LH or RH loudspeakers.Note: The sound volume of your audio equipment reduces automatically when a signal is being emitted.
Page 84 of 216
86
III
A U T O M A T I C A I R C O N D I T I O N I N G
AIR CONDITIONING
This system automatically adjusts the temperature, the fl o w o f a i r a n d t h e d i s t r i b u t i o n o f a i r i n s i d e t h e c a b i n , depending on your desired comfort level.
Provided you retain automatic mode (by pressing button “AUTO ” ) a n d a l l t h e a i r v e n t s a r e o p e n , y o u w i l l m a i n -tain an optimum comfort level, also removing humidity and misting, whatever the ambient climatic conditions.
The temperature inside the cabin cannot be lower than the temperature outside if the air conditioning is not operating.
To be effective, the air conditioning should only be used with the windows closed. If after a lengthy stop in bright sunlight the interior temperature is excessive, air the passenger compartment by opening the windows for a few moments, then close them again.
To keep the air conditioning compressor well sealed, it is essential to operate the air conditioning at least once in every month.
The air conditioning operates by using power from the engine. This results in a slight increase in fuel con-sumption.
Sensors
The automatic regulation of the air conditioning inside the cabin uses a number of sensors (sunlight, ambient t e m p e r a t u r e , i n s i d e t e m p e r a t u r e , e t c . ) r e l i e v i n g y o u o f the need to make your own adjustments within a normal temperature range.
The humidity sensor is there to prevent misting inside the vehicle.
Be careful not to obstruct the sensors A and C.
Air inlet
Check that the exterior grille for the air inlet, at the bot-tom of the windscreen, is clean and free of dead leaves, snow, etc.
If washing the vehicle with a high pressure jet, avoid targeting the air inlet zone.
Air circulation
For your comfort we advise you to maintain a proper distribution of air within the cabin, both at the front and at the rear.
The air vents to the face have thumbwheels so that you c a n a d j u s t t h e fl o w o f a i r , a n d g r i l l e s t o o r i e n t t h e d i r e c -tion.
T h e r e a r e a i r v e n t s o n t h e fl o o r u n d e r n e a t h t h e f r o n t seats and on the rear control panel, for enhanced heat-ing of the rear seat positions.
Do not obstruct the air outlets located in the boot area.
D u s t / p o l l e n fi l t e r
T h e r e i s a fi l t e r f o r e x c l u d i n g p o l l e n a n d d u s t .
T h i s fi l t e r h a s t o b e c h a n g e d a c c o r d i n g t o t h e v e h i c l e maintenance schedule. See “Maintenance Guide”.
Additional heating
Vehicles with an HDi engine may be provided with auto-matic additional heating for enhanced comfort.
It is normal to notice slight odours or smoke emissions, especially when the vehicle is idling or stationary.
Page 88 of 216
90
III
5
6
7
A U T O M A T I C A I R C O N D I T I O N I N G
5. FRONT DEMISTING - DEICING
Press button 5 for rapid clear windows. The warning lamp comes on. This system controls the air condi- t i o n i n g , t h e a i r fl o w a n d t h e e n t r y o f a i r f r o m o u t s i d e . I t sends the ventilation towards the windscreen and side windows.
A press on the 1 button returns you to “AUTO” mode.
6. REAR DEMISTING - DEICING
Press button 6, with the engine running, to start a rapid deicing or demisting of the rear screen and rear view mirrors. The warning lamp comes on.
This mode stops automatically as a function of the out-side temperature. It can be paused by pressing again on button 6 or by stopping the engine.
In the latter case, demisting will resume when the engine is switched on again.Note: The heated rear screen operates independently of the automatic air conditioning.
7. AIR RECIRCULATION – ENTRY OF AIR FROM OUTSIDE
Press successively on button 7 to select air entry mode. The corresponding warning lamp lights up:Recirculation of air inside the cabinThis mode is for excluding unpleasant odours or smoke coming from outside. It should be cancelled as soon as possible to re-allow fresh air into the cabin and thus prevent misting.
Entry of air from outside“AUTO” mode is deactivated.
Note: To return to “AUTOto “to “” mode, press button 7 for 7a third time, or button 1.
Page 102 of 216
104
III221
2
2

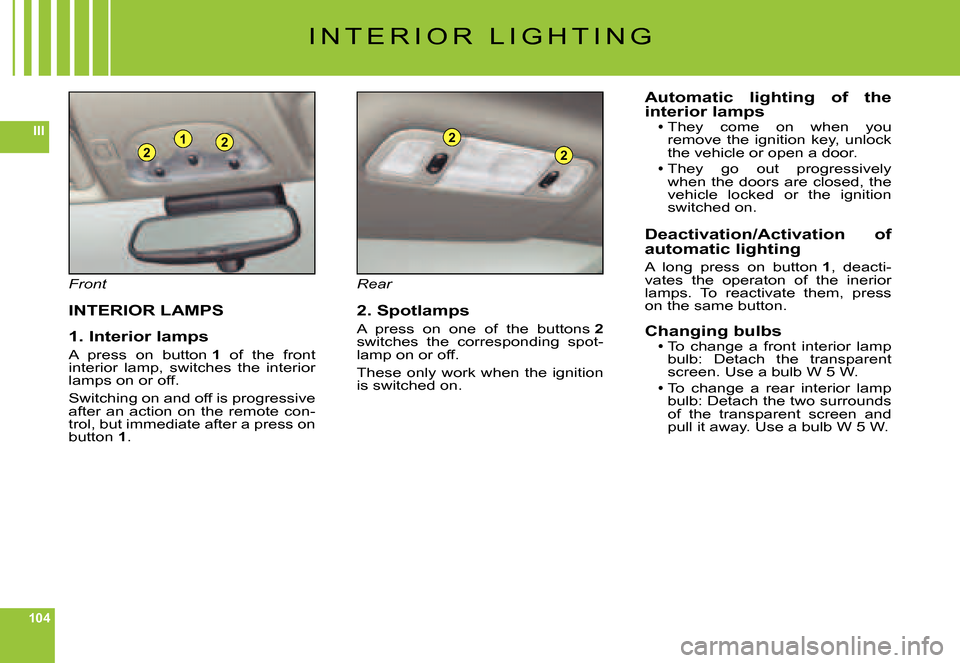

I N T E R I O R L I G H T I N G
Front
INTERIOR LAMPS
1. Interior lamps
A press on button 1 of the front interior lamp, switches the interior lamps on or off.
Switching on and off is progressive after an action on the remote con-trol, but immediate after a press on button 1.
R e a r
2. Spotlamps
A press on one of the buttons 2switches the corresponding spot-lamp on or off.
These only work when the ignition is switched on.
Automatic lighting of the interior lampsThey come on when you remove the ignition key, unlock the vehicle or open a door.
They go out progressively when the doors are closed, the vehicle locked or the ignition switched on.
Deactivation/Activation of automatic lighting
A long press on button 1, deacti-vates the operaton of the inerior lamps. To reactivate them, press on the same button.
Changing bulbsTo change a front interior lamp bulb: Detach the transparent screen. Use a bulb W 5 W.To change a rear interior lamp bulb: Detach the two surrounds of the transparent screen and pull it away. Use a bulb W 5 W.
Page 111 of 216
113
IIIA
S U N R O O F
Glass sun roof
The sun roof is operated by the electrical control A.
A n a c t i o n t o t h e fi r s t n o t c h o f t h e control starts a movement which stops as soon as you release the control.
An action to the second notch of the control opens or closes the sun roof fully. A further action stops the movement.
ANTI-PINCH
An anti-pinch device is present to stop the sun roof from sliding shut. If it meets an obstacle it slides in the opposite direction.
After a battery disconnection or if there has been a malfunction, you have to re-initialise the anti-pinch function.
To do that, action the control A to the second notch to make the sun roof open fully, then keep the control A pressed for at least 1 seconds.
Warning: During this manœuvre, the anti-pinch does not operate.
Your vehicle's sun roof has a manually-operated blind.
Always remove the ignition key when leaving the vehicle, even if for a short time.
In the event of anything being caught by the sun roof clos ing, you must reverse the roof movement.
To do that, reverse the position of the control concerned.
When the driver is operating the sun roof, he or she must always make sure that the passengers are not preventing it from closing properly.
The driver must ensure that passengers use the sun roof control correctly.
PAY ESPECIAL ATTENTION TO WHERE CHILDREN ARE WHEN OPERATING THE SUN ROOF.
Page 120 of 216
122
IV
SELECTING CD SOURCE
After inserting a CD, with the printed side facing upwards, the player will start playing the CD automatically.
To change manually to CD source ( C D a l r e a d y i n s e r t e d ) , p r e s s b u t -ton D until you obtain the source you require.
You can also do this by means of control 5 at the steering wheel.
EJECTING A CD
Press button B to eject the CD, the audio system will automatically switch to radio source.
If the CD is not removed within 10 to 15 seconds of being ejected, it will automatically be taken back into the CD player, although it will not be played.
SELECTING A TRACK
Press button K once to play the next track.
Press button N once to return to the beginning of the track currently being played, press a second time to go back to the start of the previ-ous track.
Press the buttons successively to skip several tracks at a time.
This can also be done via the con-trol G. As the list of tracks is dis-played on the screen, select the desired track using buttons J or M, then validate using button L.
C D S O U R C E
You can also do this via the con-trols 2 and 3 at the steering wheel.
FAST FORWARD AND RAPID REVERSE WITH ACCELER-ATED SOUND
To move swiftly through the CD, press and keep pressed button Kor N, respectively for fast forward or rapid reverse with accelerated sound.
Play resumes as normal when the button is released.
MENU
This menu allows activation/deac-tivation of two options:Playback o f t h e fi r s t 7 s e c o n d s back ( a p p r o x . ) o f e a c h t r a c k o f t h e C D .
Random playback of the CD tracks.
This can be accessed in two ways:Either by pressing button EitherOand proceeding as for Scan-ning of RDS stations – the sub-menu for Audio Preferences.
Or, provided you are in CD source, by pressing onbutton L. You can then access the Audio menu.Note: If one of these options is active, it remains active for CD changer source.
Page 167 of 216
77
V O I C E C O M M A N D S
Yo u c a n o p e r a t e N av i d r i ve u s i n g y o u r voice.NaviDr ive lets you ac c ess c er tain func -tions by pronouncing the c or responding voice label:Using pre-recorded words and expres-sions, for example: “Radio”, “Help”.Using a label recorded by the user. T o a s s o c i a t e a v o i c e l a b e l t o a d i r e c t o r y fi l e , s e l e c t t h i s fi l e . R e c o r d a v o i c e l a b e l f o r t h i s fi l e ( e . g . “ O f fi c e” or “Home”).
