I N S T R U M E N T S a n d C O N T R O L S
"Foot on brake" The fl ashing of this warning
lamp on the display informs
you that you need to press
the brake pedal in order to
be able to start the engine on a ve-
hicle with the (6-speed) Electronic
Gearbox System, or to move out of
position P in the case of an automatic
gearbox.
It may also fl ash to prompt you to
brake when engaging reverse gear.
In the case of the Electronic Gearbox
System, this warning lamp fl ashes to
indicate overheating of the clutch if
you use the accelerator excessively
to hold the vehicle on an uphill slope.
Use the brake pedal instead.
Electric child lock
If lit, the child lock is activa ted.
This warning lamp is displayed
a few seconds after the func-
tion is activated. Deactivation warning lamps
If one of the following warning lamps
comes on, this confi rms that the
corresponding system has been
switched off intentionally.
Passenger's air bag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started.
A specifi c button, located on the
dashboard, permits deactivation of
the system. This is confi rmed by
continuous lighting of this warning
lamp and of the indicator lamp on
the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically. Warning lamps
Diesel engine pre-heating
Wait until this has gone out
before operating the starter.
The passenger's air bag system is put into service automatically
when the vehicle is started.
A specifi c control, located in the glove
box, permits deactivation of the system.
This is confi rmed by continuous lighting
of this warning lamp on the instrument
panel or a message on the NaviDrive
multifunction screen.
When the engine is running or the
vehicle is moving, the lighting of
one of the following warning lamps
indicates the occurrence of a fault
requiring action on the part of the
driver.
Any fault resulting in the displaying of
a warning lamp must be investigated
further by reading the associated mes-
sage on the multifunction screen.
Should you encounter any problems,
do not hesitate to contact a CITROËN
dealer.

26
I
I N S T R U M E N T S a n d C O N T R O L S Maximum coolant temperature If this comes on, it indicates
that the temperature in the
cooling system is too high.
Stop the vehicle as soon as
it is safe to do so.
Low fuel level When the tank is full, all the
bars are lit.
If the fuel low warning lamp
comes on accompanied by
an audible signal and a message on
the multifunction screen, there are
approximately 7 litres of fuel remain-
ing in the tank and the 2 or 3 bars
fl ash on the instrument panel.
When the last bar goes out, there
are approximately 2 litres of fuel re-
maining in the tank.
Lighting is associated
with the lighting of an-
other warning lamp:
Service If this comes on, it indi-
cates the occurrence
of a problem in one
of the systems which
does not have a spe-
cifi c warning lamp.
It is accompanied by a message on
the multifunction screen.
The warning lamp comes on tempo-
rarily in the case of minor faults.
In the case of major faults, the warning
lamp remains on until the operating
fault is rectifi ed. Contact a CITROËN
dealer as soon as possible. Braking
If this comes on, it indicates
the occurrence of a fault in
one of the braking systems:
- signifi cant drop in the fl uid level in the circuit,
-
electronic brake force distribution
(EBFD) faulty (simultaneous lighting
of the ABS warning lamp),
Stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Dynamic stability control
(ESP/ASR)
The ESP/ASR system is put
into service automatically
when the vehicle is started.
Unless the system has been de-
activated, if this warning lamp and
the indicator lamp on the button
come on continuously, this indi-
cates the occurrence of a fault in the
ESP/ASR system or in the hill start
assistance. Engine autodiagnostics system
If this comes on, it indicates
the occurrence of a fault in
the engine management
system.
If it fl ashes, it indicates the occur-
rence of a fault in the emission control
system.
Central alert
- punctured wheel,
- braking,
- coolant temperature,
Stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Anti-lock braking system (ABS) If this comes on, it indicates
the occurrence of a fault in
the anti-lock braking system.
However, this does not prevent op-
eration of the vehicle’s servo-assisted
braking system.

25
I
I N S T R U M E N T S a n d C O N T R O L S
"Foot on brake" The fl ashing of this warning
lamp on the display informs
you that you need to press
the brake pedal in order to
be able to start the engine on a ve-
hicle with the (6-speed) Electronic
Gearbox System, or to move out of
position P in the case of an automatic
gearbox.
It may also fl ash to prompt you to
brake when engaging reverse gear.
In the case of the Electronic Gearbox
System, this warning lamp fl ashes to
indicate overheating of the clutch if
you use the accelerator excessively
to hold the vehicle on an uphill slope.
Use the brake pedal instead.
Electric child lock
If lit, the child lock is activa ted.
This warning lamp is displayed
a few seconds after the func-
tion is activated. Deactivation warning lamps
If one of the following warning lamps
comes on, this confi rms that the
corresponding system has been
switched off intentionally.
Passenger's air bag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started.
A specifi c button, located on the
dashboard, permits deactivation of
the system. This is confi rmed by
continuous lighting of this warning
lamp and of the indicator lamp on
the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically. Warning lamps
Diesel engine pre-heating
Wait until this has gone out
before operating the starter.
The passenger's air bag system is put into service automatically
when the vehicle is started.
A specifi c control, located in the glove
box, permits deactivation of the system.
This is confi rmed by continuous lighting
of this warning lamp on the instrument
panel or a message on the NaviDrive
multifunction screen.
When the engine is running or the
vehicle is moving, the lighting of
one of the following warning lamps
indicates the occurrence of a fault
requiring action on the part of the
driver.
Any fault resulting in the displaying of
a warning lamp must be investigated
further by reading the associated mes-
sage on the multifunction screen.
Should you encounter any problems,
do not hesitate to contact a CITROËN
dealer.

25
I
I N S T R U M E N T S a n d C O N T R O L S
"Foot on brake" The fl ashing of this warning
lamp on the display informs
you that you need to press
the brake pedal in order to
be able to start the engine on a ve-
hicle with the (6-speed) Electronic
Gearbox System, or to move out of
position P in the case of an automatic
gearbox.
It may also fl ash to prompt you to
brake when engaging reverse gear.
In the case of the Electronic Gearbox
System, this warning lamp fl ashes to
indicate overheating of the clutch if
you use the accelerator excessively
to hold the vehicle on an uphill slope.
Use the brake pedal instead.
Electric child lock
If lit, the child lock is activa ted.
This warning lamp is displayed
a few seconds after the func-
tion is activated. Deactivation warning lamps
If one of the following warning lamps
comes on, this confi rms that the
corresponding system has been
switched off intentionally.
Passenger's air bag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started.
A specifi c button, located on the
dashboard, permits deactivation of
the system. This is confi rmed by
continuous lighting of this warning
lamp and of the indicator lamp on
the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically. Warning lamps
Diesel engine pre-heating
Wait until this has gone out
before operating the starter.
The passenger's air bag system is put into service automatically
when the vehicle is started.
A specifi c control, located in the glove
box, permits deactivation of the system.
This is confi rmed by continuous lighting
of this warning lamp on the instrument
panel or a message on the NaviDrive
multifunction screen.
When the engine is running or the
vehicle is moving, the lighting of
one of the following warning lamps
indicates the occurrence of a fault
requiring action on the part of the
driver.
Any fault resulting in the displaying of
a warning lamp must be investigated
further by reading the associated mes-
sage on the multifunction screen.
Should you encounter any problems,
do not hesitate to contact a CITROËN
dealer.

26
I
I N S T R U M E N T S a n d C O N T R O L S Maximum coolant temperature If this comes on, it indicates
that the temperature in the
cooling system is too high.
Stop the vehicle as soon as
it is safe to do so.
Low fuel level When the tank is full, all the
bars are lit.
If the fuel low warning lamp
comes on accompanied by
an audible signal and a message on
the multifunction screen, there are
approximately 7 litres of fuel remain-
ing in the tank and the 2 or 3 bars
fl ash on the instrument panel.
When the last bar goes out, there
are approximately 2 litres of fuel re-
maining in the tank.
Lighting is associated
with the lighting of an-
other warning lamp:
Service If this comes on, it indi-
cates the occurrence
of a problem in one
of the systems which
does not have a spe-
cifi c warning lamp.
It is accompanied by a message on
the multifunction screen.
The warning lamp comes on tempo-
rarily in the case of minor faults.
In the case of major faults, the warning
lamp remains on until the operating
fault is rectifi ed. Contact a CITROËN
dealer as soon as possible. Braking
If this comes on, it indicates
the occurrence of a fault in
one of the braking systems:
- signifi cant drop in the fl uid level in the circuit,
-
electronic brake force distribution
(EBFD) faulty (simultaneous lighting
of the ABS warning lamp),
Stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Dynamic stability control
(ESP/ASR)
The ESP/ASR system is put
into service automatically
when the vehicle is started.
Unless the system has been de-
activated, if this warning lamp and
the indicator lamp on the button
come on continuously, this indi-
cates the occurrence of a fault in the
ESP/ASR system or in the hill start
assistance. Engine autodiagnostics system
If this comes on, it indicates
the occurrence of a fault in
the engine management
system.
If it fl ashes, it indicates the occur-
rence of a fault in the emission control
system.
Central alert
- punctured wheel,
- braking,
- coolant temperature,
Stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Anti-lock braking system (ABS) If this comes on, it indicates
the occurrence of a fault in
the anti-lock braking system.
However, this does not prevent op-
eration of the vehicle’s servo-assisted
braking system.

45
III
C O M F O R T

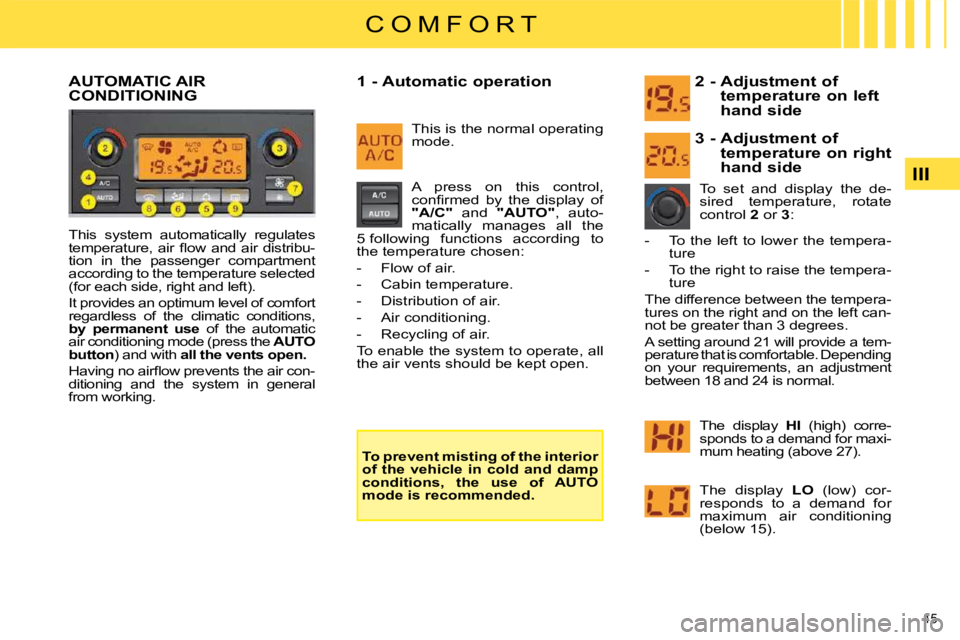

AUTOMATIC AIR CONDITIONING 1 - Automatic operation
This system automatically regulates
temperature, air fl ow and air distribu-
tion in the passenger compartment
according to the temperature selected
(for each side, right and left).
It provides an optimum level of comfort
regardless of the climatic conditions,

by permanent use of the automatic
air conditioning mode (press the AUTO
button ) and with all the vents open.
Having no airfl ow prevents the air con-
ditioning and the system in general
from working.

To prevent misting of the interior
of the vehicle in cold and damp
conditions, the use of AUTO
mode is recommended. 2 - Adjustment of
temperature on left
hand side
To set and display the de-
sired temperature, rotate
control 2 or 3 :
The display HI (high) corre-
sponds to a demand for maxi-
mum heating (above 27).
The display LO (low) cor-
responds to a demand for
maximum air conditioning
(below 15).
3 - Adjustment of
temperature on right
hand side
- To the left to lower the tempera- ture
- To the right to raise the tempera- ture
The difference between the tempera-
tures on the right and on the left can-
not be greater than 3 degrees.
A setting around 21 will provide a tem-
perature that is comfortable. Depending
on your requirements, an adjustment
between 18 and 24 is normal.
A press on this control,
confi rmed by the display of

"A/C" and "AUTO" , auto-
matically manages all the
5 following functions according to
the temperature chosen:
- Flow of air.
- Cabin temperature.
- Distribution of air.
- Air conditioning.
- Recycling of air.
To enable the system to operate, all
the air vents should be kept open. This is the normal operating
mode.

50
III
C O M F O R T
FRONT SEATS
1. Adjustment of the seat height and angle,
forwards-backwards 2. Adjustment of backrest
angle and lumbar support
The seats can also be adjusted elec-
trically for a short period:
- on opening one of the front doors,
- after switching off the ignition. Heated seats control
ELECTRIC ADJUSTMENTS
Raise or lower the front of
control
1 to raise or lower
the front of the seat base
(on driver’s seat).
Raise or lower the rear of
control 1 to raise or lower
the seat.
Action control 1 forwards or
rearwards to slide the seat
forwards/backwards. Push the top of control
2 for-
wards or rearwards to adjust
the backrest angle.
Raise or lower control 2 to
increase or decrease the
lumbar support.
With the engine running, the front
seats can be heated separately.

 Use the corresponding adjust-
ment wheel, placed on the inner
side of each front seat, to switch
on and select the level of heating
required:
0: Off.
1: Low.
2: Medium.
3: High.

51
III
C O M F O R T
Storing driving positions
System which takes into account the
electrical settings of the driver's seat
and exterior mirrors. It enables you to
store up to two positions using the but-
tons on the side of the driver's seat. Storing a position
Using buttons M/1/2

 Switch on the ignition.

 Adjust your seat and the exterior
mirrors.

 Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating
that the position has been stored.
Storing a new position cancels the
previous position. Recalling a stored position
Ignition on or engine running

 Briefl y press button 1 or 2 to re-
call the corresponding position.
An audible signal is heard indicating
the end of the adjustment.
When the ignition is on, after a few
consecutive position recalls, the
function will be deactivated until the
engine is started, to prevent dis-
charging of the battery.
Vehicle moving

 Press and hold button 1 or 2 until
the audible signal is heard indi-
cating the end of the adjustment.
Do not try to store a driving position
while driving.
