Rear screen Spare wheel and tools
O P E N I N G
Opening

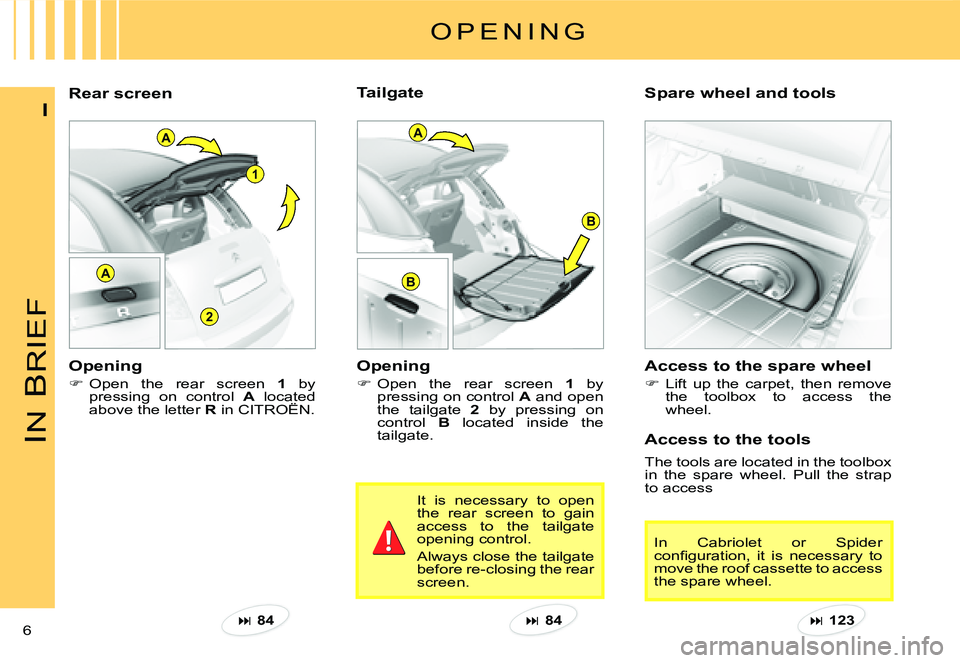

Open the rear screen 1 by pressing on control A and open the tailgate 2 by pressing on control B located inside the tailgate.
Access to the spare wheel
Lift up the carpet, then remove the toolbox to access the wheel.
Access to the tools
The tools are located in the toolbox in the spare wheel. Pull the strap to access
Opening
Open the rear screen 1 by pressing on control A located above the letter R in CITROËN.control
84 84 123
Tailgate
It is necessary to open the rear screen to gain access to the tailgate opening control.
Always close the tailgate before re-closing the rear screen.
In Cabriolet or Spider c o n fi g u r a t i o n , i t i s n e c e s s a r y t o move the roof cassette to access the spare wheel.
Page 122 of 144
1 2 3
C H A N G I N G A W H E E L
Access to the spare wheel
To access the spare wheel
Lift the boot carpet.
Remove the jack- holder to access the wheel.
Tools
The tools are to be found in a protective holder inside the spare wheel.Note: I n c a b r i o l e t o r s p i d e r c o n fi g u r a t i o n , i t i s n e c e s s a r y t o m o v e t h e r o o f cassette in order to access the spare wheel.
To reposition the spare wheel
Return the wheel to the boot, place the toolbox inside the wheel, then secure using the strap.
Tyre pressures
T h i s i s i n d i c a t e d o n t h e l a b e l o n t h e f r o n t d o o r p i l l a r . S e e “ V e h i c l e i d e n t i fi c a -tion” and “User Precautions”.
Advice
T h e w h e e l b o l t s a r e s p e c i fi c t o t h e t y p e o f w h e e l .
If the type of wheel is changed, check with your CITROËN dea ler that the wheel bolts are compatible with the new wheels.
T h e j a c k a n d a l l t h e t o o l s a r e d e s i g n e d s p e c i fi c a l l y f o r u s e o n your particular vehicle.
Do not use them for any other applications.
With a spare wheel, drive cautiously.
Page 124 of 144
VI
1 2 5
C H A N G I N G A W H E E L

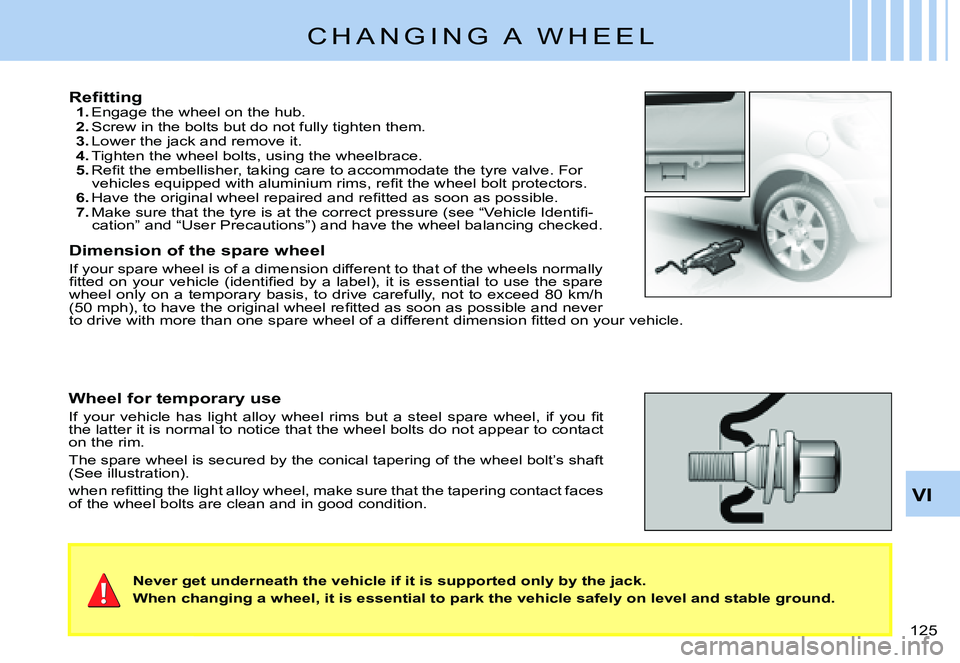

R e fi t t i n g1. Engage the wheel on the hub.2. Screw in the bolts but do not fully tighten them.3. Lower the jack and remove it.4. Tighten the wheel bolts, using the wheelbrace.5. R e fi t t h e e m b e l l i s h e r , t a k i n g c a r e t o a c c o m m o d a t e t h e t y r e v a l v e . F o r v e h i c l e s e q u i p p e d w i t h a l u m i n i u m r i m s , r e fi t t h e w h e e l b o l t p r o t e c t o r s .6. H a v e t h e o r i g i n a l w h e e l r e p a i r e d a n d r e fi t t e d a s s o o n a s p o s s i b l e .7. M a k e s u r e t h a t t h e t y r e i s a t t h e c o r r e c t p r e s s u r e ( s e e “ V e h i c l e I d e n t i fi -cation” and “User Precautions”) and have the wheel balancing checke d.
Dimension of the spare wheel
If your spare wheel is of a dimension different to that of the wheels normally fi t t e d o n y o u r v e h i c l e ( i d e n t i fi e d b y a l a b e l ) , i t i s e s s e n t i a l t o u s e t h e s p a r e w h e e l o n l y o n a t e m p o r a r y b a s i s , t o d r i v e c a r e f u l l y , n o t t o e x c e e d 8 0 k m / h ( 5 0 m p h ) , t o h a v e t h e o r i g i n a l w h e e l r e fi t t e d a s s o o n a s p o s s i b l e a n d n e v e r t o d r i v e w i t h m o r e t h a n o n e s p a r e w h e e l o f a d i f f e r e n t d i m e n s i o n fi t t e d o n y o u r v e h i c l e .
Never get underneath the vehicle if it is supported only by the jack.
When changing a wheel, it is essential to park the vehicle safely on level and stable ground.
Wheel for temporary use
I f y o u r v e h i c l e h a s l i g h t a l l o y w h e e l r i m s b u t a s t e e l s p a r e w h e e l , i f y o u fi t the latter it is normal to notice that the wheel bolts do not appear to contact on the rim.
The spare wheel is secured by the conical tapering of the whe el bolt’s shaft (See illustration).
w h e n r e fi t t i n g t h e l i g h t a l l o y w h e e l , m a k e s u r e t h a t t h e t a p e r i n g c o n t a c t f a c e s of the wheel bolts are clean and in good condition.
Page 125 of 144
1 2 6
T O W I N G – L I F T I N G

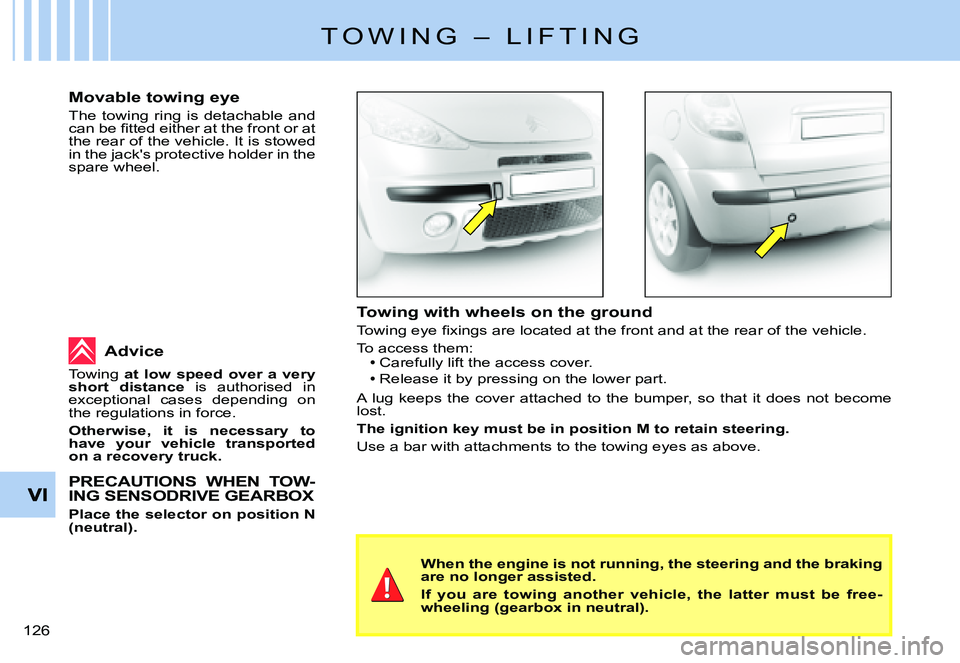

Towing with wheels on the ground
T o w i n g e y e fi x i n g s a r e l o c a t e d a t t h e f r o n t a n d a t t h e r e a r o f t h e v e h i c l e .
To access them:Carefully lift the access cover.Release it by pressing on the lower part.
A lug keeps the cover attached to the bumper, so that it do es not become lost.
The ignition key must be in position M to retain steering.
Use a bar with attachments to the towing eyes as above.
Movable towing eye
The towing ring is detachable and c a n b e fi t t e d e i t h e r a t t h e f r o n t o r a t the rear of the vehicle. It is stowed in the jack's protective holder in the spare wheel.
When the engine is not running, the steering and the bra king are no longer assisted.
If you are towing another vehicle, the latter must be free-wheeling (gearbox in neutral).
Advice
Towing at low speed over a very short distance is authorised in exceptional cases depending on the regulations in force.
Otherwise, it is necessary to have your vehicle transported on a recovery truck.
PRECAUTIONS WHEN TOW-ING SENSODRIVE GEARBOX
Place the selector on position N (neutral).
