II
3 0
W A R N I N G L A M P S
These warning lamps may be accompanied by a message and/or a sound signal
Engine oil pressure
It comes on for a few sec-onds each time you switch on the ignition.
If this warning lamp comes on, engine running, it tells you that the oil pressure is low.
It is essential to stop the vehicle.
Contact a CITROËN dealer.
Coolant temperature warning lamp
It comes on for a few sec-onds each time you switch on the ignition.
If this warning lamp comes on, engine running, it tells you that the coolant temperature is rising abnormally.
It is essential to stop the vehicle.
Check the coolant level.
See “Levels”.
If the level is satisfactory, consult a CITROËN dealer.If the level is satisfactorythe level
Battery charge
This warning lamp should go out when the engine is running.
If it remains permanently on, con-tact a CITROËN dealer.If it remains permanently remains permanently
Warning lamp for park- i n g b r a k e , b r a k e fl u i d level and braking dis-tribution malfunction
With the engine running, the light-ing of this warning lamp indicates that the parking brake is on or not properly released, that the brake fl u i d l e v e l i s l o w o r t h a t t h e b r a k i n g system is malfunctioning.
If the warning lamp remains on even after you have released the parking brake, stop immediately and contact a CITROËN dealer.parking brake, stop immediately stop immediately
Driver's seat belt not fastened
This lamp comes on if the LH seat belt is not fastened when the ignition is switched on and while the vehicle is moving at up to a p p r o x . 2 0 k m / h ( 1 2 m p h ) . A b o v e a s p e e d o f 2 0 k m / h , t h e w a r n i n g l a m p fl a s h e s f o r a p p r o x i m a t e l y 1 2 0 s e c -onds. Then it remains on.
SERVICE
This warning lamp remains on for a serious fault. Consult a CITROËN dealer as soon as possible.
This warning lamp remains on only for a short time for faults that are minor. Contact a CITROËN dealer if necessary.
To learn the origin of the corre-sponding alert, refer to the log of alerts (See chapter “Displays Aand C” to chapter “Multifunction displays”).
Fuel low
It comes on for a few sec-onds each time you switch on the ignition.
If the fuel low warning lamp comes on, there remain approx. 4 to 6litres of fuel in the tank.
Depollution system
It remains on until you start the engine.
I f t h i s w a r n i n g l a m p fl a s h e s o r lights up while you are driving, this indicates a problem with the depol-lution system.
Consult a CITROËN dealer as soon as possible.
Page 31 of 144
II
3 2
M A I N T E N A N C E I N D I C A T O R
It informs you when the next routine service is due in accordance with the vehicle servicing schedule in the Maintenance Guide. This information is dependent on two p arameters: the mileage covered, and the time elapsed since the last visit.
Operation
On switching on the ignition, the maintenance indicator spanner appears in the display for several seconds. The mileage recorder display indicates how many miles remain to be travelled before the next service is due (in thousands and hundreds of miles).
Example: there remain up to the next service:
A few seconds after this, the engine oil level indicator is displayed, then the total mileage recorder resumes its normal role.
Operation if the distance to the next service is less than 1 000 km (600 miles)
Each time you switch on the igni- t i o n a n d f o r 5 s e c o n d s , t h e s p a n - n e r a n d t h e d i s t a n c e fl a s h .
Example: there remain up to the n e x t s e r v i c e : 5 0 0 k m ( 3 0 0 m i l e s ) . On switching on the ignition and for 5 s e c o n d s , t h e i n s t r u m e n t p a n e l indicates:
A few seconds after this, the engine oil level indicator is displayed, then the total mileage recorder resumes its normal role and the mainte-nance symbol remains lit up. This is a warning to you that a service must be carried out at the earliest opportunity.
Operation if the service interval has been passed
Each time you switch on the igni-tion, the maintenance symbol and the distance covered (preceded by a minus) beyond the recom- m e n d e d i n t e r v a l fl a s h .
Example: You have exceeded t h e s e r v i c e i n t e r v a l b y 3 0 0 k m ( 3 0 0 m i l e s ) .
The routine service on your vehi-cle needs to be carried as soon as possible.
A few seconds after this, the engine oil level indicator is displayed, then the total mileage recorder resumes its normal role and the mainte-nance symbol remains lit up.
Page 65 of 144
A
B
III
6 6
Locking from the inside
A press on the control A operates the electric central locking and unlocking, provided all the doors are closed.
It is still possible to open the doors from the inside.
If one of the doors, or the rear screen or the tailgate, is open or not properly closed, then the cen-tral locking does not operate.
The warning lamp associated with the control A s i g n a l s 3 s t a t u s e s :A l t fl a s h e s w h e n t h e i g n i t i o n k e y i s i n t h e s t o p p o s i t i o n o r w h e n t h e k e y i s n o t detected and the doors are locked. I t l i g h t s u p w h e n t h e i g n i t i o n k e y i s i n t h e “ a c c e s s o r i e s ” p o s i t i o n o r “ i g n i t i o n + engine running” or starter position and if the door s are locked.
It goes out when the doors are not locked.Note: Control A is inactive if the vehicle has been locked using t he remote control or the key.
Anti-theft
A s s o o n a s t h e v e h i c l e r e a c h e s a s p e e d o f a r o u n d 1 0 k m / h ( a p p r o x . 6 m p h ) , t h e rear screen and the tailgate lock automatically. The rear screen and the tailgate unlock when a door is opened or when you press the locking/unlocking button.
Anti-theft protection
On starting the vehicle, the system automatically locks the doors as soon as y o u r e a c h a p p r o x i m a t e l y 1 0 k m / h ( a p p r o x . 6 m p h ) .Note: If a door has been opened, this will lock again aut omatically when the vehicle reaches approx. 10 km/h (approx. 6 mph).
Activation / Deactivation of the function
After switching on the ignition, give a long press on the central unlocking button until a message is displayed.
Manual operation (Emergency mode)
It is possible to lock the vehicle’s doors, in the event of an electrical malfunction, by actioning control Bon each door.
With the door open, insert for example the end of a key into the cavity and turn.
Then close the door.
After a repair, normal functioning resumes by means of the unlock-ing control A, the remote control or the key used in the driver’s door.
If you decide to drive with the doors locked, remember that in the event of an accident t h i s r e n d e r s a c c e s s more difficult for the emergency services.
A C C E S S
A N T I - T H E F T A N D A N T I - I N T R U S I O N P R O T E C T I O N
Page 77 of 144
A
4
III
7 7

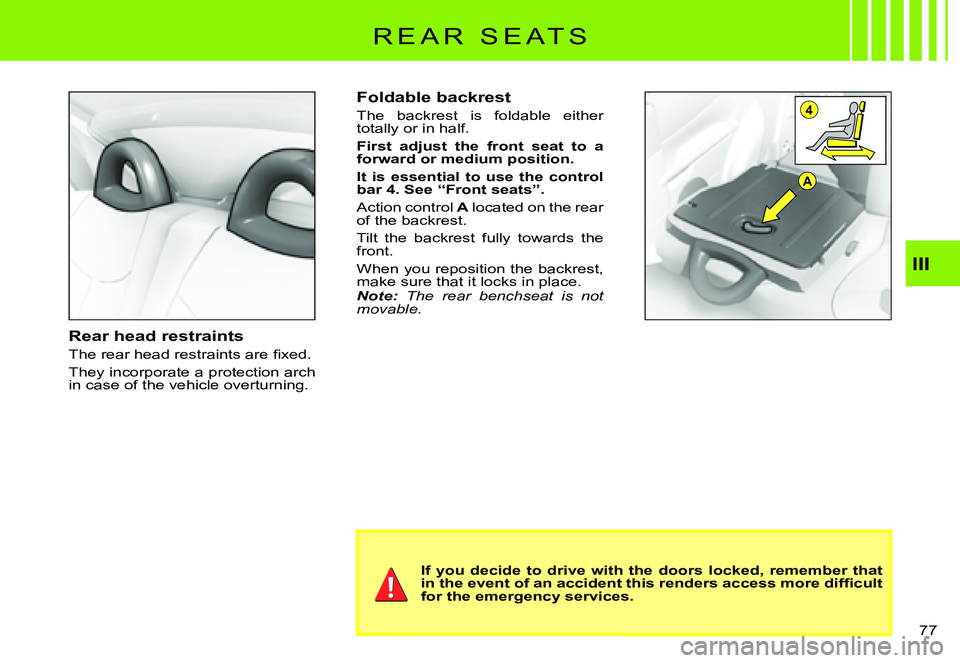

R E A R S E A T S
Rear head restraints
T h e r e a r h e a d r e s t r a i n t s a r e fi x e d .
They incorporate a protection arch in case of the vehicle overturning.
Foldable backrest
The backrest is foldable either totally or in half.
First adjust the front seat to a forward or medium position.
It is essential to use the control bar 4. See “Front seats”.
Action control A located on the rear of the backrest.
Tilt the backrest fully towards the front.
When you reposition the backrest, make sure that it locks in place.Note: The rear benchseat is not movable.
If you decide to drive with the doors locked, remember that i n t h e e v e n t o f a n a c c i d e n t t h i s r e n d e r s a c c e s s m o r e d i f fi c u l t for the emergency services.
