M U L T I F U N C T I O N D I S P L A Y
D I S P L A Y A
The driver is recommended not to concern himself with the display controls while driving.1. Time.2. Date - Display zone.3. Outside temperature.
When the outside temperature i s b e t w e e n + 3 ° C a n d – 3 ° C , t h e t e m p e r a t u r e d i s p l a y fl a s h e s ( r i s k of ice).Note: The outside temperature displayed may be higher than the actual temperature if the vehicle is stationary in bright sunlight.
Remark: The display of certain types of information is sometimes scrolled and sometimes alter-nated.
ControlsA. Access to the “Main menu” of the display.B. Scroll through display menus.C. V a l i d a t i o n a n d S e l e c t i o n i n t h e menus, of the function chosen o r v a l u e m o d i fi e d .D. Cancellation of the operation or return to the previous display.E. Selection of the type of infor-mation displayed in zone 2(date, radio/CD and trip com-puter).E. In the Menus, choice of acti-vation/deactivation of your functions and choice of your adjustments.
Main Menu
By pressing control A then B, you have access to the following func-tions:
Radio-CD (See radio-CD hand-book).
V e h i c l e c o n fi g u r a t i o n, to acti-vate/deactivate:The automatic guide-me-home lighting.Automatic lighting of head-lamps.Options, to display the alerts.
Display adjustments, to adjust the date and time on the dis-play.
Languages, to select the dis-play language.Units, to access the choices of units of Temperature and Fuel Consumption.
-
-
D
A
C
B
E
EDCB
AE
II
3 7
M U L T I F U N C T I O N D I S P L A Y
D I S P L A Y A
To choose the language:Press button A.
Using B, select the sub-menu f o r L a n g u a g e s . C o n fi r m y o u r choice with a press on C.By presses on E, select the lan-guage of your choice.
Then please wait for the display to disappear.
To choose units:Press button A.Using B, select the sub-menu f o r U n i t s . C o n fi r m y o u r c h o i c e with a press on C.
Using B, select the unit you wish to modify (Temperature or Consumption).
V i a p r e s s e s o n E, select the unit of your choice.Then please wait for the display to disappear.Note: This choice concerns all the types of information (fuel con-sumption, speed, etc.) that appear on the displays.
To display the Log of Alerts:Press button A.
Using B, select the sub-menu f o r o p t i o n s . C o n fi r m y o u r c h o i c e with a press on C.Note: You can cancel the start of the display by selecting E to aban-Edon, validate with a press on C.
The alerts that have previously been signalled to you but not resolved, are recalled to you in a scroll.
To delete the display of an alert, press D.
To adjust the date and the time:Press button A.Using B, select the sub-menu for Display Adjustments, then c o n fi r m w i t h a p r e s s o n C.
Using B, select what you wish to modify: Day, month, year, hour, minutes and display mode.
Make your adjustment by presses on E. You can continue your adjustments, selecting fur-ther parameters by pressing B. W h e n y o u h a v e fi n i s h e d y o u r adjustments, simply wait for the display to disappear.
II
4 3

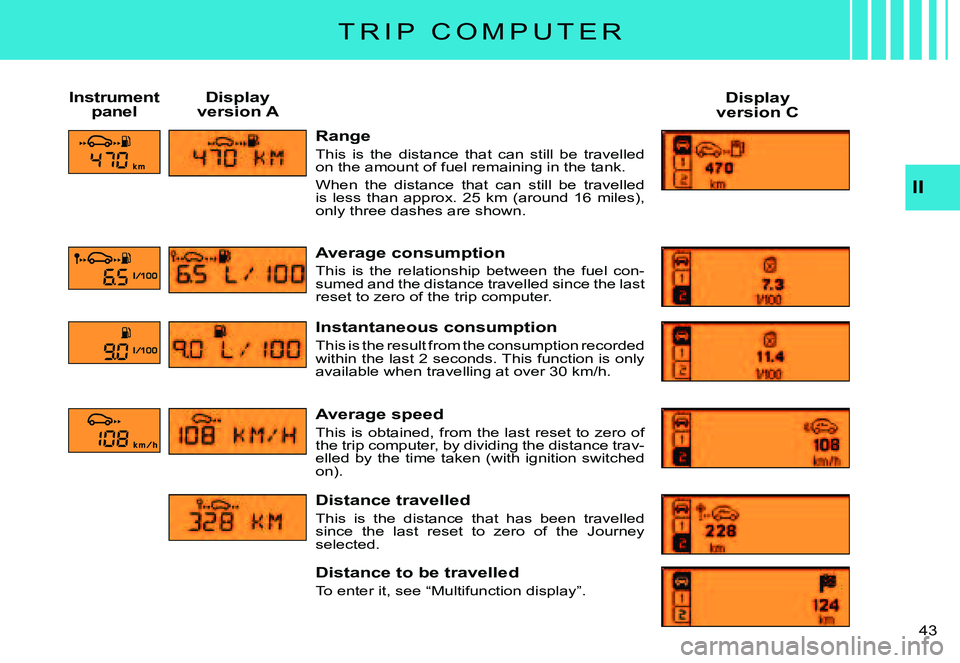

Range
This is the distance that can still be travelled on the amount of fuel remaining in the tank.
When the distance that can still be travelled i s l e s s t h a n a p p r o x . 2 5 k m ( a r o u n d 1 6 m i l e s ) , only three dashes are shown.
Average consumption
This is the relationship between the fuel con-sumed and the distance travelled since the last reset to zero of the trip computer.
Instantaneous consumption
This is the result from the consumption recorded w i t h i n t h e l a s t 2 s e c o n d s . T h i s f u n c t i o n i s o n l y a v a i l a b l e w h e n t r a v e l l i n g a t o v e r 3 0 k m / h .
Average speed
This is obtained, from the last reset to zero of the trip computer, by dividing the distance trav-elled by the time taken (with ignition switched on).
Distance travelled
This is the distance that has been travelled s i n c e t h e l a s t r e s e t t o z e r o o f t h e J o u r n e y selected.
Distance to be travelled
To enter it, see “Multifunction display”.
Instrument panelDisplay version ADisplay version C
T R I P C O M P U T E R
