1 0 3

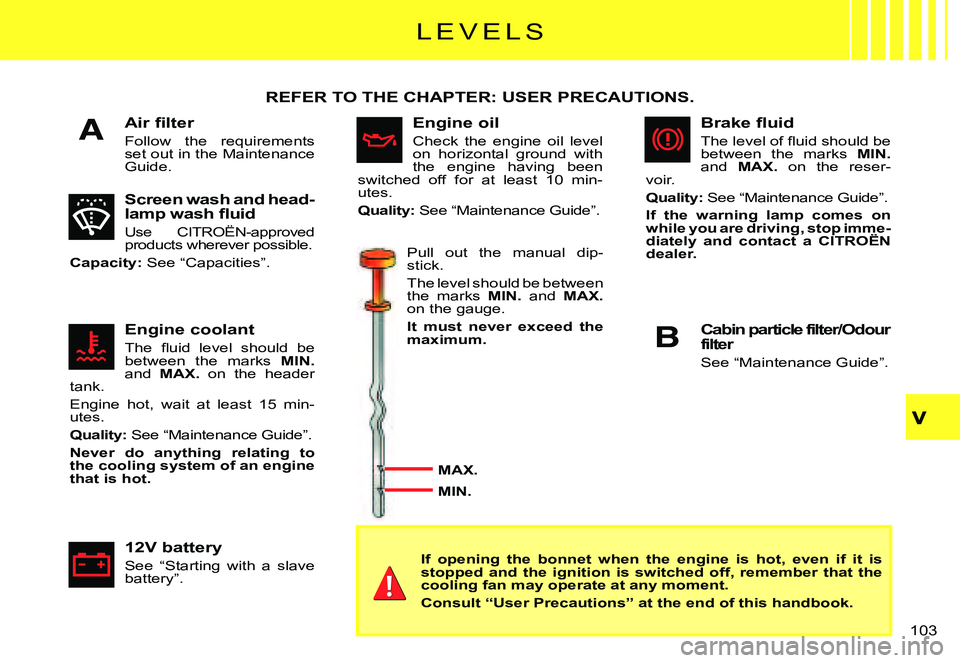

L E V E L S
A i r fi l t e r
Follow the requirements set out in the Maintenance Guide.
REFER TO THE CHAPTER: USER PRECAUTIONS.
Screen wash and head- l a m p w a s h fl u i d
Use CITROËN-approved products wherever possible.
Capacity: See “Capacities”.
Engine coolant
T h e fl u i d l e v e l s h o u l d b e between the marks MIN.and MAX. on the header tank.
E n g i n e h o t , w a i t a t l e a s t 1 5 m i n -utes.
Quality: See “Maintenance Guide”.
Never do anything relating to the cooling system of an engine that is hot.
12V battery
See “Starting with a slave battery”.
Engine oil
Check the engine oil level on horizontal ground with the engine having been s w i t c h e d o f f f o r a t l e a s t 1 0 m i n -utes.
Quality: See “Maintenance Guide”.
Pull out the manual dip-stick.
The level should be between the marks MIN. and MAX.on the gauge.
It must never exceed the maximum.
MAX.
MIN.
B r a k e fl u i d
T h e l e v e l o f fl u i d s h o u l d b e between the marks MIN.and MAX. on the reser-voir.
Quality: See “Maintenance Guide”.
If the warning lamp comes on while you are driving, stop imme-diately and contact a CITROËN while you are driving, stop imme-stop imme-
dealer.
Cabin particle filter/Odour filter
See “Maintenance Guide”.
If opening the bonnet when the engine is hot, even if it is stopped and the ignition is switched off, remember that the cooling fan may operate at any moment.
Consult “User Precautions” at the end of this handbook.
