[x] Cancel search: ECUPage 19 of 144
II
2 2
C O D E C A R D
A c o n fi d e n t i a l c a r d i s g i v e n t o t h e new owner when he takes delivery of his new vehicle.
This card bears a hidden access code for the use of the CITROËN dealer when servicing the elec-tronic immobiliser device.
Do not scratch the protective strip, the security of the immobi-liser system depends on the infor-mation below remaining covered.
Should the card be lost, your immobiliser system can no longer be considered secure.
In the event of a change of vehicle ownership, it is essential for the new owner to possess the CODE card.
Keep it in a safe place.
Never leave it in the vehicle.
The key number is on the label attached to the key.
Should you lose your key or remote control, a CITROËN dealer can supply replacements.
S h o u l d t h e c o n fi d e n t i a l c a r d b e c o m e l o s t , a C I T R O Ë N d e a l e r would have to undertake a major repair
Advice
Keep the code card bearing your personal electronic immobiliser numb er in a safe place (never in the vehicle).
I f a n y k e y m o d i fi c a t i o n s b e c o m e n e c e s s a r y ( a d d i t i o n , c a n c e l l a t i o n o r r e p l a c e -ment of the key), It is essential to take the c o n fi d e n t i a l c a r d t o g e t h e r w i t h all the keys to a CITROËN dealer.the key), It is
Page 58 of 144
5 9

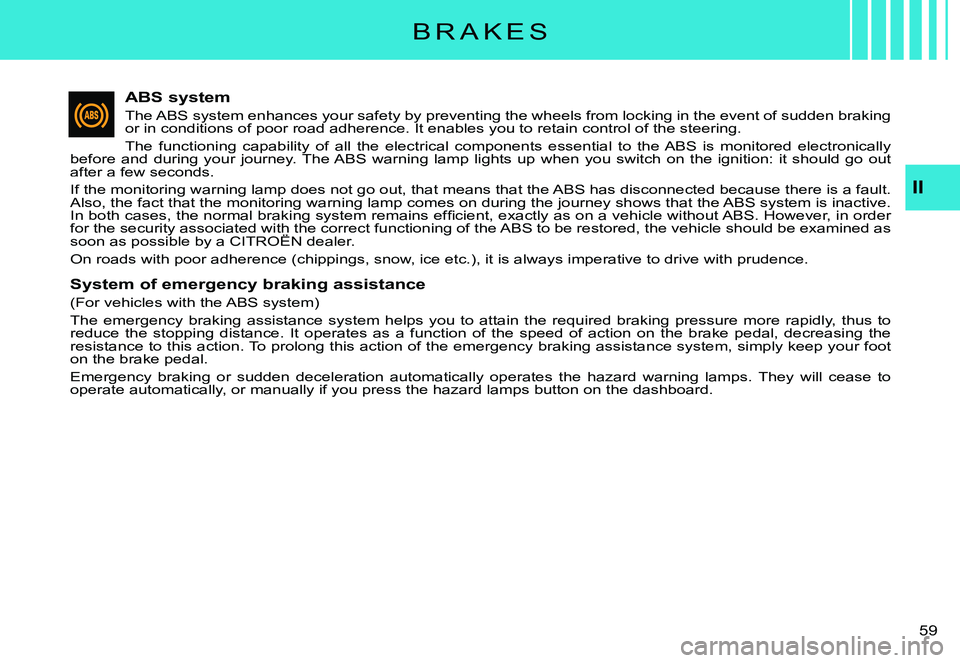

ABS system
The ABS system enhances your safety by preventing the wheels from locking in the event of sudden braking or in conditions of poor road adherence. It enables you to retain control of the steering.
The functioning capability of all the electrical components essential to the ABS is monitored electronically before and during your journey. The ABS warning lamp lights up when you switch on the ignition: it should go out after a few seconds.
If the monitoring warning lamp does not go out, that means that the ABS has disconnected because there is a fault. Also, the fact that the monitoring warning lamp comes on durin g the journey shows that the ABS system is inactive. I n b o t h c a s e s , t h e n o r m a l b r a k i n g s y s t e m r e m a i n s e f fi c i e n t , e x a c t l y a s o n a v e h i c l e w i t h o u t A B S . H o w e v e r , i n o r d e r for the security associated with the correct functioning of the ABS to be restored, the vehicle should be examined as soon as possible by a CITROËN dealer.for the security associated with the correct associated with the
On roads with poor adherence (chippings, snow, ice etc.), it is always imperative to drive with prudence.
System of emergency braking assistance
(For vehicles with the ABS system)
The emergency braking assistance system helps you to attain the requ ired braking pressure more rapidly, thus to reduce the stopping distance. It operates as a function of the speed of action on the brake pedal, decreasing the resistance to this action. To prolong this action of the emerg ency braking assistance system, simply keep your foot on the brake pedal.
Emergency braking or sudden deceleration automatically operates th e hazard warning lamps. They will cease to operate automatically, or manually if you press the hazard lamps button on the dashboard.
B R A K E S
Page 76 of 144
1
5
4
3
2
5
III
7 6
F R O N T S E A T S
Manual adjustments
Backrest angle
Use the control to adjust the backrest angle.
I t i s p o s s i b l e t o r e c l i n e t h e b a c k r e s t t o a n a n g l e o f 4 5 ° b y t i l t i n g it until it locks. Press the control to unlock.
Access to the rear seat posi-tions
To gain access to the rear seats or to exit the vehicle from there, tilt the control 5 towards the front and move the seat forwards.
Afterwards the front seat will revert to its initial position.
Make sure that the seat is securely locked in place.Seat height and rake adjustment
Raise the control and place the seat in the desired positio n.
Reach
Lift the control bar and adjust to the desired position.
Head restraint
To raise or lower the head restraint, pull it forwards at the same time as sliding it.
Adjustment is correct when the top of the head restraint is Adjustment level with the top of the head.
To remove it, bring it to the high position. Lift the tab with the aid of a coin and pull.
Should it be difficult to lock a front seat in place after folding back the rear bench-seat backrest, move the front seat forwards using the con-trol bar 4.
Page 79 of 144
III
7 9
C H I L D R E S T R A I N T S

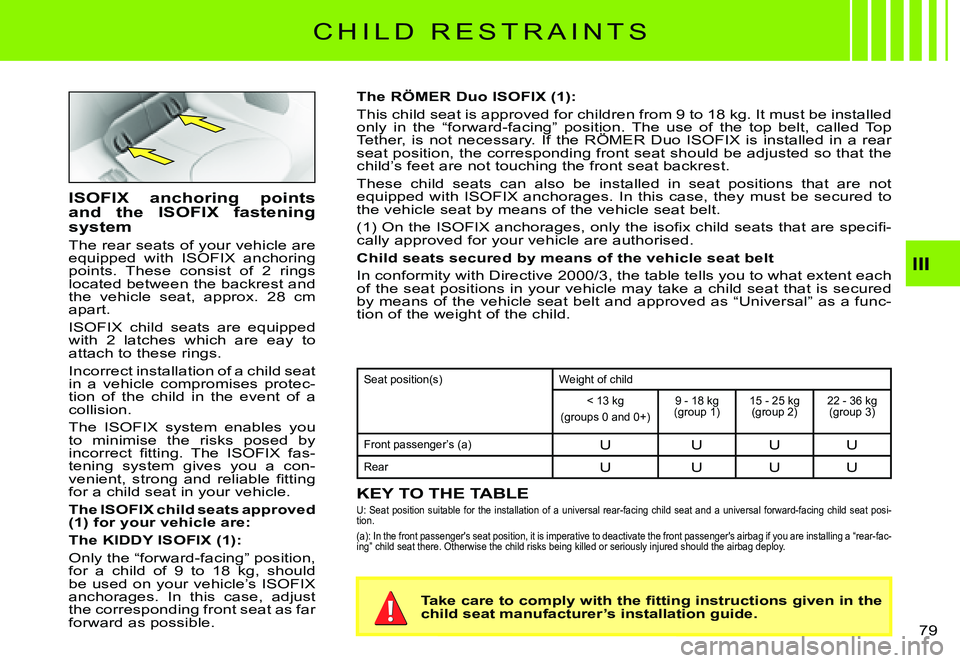

The RÖMER Duo ISOFIX (1):
T h i s c h i l d s e a t i s a p p r o v e d f o r c h i l d r e n f r o m 9 t o 1 8 k g . I t m u s t b e i n s t a l l e d only in the “forward-facing” position. The use of t he top belt, called Top Tether, is not necessary. If the RÖMER Duo ISOFIX i s installed in a rear only in the “forward-facing” position. The use of the top belt, called Top osition
seat position, the corresponding front seat should be adjusted so that the child’s feet are not touching the front seat backrest.
These child seats can also be installed in seat pos itions that are not equipped with ISOFIX anchorages. In this case, they must be secured to the vehicle seat by means of the vehicle seat belt.
( 1 ) O n t h e I S O F I X a n c h o r a g e s , o n l y t h e i s o fi x c h i l d s e a t s t h a t a r e s p e c i fi -cally approved for your vehicle are authorised.
Child seats secured by means of the vehicle seat be lt
I n c o n f o r m i t y w i t h D i r e c t i v e 2 0 0 0 / 3 , t h e t a b l e t e l l s y o u t o w h a t e x t e n t e a c h of the seat positions in your vehicle may take a ch ild seat that is secured by means of the vehicle seat belt and approved as “ Universal” as a func-tion of the weight of the child.
Seat position(s)Weight of child
< 1 3 k g ( g r o u p s 0 a n d 0 + ) 9 - 1 8 k g (group 1) 1 5 - 2 5 k g ( g r o u p 2 ) 2 2 - 3 6 k g ( g r o u p 3 )
Front passenger’s (a)UUUU
RearUUUU
KEY TO THE TABLEU: Seat position suitable for the installation of a universal rear-facing child seat and a universal forward-facing child sea t posi-tion.(a): In the front passenger's seat position, it is imperative to deactivate the front passenger's airbag if you are installing a “rear-fac-ing” child seat there. Otherwise the child risks being killed o r seriously injured should the airbag deploy.
T a k e c a r e t o c o m p l y w i t h t h e fi t t i n g i n s t r u c t i o n s g i v e n i n t h e child seat manufacturer’s installation guide.
ISOFIX anchoring points and the ISOFIX fastening system
The rear seats of your vehicle are equipped with ISOFIX anchoring p o i n t s . T h e s e c o n s i s t o f 2 r i n g s located between the backrest and t h e v e h i c l e s e a t , a p p r o x . 2 8 c m apart.
ISOFIX child seats are equipped w i t h 2 l a t c h e s w h i c h a r e e a y t o attach to these rings.
Incorrect installation of a child seat in a vehicle compromises protec-tion of the child in the event of a collision.
The ISOFIX system enables you to minimise the risks posed by i n c o r r e c t fi t t i n g . T h e I S O F I X f a s -tening system gives you a con- v e n i e n t , s t r o n g a n d r e l i a b l e fi t t i n g for a child seat in your vehicle.
The ISOFIX child seats approved (1) for your vehicle are:
The KIDDY ISOFIX (1):
Only the “forward-facing” position, f o r a c h i l d o f 9 t o 1 8 k g , s h o u l d be used on your vehicle’s ISOFIX anchorages. In this case, adjust the corresponding front seat as far forward as possible.
Page 85 of 144
A
B
III
8 5

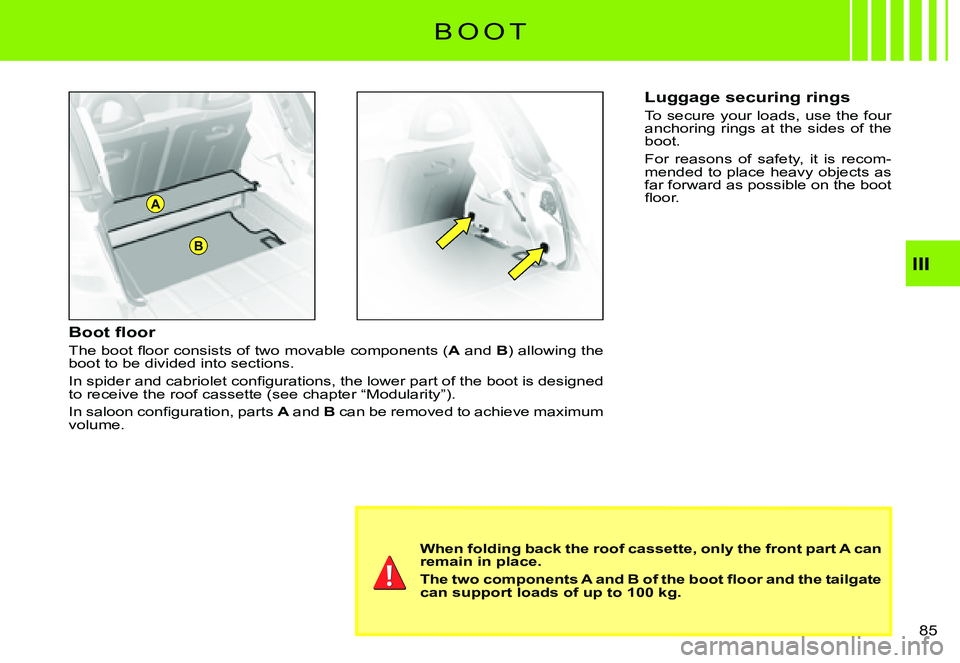

B o o t fl o o r
T h e b o o t fl o o r c o n s i s t s o f t w o m o v a b l e c o m p o n e n t s (A and B) allowing the boot to be divided into sections.
I n s p i d e r a n d c a b r i o l e t c o n fi g u r a t i o n s , t h e l o w e r p a r t o f t h e b o o t i s d e s i g n e d to receive the roof cassette (see chapter “Modularity”).
I n s a l o o n c o n fi g u r a t i o n , p a r t s A and B can be removed to achieve maximum volume.
Luggage securing rings
To secure your loads, use the four anchoring rings at the sides of the boot.
For reasons of safety, it is recom-mended to place heavy objects as far forward as possible on the boot fl o o r .
When folding back the roof cassette, only the front part A c an remain in place.
T h e t w o c o m p o n e n t s A a n d B o f t h e b o o t fl o o r a n d t h e t a i l g a t e can support loads of up to 100 kg.
B O O T
Page 88 of 144
IV
8 9
PAY ESPECIAL ATTENTION TO WHERE CHILDREN ARE WHEN OPERATING THE SUN ROOF
Always remove the ignition key when leaving the vehicle, even if for a short time.
In the event of anything being caught by the sun ro of closing, you must reverse the roof movement.
To do that, reverse the position of the control concerned.
When the driver is operating the sun roof, he or she must always make sure that the passengers are not preventing it from closing properly.
The driver must ensure that passengers use the sun roof control correctly.
If making repeated movements, you are advised to have the engine running in order to avoid discharging the battery.

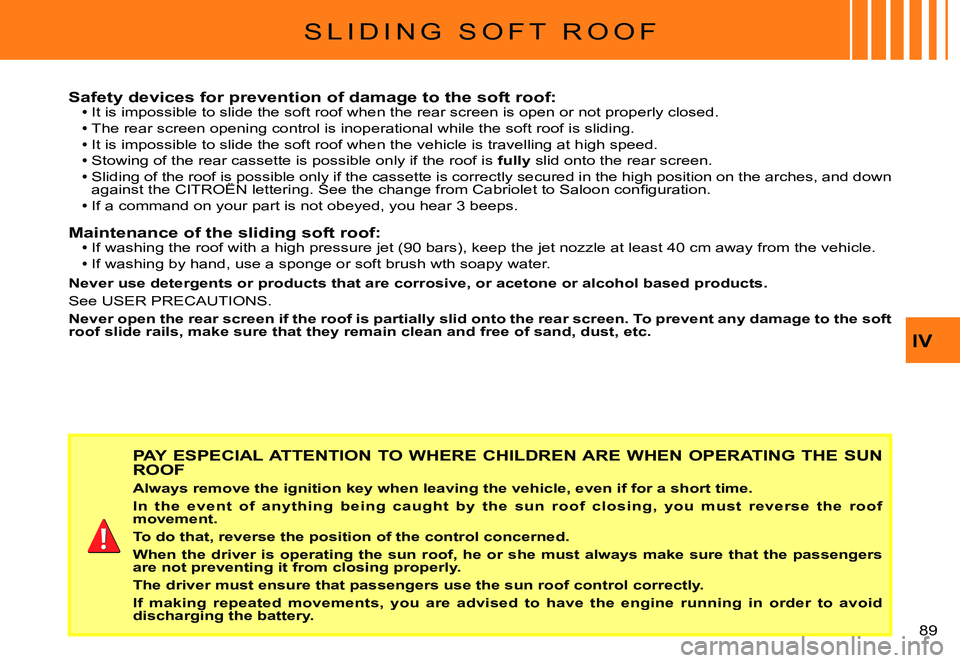

Safety devices for prevention of damage to the soft roof:It is impossible to slide the soft roof when the rear screen is open or not properly closed.
The rear screen opening control is inoperational while the so ft roof is sliding.It is impossible to slide the soft roof when the vehicle is travelling at high speed.
Stowing of the rear cassette is possible only if the roof is fully slid onto the rear screen.
Sliding of the roof is possible only if the cassette is correctly secured in the high position on the arches, and down a g a i n s t t h e C I T R O Ë N l e t t e r i n g . S e e t h e c h a n g e f r o m C a b r i o l e t t o S a l o o n c o n fi g u r a t i o n .Sliding of the roof is possible only if the cassette is correctly secured in the high position on roof is possible
I f a c o m m a n d o n y o u r p a r t i s n o t o b e y e d , y o u h e a r 3 b e e p s .
Maintenance of the sliding soft roof: I f w a s h i n g t h e r o o f w i t h a h i g h p r e s s u r e j e t ( 9 0 b a r s ) , k e e p t h e j e t n o z z l e a t l e a s t 4 0 c m a w a y f r o m t h e v e h i c l e .If washing by hand, use a sponge or soft brush wth soapy wate r.
Never use detergents or products that are corrosive, or acetone or alcohol based products.
See USER PRECAUTIONS.
Never open the rear screen if the roof is partially slid onto the rear screen. To prevent any damage to the soft roof slide rails, make sure that they remain clean and free of sand, dust, etc.
S L I D I N G S O F T R O O F
Page 95 of 144
A
IV
9 6
C A B R I O L E T S A L O O N
The telescopic handles for locking the arches should be fully retracted into their housings.

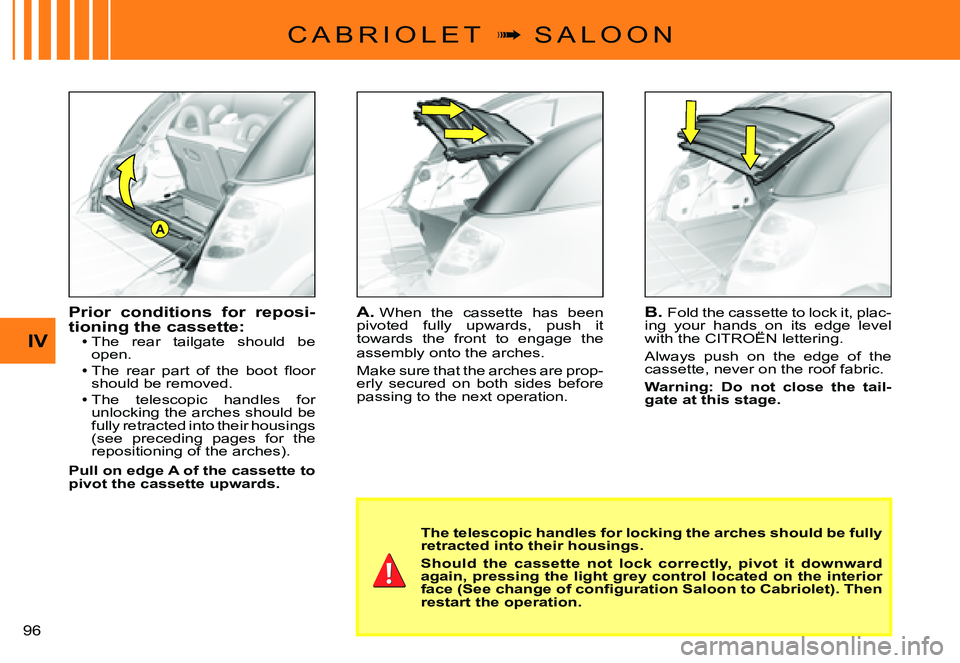

Should the cassette not lock correctly, pivot it downward again, pressing the light grey control located on the in terior f a c e ( S e e c h a n g e o f c o n fi g u r a t i o n S a l o o n t o C a b r i o l e t ) . T h e n restart the operation.
Prior conditions for reposi-tioning the cassette:The rear tailgate should be open. T h e r e a r p a r t o f t h e b o o t fl o o r should be removed.
The telescopic handles for unlocking the arches should be fully retracted into their housings (see preceding pages for the repositioning of the arches).
Pull on edge A of the cassette to pivot the cassette upwards.
A. When the cassette has been pivoted fully upwards, push it towards the front to engage the assembly onto the arches.
Make sure that the arches are prop-erly secured on both sides before passing to the next operation.
B. Fold the cassette to lock it, plac-ing your hands on its edge level with the CITROËN lettering.ing your hands on its edge hands on
Always push on the edge of the cassette, never on the roof fabric.
Warning: Do not close the tail-gate at this stage.
Page 97 of 144
1
IV
9 8
B O O T C O M P A R T M E N T C O V E R
This movable cover consists of the main section and two side covers that are secured on the cover’s inner face.
The main section enables the boot to be closed off in Cabriolet or Spi- d e r c o n fi g u r a t i o n .
The side covers the bases of the a r c h e s w h e n i n S p i d e r c o n fi g u r a -tion.A. Positioning the boot compart-ment cover:Place yourself at one sde of the vehicle.
Unlock and tilt the rear seat backrest.
Lift the boot cover on one side then remove it from the boot.
B. Tilt the boot cover as shown and place the pin 1 in its hous- i n g . T h e n fl e x t h e b o o t c o v e r to place the other pin in the opposite housing.
C. Engage the pins in their hous-ings by pulling the boot cover rearwards.Reposition the rear seat.
Note:The tailgate is locked automatically as soon as the vehicle reaches a speed of approx. 10 km/h (6 mph).
To gain access to the boot, vehicle stationary, unlock the vehicle either by opening a door or by using the remote control or the key.
